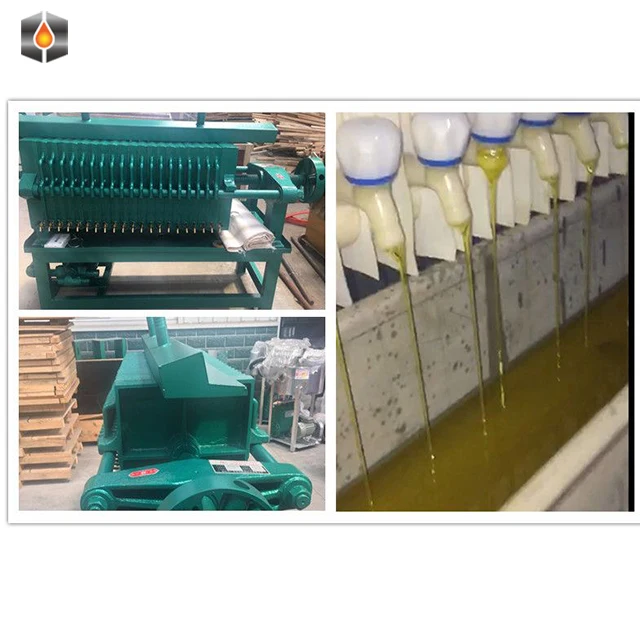

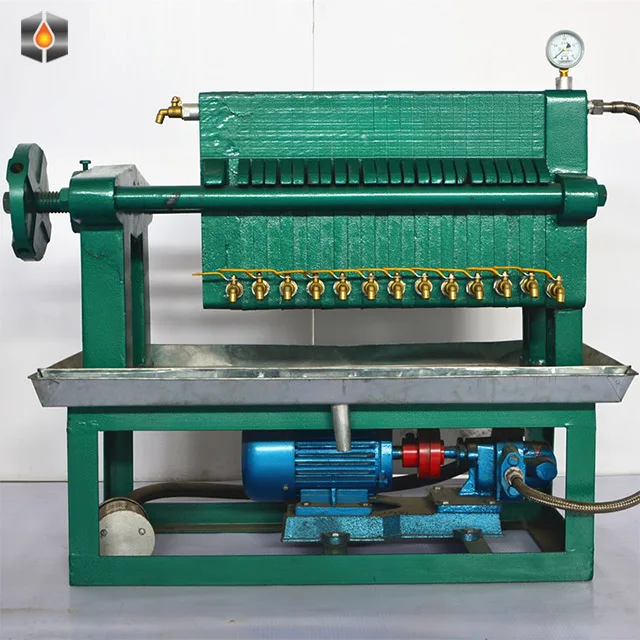

New small cooking oil filter machine /edible oil plate and frame filter press machine
This machine is used for filtering the crude oil pressed out by screw typeoil press and can be matched with oil press model 68 ,80 ,95 ,100 ,120 ,160 for combined operation .In the oil processing industry, plate and frame filter press for edible oil is used to separate solids and liquids from the crude oil for cooking and edible purpose. The serial products of frame typed oil filtering machine are ideal equipment for edible oil plant and individual oil pressing house .

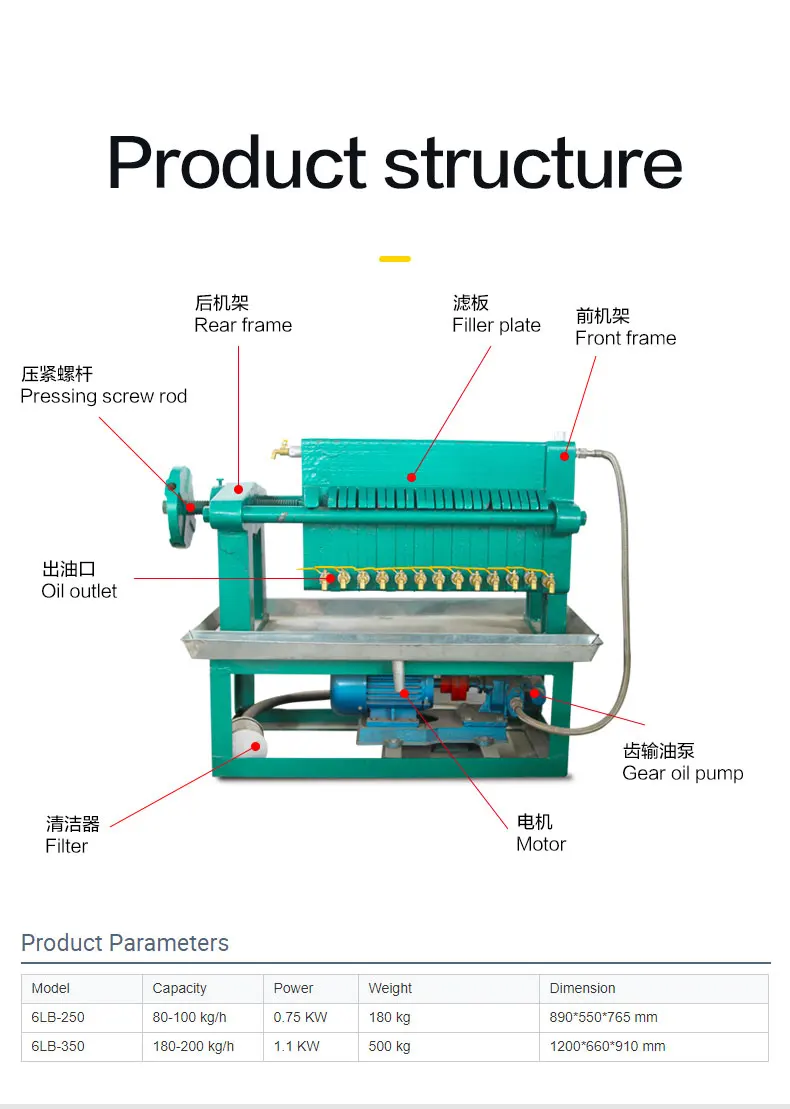

Product structure
The plate and frame filter press for edible oil is formed by filter boards and filter frames or filter boards rows (box-type).

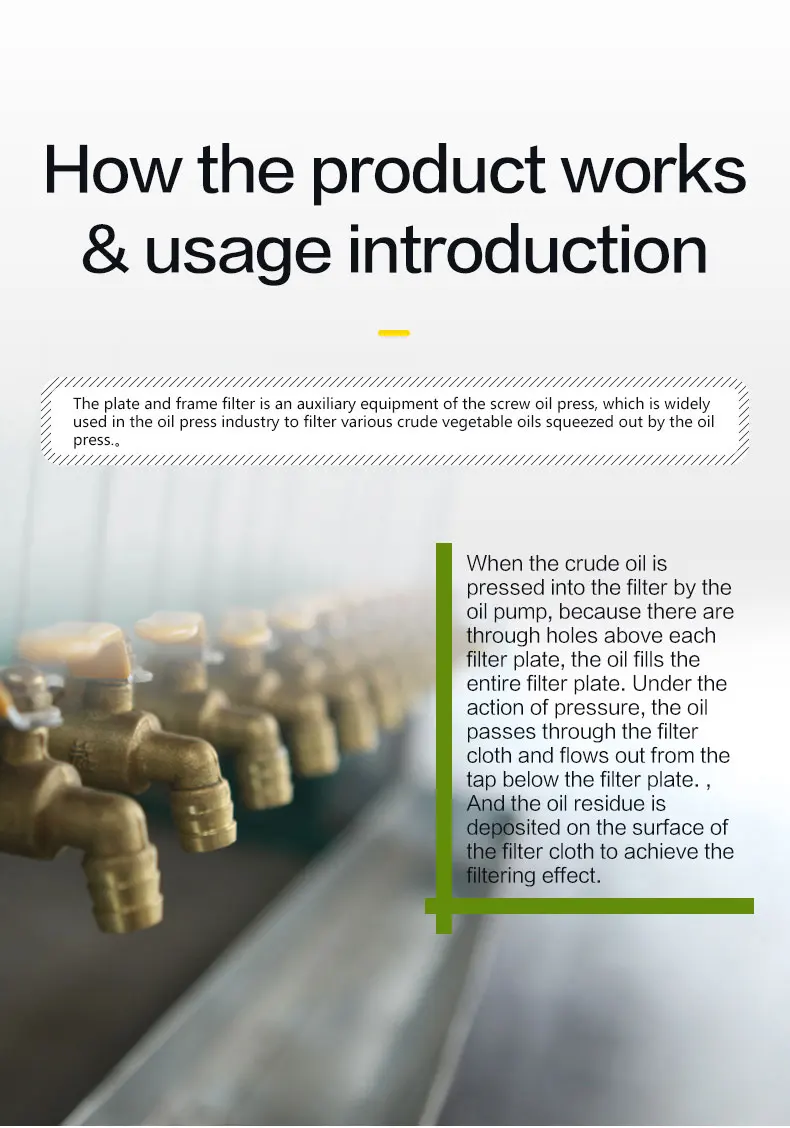

Under the function of conveying pump, it press the suspension liquid into filter rooms and through filter intermediaries (filter cloth, filter paper and filter membrane) to separate solid and liquid.
The plate and frame filter press for edible oil is formed by filter boards and filter frames or filter boards rows (box-type).
Under the function of conveying pump, it press the suspension liquid into filter rooms and through filter intermediaries (filter cloth, filter paper and filter membrane) to separate solid and liquid.
Product Details
Applactions
Function:

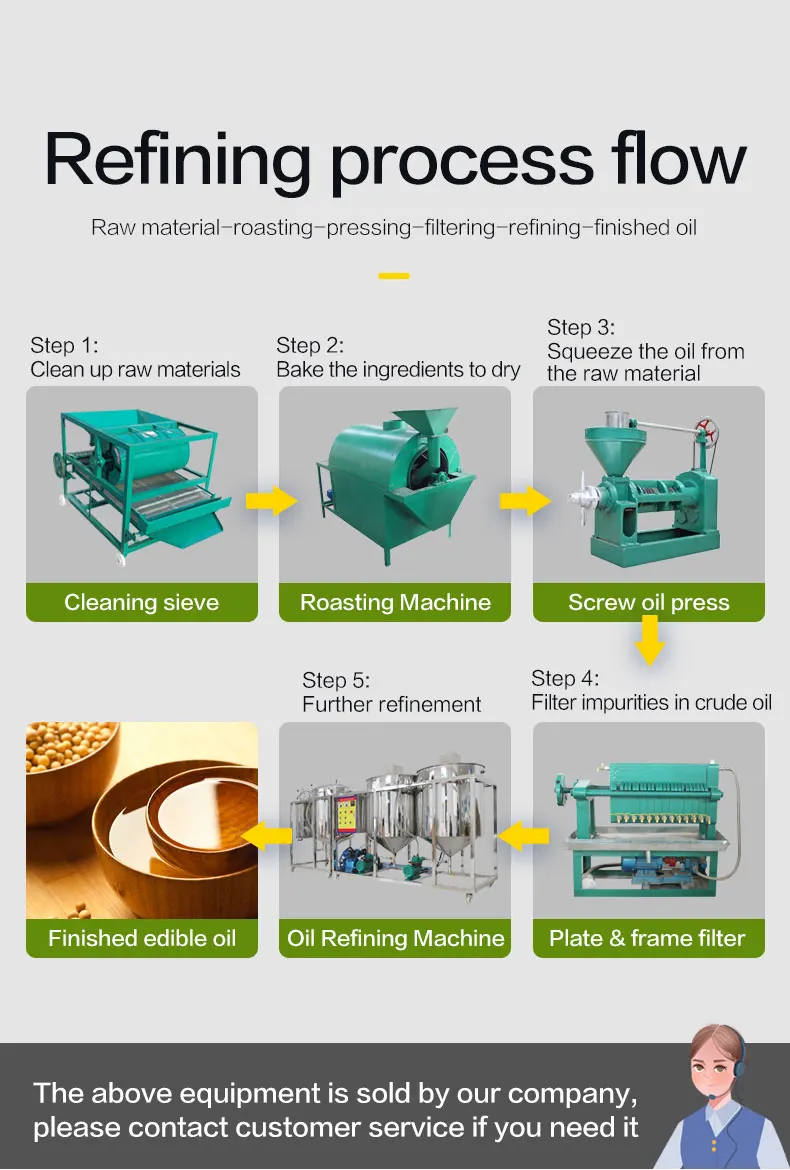

Filter and clean the crude oil firstly to remove most of the mechanical impurities before going to the oil refining process or get cooking oil directly.
Also, it is used in the oil refining process to remove impurities.
Filter and clean the crude oil firstly to remove most of the mechanical impurities before going to the oil refining process or get cooking oil directly.
Also, it is used in the oil refining process to remove impurities.
Operating instruction:
When plate and frame filter press for edible oil is working, all the pipe clips should be tightened to prevent the oil from leaking. Filtering cloth should be put between the filter plates, and then lightened by tension bolt to make sure no leakage exists. Under the normal operation, the oil will come out 2 or 3 minutes after starting the press. If no oil comes out, please stop the press or inspection that if the oil pipe is clogged up or not. Under the filter piate. The valve is mounted which will be used when some filtering cloth is broken or the oil looks dirt.
When plate and frame filter press for edible oil is working, all the pipe clips should be tightened to prevent the oil from leaking. Filtering cloth should be put between the filter plates, and then lightened by tension bolt to make sure no leakage exists. Under the normal operation, the oil will come out 2 or 3 minutes after starting the press. If no oil comes out, please stop the press or inspection that if the oil pipe is clogged up or not. Under the filter piate. The valve is mounted which will be used when some filtering cloth is broken or the oil looks dirt.
Product Parameters
Model | Capacity | Power | Weight | Dimension |
6LB-250 | 80-100 kg/h | 0.75 KW | 180 kg | 890*550*765 mm |
6LB-350 | 180-200 kg/h | 1.1 KW | 500 kg | 1200*660*910 mm |

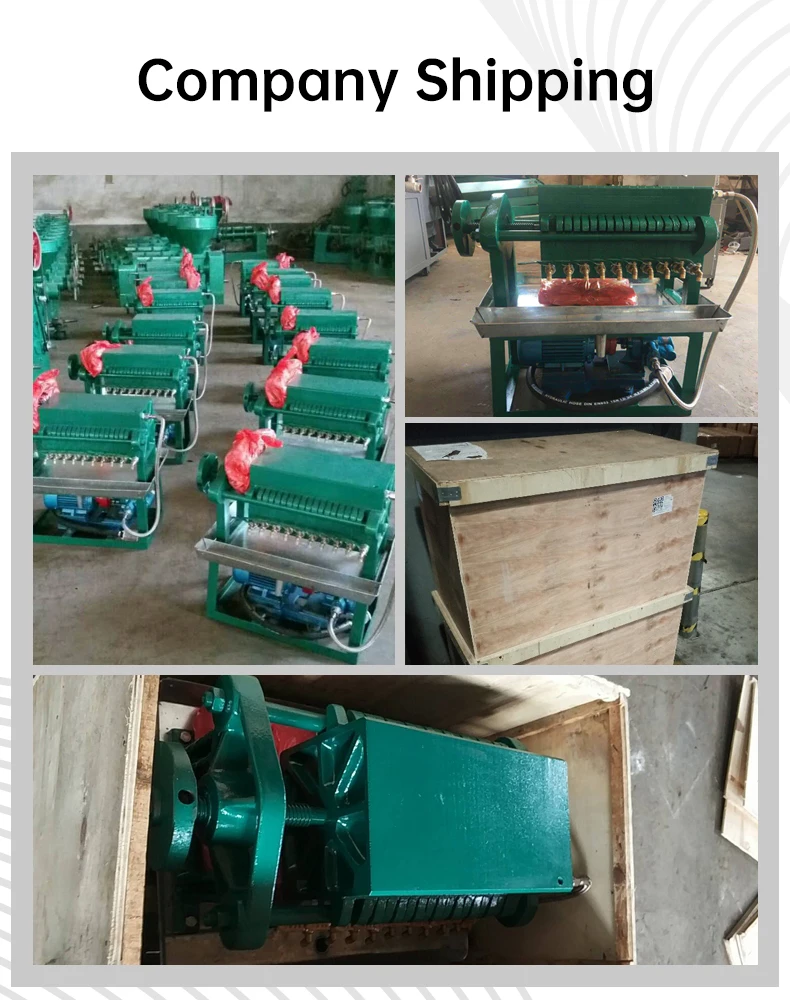

Packing & Delivery
Packing | ||
Size | To be determined | |
Weight | Depend on different models | |
Packaging Details | The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request. | |
Delivery | ||
Tool | Ship, express or Air | |
Packing | In containers | |
Shipping Details | The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you. | |
Our factory
Wuhan HDC is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
Certifications
Our service
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs risk and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
FAQ
Q1: What is the Warranty for the machines?
A1: 12 months free guanantee and life long standard paid service.
Q2: What is the Material?
A2: Carbon steel suitable for pressing.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.
Q5: How long will it take to receive my products?
A5: Generally, it will take about 5 days to make the machinery, 3-7 days to deliver it to
shipping port, and 10-45 days on sea transporting.
Q6: Is the machine suitable for different raw material ?
A6: Yes, but we recommend no more than 3 different types.
Q7: Where is your factory located?
A7: Zhengzhou, Henan Province.
Q8: How to ask quotation?
A8: Please note us what tpye of raw seeds , and your capacity per day, then send your inquiry below, click "send" now.
