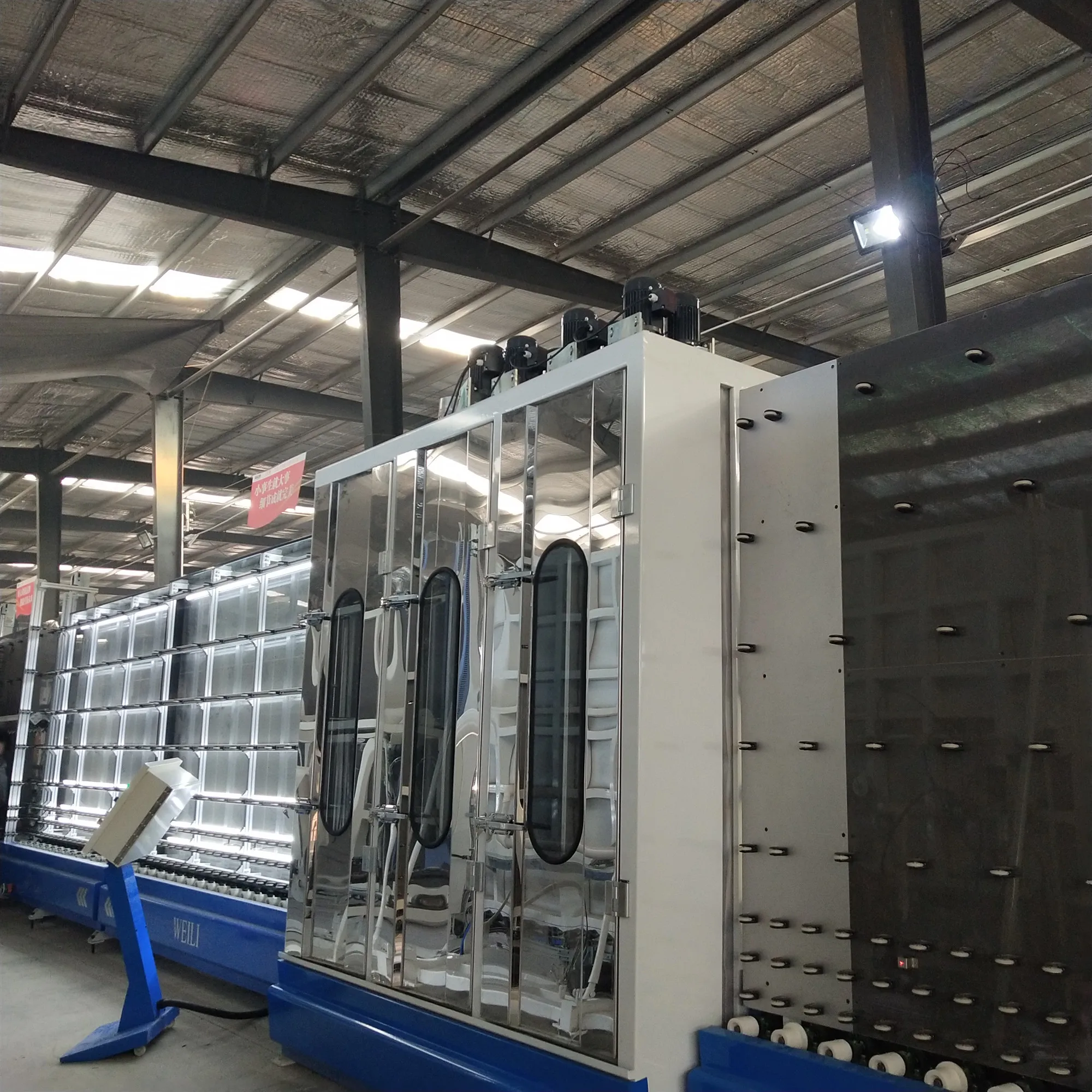

Fully Automatic CNC Vertical Insulating Glass Machine Insulating Glass Production Line with CE
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (62077000825):
Product Overview
Description
Product Description
Insulating Glass Production Line With Schneider PLC
Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Main Features :
1 PLC control system,work automatically.10.4-inch touch screen,convinient to operate.
2 Automatic LOW-E glass identefying system : identify whether it is coating glass or not.

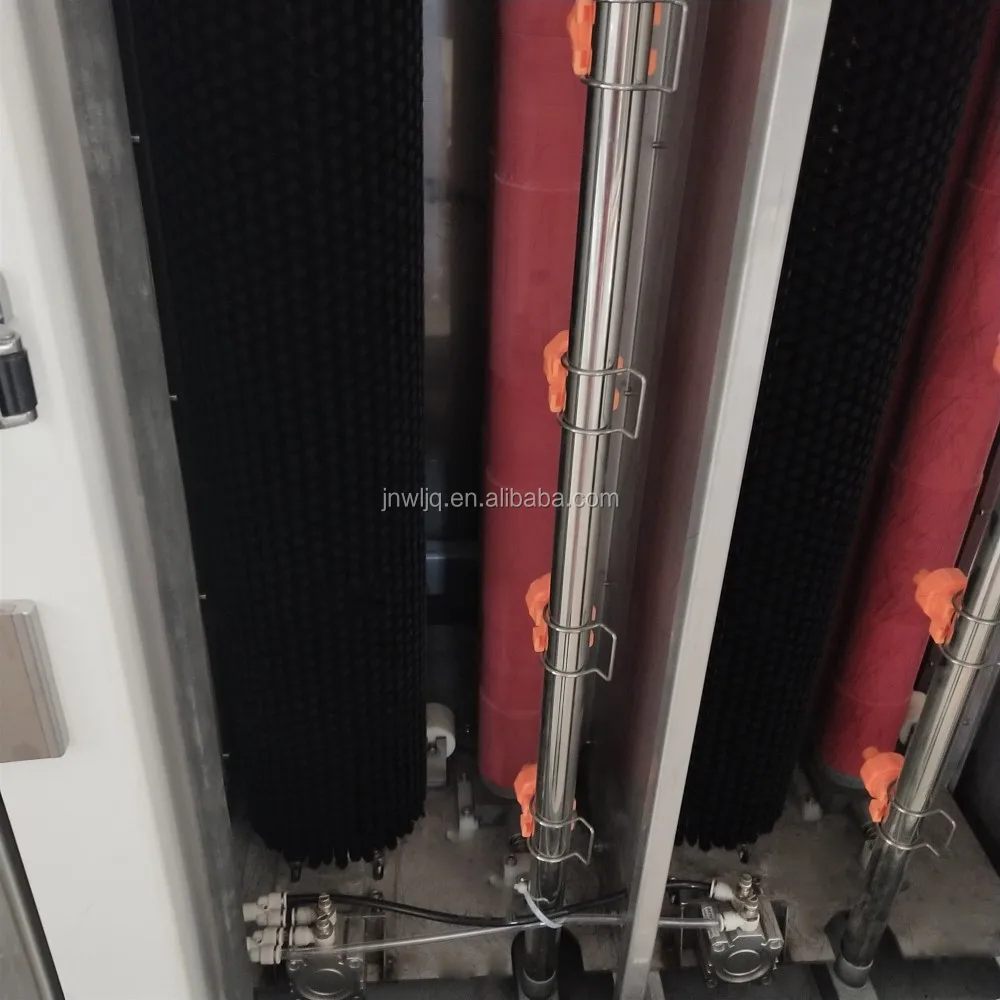

3 Three pairs of high temperature nylon brushes are driven separately by six asynchronous electric motors, and are movable, also can adjust the distence automatically according to the thickness of the glass.
4 SKF oil-free lubrication waterproof bearing avoid the oil molecular pollution to glass after cleaning.

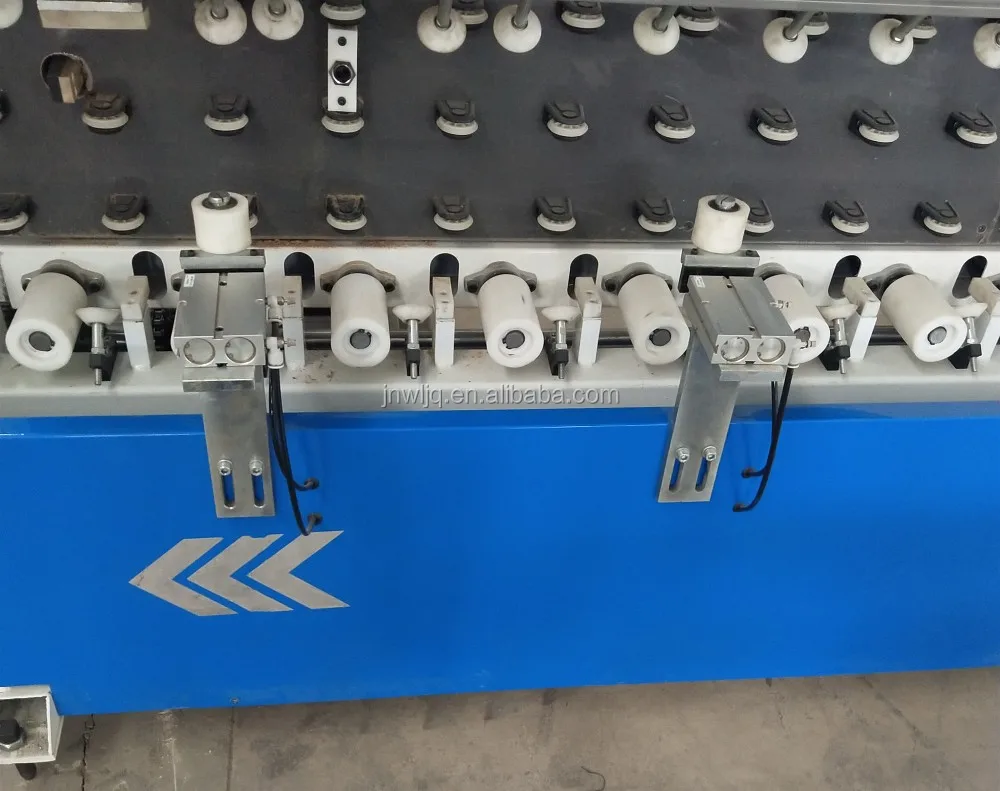

5 Adopts acid-proof, alkali-proof and anticorrossion solid delivery wheel. The distance between wheel is adjustable according to the thickness of glass.

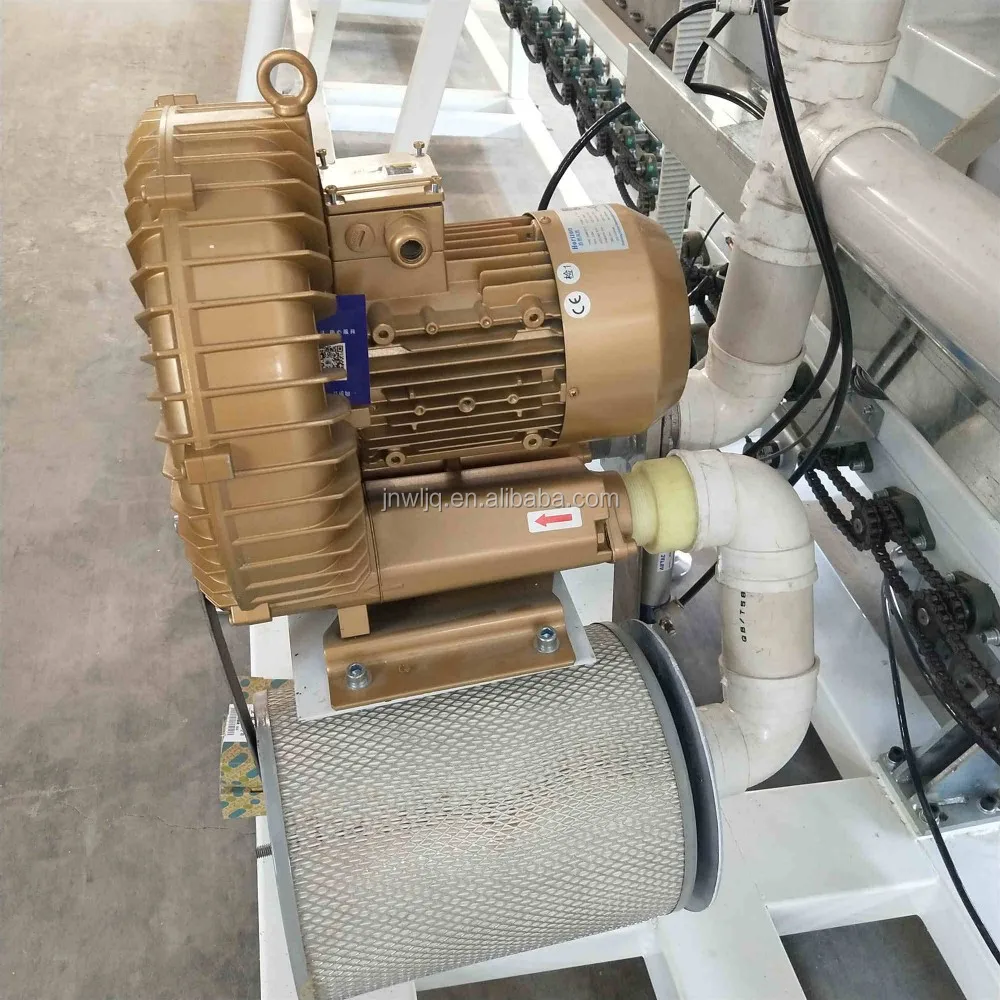

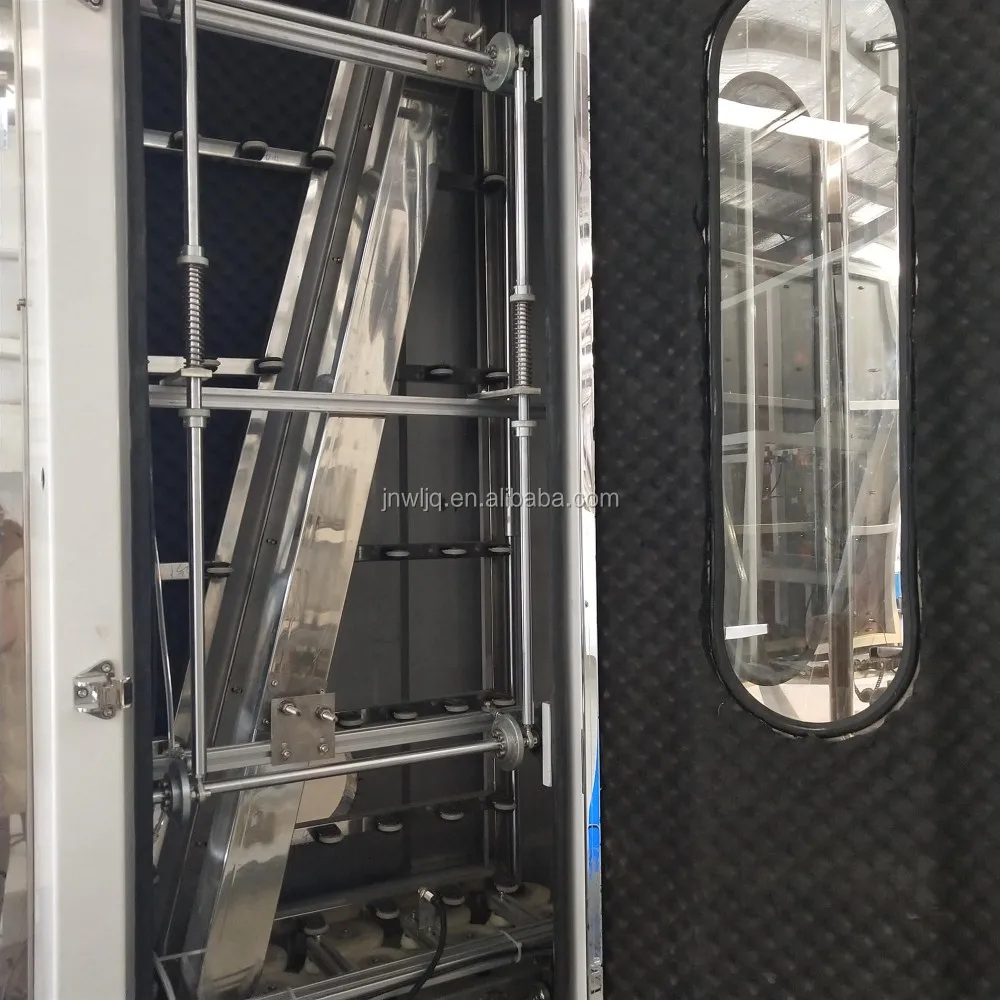

6 Glass drying section is equipped inclined rhombic air knife by NC bending process. Internal circulation air duct prevent from the wind pollution and save energy.
7 Adjusting the position of locating device by turning the digital device, simple and easy.
8 Outside assemble section: hydraulic motivation make the movement more stable. The up and down of locating frame is driven by variable frenquency motor and automatically inspect the height of glass.

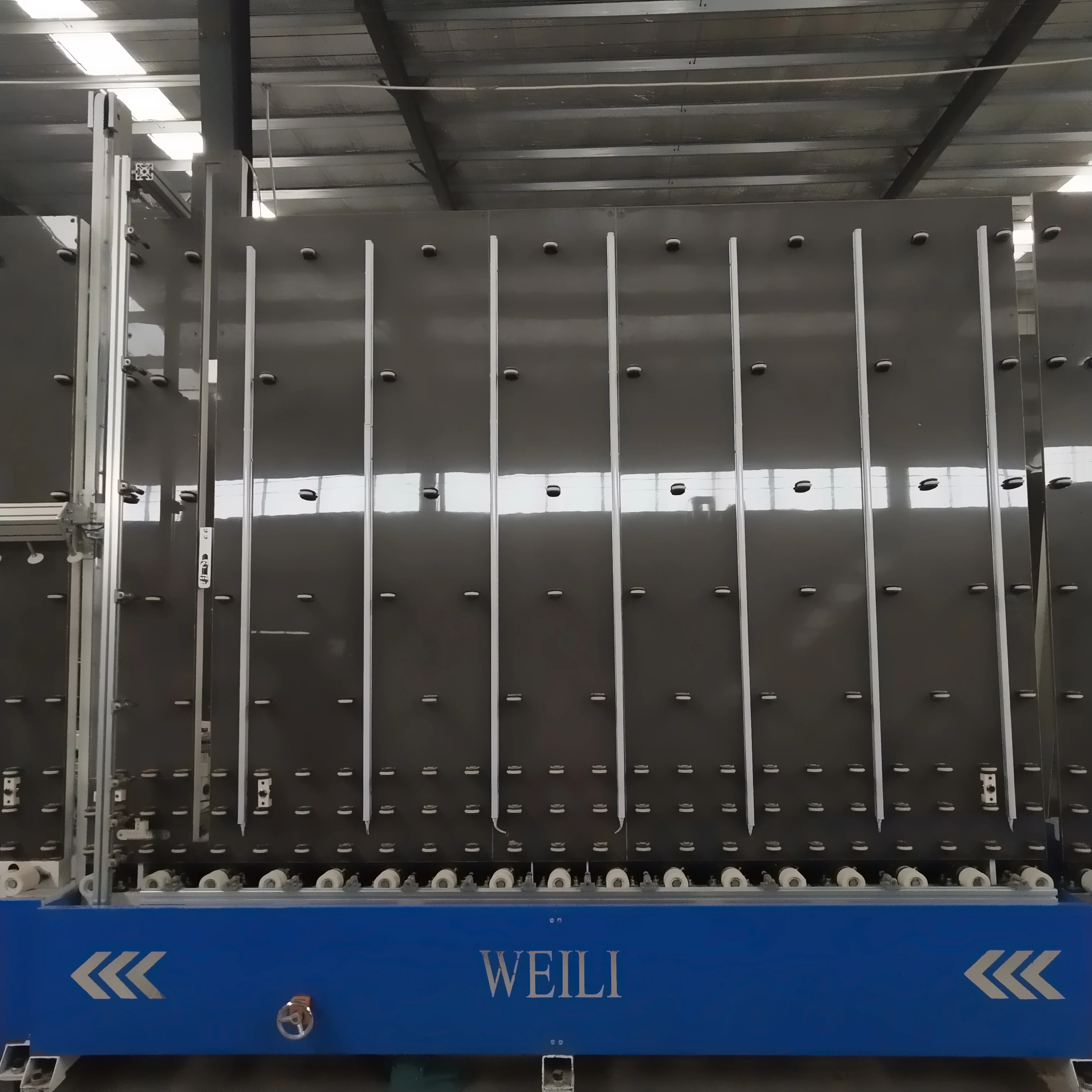

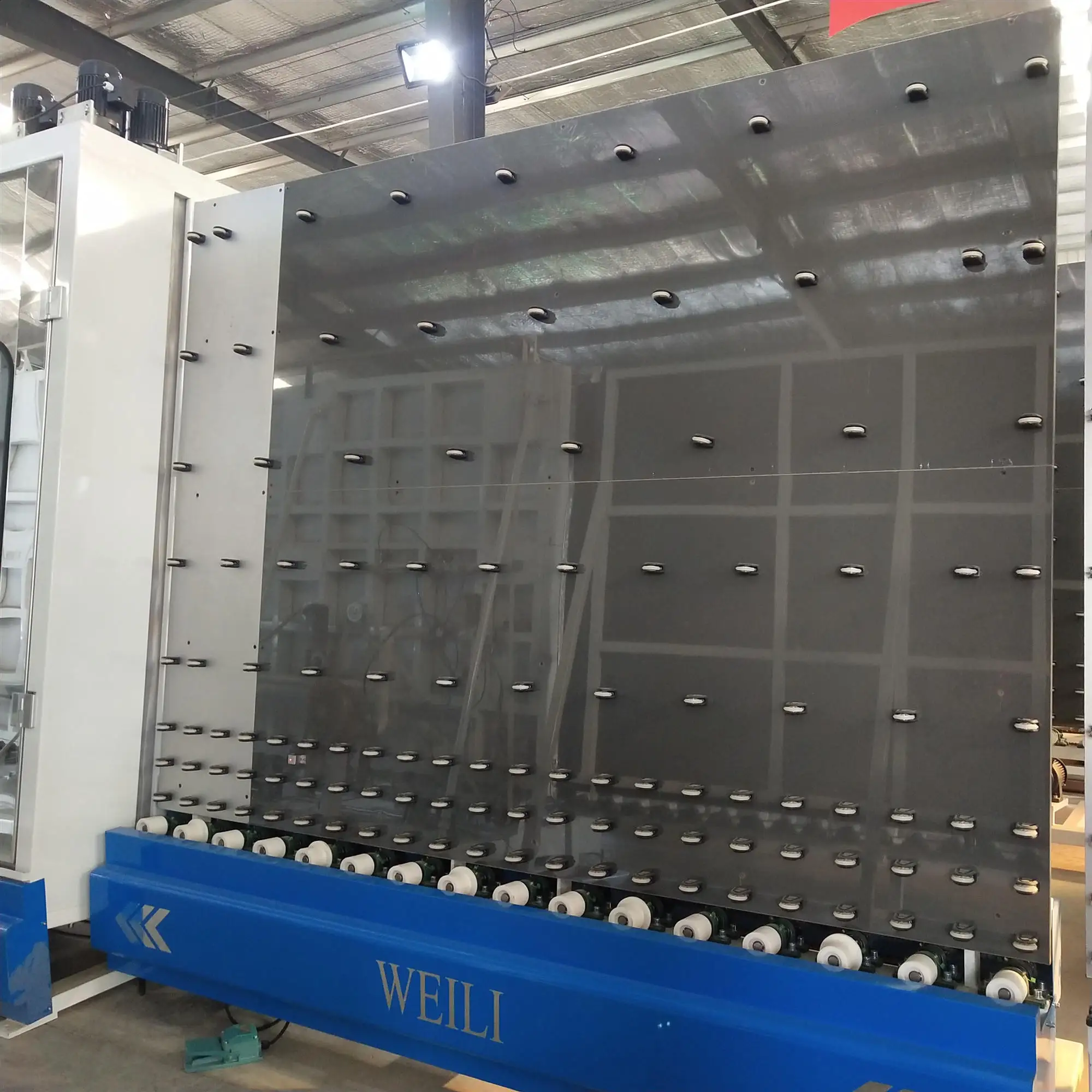

9 Glass pressing section is driven by hydraulic system, the suckers are distributed regionally. The press board can be opened to 450mm, convenient to maintenance.
10 Outside assembly and inside assembly is optional.
11 All components are high standard to be sure that the machine can be used stable for a long time.
2 Automatic LOW-E glass identefying system : identify whether it is coating glass or not.
3 Three pairs of high temperature nylon brushes are driven separately by six asynchronous electric motors, and are movable, also can adjust the distence automatically according to the thickness of the glass.
4 SKF oil-free lubrication waterproof bearing avoid the oil molecular pollution to glass after cleaning.
5 Adopts acid-proof, alkali-proof and anticorrossion solid delivery wheel. The distance between wheel is adjustable according to the thickness of glass.
6 Glass drying section is equipped inclined rhombic air knife by NC bending process. Internal circulation air duct prevent from the wind pollution and save energy.
7 Adjusting the position of locating device by turning the digital device, simple and easy.
8 Outside assemble section: hydraulic motivation make the movement more stable. The up and down of locating frame is driven by variable frenquency motor and automatically inspect the height of glass.
9 Glass pressing section is driven by hydraulic system, the suckers are distributed regionally. The press board can be opened to 450mm, convenient to maintenance.
10 Outside assembly and inside assembly is optional.
11 All components are high standard to be sure that the machine can be used stable for a long time.
Technical Parameter :
Power Supply | 380V 50 HZ 35KW |
Dimension (L x W x H) | 21600*2800*3450mm |
Max glass size | 2500*3000mm |
Min glass size | 300mmx400mm |
Washing glass thickness | 3-15mm |
Washing glass speed | 0-10m/min |
Insulating glass thickness | 48mm(can adjust) |
Transmission glass speed | 45m/min |
Compress air | 0.8m³/min |
Air pressure | 0.8Mpa |
Main Components :
NO. | Name | Brand | Brand Place |
1 | PLC | SCHNEIDER | FRANCE |
2 | 10.0 inch touch screen | SCHNEIDER | FRANCE |
3 | Photoelectric switch | AUTONICS | KOREA |
4 | Limit switch | AUTONICS | KOREA |
5 | Transducer | SCHNEIDER | CHINA, FRANCE |
6 | Low voltage electric components | SCHNEIDER | FRANCE |
7 | Solenoid valve | AIRTAC | CHINA, TAIWAN |
8 | Cylinder | AIRTAC | CHINA, TAIWAN |
9 | Liner guide rail | PMI | CHIAN, TAIWAN |
1 | Bearing of cleaning section | SKF | SWEDEN |
11 | Servo motor | SIMENS / SCHNEIDER | GERMANY/ FRANCE |
12 | Transmission motor | DPG | CHINA |
13 | Triple | AIRTAC | CHINA, TAIWAN |
Detailed Photos :
Products Show
Our Service
Pre- sale service
* Inquiry and consulting support.
* Visiting our factory.
* Professional customize
After- sale service
* Provide factory layout according to your factory size in advance
* Provide English Version of Installation/Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support
* Video technical support
* Field maintenance and repair service
* Field installation commissioning and training
Our Company
Factory
Our Factory
Customers
Our Customers
Exhibition
Team
Packing & Delivery
1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container
The normal package is plywood pallet and plastic film or pack it according to customers special requests.
.
Our Certifications
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 18 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
