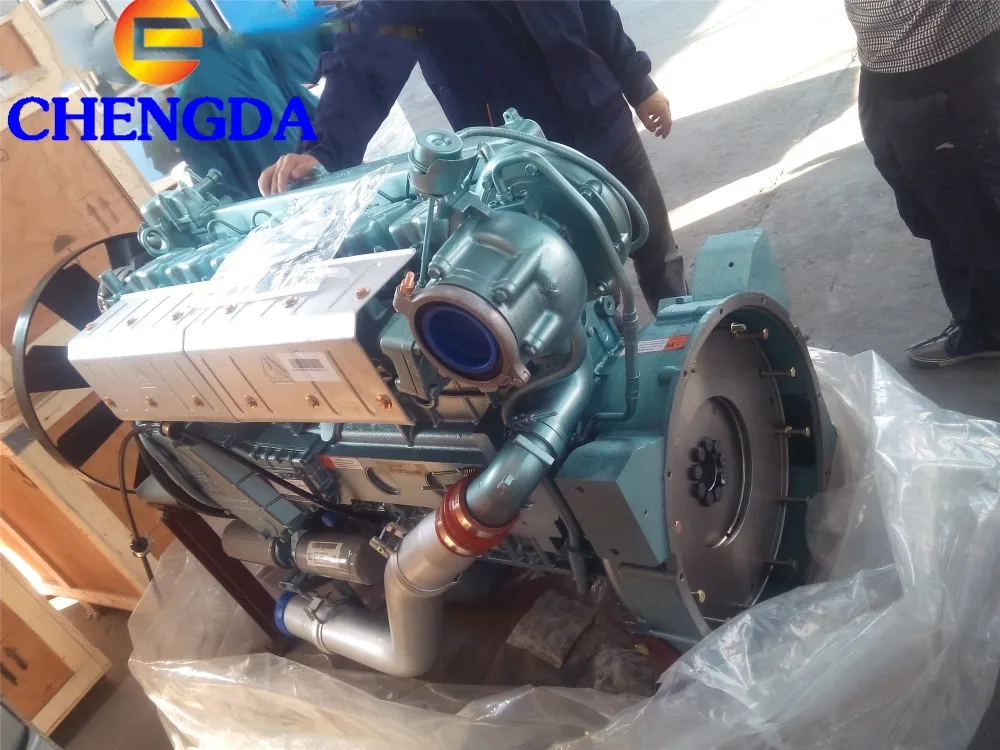

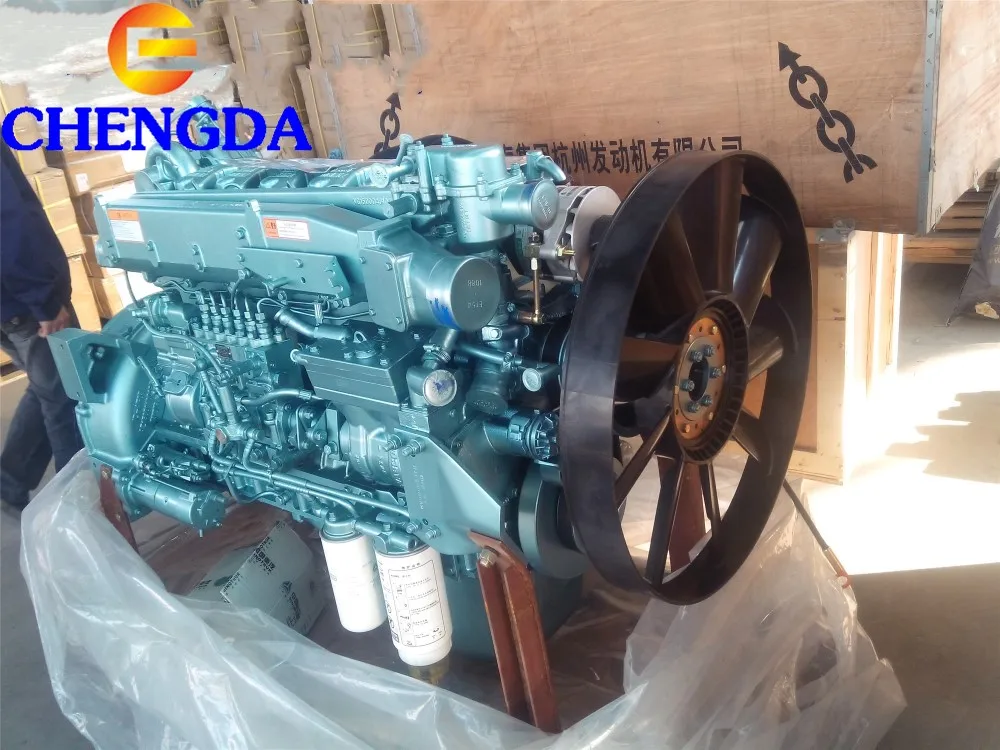

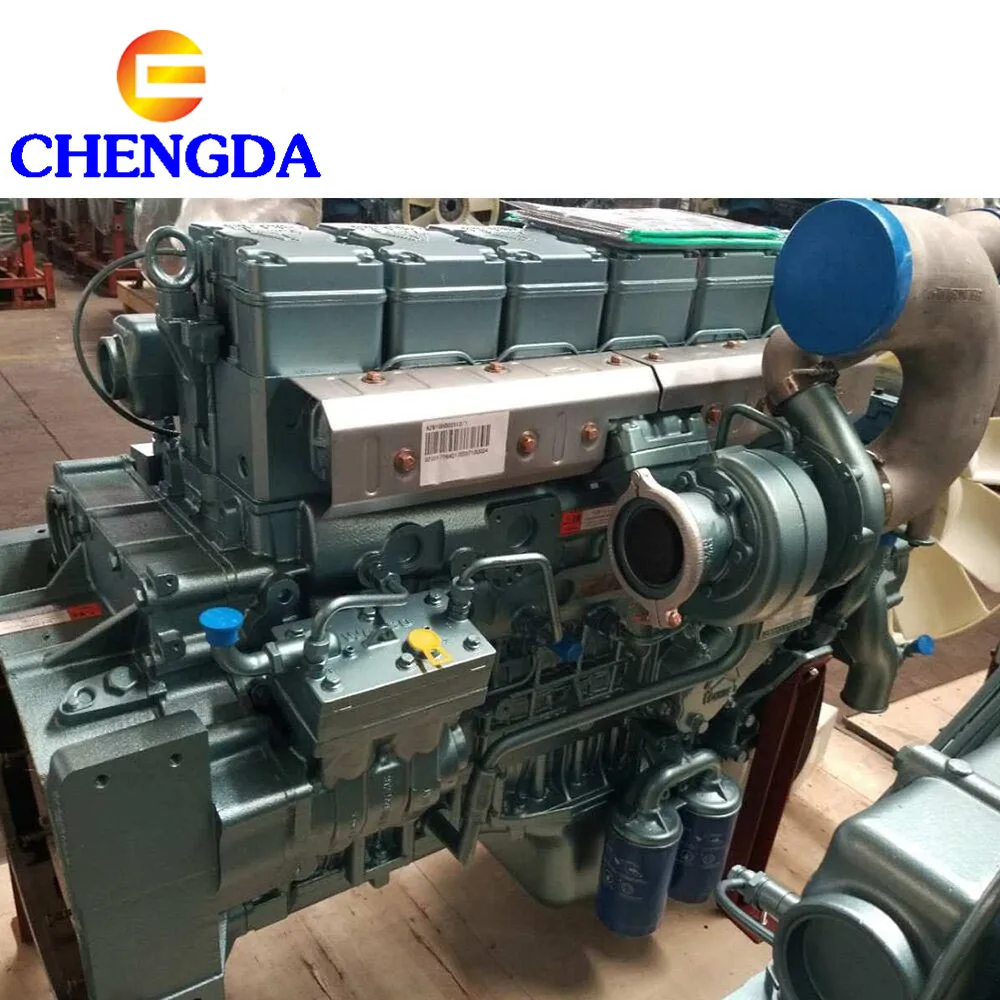

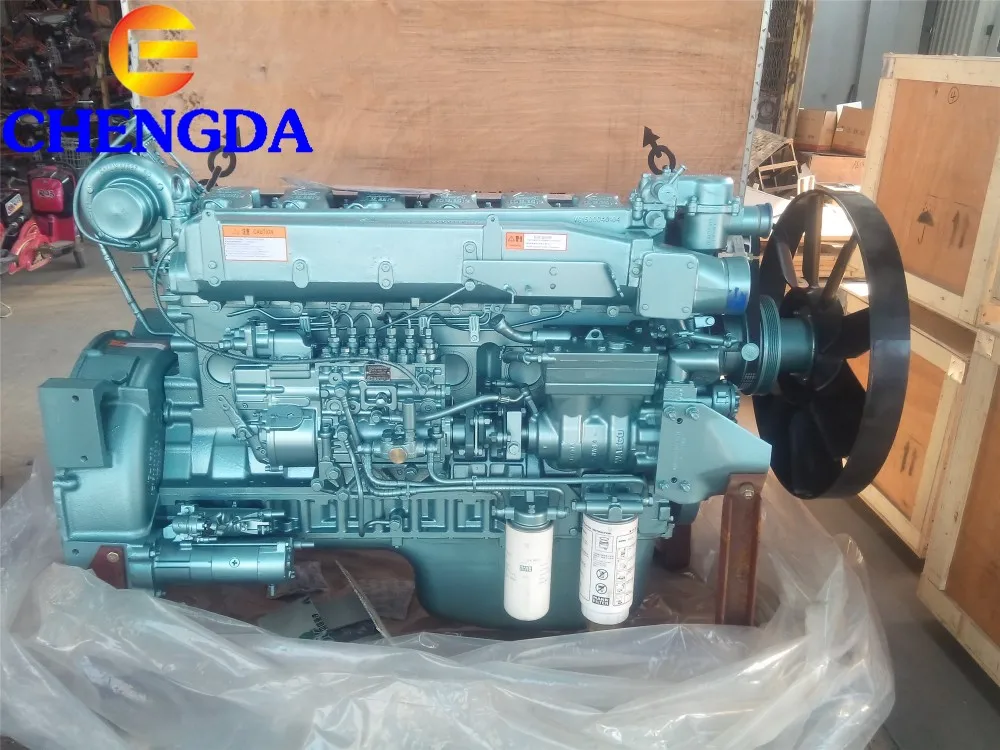

China Orginal sinotruk howo 371hp 336hp wd615 truck engine
- Category: >>>
- Supplier: Shandong Yuncheng Chengda Trailer Manufacturing Co. Ltd. [Shandong China]Shandong
Share on (62077006211):
Product Overview
Description
Product Description
| Model | WD615.92 | WD615.93 | WD615.95 | WD615.96 | WD615.99 |
| Type | Vertical, water cooled, four stroke, direct injection,dry cylinder liner | ||||
| NO.of Cylinder | 6 | ||||
| Bore x Stroke (mm) | 126 × 130 | ||||
| Total Capacity (L) | 9.726 | ||||
| Rating Power/Speed (kw/ r/min) | 196/2200 | 213/2200 | 247/2200 | 276/2200 | 302/2200 |
| Max.Torque/speed (N·m/ r/min) | 1100/11001600 | 1160/11001600 | 1350/11001600 | 1500/11001600 | 1600/11001600 |
| Min.Fuel Consumption (g/Kw.h) | 198 | ||||
| Torque Reserve Ratio % | 29.3 | 25.5 | 25.9 | 25.2 | 29.7 |
| Compression Ratio | 17.51 | ||||
| Ignition Order | 1-5-3-6-2-4 | ||||
| Cold state clearance of valve (mm) | Intake 0.30 Exhaust 0.40 | ||||
| Lead Angle (°) | 6 | 8 | 9 | 9 | 9 |
| Highest no load Speed (r/min) | 2420 ± 50 | ||||
| Idle Steady Speed (r/min) | 650 ± 50 | ||||
| Emission Standard | EURO III | ||||
Company Information

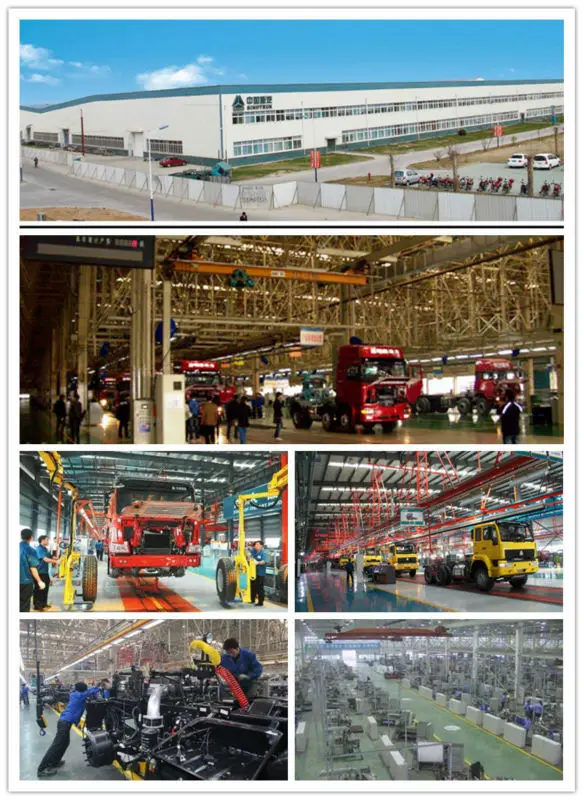

Professional Workshop in Shandong
