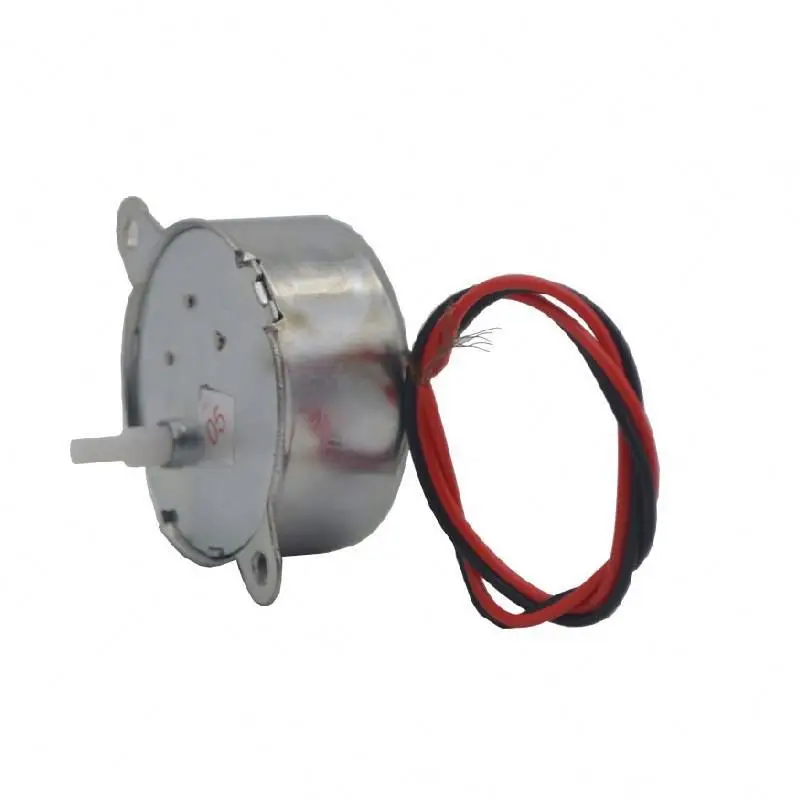

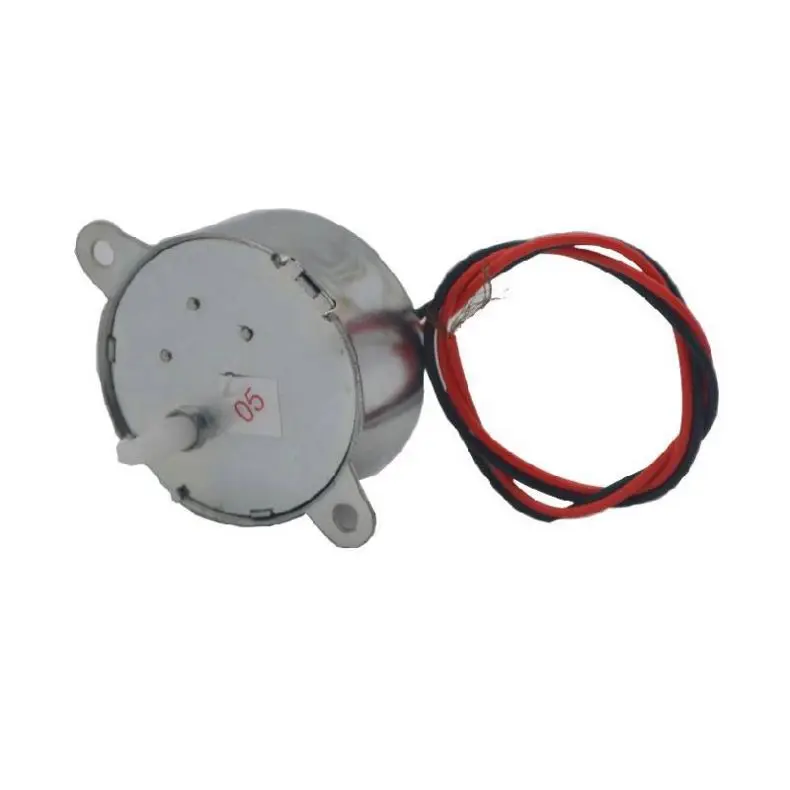

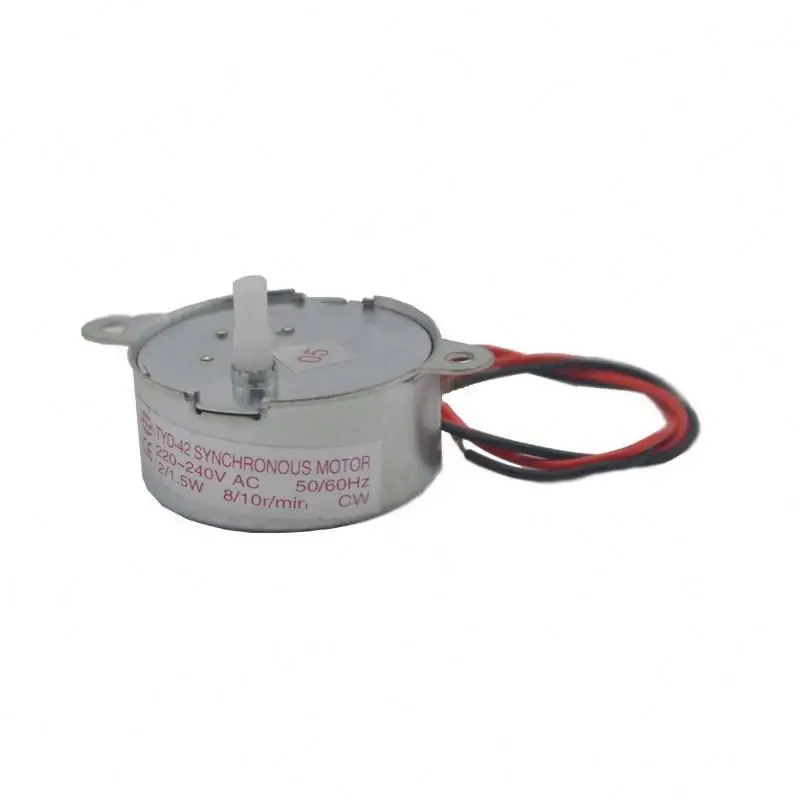

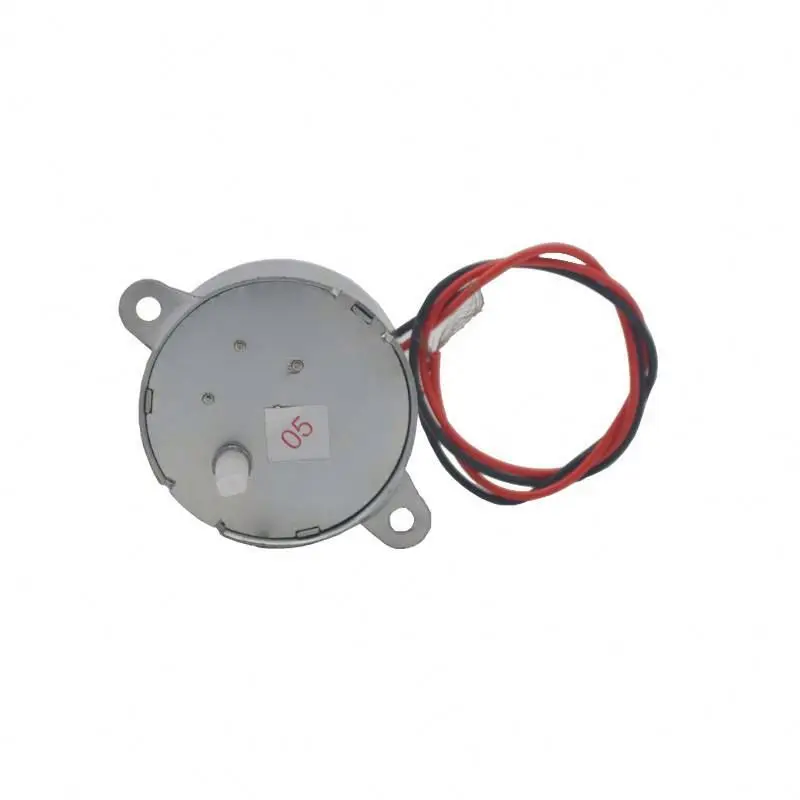

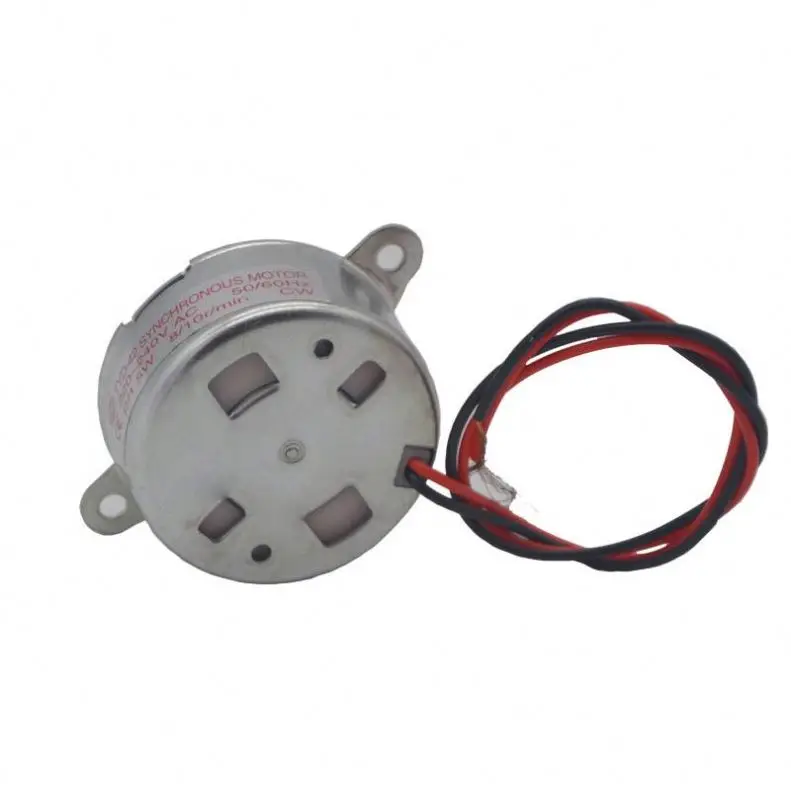

New AC 220V 2W CW\/CCW 50\/60Hz 5\/6R\/MIN Turntable Synchronous Motor for Microwave Oven

Share on (62077099592):


Price:$1.00

Quantity:


Product Overview

Description


New AC 220V 2W CW/CCW 50/60Hz 5/6R/MIN Turntable Synchronous Motor for Microwave Oven

Product Description

Features:

Model NameTYD-42T
Rated VoltageAC 220V
Rated Frequency50/60Hz
Input Power≤2W
Output Current≤20mA
Output Speed5/6 | 8/10 | 12/14 | 18/20 | 22/25 | 25/30 | 33/40 | r/min
Output Torque≥1.6| ≥1.3   | ≥1.1   |  ≥0.6  |  ≥0.5   |  ≥0.4   |  ≥0.3  | Kgf.cm
Start VoltageAC 187V
Insulation ClassE

Noise

≤40dB

Temperature Rise

≤60K

The range of using voltage

AC 187V to 242V

Ambient Temperture

-15 to +40°C

Withstand Voltage

AC 1500V 50Hz/min
Insulation Resistance≥100M ohms
Rotation DirectionCW/CCW  CW  CCW
Used Lifemore than 7500h

Features:
1. Low noise, robust, convenient use and large torque. Portable, small size, light weight and easy to use.

2. Motor used for hand-made, school project, model and anything else you want.

3. Self-Protection Design: Motor coil will not burned if overload or blocked. And the motor speed is not affected by the voltage at the rated frequency, Keep the balance.

4. Typical applications: heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine and so on.

5. CW/CCW non directional motor: when the motor is subjected to a certain resistance, the motor will change its steering.(automatically reverse when there is a big resistance).

Attention:

*The voltage can be changed under customers' demand (AC 6V to 240V).

*The output shaft and sleeves can also be changed under customers' demand .

*The motor is mainly used on handcraft, lamps, Christmas tress, it can also be used as the power of other constant speed drive devices.

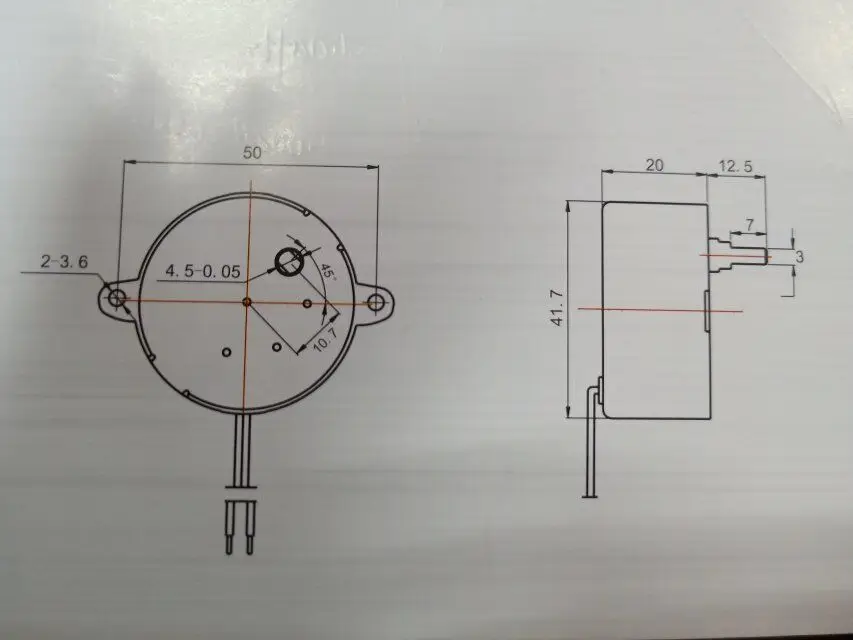

Picture show

New AC 220V 2W CW/CCW 50/60Hz 5/6R/MIN Turntable Synchronous Motor for Microwave Oven

Application:

 New AC 220V 2W CW/CCW 50/60Hz 5/6R/MIN Turntable Synchronous Motor for Microwave Oven

Certifications



Related products 2
Packaging & Shipping

- Package options:

Using export carton, pallet for packaging cnc stepper motor or according to customer's request.

- Payment terms:

T/T, PayPal.

- Lead time:

Within 5 days for sample, 10 working days for general order.

- Shipment options:

DHL, UPS, FedEx, TNT, EMS and so on...

New AC 220V 2W CW/CCW 50/60Hz 5/6R/MIN Turntable Synchronous Motor for Microwave Oven
