380V 4000W Medium Wave Infrared Lamp Water Drying Heating Infrared Lamp (62077104154)

Share on (62077104154):


Price:$105.00 - $130.00
Price in USD:Details

Quantity:


Product Overview

Description


Infrared Heating

1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
10: We guarantee 5000 hours average working life.

Alternative Models

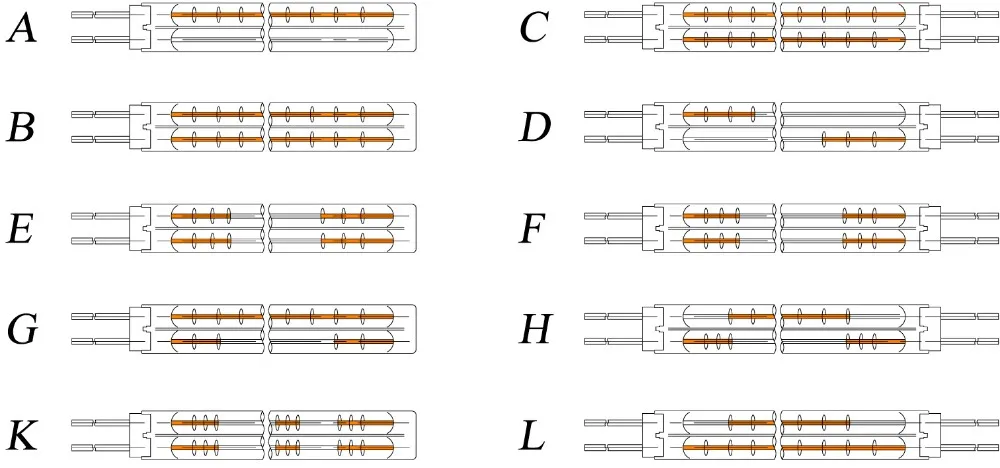

According to the configuration of different heating filament and ending cables, short wave twin tube infrared lamps can be produced in the following one side or two side connection configuration. And our infrared lamps can be competely as alternative lamps for Heidelberg machine.


                   One Side Connection                                            Two Side Connection

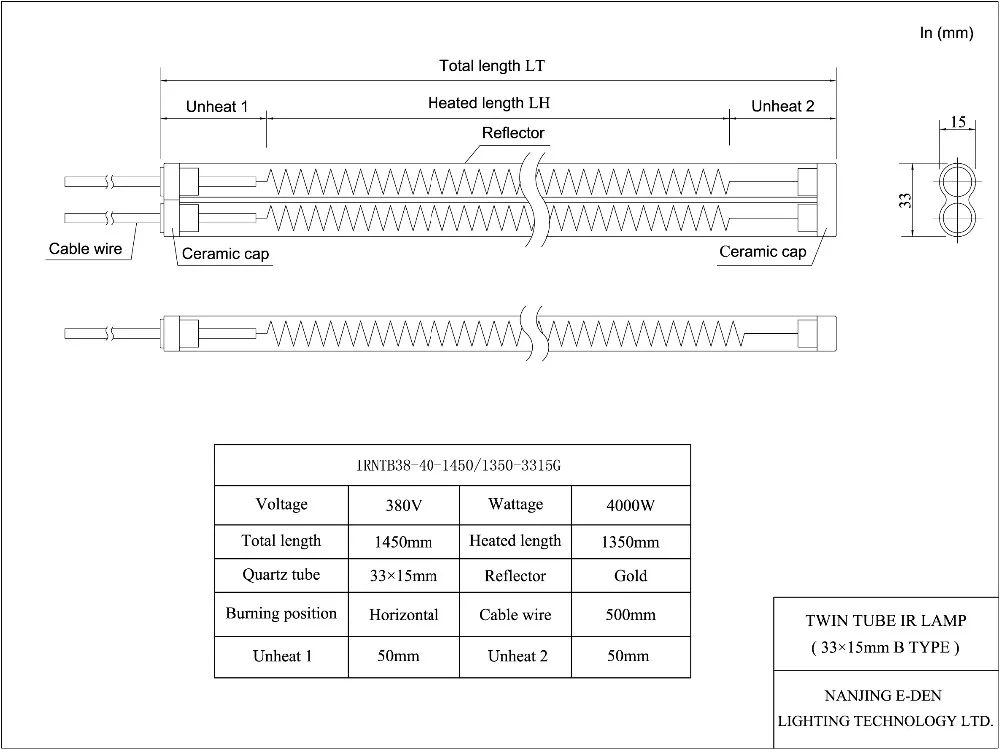

Technical drawing


380V 4000W 1450mm


\t
Voltage
\t
Wattage
\t
Total length
\t
Heated length
\t
Cross section
\t
Reflector
\t
Burning position
\t
Type
\t
380V
\t
4000W
\t
1450mm
\t
1350mm
\t
33×15mm
\t
Gold
\t
Horizontal
\t
B

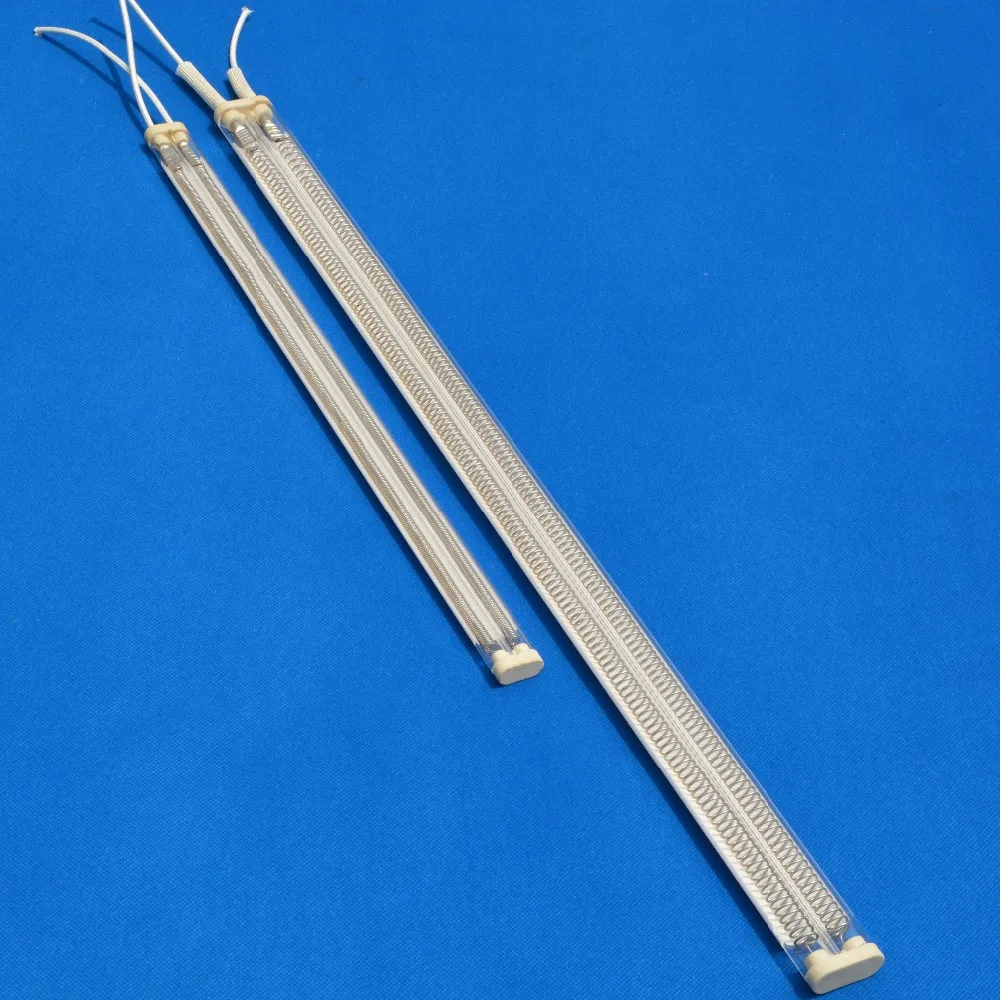

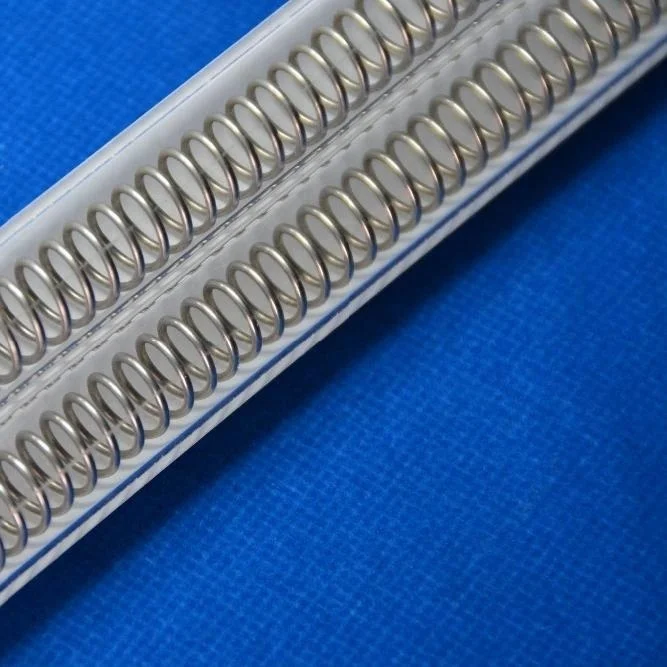

Detailed Images
Standard Product

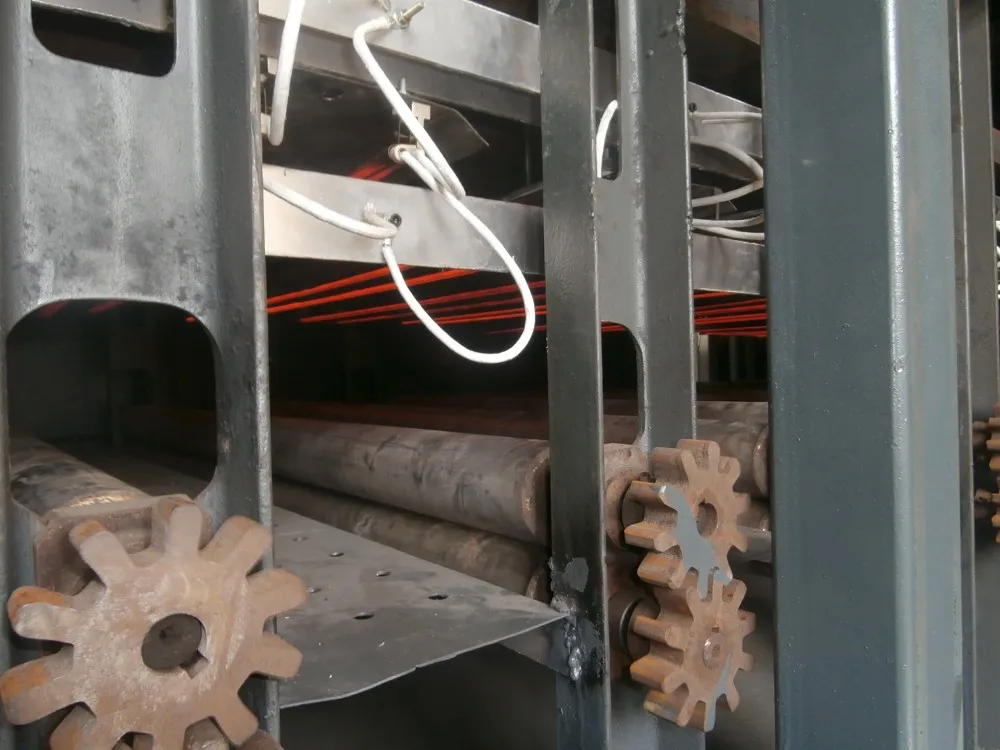

Medium wave infrared lamps are particularly suitable for the fast heating of surface or thin materials, and the range of IR radiation wave is 2.2-3.2μm. Plastic, water and other solvents absorb well this medium wave radiation. Because of its long working life and economical efficiency, medium wave lamps are popular used in continuous heating processes, such as making natural herbal medicine or drying the tea in a continuous running oven.

\t

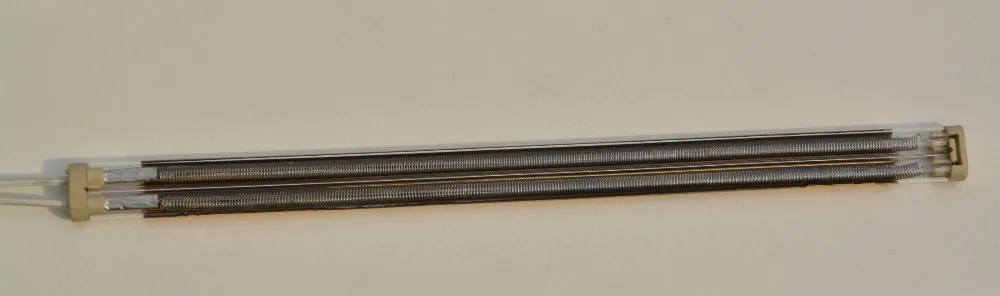

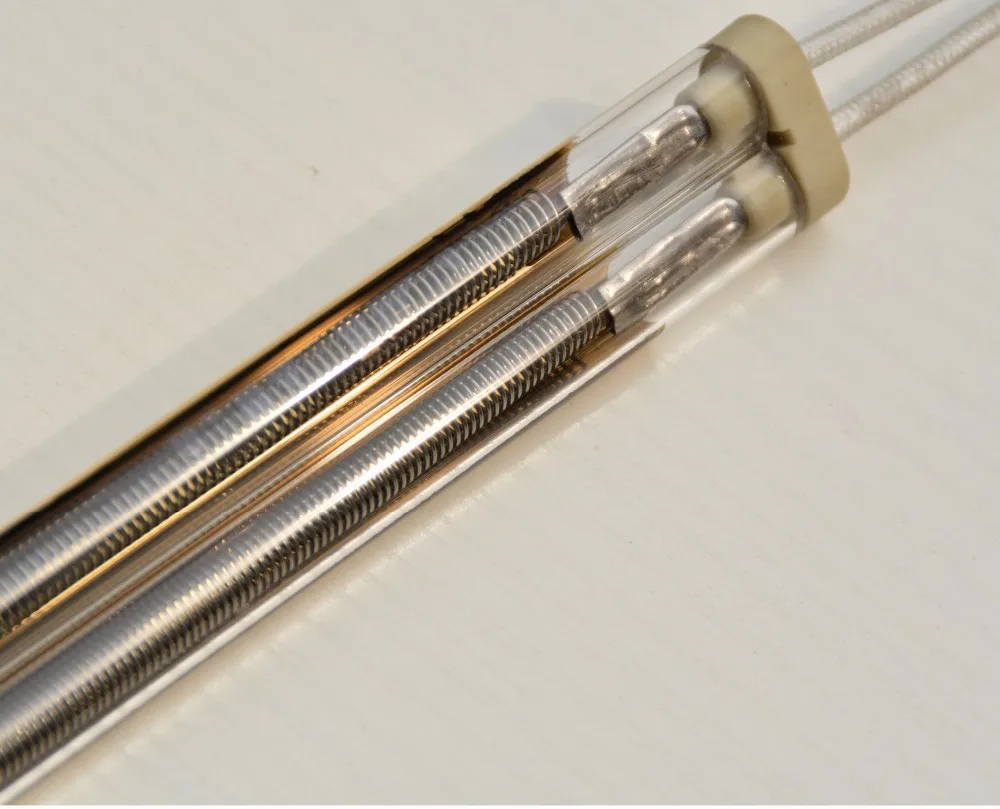

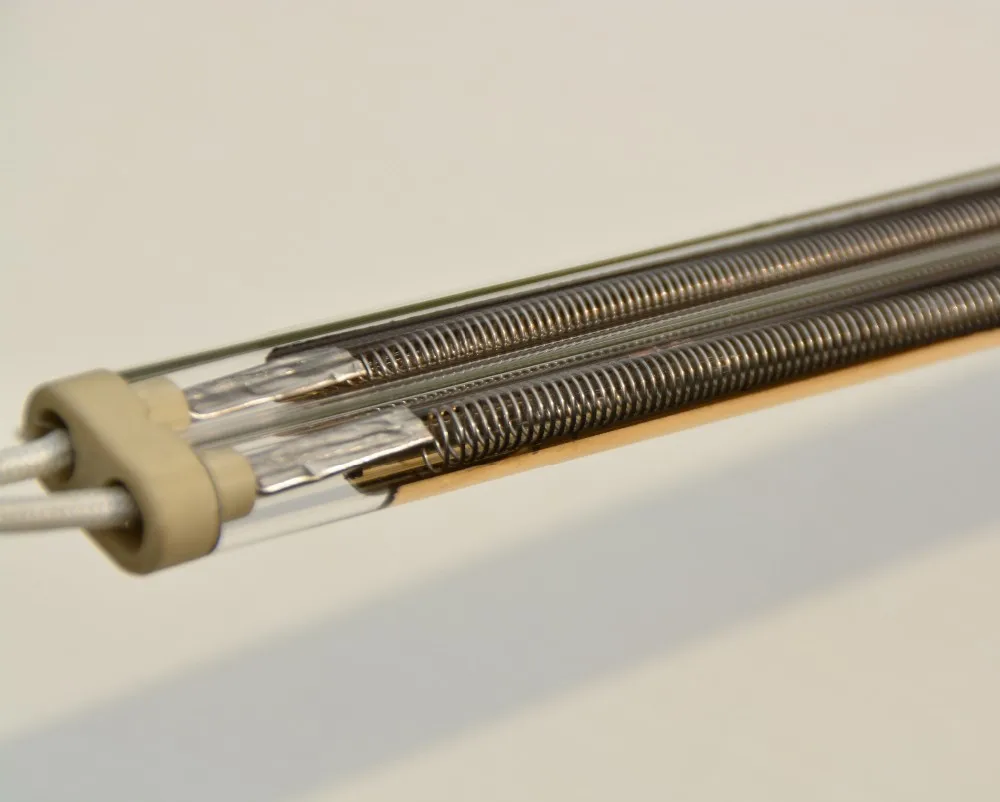

Medium wave twin tube IR lamp
\t
Peak wavelength
\t
2.2-3.2 μm
\t
Response time
\t
≥60 seconds
\t
Heating filament
\t
Ni-Cr Alloy
\t
Filament working temperature
\t
800℃-900 ℃
\t
Max. surface power density
\t
60kw/m2
\t
Cross Section
\t
23×11mm
\t
33×15mm
\t
Max. Length
\t
4.5m
\t
6.0m
\t
Reflector
\t
White ceramic or Gold
\t
Burning position
\t
Horizontal
\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t

Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.
