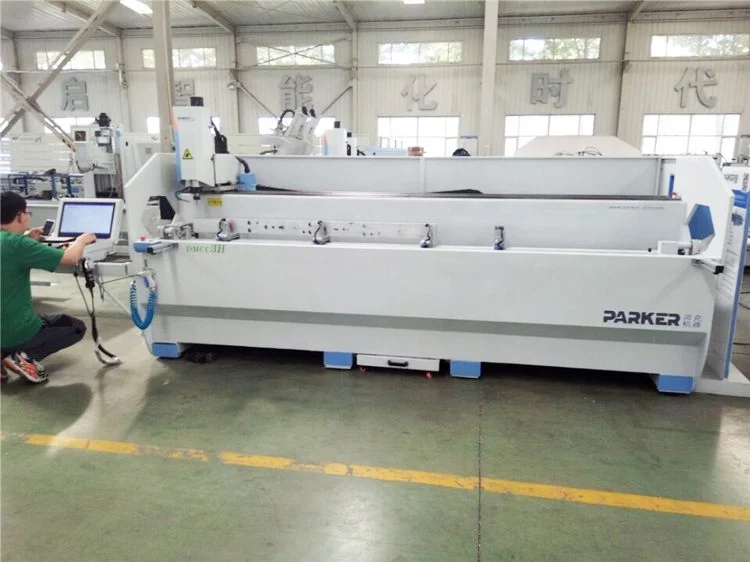

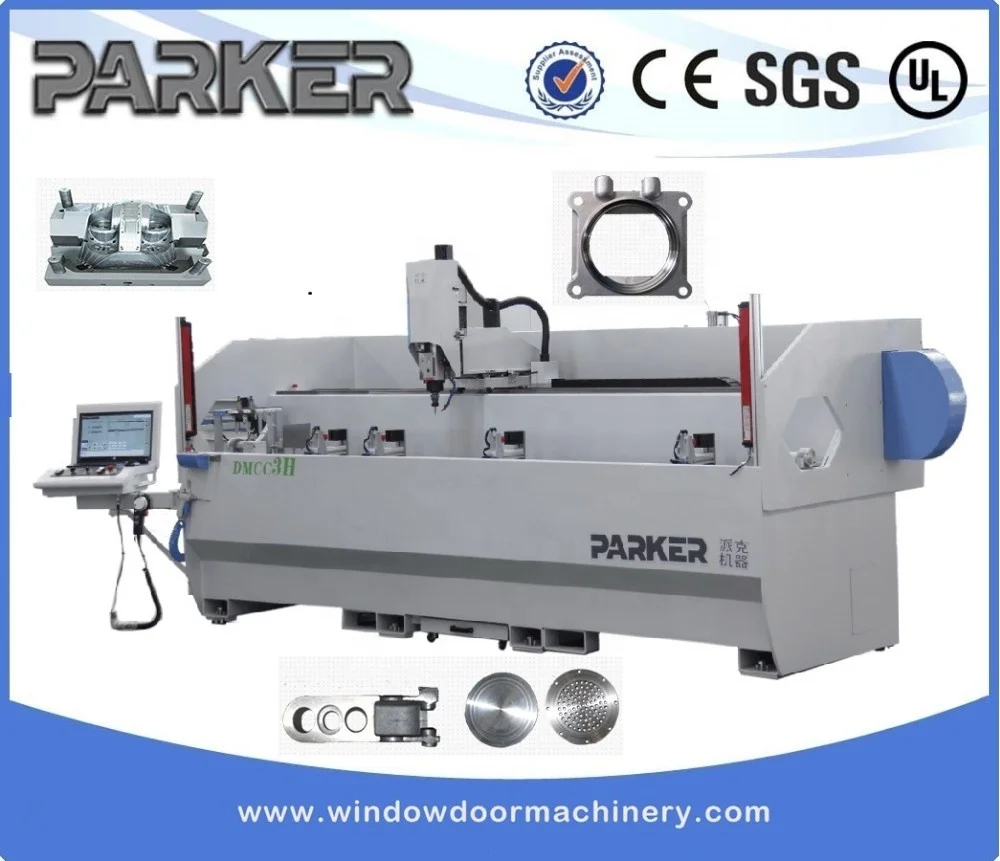

Aluminum profile CNC drilling and milling machine

Share on (62077106487):


Price:$28,000.00 - $32,000.00

Quantity:


Product Overview

Description


Products Show
Product Description

Feature


1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.

2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.

4.It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.

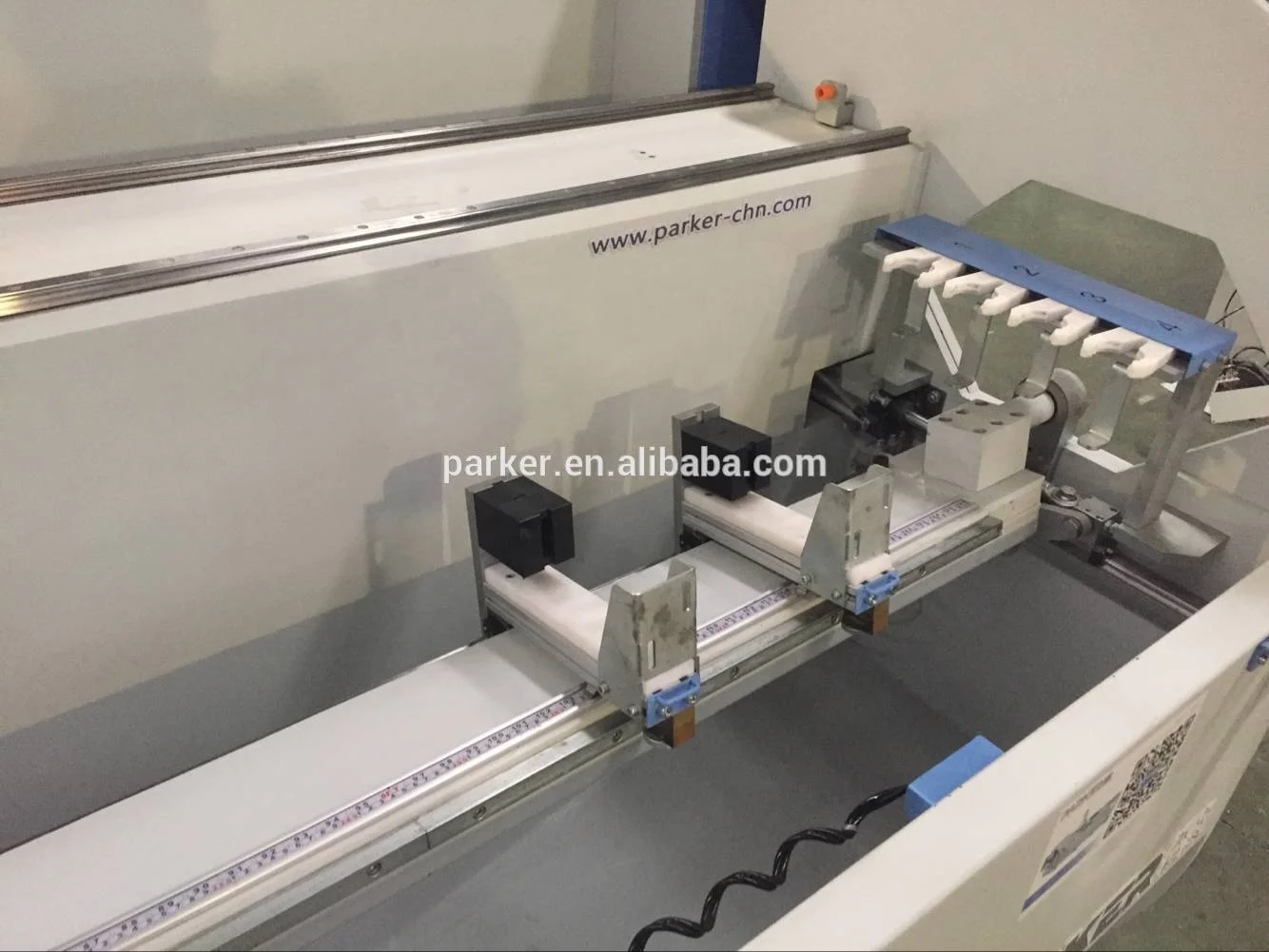

5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.

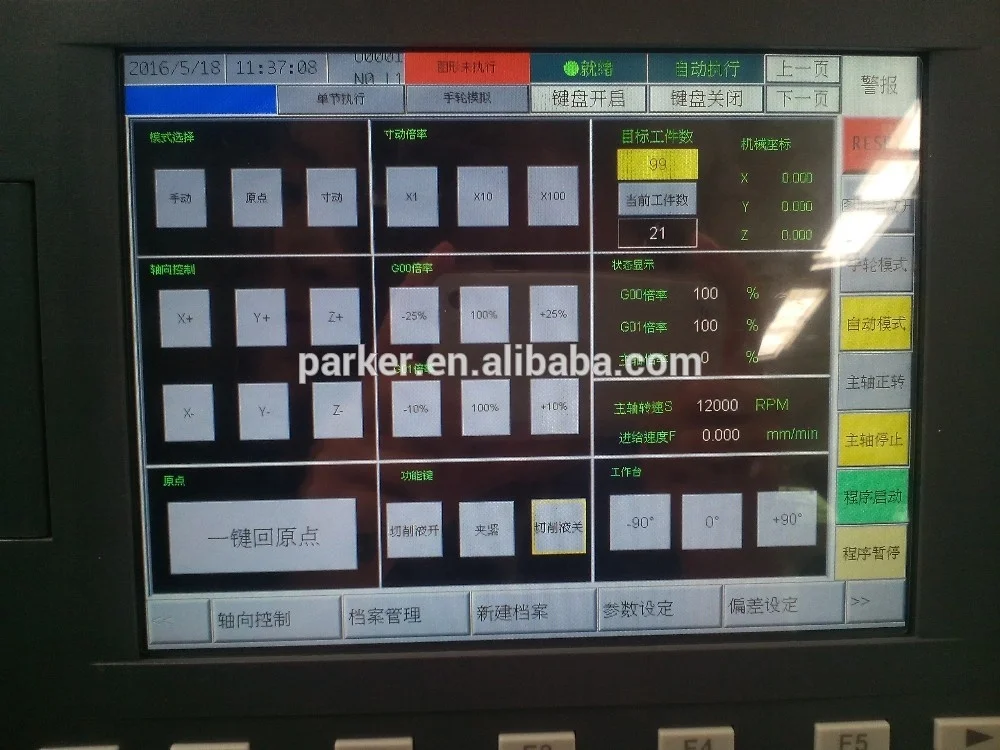

6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

7.Application:Aluminum Architecture Material/PVC Window Door Profiles/Wooden Profiles /Curtain Wall and Facade Lock Hardware etc.


Parameter

\t
X axis Stroke
\t
3200mm
\t
Rapid positioning speed X
\t
0-140m/min
\t
Y axis Stroke
\t
300mm
\t
Rapid positioning speed Y
\t
0-75m/min
\t
Z axis Stroke
\t
200mm
\t
Rapid positioning speed Z
\t
0-75m/min
\t
Main spindle speed and Power
\t
18000rpm/3kw
\t
Work table position
\t
-90°,0°,+90°(Three degree)
\t
Cutter size
\t
ER25-Ф8
\t
Air Pressure
\t
0.5~0.8MPa
\t
Voltage
\t
380V/50Hz
\t
Power
\t
6KW
\t
Cutter cooling
\t
Auto spraying and cooling
\t
Processing character
\t
Can process three sides of profile per time loading profile
\t
Processing dimension
\t
160*160*3200mm
\t
Dimension
\t
4525*1630*1900mm
Packing & Shipping

Packing:Wooden pallet or As customer requirement.

Woodbox for free fumigation

Shipping:Ocean ship  EXW/FOB/CIF

Container or LCL:20 GP/HQ/OT   OR  40 GP/HQ/OT

After-sales Service
\t
After-sales Service
\t
Information
\t

After-sales Service 1
\t
If our customers need our company send our engineer to install the machines and train your workers.Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, and subsidy USD60 per day.
\t
After-sales Service 2
\t
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
Why Choose Parker

Parker Data

15 years manufacturing experiences.

66,000 sqm production base.

35 peoples R&D team.

15 peoples after-service team.

Machine Parts Used

Machine parts all used the imported brand like Yaskawa, Schneider, TBI, ABB...and so on.

Meet CE and UL certificate.

Quality Control / After service

Raineshaw laser testing device before delivery.

5 engineers give fast solutions to solve the after-sales problem.



Parker Machine is Very Stable and Rarely See Suddenly Failed to Affect the Normal Work!

CE Certificate

Patent Certificate

Honor at home and abroad
RFQ

Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!


B.We can send you free components to you if your machines are in guarantee time.

C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.

-CNC machining center
-Aluminum window door/ curtain wall making machine
-UPVC window door making machine
-Insulating glass making machine
