Volume | 200L |
Working volume | 60-150L |
Output | 30-75kgs/batch |
Operating time | Mixing:2min Granulation:7-14min/batch |
Size of the finished granule | Φ0.14-Φ1.5mm(12mesh-100mesh) |
Mixing Speed | 30-260rpm |
Mixing power | 15kw |
Granulation Speed | 50-3000rpm |
Granulation power | 4kw |
Air compressor | 0.5m³ 0.7Mpa (prepared by buyer) |
Inlet of cooling water and compressed air | Φ10mm |
Dimension | 2180×810×1950mm |
Weight | 1350kg |

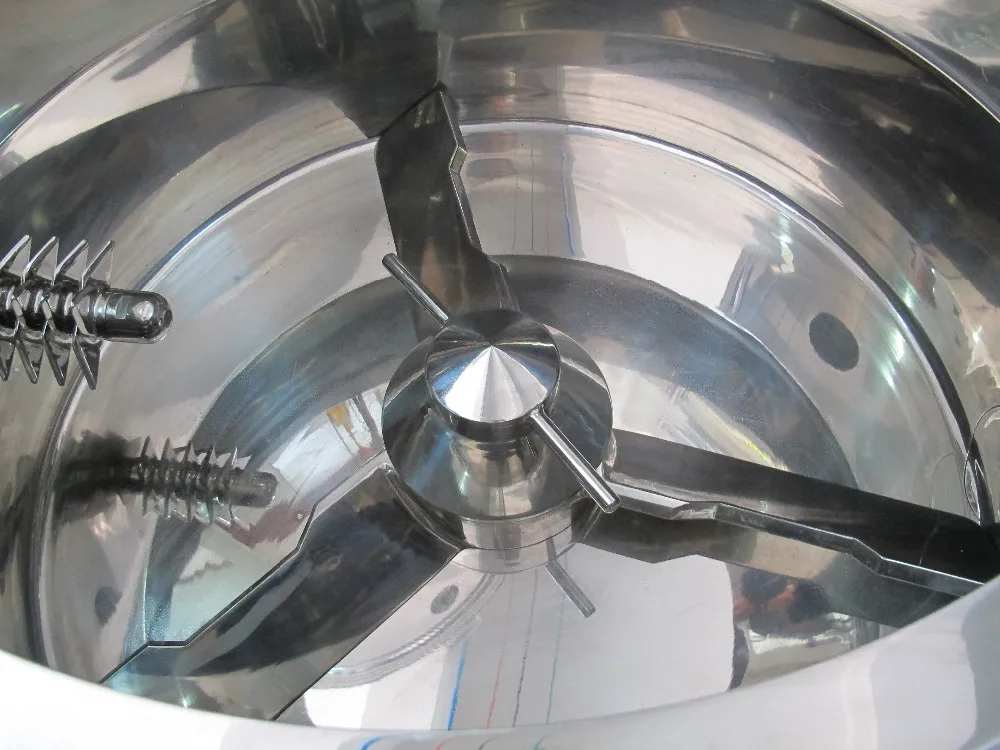

\tIt is the structure of horizontal cylinder (cone).
\tFull sealed driving shaft, to use water when cleaning.
\tFluidization granulation, the finished granules are similar to roundness with good liquidity.
\tCompared with traditional process, it can reduce 25% binder and the dry time can be shortened.
\tEach batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
\tAll the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also complies with GMP standard.
\tWhole operation has the strict safety precautions.





Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
