Smart Watch Band Curved Rechargeable Lithium Polymer Battery 3.7V LiPo2826183R 740mAh

Product Overview

Description

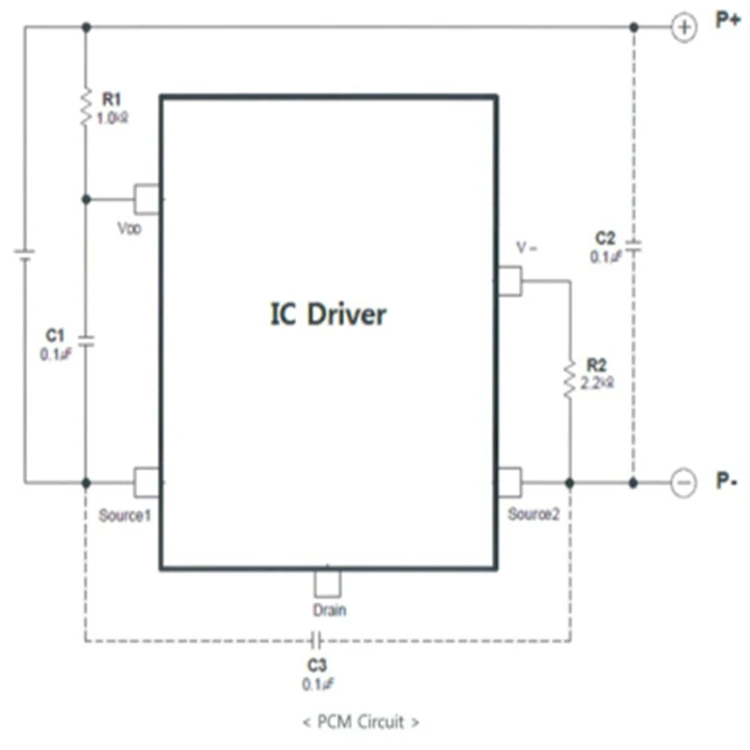

1. 3.7V LiPo Battery LiPo2826183R-3.7V-740mAh with PCM flexible and curved rechargeable battery Primary Technology Prameters:

Item			Content	Note
Capacity	Nominal		740mAh	Discharge:0.2CmA
	Minimum		735mAh
	Energy		2.81Wh
Nominal Voltage			3.70V
OverCharge Protection Voltage			4.25V
AC Impedance Resistance			not more than150mΩ
Charging Current (Std.)			148mA	0.2CmA
Charging Current (Max.)			740mA	1CmA
Charging Voltage			4.20V
Charging Time (Std.)			Approx 6h	Charge: 148mA
Discharging Current (Std)			148mA	0.2CmA
Discharging Current (Max)			740mA	1CmA
Discharge Cut-off Voltage			3.00V
Operating Temperature		Charge	0~+45℃
		Discharge	-10~+60℃
Storage Temperature		less than 1 month	-10~+45℃	Percentage of recoverable capacity 80%
		less than 6 months	-10~+35℃
Storage Voltage			3.70~3.90V

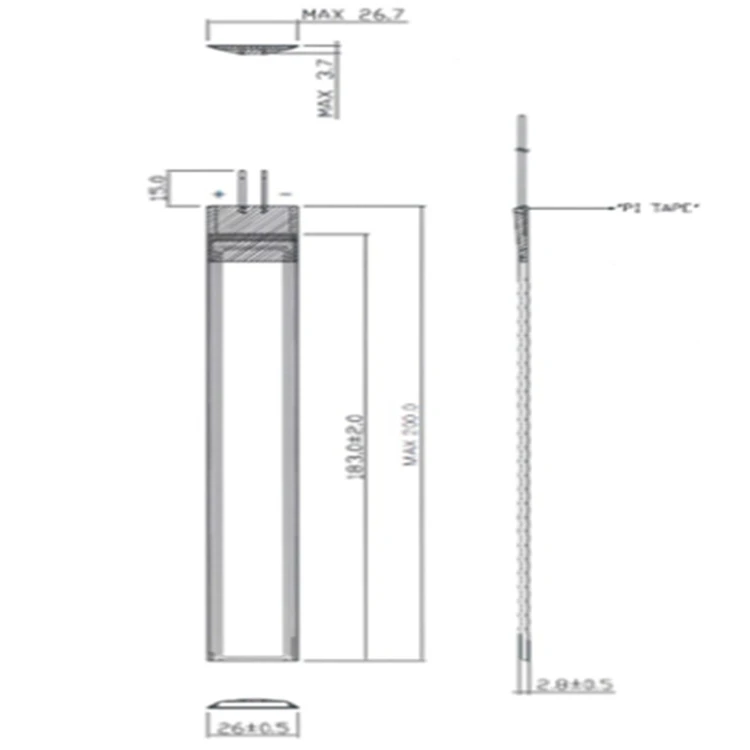

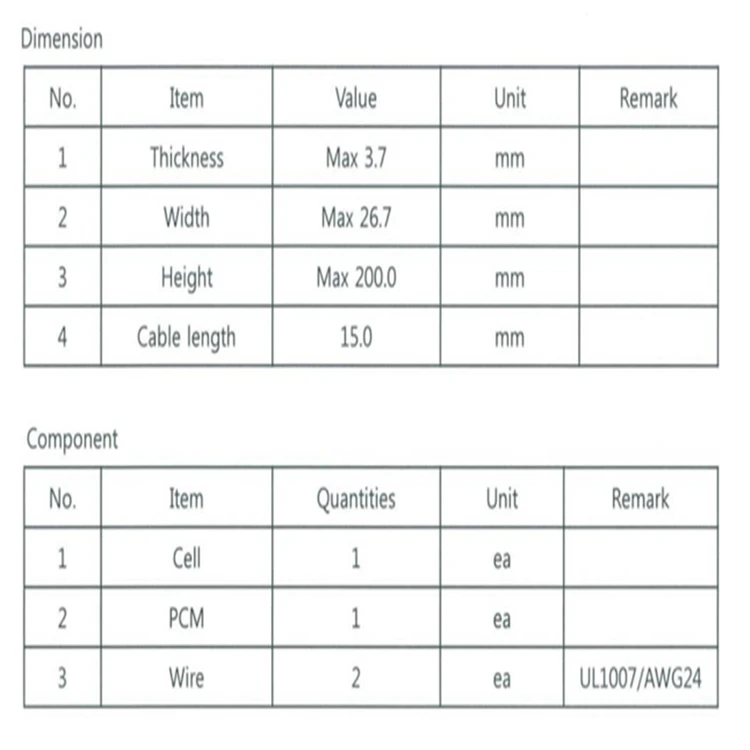

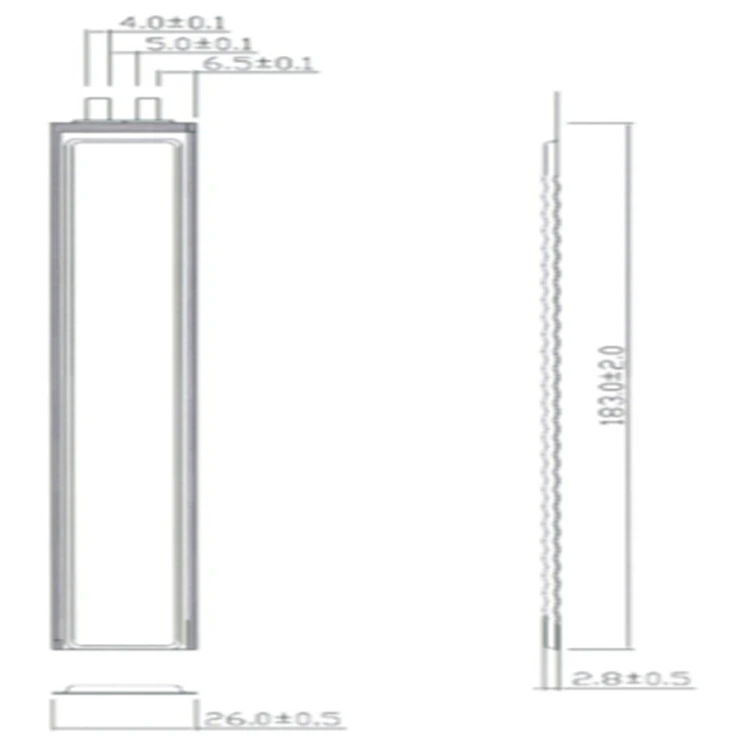

 2. Dimension of ultra tiny battery cell LiPo2826183R-3.7V-740mAh with PCM

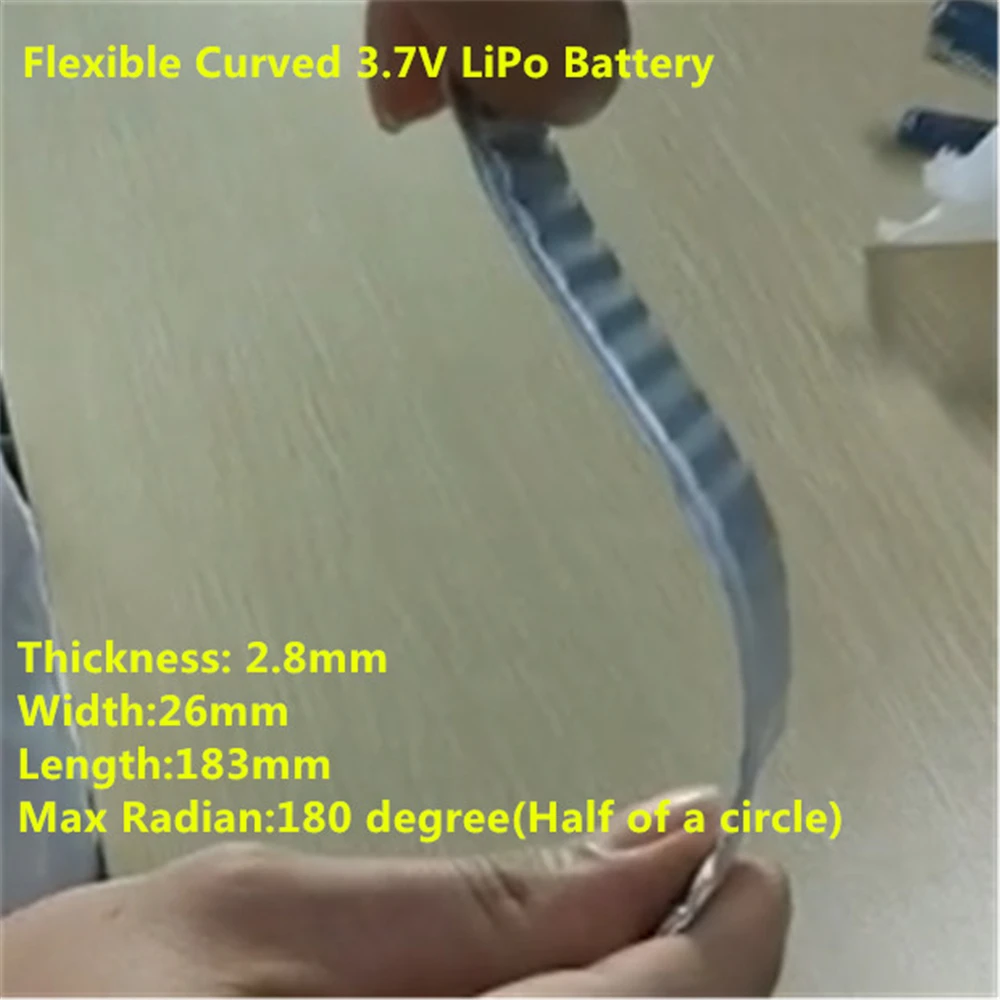

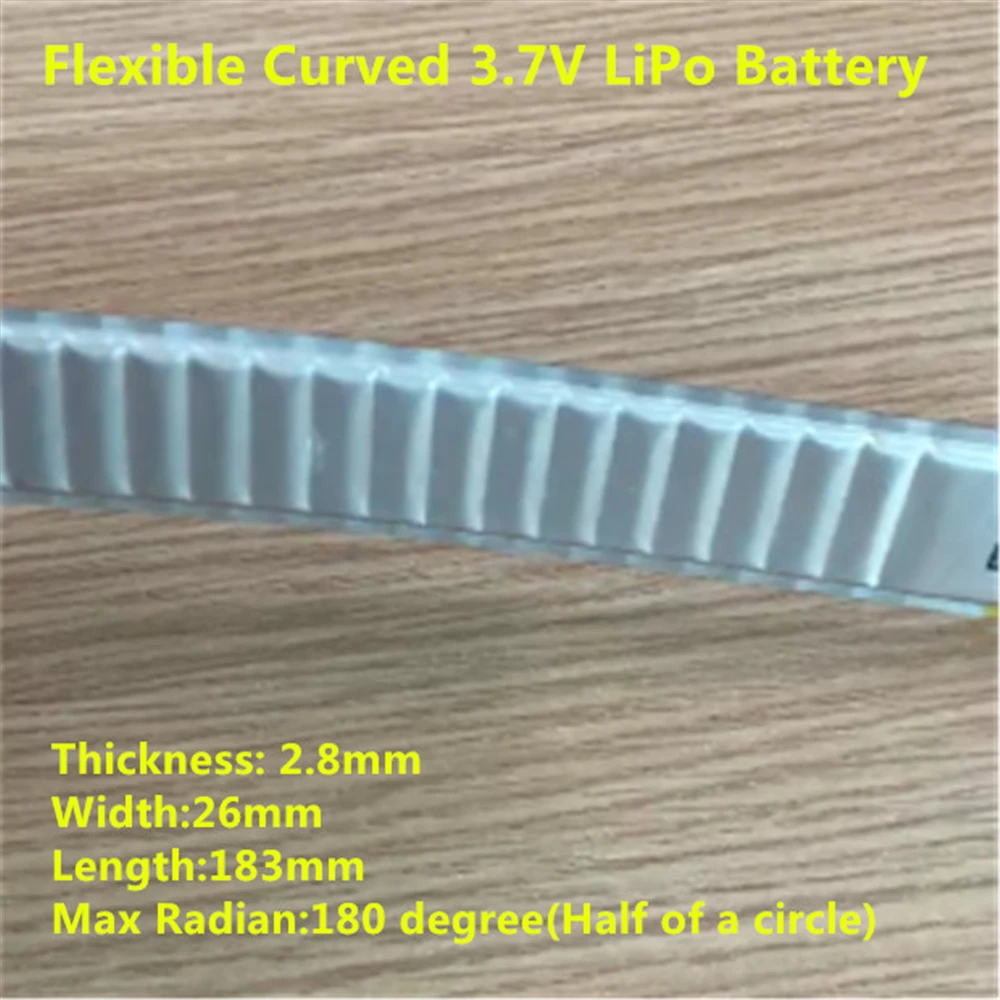

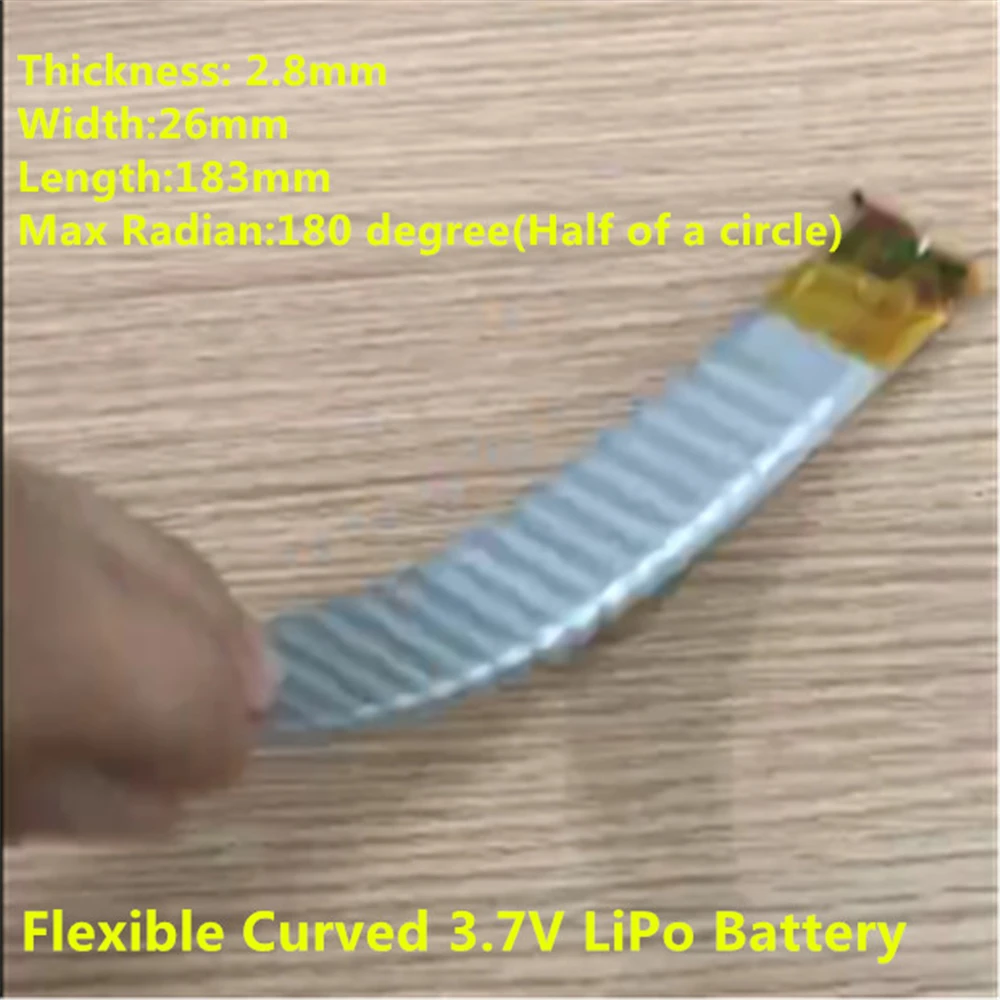

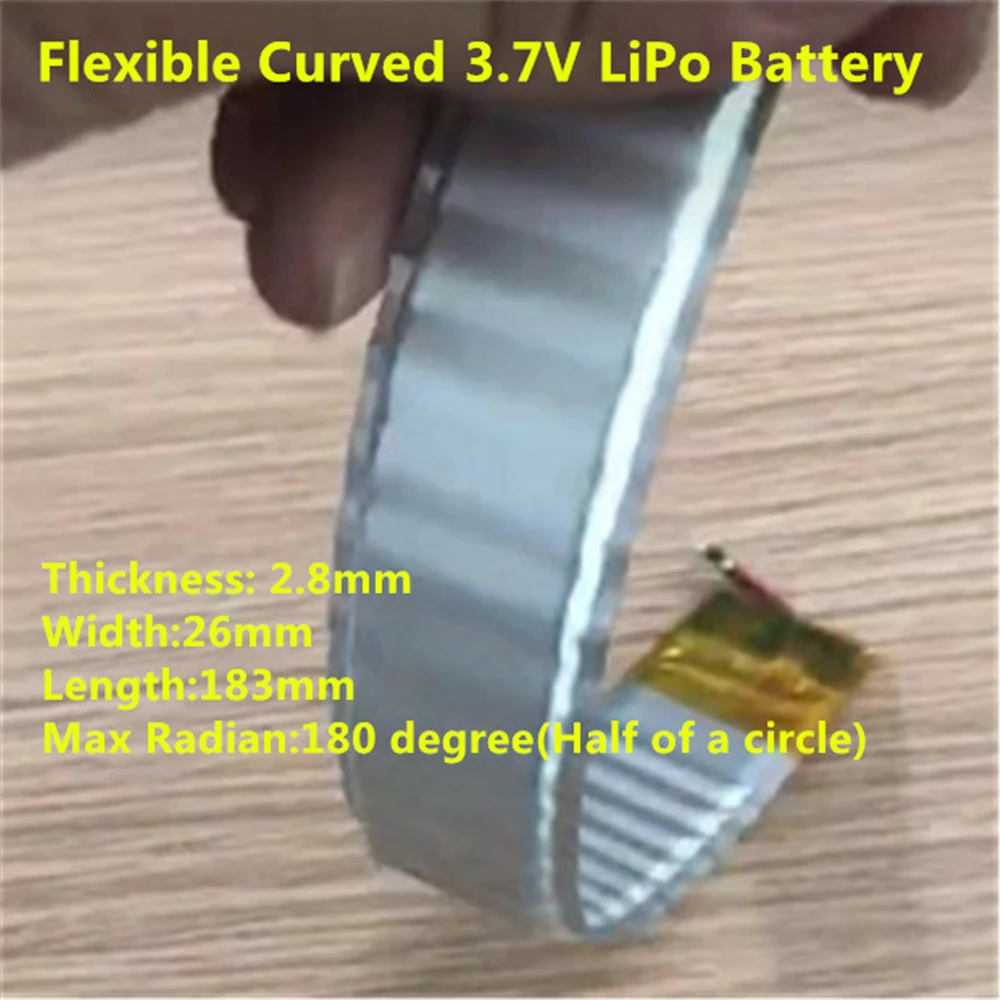

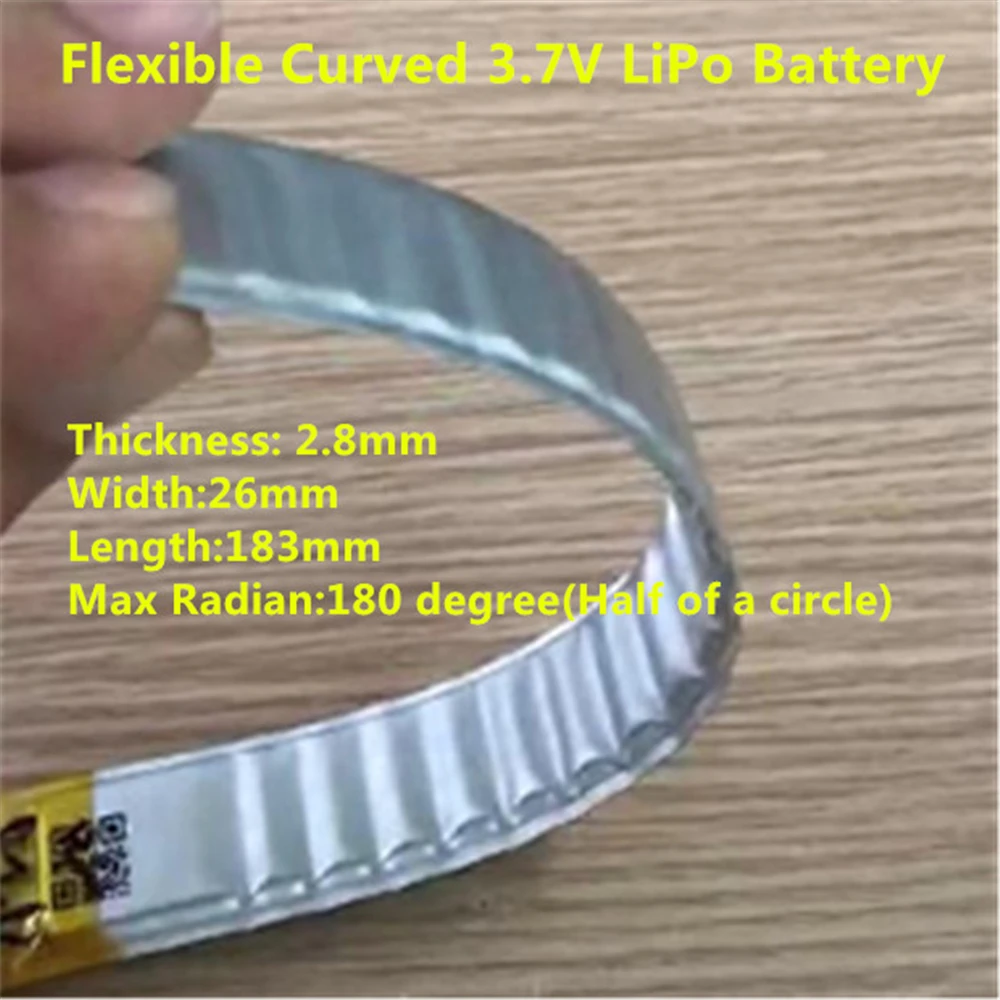

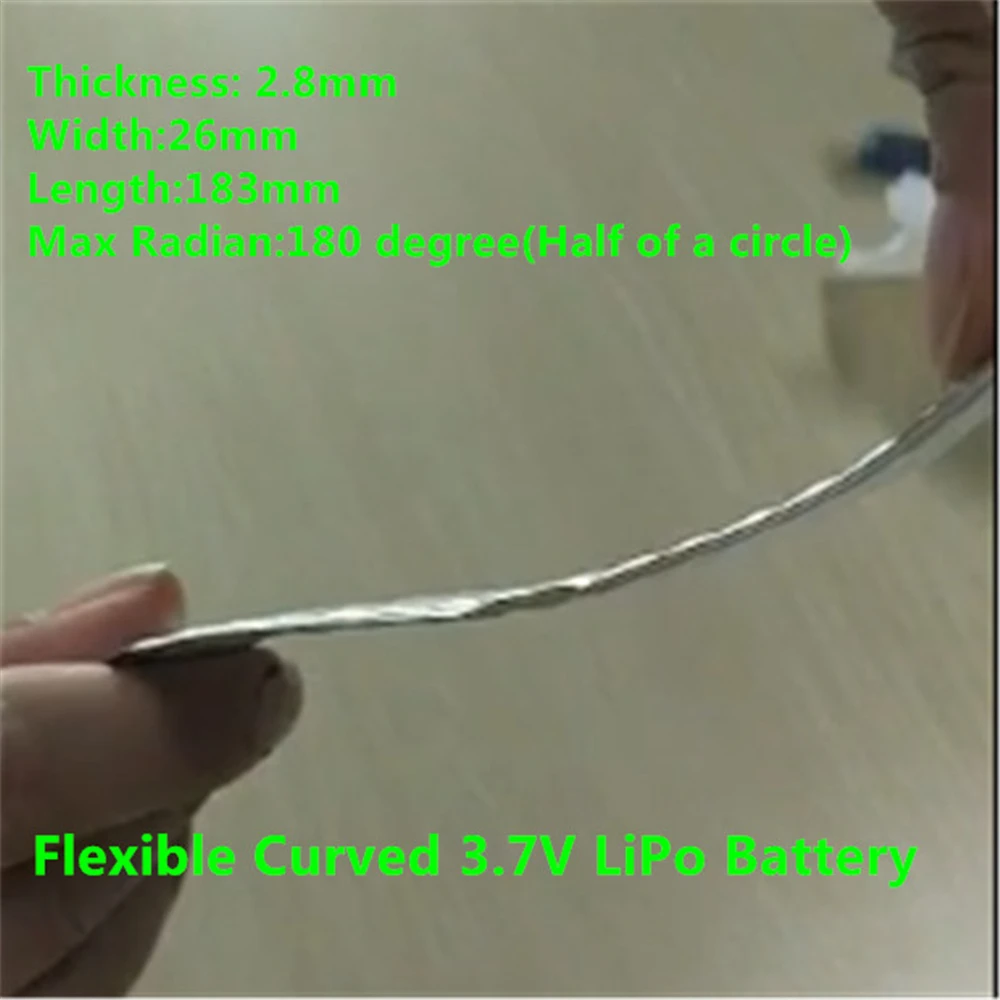

3. 3.7V LiPo Battery LiPo2826183R-3.7V-740mAh with PCM 2.81wh flexible and bendable and curved rechargeable battery with PCM Picutures as blow:





4. Ultra thin battery model list and customized thin battery can be made according to your requirement

Ultra-thin lipo rechargeable model list:

LiPo032525-3.7V-10mAh thickness 0.3mm,

LiPo093030-3.7V-50mAh thickness 0.9mm,

LiPo155050-3.7V-100mAh thickness 1.5mm,

LiPo032060-3.7V-20mAh thickness 0.3mm,

LiPo032749-3.7V-24mAh thickness 0.3mm,

LiPo121515-3.7V-20mAh thickness 1.2mm,

LiPo223048-3.7V-220mAh thickness 2.2mm, L

iPo254150-3.7V-500mAh thickness 2.5mm and so on.



Ultra-thin CP Li-MnO2 Primary Lithium Battery Model List:

CP042722-3.0V-15mAh thickness 0.4mm,

CP042922-3.0V-17mAh thickness 0.4mm,

CP042039-3.0V-25mAh thickness 0.4mm,

CP042345-3.0V-36mAh thickness 0.4mm,

CP052727-3.0V-22mAh thickness 0.5mm,

CP052922-3.0V-24mAh thickness 0.5mm,

CP052039-3.0V-35mAh thickness 0.5mm,

CP052345-3.0V-52mAh thickness 0.5mm,

CP054248-3.0V-100mAh thickness 0.5mm,

CP082922-3.0V-100mAh thickness 0.8mm,

CP084248-3.0V-320mAh thickness 0.8mm,

CP092030-3.0V-50mAh thickness 0.9mm,

CP124920-3.0V-160mAh thickness 1.2mm,

CP142828-3.0V-160mAh thickness 1.4mm, CP153030-3.0V-170mAh thickness 1.5mm, CP162235-3.0V-170mAh thickness 1.6mm, CP164548-3.0V-700mAh thickness 1.6mm and so on.





 5.  Application Fields

Those ultra thin battery are applied in sensors, labels, medical devices, power cards, smart cards, active RFID, wearable devices, message device, e-ink displays, RFID, Credit cards, key tag, cards and so on.



Currently, those thin batteries are already exported to America, France, Germany, Australia and 50 other countries and regions.



6. How to have a order?

(1)Online talk or inquire by email to confirm order(quantities, color, payment terms, delivey time etc.)

(2)Sales will make the Proforma Invoice(PI) and send it to your email address.

(3)Customer or client will make the payment against the Proforma Invoice(PI).

(4)We will start the order when we have received the payment.

(5)We will inform our customer or client purchase order situation timely.

(6)We will arrange shipment after 100% payment confirmed.



7. FAQ

Question: Do you have current sample in stock usually?

Answer: Usually, we don't have samples in stock because different customers have different requirement, even the voltage and capacity are the same, other parameters maybe different. Well, we could finish your sample once our customer or client order confirmed.
