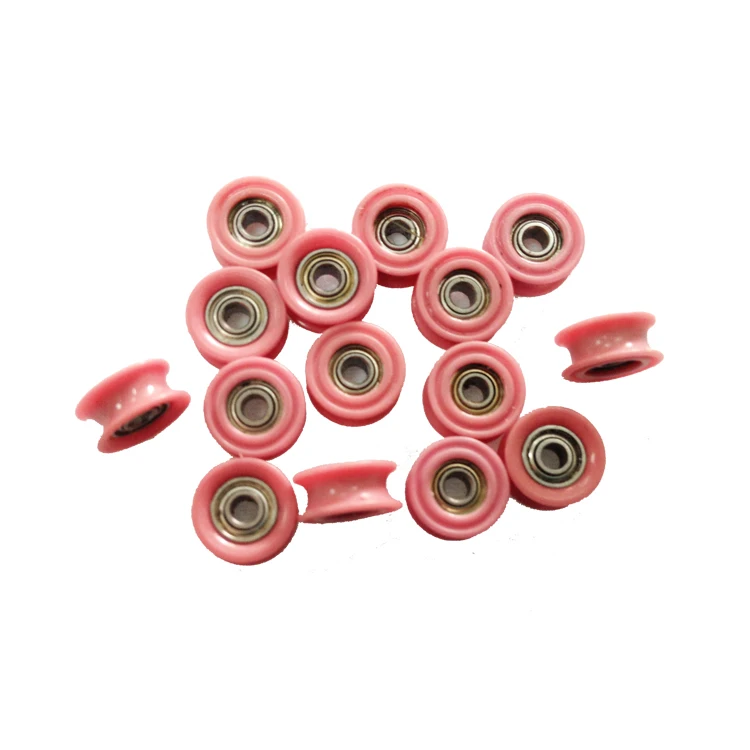

Kimchen Flanged Full Ceramic Guide Ceramic Pulley Wire Guide Pulley

Product Overview

Description

Place of Origin	Dong Guan City.China
Brand Name	KIMCHEN
Material	99%AL2O3
Polish	Fine Polish degree Ra0.2
Application	Ceramic guide for wire
Hardness	≥HRA89
Volume Density	≥3.88
Bending Strength	≥340Mpa
Molding method	Low pressure in jection
Minimum Order Quantity	100 Pieces
Color	White/Red

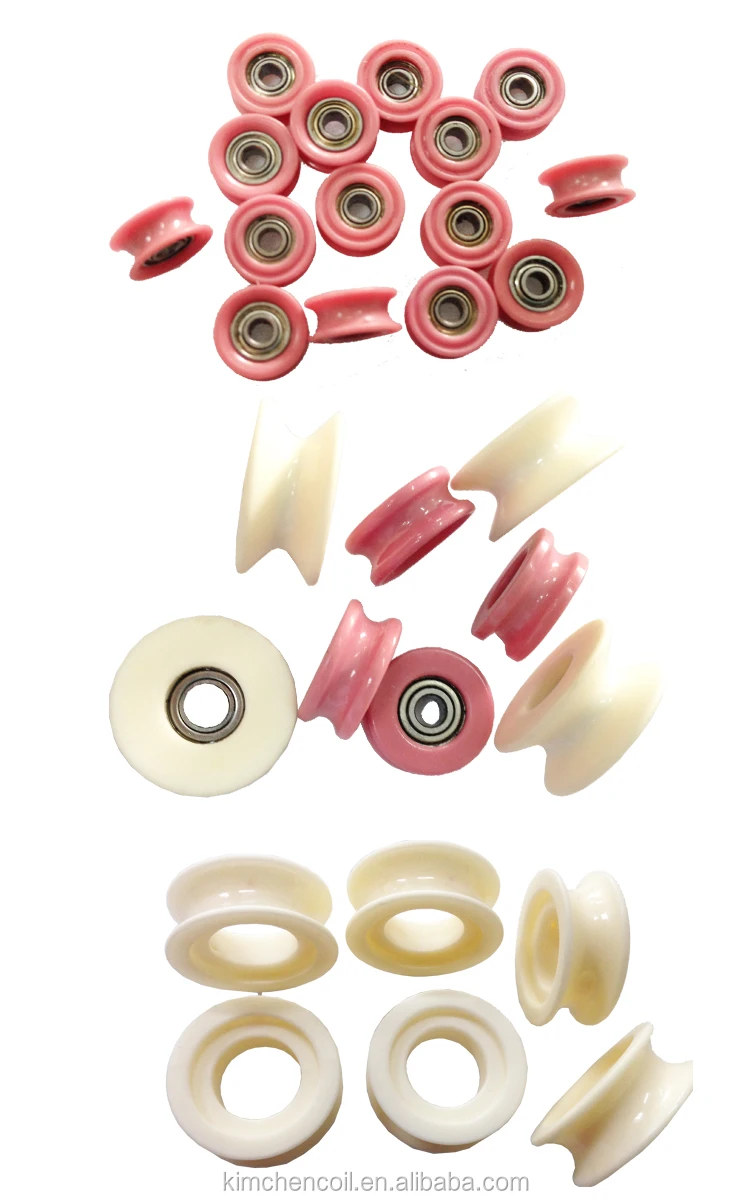

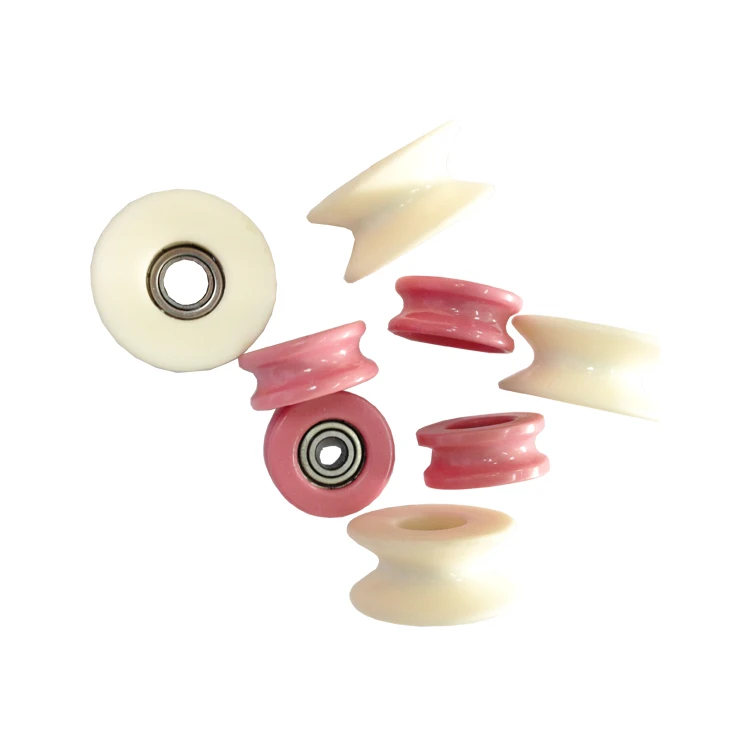

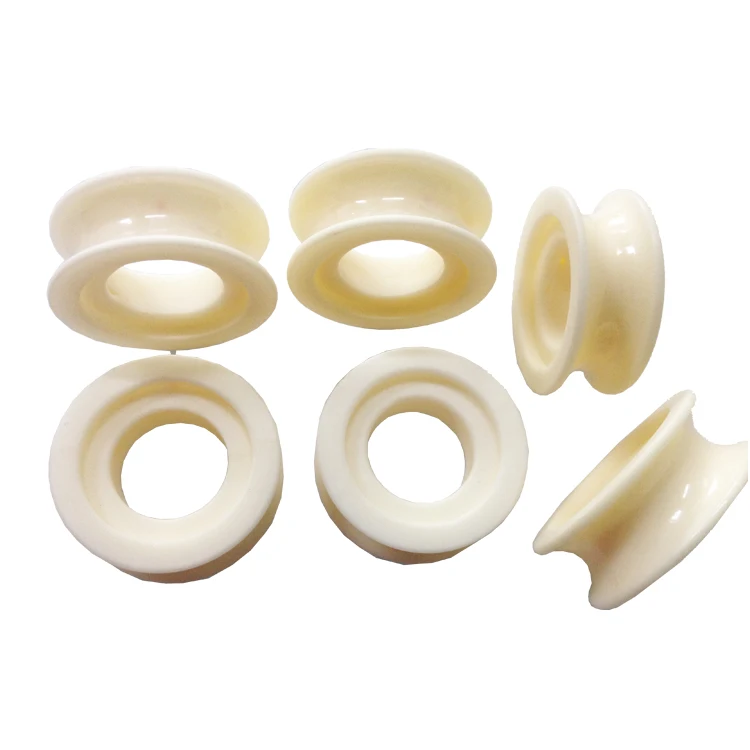

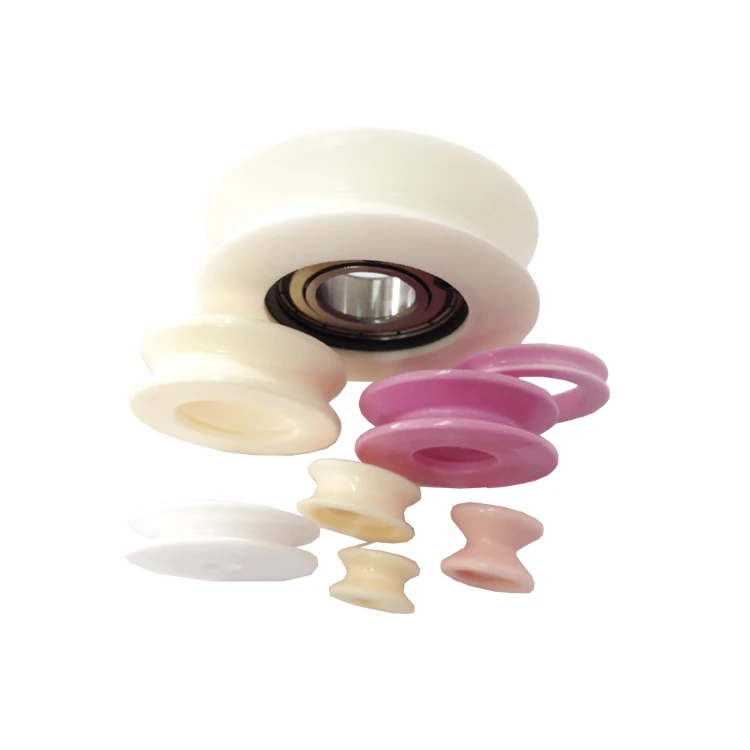

Different Size Full Ceramic Pulley for coil winding machine.

Ceramic pulley is used for enamel insulated wire or silk thread appropriate amount guiding, the china circle

makes from precise ceramics, the surface smoothness that the china marks with a circle reaches Ra 0.2,

moves up and down when rotating being smaller than 0.15 , material selects and uses 99%'s AL2O3 ,

hardness HRA 89, density 3.88

Ceramic pulley specifications

Details size for choice as following:

Welcome to OEM Order,please kindly send the drawing or details information to us.

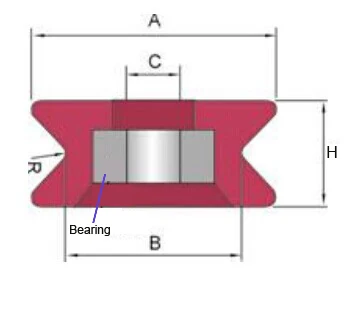

Model	A(mm)	B(mm)	C(mm)	H(mm)
NT001-2	10	8	2	4
NT002-2	11.5	10	4	4
NT003-2	14	10	3	6
NT004-2	10	8	2	4
NT005-2	7.8	6	2	3.2
NT006-2	10.6	7.3	2	3.5
NT007-2	16.5	13	4	5
NT008-2	27	15	5	11
NT009-2	20	14	4	10
NT011-2	7.5	6	2	2.5
KC105-C04	21.5	14	4	10
KC105-C05			5
KC106-C05	30	24	5	11
KC106-C06			6
KC106-C07			7
KC106-C08			8
KC107-C05	35	24	5	11
KC107-C06			6
KC107-C07			7
KC107-C08			8
KC108-C05	40	24	5	12
KC108-C06			6
KC108-C07			7
KC108-C08			8
KC109-C09	45	36	9	13.5
KC109-C10			10



Any size or inquiry,welcome to contact us.
