  • High quality stainell steel Speedway motors multi purpose parts industrial ultrasonic cleaning machine

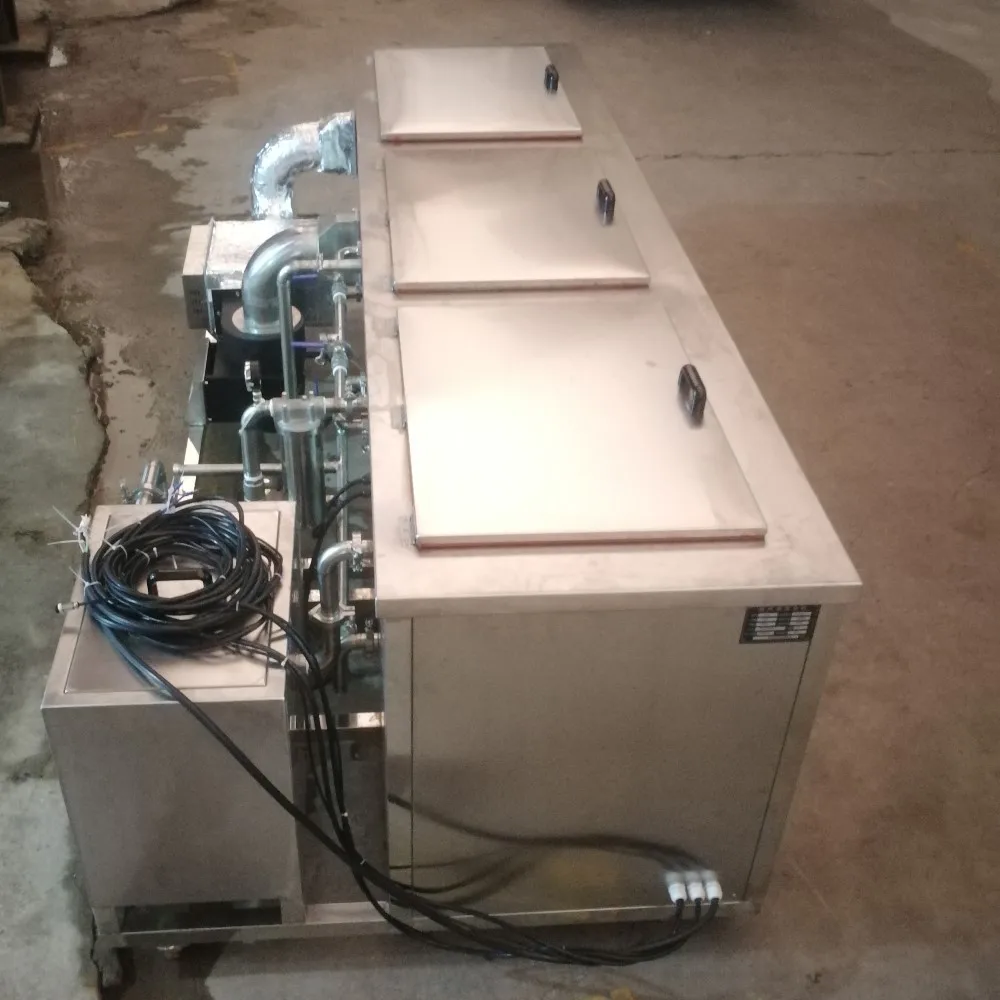

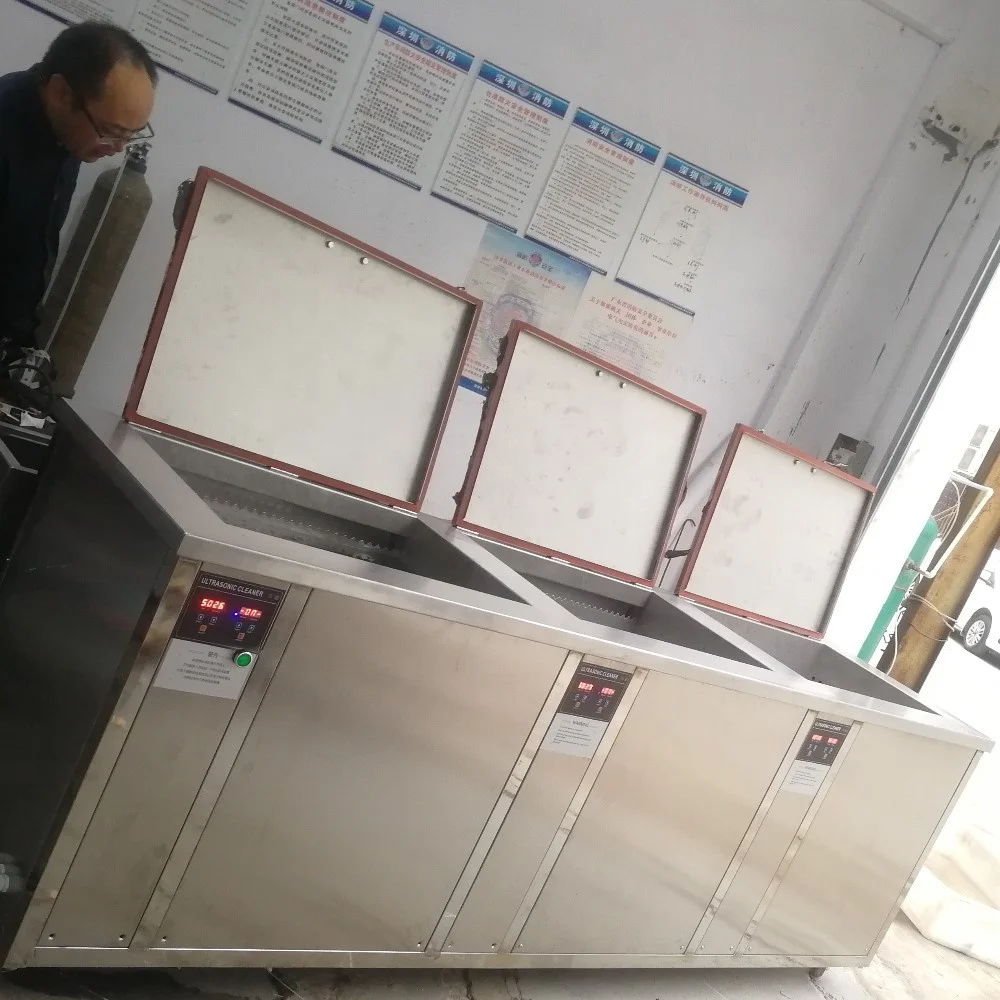

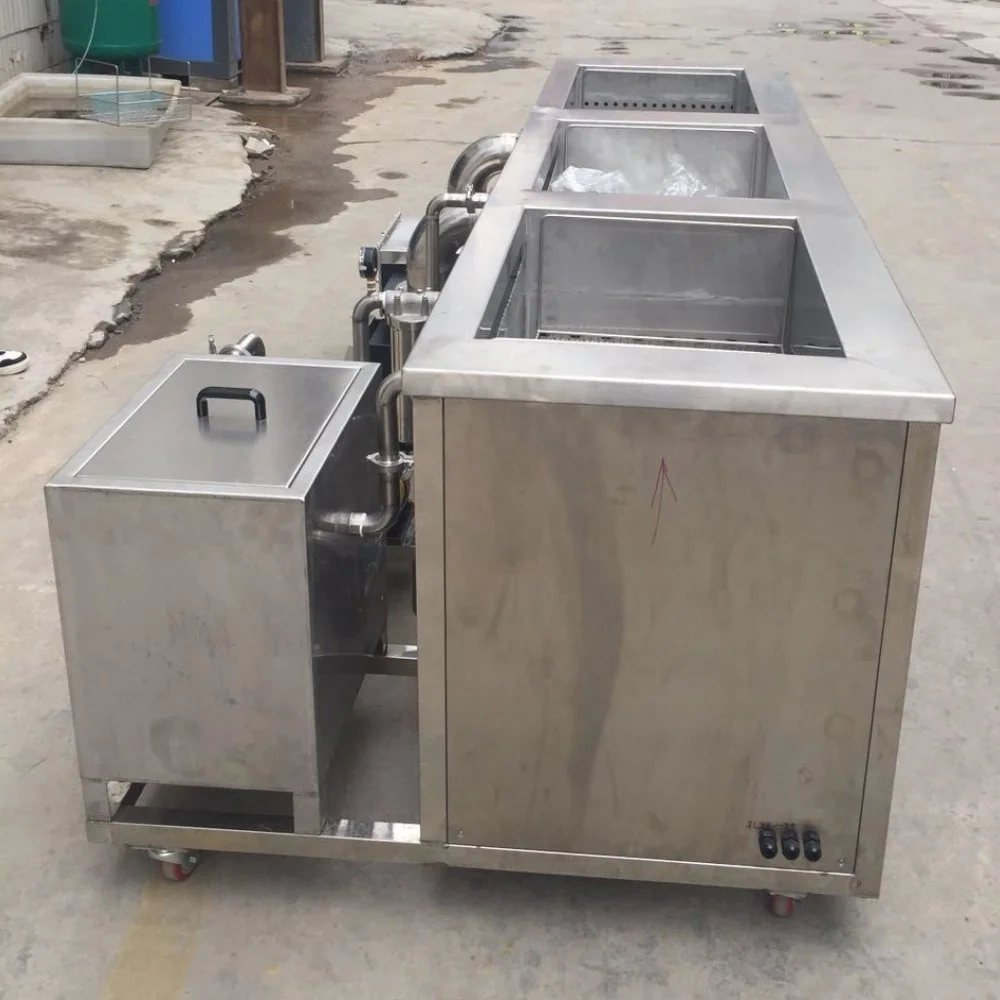

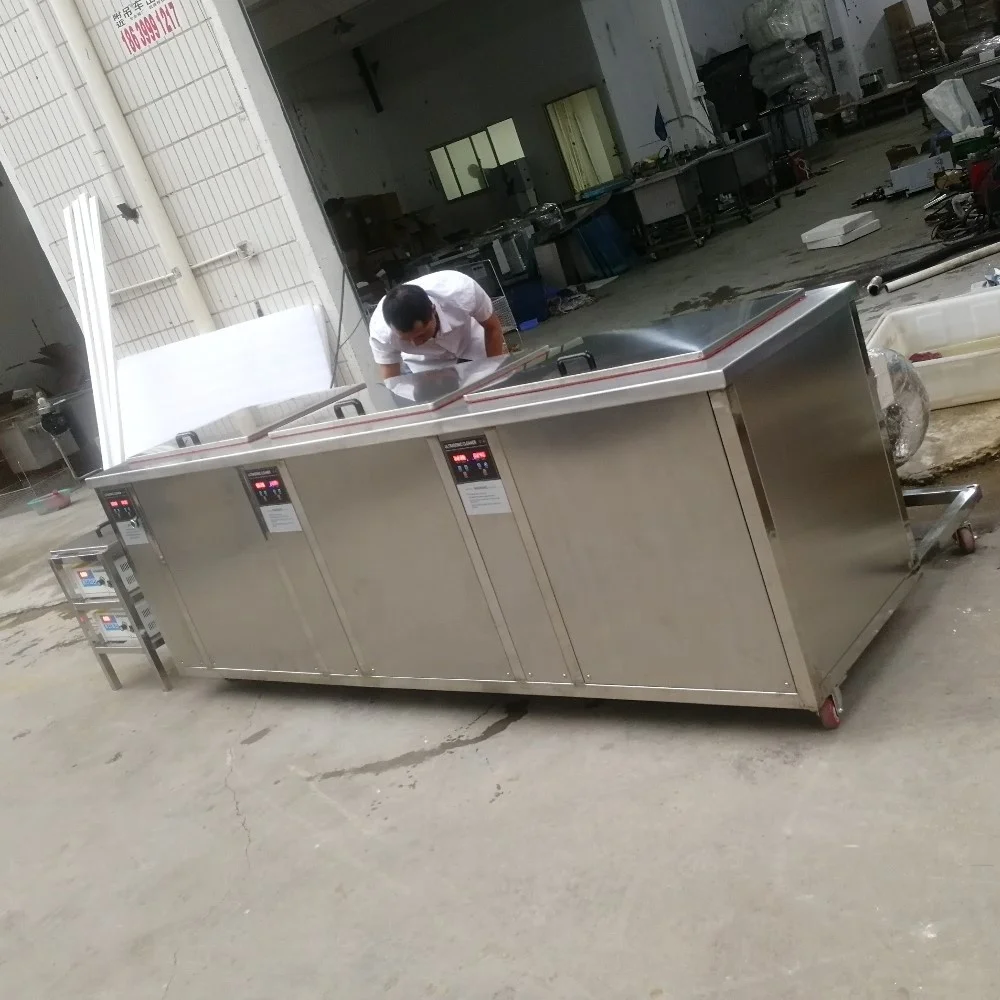

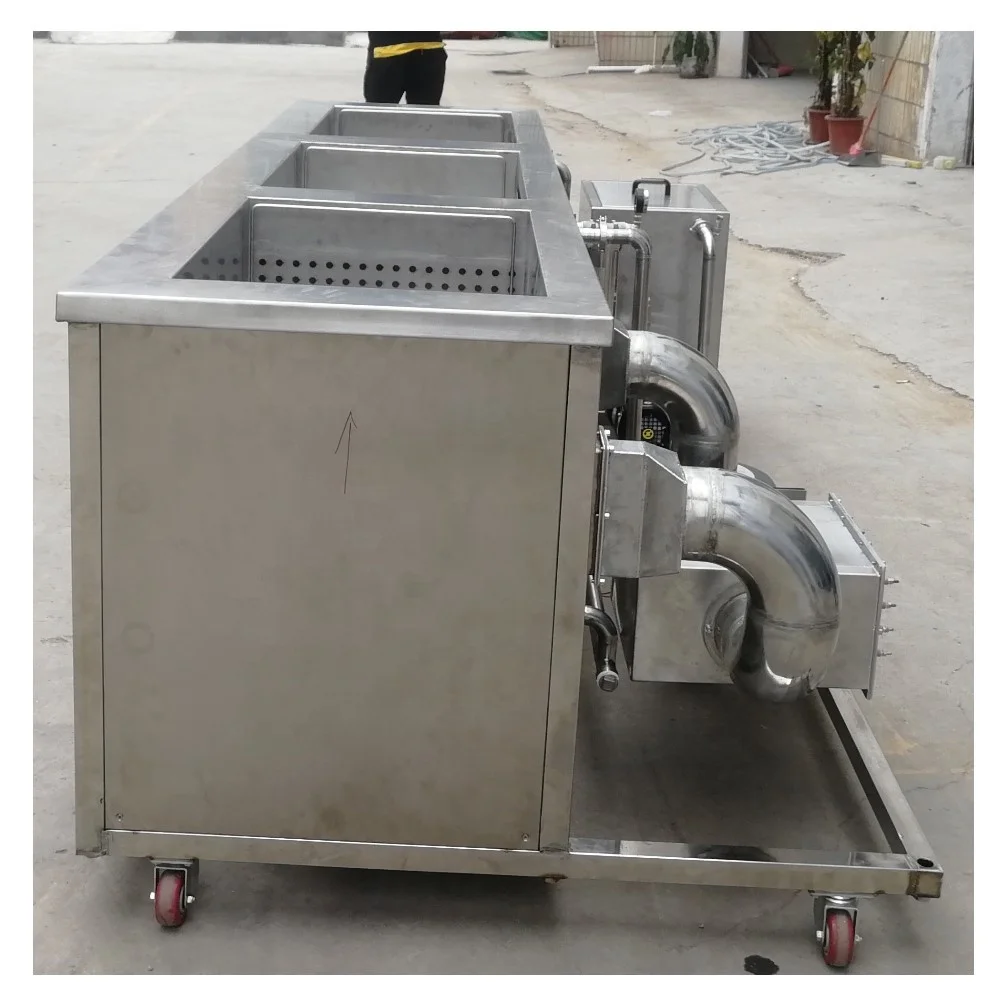

High quality stainell steel Speedway motors multi purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine
High quality stainell steel Speedway motors multi-purpose parts industrial ultrasonic cleaning machine

High quality stainell steel Speedway motors multi purpose parts industrial ultrasonic cleaning machine

Share on (62077294123):


Price:$10,000.00 - $13,000.00

Quantity:


Product Overview

Description


Product Applications
Three tanks cleaning tanks (with circulating filter)+rinsing tank+dring tank
Industrial Manufacturing
1) Assembly                                 5)Gears                                                   9) Metal & Plastic Parts
2 )Relays & Motors                     6) Switches                                              10) clean engine parts                  3) Precision Bearings                           7)Mould blind window                                       11) injector, air cylinder
4)Hardware, screw                     8) Nut, bullet shell
In Auto Industry
1) Carburetor castings               3)Fuel Injectors                                        5)Machined Parts
2) Stamped Parts                        4) Switches                                               6)Car part
In Electronics Manufacturing (Remove Rosin and welding spot)
1) Capacitors                               6)Ceramic Substrates                                   9) Quartz Crystals
2)PC Boards                                 7) Packaging Components                         10)Cleaning of castings
3) SMDS                                       8) Cleaning of electronic parts                    11)Cleaning cartridges printers
4)Cleaning of printed circuit boards (without removing elements)
5) Cleaning of precision mechanical and electronic systems on the site
In Mechanical Industry
1)Cleaning needles with grease                                 7) Maintenance of bearings, machines, and other item
2)Purification of electrodes                                        8)Cleaning equipment diesel, petrol
3) Injection solenoid valves, carburetor                    9)Wash plastic
4)Removing raid with brass contacts                       10) Removal of pollutants from vulcanization molds
5)Clean the measuring instruments and precision tools
6)Removal of sediment and pollutants from the nozzles and screens
In Optics (glass shop or manufactures optical vessels oil, sweat and dust removal)
1)Glass washing after polishing or grinding               3)Cleaning of optical glass
2) Removal of debris after milling eyeglass frames
 In scientific Labs:
1) Eyeglass Frames                3)Lab Glassware                                                      5)Optical & Contact Lenses
2)Pipettes                                4)Scientific Instruments                                         6)Test Tubes
Machinery industry
1)Removing rust and grease for Machinery Parts,  Engine parts, carburetor and automobile parts              cleaning.
2) Filter and clear filter, Especially in the railway industry, it is very suitable for deoiling and decontamination of air conditioning in train compartments, rust removal, oil removal and rust prevention for all parts of the front of the train.
Surface treatment industry
1) Removing oil and rust before electroplating, cleaning before ion plating, phosphating treatment, 2)Removing carbon deposition, removing oxidation skin, removing polishing paste, activating metal workpiece surface, etc.
Product Description
Detailed parameters
\t
CJ-3048GPH Technical parameters

\t
Unit size(L*W*H)
\t
2700*1200*950mm
\t
Machine workflow
\t
Ultrasonic cleaning (with Filtration circulation system )+ Ultrasoinc rinsing+Drying
\t
Tank number
\t
The first tank
\t
The second tank
\t
The third tank
\t
Tank function
\t
Ultrasonic cleaning
\t
Ultrasoinc rinsing
\t
Drying tank
\t
Tank capacity
\t
175L
\t
175L
\t
175L
\t
Inner tank size (L* W*H)
\t
700*500*500mm
\t
700*500*500mm
\t
700*500*500mm
\t
Time setting
\t
1~99Min /Normally open
\t
1~99Mins/Normally open
\t
  1~99Min adjustable
\t
Heater setting
\t
Normally~95℃ adjustable
\t
Normally~95℃ adjustable
\t
25~150 ℃ adjustble
\t
Ultrasoinc power
\t
2400W
\t
2400W
\t
Dry power: 6000W
\t
Ultrasonic frequency
\t
28/40Khz
\t
28/40Khz
\t
Dry mode: Hot air drying
\t
Heating power
\t
6000w
\t
6000w
\t
Drying alarm: Yes
\t
Inner tank material
\t
SUS304. T=2.0mm
\t
SUS304 T=2.0mm
\t
SUS304 T=2.0mm
\t
Shell material
\t
SUS304 T=1.0mm
\t
SUS304 T=1.0mm
\t
SUS304 T=1.0mm
\t
Voltage
\t
AC 380V 3Phase
\t
Accessory
\t
Cleaning basket,Generator. Generator bracket

Functional features
Detailed images
Industrial-grade transducers
Powerful, stable performance.

Weld carefully. Pure manual spot welding, very strong, no false welding, false welding phenomenon

SUS304 Thickness 2.0mm

.Argon arc welding inner tank. Thickness 2.0mm. durable and high temperature resistant

Drive Board

.Independent research and development of drive board, stable output.

Auxiliary tank

Auxilliary tank is one of the important equipment of Water Circulation system.

Circulating pressure pump

 Pump is another important equipment of Water Circulation system. It is high lift, long life, high efficency  pump, low noise.

High quality stainless steel precision filter

Effectively remove impurities, precipitates, suspended solids, rust from liquids.

Quality assurance
Packing information
Protective film around the whole machine /Non-fumigation standard export wooden box/Wooden crate with legs for forklift
Related products
\t
Model
\t
Earch tank Capacity
\t
Earch tank size LxWxH
\t
Frequency (KHz)
\t
Cleaning/rinsing ultrasonic power
\t
Cleaning /Rinsing  Heating power
\t
Dry Tank Heating power
\t\t
45L
\t
500*300*300
\t
28/40
\t
240W~600W
\t
1500W
\t
1500W
\t\t
61L
\t
500*350*350
\t
28/40
\t
360W~900W
\t
1500W
\t
1500W
\t\t
77L
\t
550*400*350
\t
28/40
\t
480W~1200W
\t
3000W
\t
2600W
\t\t
96L
\t
600*450*400
\t
28/40
\t
600~1500W
\t
3000W
\t
2600W

\t\t
108L
\t
600*450*400
\t
28/40
\t
600W~1500W
\t
3000W
\t
2600W
\t\t
135L
\t
600*500*450
\t
28/40
\t
720W~1800W
\t
4500W
\t
4500W
\t\t
175L
\t
700*500*500
\t
28/40
\t
960W~2400W
\t
6000W
\t
6000W
\t\t
264L
\t
800*600*550
\t
28/40
\t
1200W~3000W
\t
7500W
\t
7500W
\t\t
360L
\t
1000*600*600
\t
28/40
\t
1440W~3600W
\t
9000W
\t
9000W
