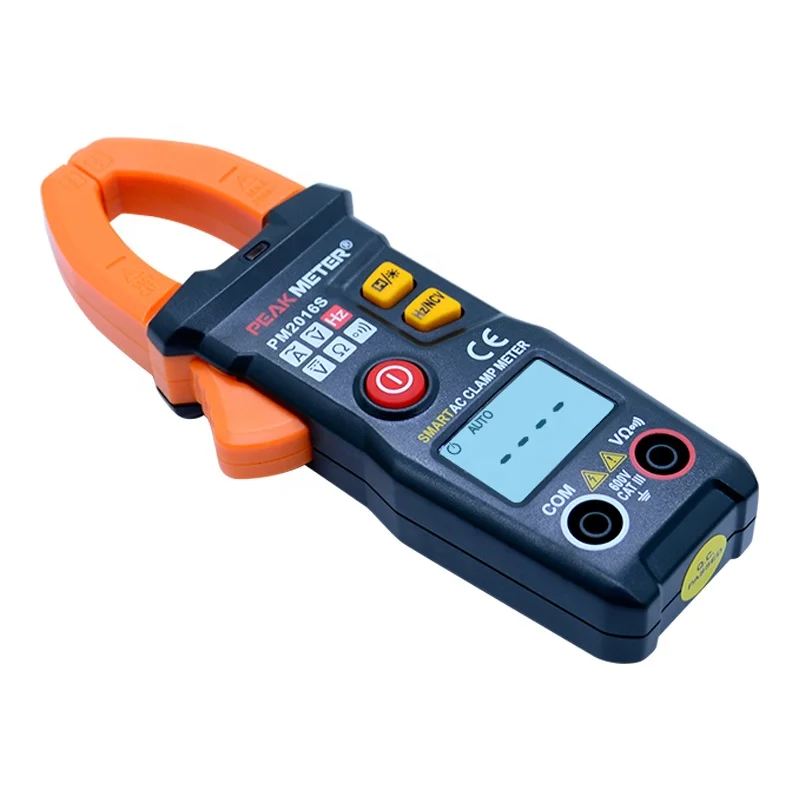

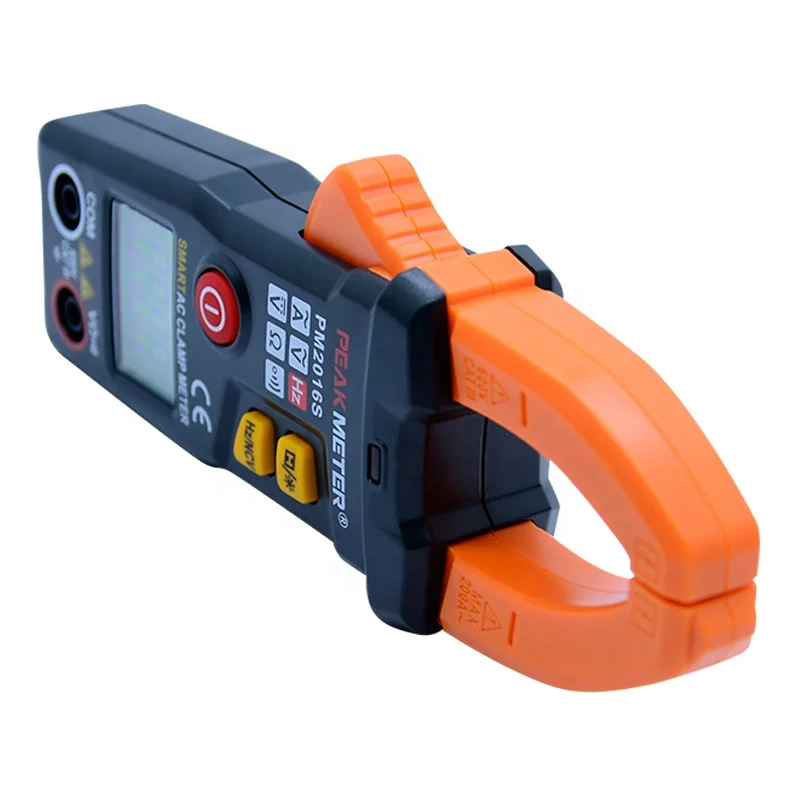

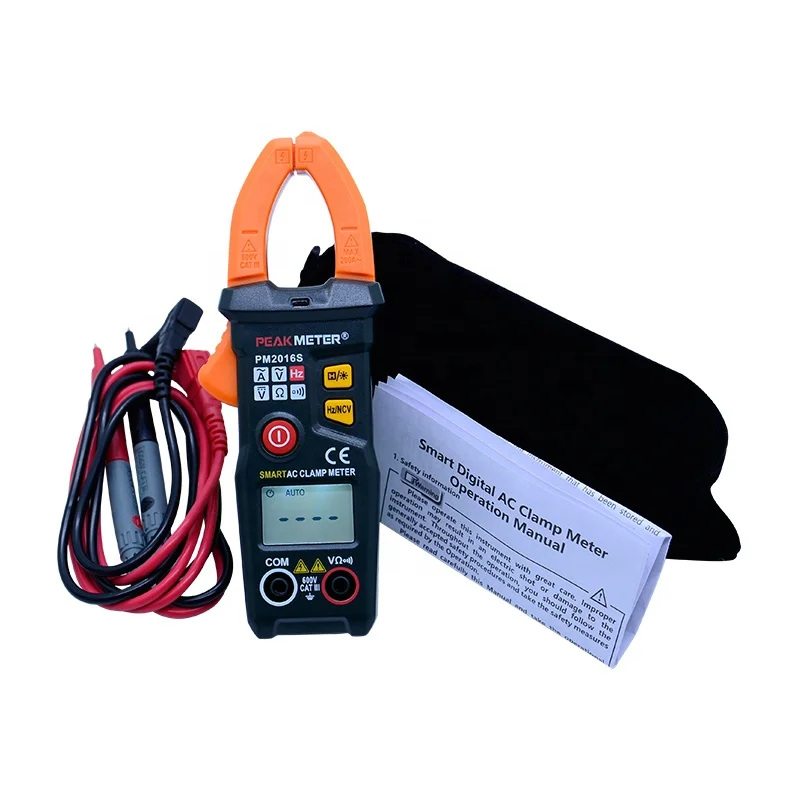

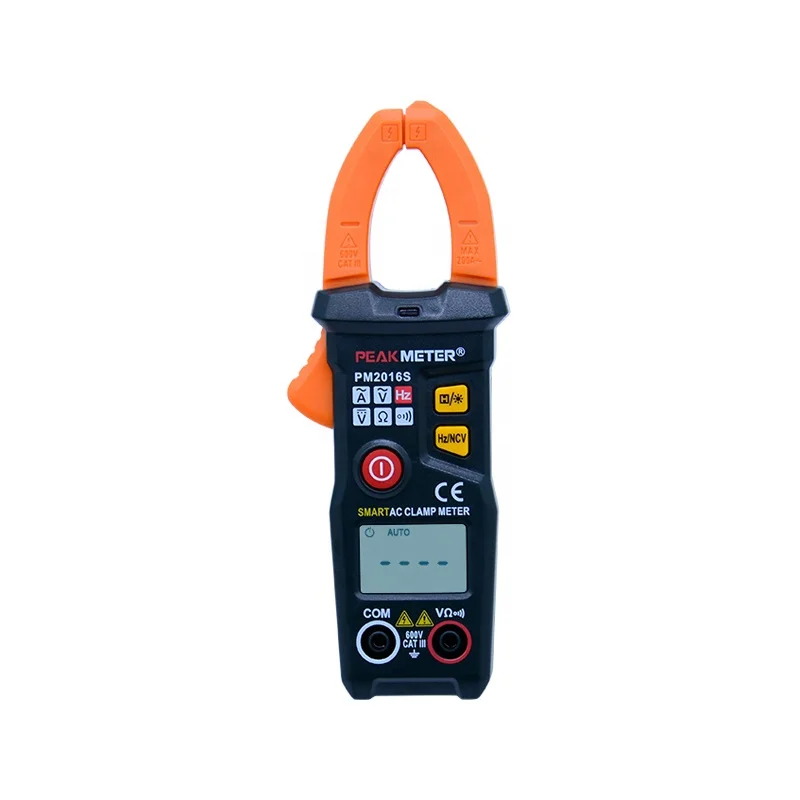

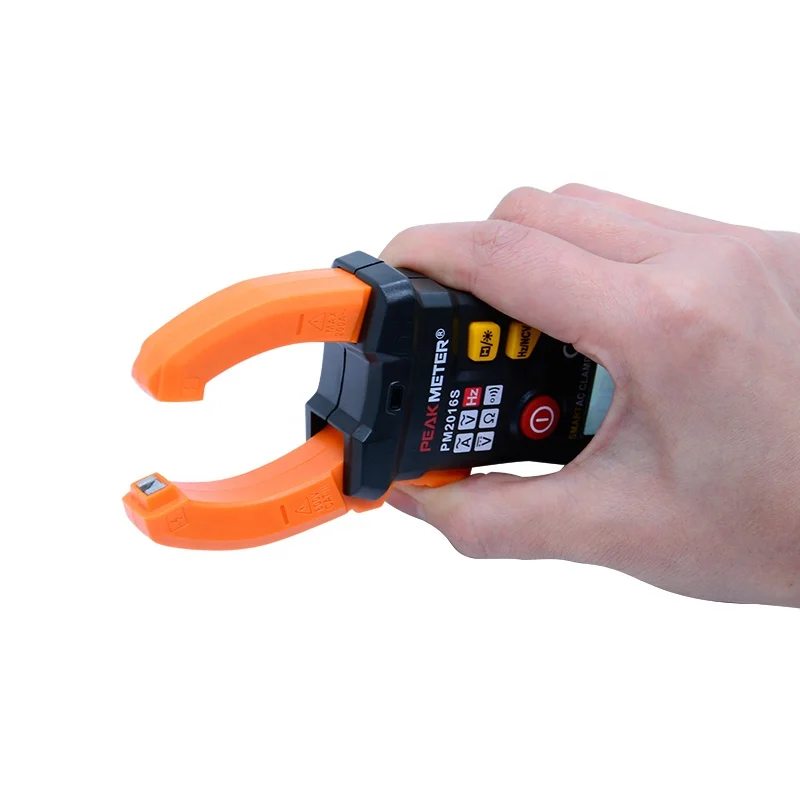

Dual Display 6000 Counts Auto Range AC Digital Clamp Meter with Clamp Frequency Test PM2016S

Specifications

Range

Accuracy

PM2016A

PM2016S

AC Voltage

1.0 ~ 600V

±(0.8% +5)

±(0.8% +5)

DC Voltage

0 ~ 600.0V

±(0.5% +3)

0.5 ~ 600.0V

±(0.5% +3)

AC Current

10mA ~ 200A

±(2.5%+5)

±(2.5%+5)

Resistance

0 ~ 6KΩ

±(0.8% +3)

±(0.8% +3)

Frequency

40Hz ~ 1000Hz

±1% rdg

Continuity

<30Ω

Features

PM2016A

PM2016S

Display

Max.5999 counts

Max.5999 counts

Auto Range

√

√

AC Current

6A/60A/200A

6A/60A/200A

AC Voltage

600.0V

600.0V

DC Voltage

600.0V

600.0V

Resistance

6KΩ

6KΩ

Frequency (Clamp)

1KHz

Frequency (Voltage)

1KHz

Continuity

<30Ω

<30Ω

V /Ω / A Auto Scan

√

Non-contact AC Voltage Detection (NCV)

√

Data Hold

√

Back Light

√

General Specifications

Power supply

2 x 1.5V AAA Battery

Weight

150g

Size

158 x 53 x 28 mm

Jaw size

¢20mm

Safety Rating

EN 61010-1, -2-030, EN 61010-2-033,

EN61326-1, CAT.III 1000V
