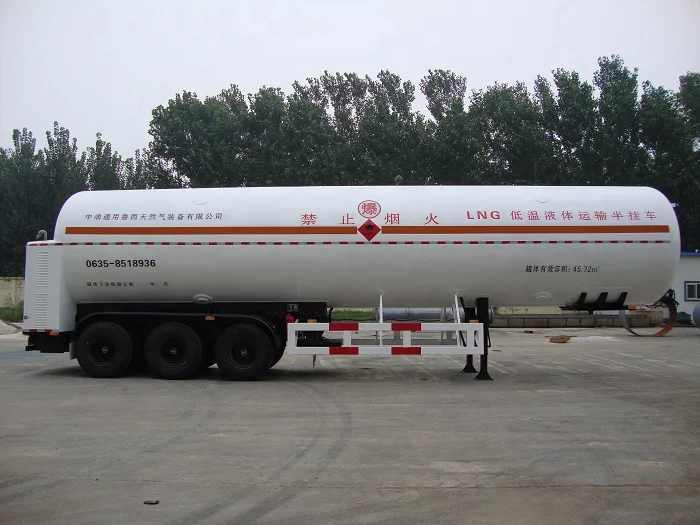

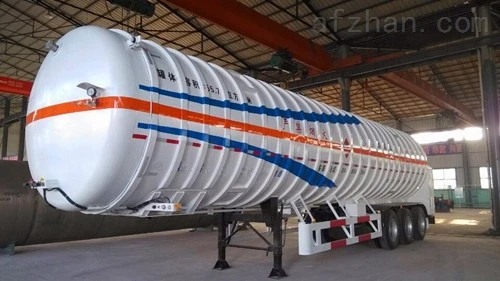

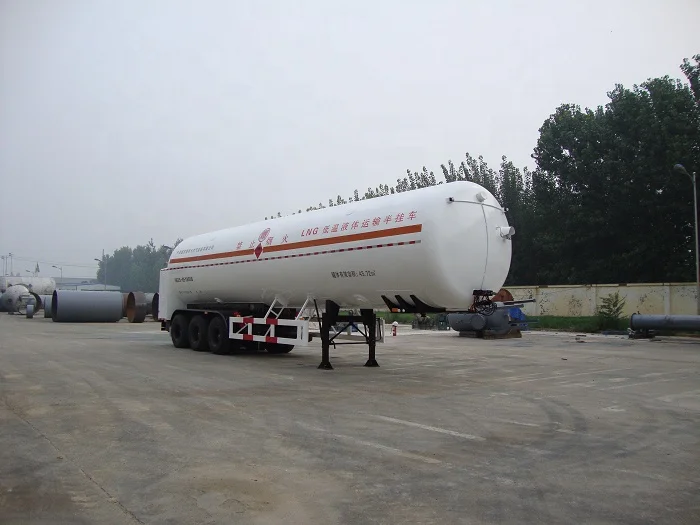

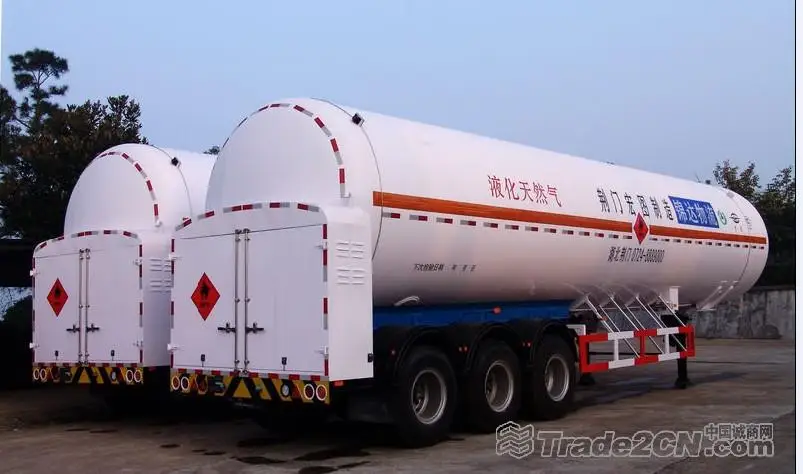

40FT 55.7m3 LNG cryogenic semitrailer truck with good quality and fast delivery

Product Overview

Description





LNG cryogenic liquid transportation semi-trailer

1. The tank vehicle adopts high vacuum multi-layer winding insulation technology, to ensure the process of long distance transport temperature rise within the scope of the standard, pressure is stable, safe and reliable long-distance transportation;
2. The tank vehicle adopts cryogenic technology (-162℃) store, large capacity (the ratio of natural gas in gas and liquid volume for 625:1), transportation cost is low;

3. Large storage capacity, suitable for industrial and urban gas peak use;
4. The overall structure is simple, less valve pipe, convenient operation and maintenance;
5. Cryogenic tank design pressure up to 0.7Mpa, safe opening pressure 0.77Mpa, effectively prevent frequent in the process of charging and transportation safety valve to open;

6. Convenient and quick connection with a variety of tractor, and equipped with the parking brake, so that it is safe and reliable working condition.







Design Specification of Semi-trailer for Cryogenic Liquid Transport with capacity 55.7m³
No.	Dimension (L× W ×H)	13000×2500×3950
1	Working medium	LNG
2	Design pressure Mpa	0.62
3	Design temperature ℃	-196
4	Total volume m³	55.7
5	Effective volume m³	50.13
6	Safety Valve lift pressure Mpa	0.67
7	Curb Weight	~18645





Payment Term	T/T	EXW	30% T/T in advance, balance to be paid before shipment
		FOB
		CFR(C&F)	30% T/T in advance, balance to be paid against copy of B/L
		CIF
	L/C	L/C amount above 50,000.0 USD, we could accept L/C at sight
	West Union	Amount lower than 5000.0 USD
	West Union
Delivery Time	30~60days after receiving advanced payment



We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount











1. LNG cryogenic storage tank from 5-150m3;

2. LNG transportation semi-trailer 52.08m3, 52.6m3, 55.7,57.0m3

3. LNG ISO tank container 20ft or 40ft;

4. LNG mobile refillilng unit;

5. Turnkey solutions including LNG refilling station, L-CNG refilling station, LNG regasification station, LNG/L-CNG combined refilling station.





1. Sales engineer will provide the complete product information and recommend the most suitable solution for your best choice.

2. Onsite training and operation help you be familiar with correct operating methods for the products and avoid the unnecessary losses caused by mistake operating.

3. Professional technical engineer will carry out face-to face technical exchange with you, including comparing all kinds of solutions and products for your selecting.
4. The warranty period is 12 months, starting from the date of the customer’s acceptance to the system. Within the warranty period, we will provide spare parts and after service, free of charge. Beyond the warranty period, we will provide paid repair service.
5. For the special requirement from the client, we will provide sufficient cooperation and support in all aspects, such as technology, commerce and manpower so as to satisfy our client.
