jaw crusher shanbao indonesia surabaya :PV710, PV912 PEV 430x650, PEV 500x900, PEV 600x900, PEV750x1060,

Product Overview

Description

 Shanghai Yike Jaw Crusher Description

The china jaw crusher Shanghai YiKe Road&Bridge Co.Ltd offers are ideal for primary and secondary crushing. Jaw Crusher is one of the main types of primary crushers in a mine or ore crushing process plant and also is one of the most widely used crushing equipments in mining industry. Yike  is a famous jaw crusher manufacturers in China, and sold crusher machines to all over the world. This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even.

Shanghai Yike  Jaw Crusher Working Principle

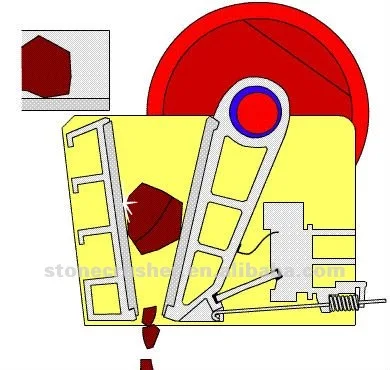

Primary jaw crusher is typically of the square opening design, and secondary jaw crusher is of the rectangular opening design. Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher.



Shanghai  Yike Jaw Crusher Features:

1. Crushing cavity depth and no dead zone, improving the feeding capacity and output

2 the jaw crusher has big crushing ratio, products of granularity

3. Gasket type discharging mouth adjusting devices, reliable convenient, wide adjustment, increased the equipment's flexibility

4. Lubrication system is safe, reliable and convenient maintenance, small amount in

maintenance

5. The palate broken simple structure, reliable working, operation cost is low

6. The saving-energy equipment: single energy-saving 15% ~ 30%, more than doubling system energy saving

7. The jaw crusher discharging mouth adjusting scope is big, can satisfy to different user’s requirements



Shanghai JiansheLuqiao Machinery Co., Ltd  SJL

Shanbao Jaw crusher model

PE jaw crusher: PE60X100, PE150X250, PE250X400, PE250x500, PE400x600, PE430x600, PE475x1050, PE500x750, PE600x750, PE600x900, PE620x900, PE670x900, PE750x1060, PE800x1060, PE900x1200, PE1000x1200, PE1200x1500, PE1500x1800,etc

PEX jaw crusher:PEX100X600, PEX150X750, PEX200X1000, PEX250X750, PEX250X1000, PEX250X1200, PEX300X1300

PV jaw crusher :PV710, PV912

PEV series: PEV 430x650, PEV 500x900, PEV 600x900, PEV 750x1060,

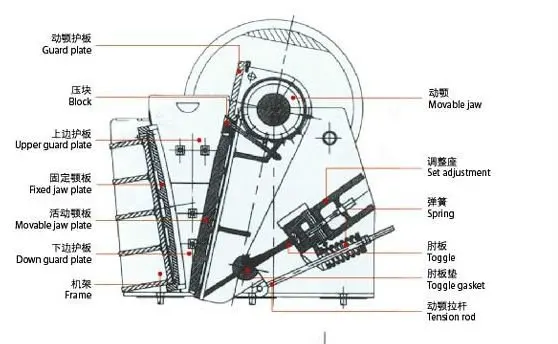

Shanbao jaw crusher spare parts: fixed jaw plate, movable jaw plate(swing jaw plate),up and bottom side plate(guard plate), toggle plate,wedge, toggle block, toggle seat,pressing block, flywheel,grove wheel(pulley),bearing, cover(flange) eccentric shaft,bushing,movable jaw(pitman,swaying jaw),sleeve,V belt(triangle belt),tension rod, belleville spring, bolts(screw),nuts washer, body frame,bearing cap, motor and base, anchor bolt,belt pully,track,hydraulic cylinder,atop iron,wood pad, bearing base,connecting plate,expeanding sleeve,right angle iron,jack-up bottom plate, gasket unit,bracket,dust-resistand plate, adjusting gasket,hanging scroll, ajusting top-foot, top head,jaw crusher frame,bearing cup, hopper(silo),nameplate,logo,pression arm set, pression arm, gasket pression arm seat block.

Shanghai  Yike Jaw Crusher Technical Parameters

Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power Consumption (kw)	Discharge Opening (mm)	Overall Dimension (L x W x H) (mm)
PE-150×250	150×250	125	1-5	5.5	10-40	758×758×794
PE-250×400	250×400	210	5-20	15	20-60	1500×1400×900
PE-400×600	400×600	340	16-65	30	40-100	1700×1800×1600
PE-500×750	500×750	425	50-100	55	50-100	1890×1940×1870
PE-600×900	600×900	500	50-120	55	65-160	2395×1843×2230
PE-750 ×1060	750×1060	630	52-180	110	80-140	2775×2426×2840
PE-800×1060	800×1060	640	136-230	110	100-200	2500×2472×2810
PE-900×1200	900×1200	750	140-260	110	95-165	3400×3200×3500
PE-1000×1200	1000×1200	850	315-342	110	195-265	3335×3182×3430
PE-1200×1500	1200×1500	1020	400-800	160	150-300	4200×3732×4620
PEX-250 ×750	250×750	210	15-30	22	15-70	1400×1300×1350
PEX-250×1000	250×1000	210	16-52	30	25-60	1600×2000×1500
PEX-250 ×1200	250×1200	210	20-60	37	25-60	1900×2200×1500
PEX-300×1300	300×1300	260	30-70	55	30-90	1800×2300×1700



Note: all kinds of Yike jaw crusher spare parts are  availavle and with good quality and good price.









Yike Jaw crusher service:



 Yike  company offer friendly service in pre-sale, markering and material fromulation and after-sales service consisting of installation ,test and training operation staff freely,we are looking forward to provide you our warm-herarted service.



Welcome contact us and welcome visit our factory. You are welcome to put forward your views.
