Diamond dicing blades blade for silicon wafers cutting wheels cup
- Category: >>>
- Supplier: Henan Zhongtu Superhard Material Co. Ltd.
Share on (62077413820):
Product Overview
Description
Product Description
Diamond dicing blades blade for silicon wafers cutting wheels cup
Metal bond Dicing Blades are made of identical material,with thin thinkness and high precision,they are mainly used for grooving and cutting with high accuracy and slight cutting depth.
1A8 Dicing Blades for semicinductor
Application
Smiconductor, such as BGA LGA, LED, diode and so on.
Optical glass, such as filter, blue glass, crystal and gem.
Optical communication, such as slotting- shape on quartz and cutting off quartz cover.
Other material, such as slotting and cutting off magnetic materials, carbide. tool steel and stainless steel.

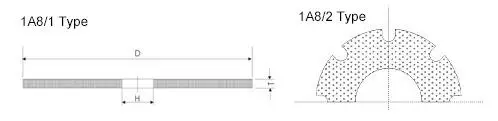

Specification And The Precision For Reference(mm)
| D | 10~58 | 60~76.2 | 78~101.6 | 101.6~127 | 130~200 |
| T | |||||
| 0.07 | |||||
| 0.1 | |||||
| 0.2 | |||||
| 0.3 | |||||
| 0.4 | |||||
| 0.5 | |||||
| 1.0 | |||||
| 1.5 | |||||
| 2.0 | |||||
| H | 25.4,31.75,40,52,69.875,88.9,114.3 | ||||
Other specification can be made according to customers requirements.
1A8 diamond Dicing Blade mainly used for deep processing of glass, ceramics, magnetic materials and packaging materials
Product Detail
| Application | cut off |
| Material | diamond or cbn |
| Bond | metal |
| Type | 1A8 |
| Thickness | 0.20mm |
| Diameter | 58mm |
| Color | Yellow, Gray,Green, Red |
| MOQ | 5 PCS |
| Machine | Cutting Machine |
| OEM | Yes |
| Product Keywords | diamond dicing blades,diamond dicing blade for silicon wafers,diamond cutting wheels cup |
Related Products
Company Information

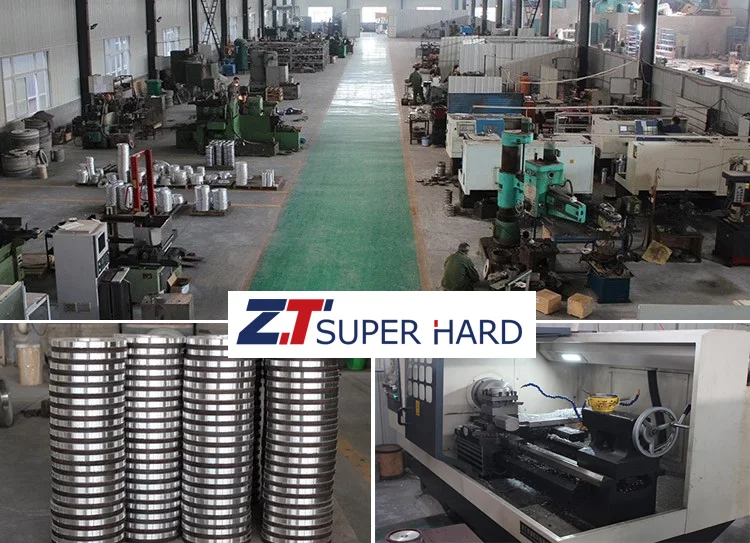

Henan ZT Super Hard Material Co., LtdZTsuperhard company have 15 years of experience in R & D. It is a high-tech enterprise integrating
production, sales, service and research. our company has a diamond grinding wheel production
line, a superabrasive cutting tools production line, a Ultrathin cutting wheels production line.
Products are mainly exported to Germany, England, South Africa, Russia, Sri Lanka
Belgium, South Korea, Chinese Taiwan, Thailand, India
and other countries and regions..

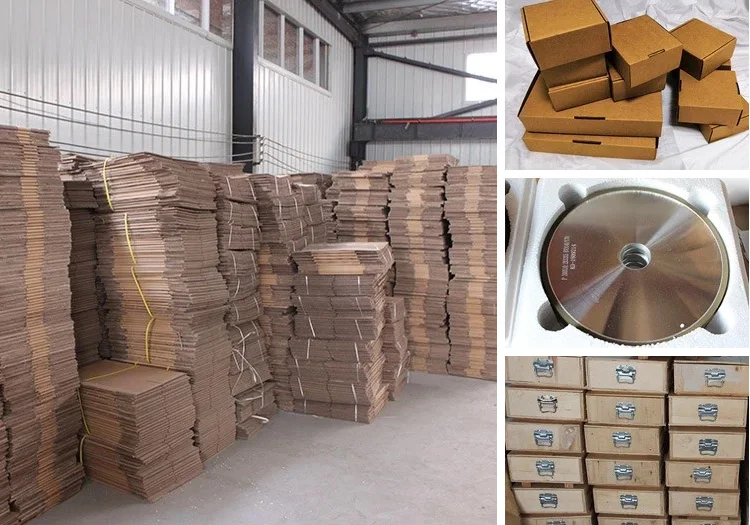

Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: How to choose grinding wheels?
A: Please provide drawings or detailed parameters, such as Diameter, Hole (Inner bore), Thickness, Specification etc.
Q: New Project and Not Sure What You Need?
A: We will have one of our highly experienced application development engineers create a wheel for your specific needs based on the material you are working with, your machine type, your processes, and your desired outcome.
