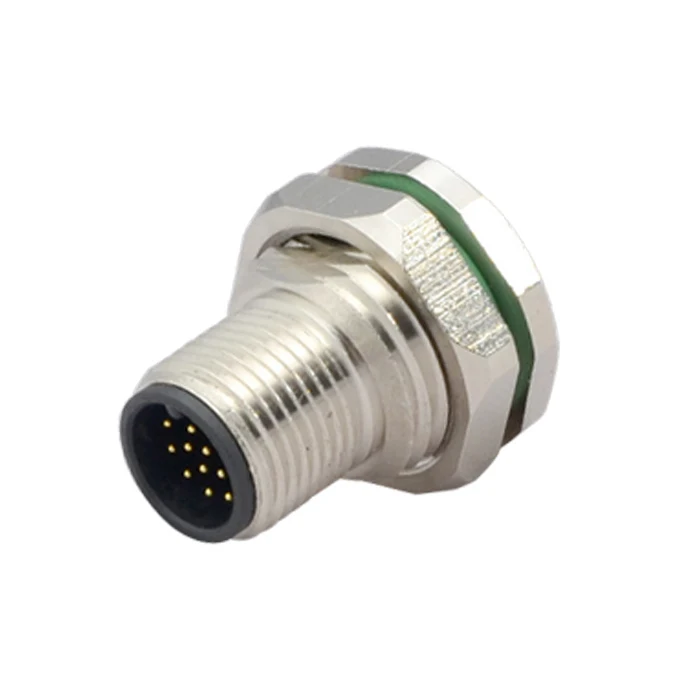

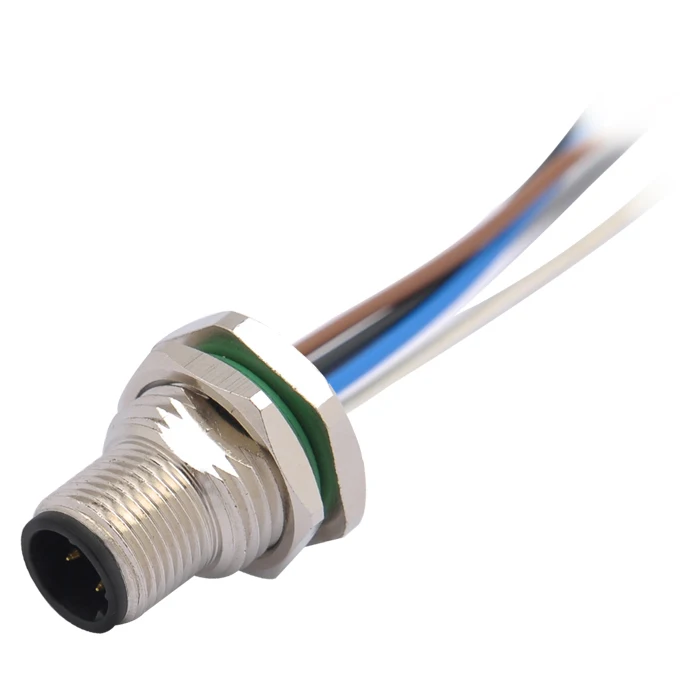

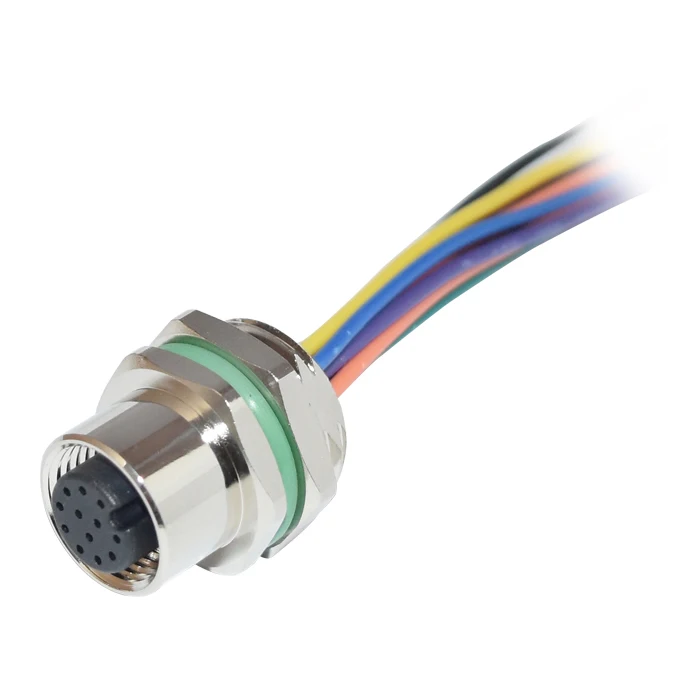

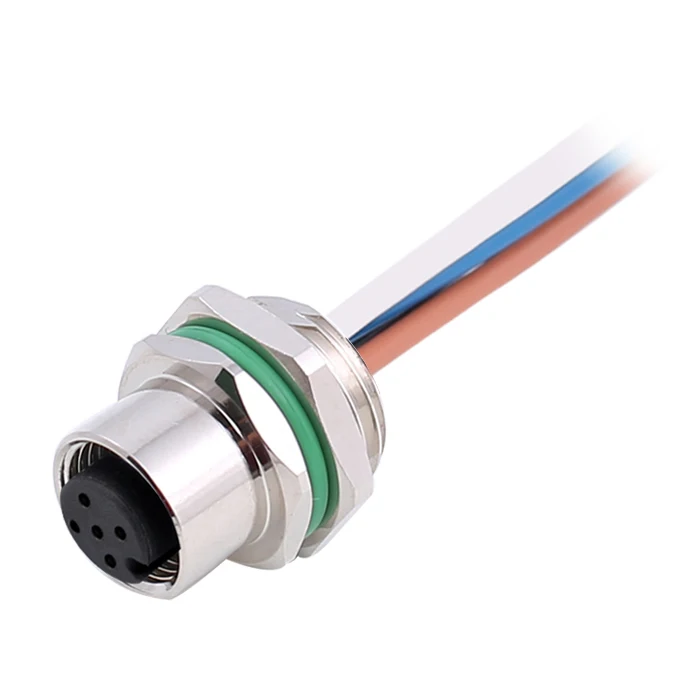

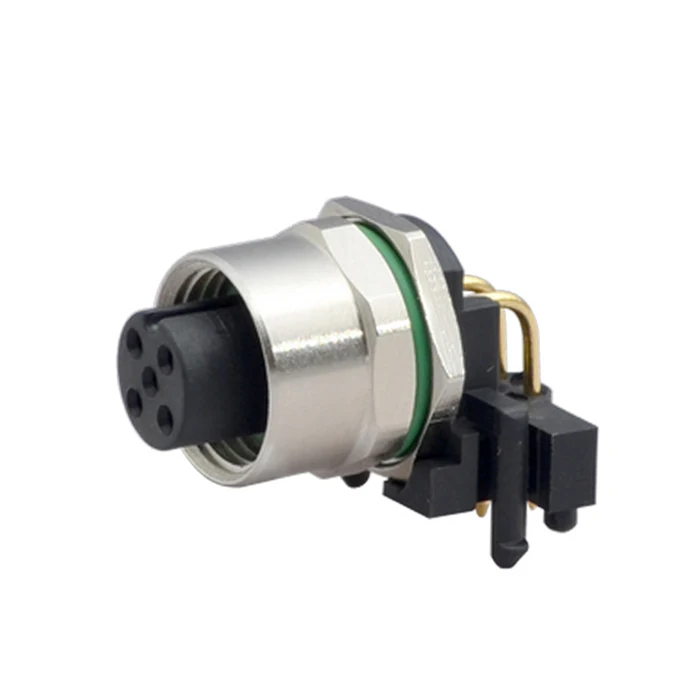

Hot sell m12 connector female 5 pin circular socket a coding 4

Hot sell m12 connector female 5 pin circular socket a coding 4

Category: >>>
Supplier: Shenzhen Signal Electronics Co. Ltd.

Price:$2.00 - $6.00

Quantity:

Product Overview

Description

Product Description

Hot sell m12 connector female 5 pin circular socket a coding 4

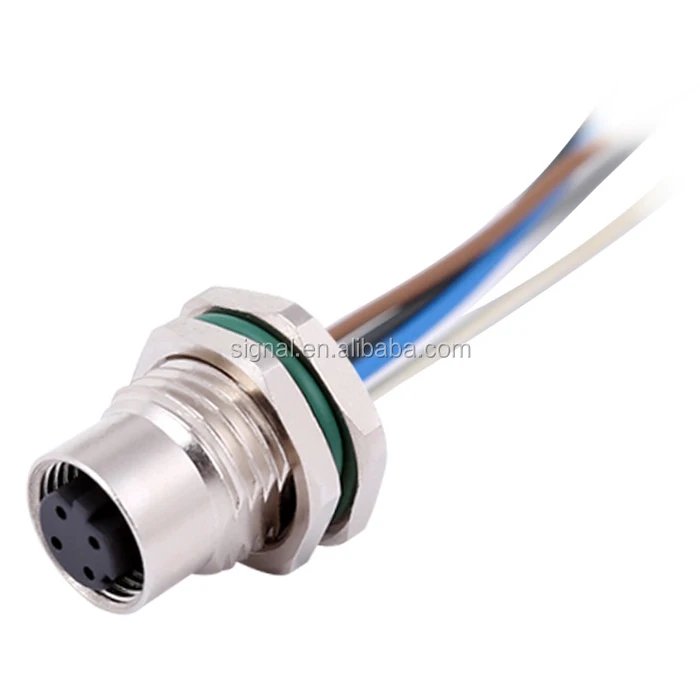

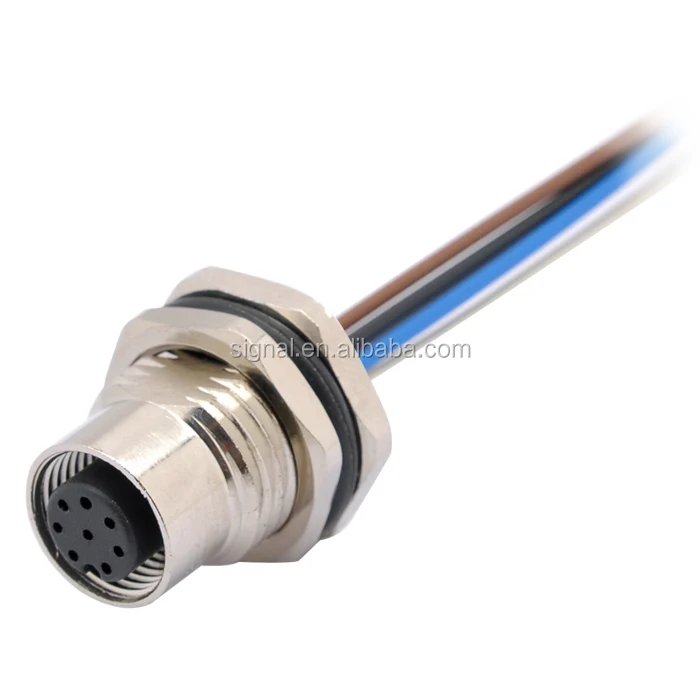

m12 connector female 5 pin

General Characteristics
Number of contact	3	4	5	8	12	17
Locking system	screw M12*1.0
Termination	solder, moulded on cable, crimp or screw clamp
Wire guage in mm²	0.14/0.25/0.34/0.5 etc
Wire guage in AWG	26/24/22/20 etc
Shell protection	IP67/IP68
Mechanical operation	>500 mating cycles
Upper temperature	+85℃
Lower temperature	-25℃
Electrical Characteristics
Rated voltage	250V		60V	30V
Pollution degree	III
Test voltage	500V±15V
Rated current(40℃)	4A				2A	1.5A
Contact resistance	≤10mΩ
insulation resistance	≥100MΩ
Materials
Pin contact	CuZn
Socket contact	CuSn
Contact plating	Au
Upper temperature	PA66(UL 94V-0)
Female insent	PA66(UL 94V-0)
Material of cable jacket	PVC or PUR
Screw	CuZn
Nut	CuZn

OUR FACTORY

Signal Electronics is established in 2009, we focus on the design, development and production of circular connectors and wire harnesses, including: M5, M8, M9, M12, M16, M23, M-series distribution boxes and other USB, RJ45, d-sub, RF etc., with IP68, IP69K, CE,　CUL, TUV, ROHS and REACH approved.
Our products can be widely used in industrial automation, sensors, vision, industrial network transmission, rail transit, shipping, security, medical, oil and gas fields.
Our products have been exported to Germany, the United States, Canada, Japan, Italy, France, Australia, Brazil, Switzerland, Sweden, Thailand, Israel and more than 60 countries and regions.

Certifications

CERTIFICATE

Strength proof

Our products are passed the inspection standards included IP68, IP69K, CE, RoHS, UL, TUV, with 100% quality.

Our Advantages

Experience

We have experienced and successful designers and production technicians

ADVANTAGES

Service

We have competent R&D Group and expe- rienced engineers

Team

Professional team to provide you with efficient service

Quality

To provide quality products at the same time to improve after-sales support

Manufacturability

We have own assem- bling factory and mold factory

History

HISTORY

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation

2009-2012

1.Established 2.Mass production of M12 connectors & cablesLaunch 3.M12 D-coding & M8 B-coding (According to IEC Standard) 4.M12, M8 series get the IP67, IP68 certificate 5.ISO9001:2008

2013-2014

1.Launched M5, M9 series 2.Launched M12 C-codingLaunched 3.M12 X-coding connectorsCE certification 4.Launched M16 Series

2015-2016

1.M12 T-coding & 17Pins 2.M8 6Pins & 8Pins connectors 3.ISO14001:2008 4.M12 S-coding

2017-2018

1.M12 S-coding M8 P-coding 2.UL Certificate for M8 & M12 3.TUV Certificate for M12 4.M6 & M14 Series

2018-20~

1.ISO14001:2015 ISO9001:2015 2.UL Certificate 3.Move to New Factory

M12 waterproof ip68 connector 8 pin X-coding electrical circular connector

m12 waterproof bulkhead electrical panel connector with solder pin

m12 4 pin ped connector male female plastic building connector

ip68 waterproof Industrial Ethernet m12 D Coding to RJ45 adapter

Product Process

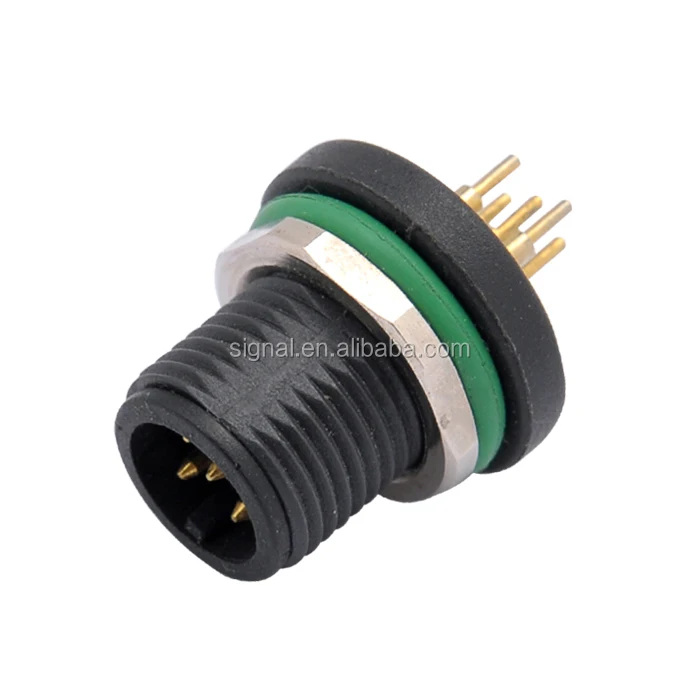

m12 connector female 5 pin

Application

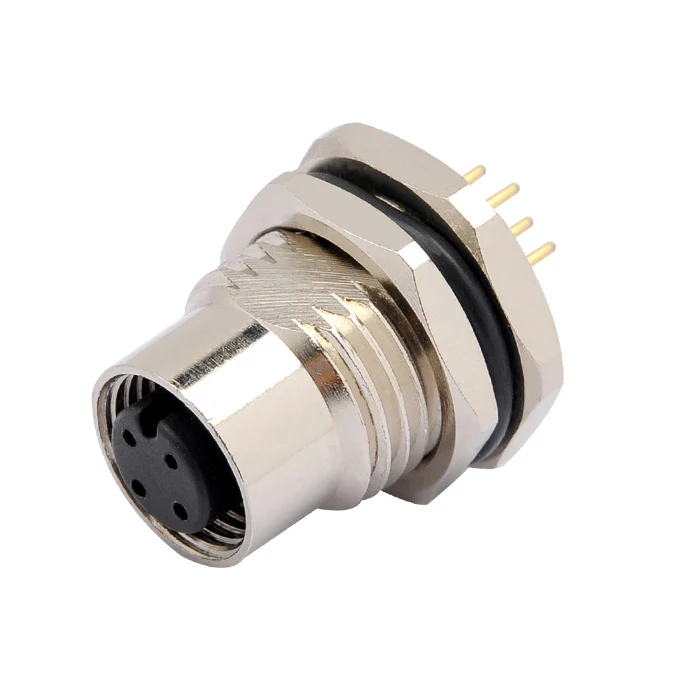

m12 connector female 5 pin

\t\t\t\t

FAQ

FAQs

1. When can I get the quotation?

Within 24Hours after we get your inquiry. If you are very urgent to get the price,please call us or advise in your e-mail so that we will quote to you in priority.

2. What is the minimum order quantity (MOQ)?

priority.100 pcs or negotiate.

3. What kind of certificates SIGANL have?

RoHS 2.0; REACH; UL; TUV; CE; IP67/68; IP69K; ISO9001:2015; ISO14001:2015…

4. How long can I expect to get the samples? Should I pay for the samples?

The samples will be ready to delivery in 3-7 days after you confirm the drawing.

For standard products, you can get 2-4pcs free samples.

5. Can you provide customized products for us?

Yes. We have a professional team in providing customized solution for you. Just tell us your idea and the related information you have, then we will help to carry out. what kind of information you should provide, just contact our sales, we will tell you.
