Product Overview

Description



1.Extruding main machine (compressing power: 1000 tons)

I.Feeding system (1 set):

A. Spiral material loader:

a. Motor power: 1.5KW

b. Length: 3000mm

c. Diameter: 133mm

B. Metering feeder:

a. Screw diameter: 85mm

b. L/D ratio: 10:1

c. Feeding motor power: 2.2KW

d. Speed controlling mode: Frequency converter, able to synchronize with  the main screw motor

2. Main machine model GWJZDS-2:

A. Output: 500kg/h

B. Screw diameter: 65/130

C. Screw length:3135mm

D. Screw rotation speed: 3.5-75r/min

E. Screw torque: 16000N.m/pcs

F. Driving motor power: 75KW, inverter control

G. Inverter brand: TECO

H. Low-pressure electrical parts: High quality joint ventures

I. Total heating power of main extruder minus segments: 49KW-7segments

J. Cooling power of main extruder x segments: 0.55KWX 5segments,Strong cooling ventilation cooling

K. Center height(height from the screw to ground): 1050mm

L. Weight of main extruder (not including mold and screw loader):6000KGS



3. Storing materials systems(2SETS)

A. Storage tank (280*600mm)

B. Oil tank (150*600mm)

C. Support frame

D. Travelling small car

E. Heating power: 57.6KW



4. Exchange system (1 set)

A. Alternating oil tanks:80*160mm

B. Alternating device

C. Alternating tube

D. Heating power: 5.4 KW



5.1000 ton of Injection molding system(2sets)

A. Nominal force: 8000KN (4 points boost)

B. Ejection force: 200KN

C. Hydraulic maximum working pressure: 145KN

D. The mold cylinder 2000KN

E. Dynamic mold stroke: 300mm

F. The template maximum opening distance: 400mm

G. Draw-bar spacing size: level: 1500mm

            Vertical: 1500mm

H.Ejection stroke: 30mm

I. Machine outline dimension size: left and right: 4390mm

                Before and after: 2520mm

                Height on the ground: 3698mm

6.Locking systems (4sets)

  After the mold clamping cylinder moves the template, the locking mechanism will be locked after the position is in place, and then the compression cylinder works to make a qualified product.



7.Hydraulic system (1 set)

A. Oil pump motor: 45 kW

     B. Circulating motor: 1.5 kW



8. Control system (1 set)

A. The extruder adopts PLC control with 10.4 inch touch screen

B. Hydraulic system controlling

C. Contactor: Siemens

D. Motor: Siemens BEIDE

E. Others are high quality joint venture products



9. Forming mold

A. Forming mold 2 sets (customized by the customer)



10. Machine total weight: 120 tons



11. Machine working output

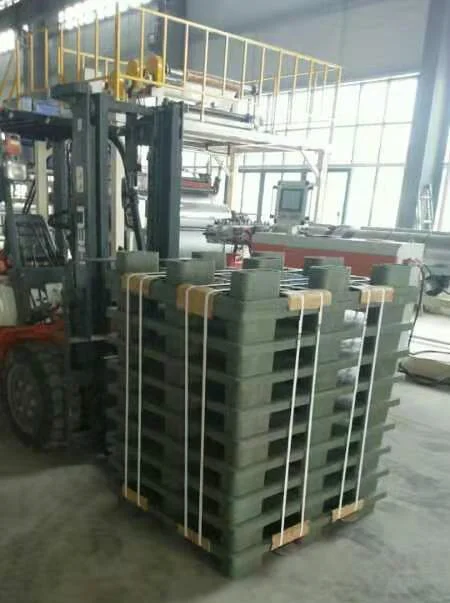

   Taking the tray as an example, one piece every six minutes. if it is two stations, it is one piece by 3minutes, 20 pieces per hour, 24 hours: 480 pieces.

12. Production line total length is 9000mm. Rated power: 289.5KW (60% consumed power during actual production, mainly focusing heaters).
