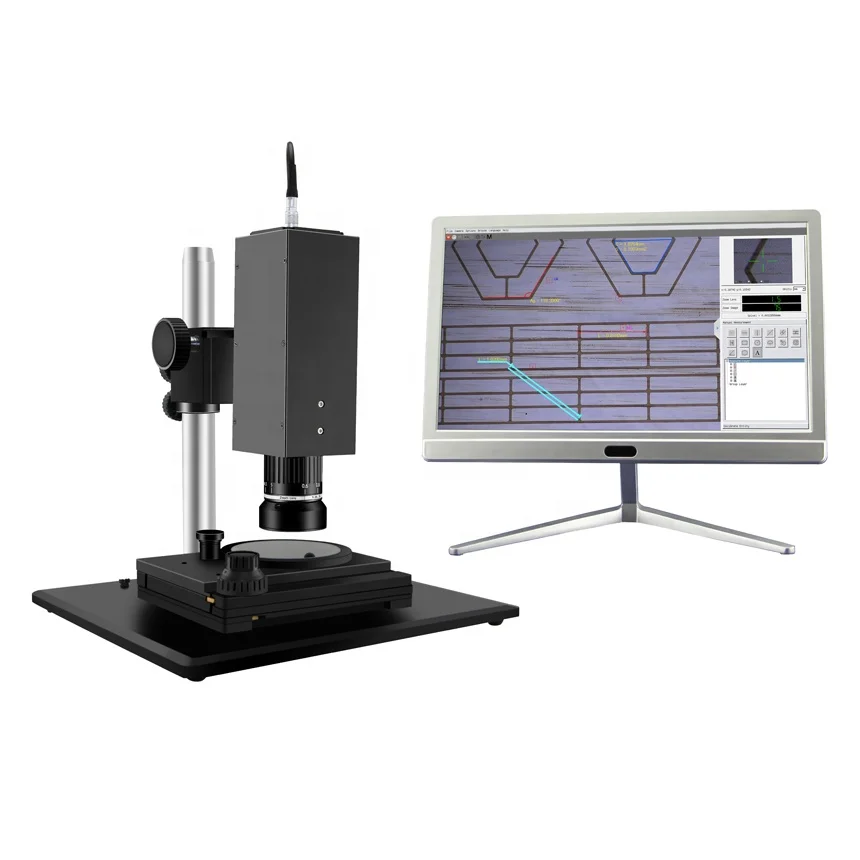

FM325MP 1080P 60fps smart measuring system industrial inspection lcd zoom video microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (62077692075):
Product Overview
Description
FM325MP 1080P 60fps High definition smart measuring system industrial inspection lcd zoom video microscope
Product Description
1. 60fps, Full HDMI display,1920*1080 high resolution
2.Real time Display optical magnification and total magnification
3.No computer needed for USB storage. PC-Free.Smart calibration.Calibration Free.After factory setting.User don't need to calibration again.
4.Save 2MP images with BMP or JPG format and measuring data also can storage to U disk or Excel.
5.Smart measuring Function:support line, circle, fan-shaped, concentric circles, center distance of circle, Angle,
arbitrary polygon measuring , etc.Measurement data can be saved ,can also be generated by EXCEL, you can import or export. Numerical units are free to select (mm, um,inch mil), can select size and color of the Mark data.
6.Auto Edge Funtion Improve Measurement Precision
7.Windows software interface.Wireless operation,simple and convinient.
8.1:8.3 big ratio.Great Depth of Field.Parallel Optical System
Model | FM325MP | FM650MP | |
Zoom Body | B325 0.3-2.5X zoom body (standard) | B650 0.6-5.0X zoom body optional | |
FOV (mm) | 24mmx13.7mm ~ 2.88mmx1.64mm | 12mmx6.8mm ~ 2.88mmx1.64mm | |
Zoom ratio | 1:8.3 | ||
Total magnification | 15-120X | 30-240X | |
Working distance | 86mm | ||
Smart platform | EPGA+ARM architecture embedded System, Dual-core A9 Precessor | ||
Resolution | 1920*1080 | ||
Output format | Full HDMI | ||
Sensor | 1/2"SONY CMOS | ||
Pixel size | 3.75um*3.75um | ||
Frame | 60fps | ||
Light Sourse | 12V 5W ring LED light source,0-100% brightness control | ||
Stand | 330*300mm base size coarse focus post stand | ||
Calibrate-Free | Softwre already set the calibration, So customers no need calibration again.Can directly use and measure data. | ||
Measurement function | Can measure lines, parallel lines, circles, arcs, angles, concentric circles, center distance of circles, rectangles, polygons and other plane graphics (support customized measurement mode) | ||
Storage | Photo storage (with measurement data or pure photo storage) , excel data storage to U disk | ||
Main Function
Operation Windows
User can choose"observe mode" and "measurement mode".Camera settings and measurement tools easily controlled by wireless mouse

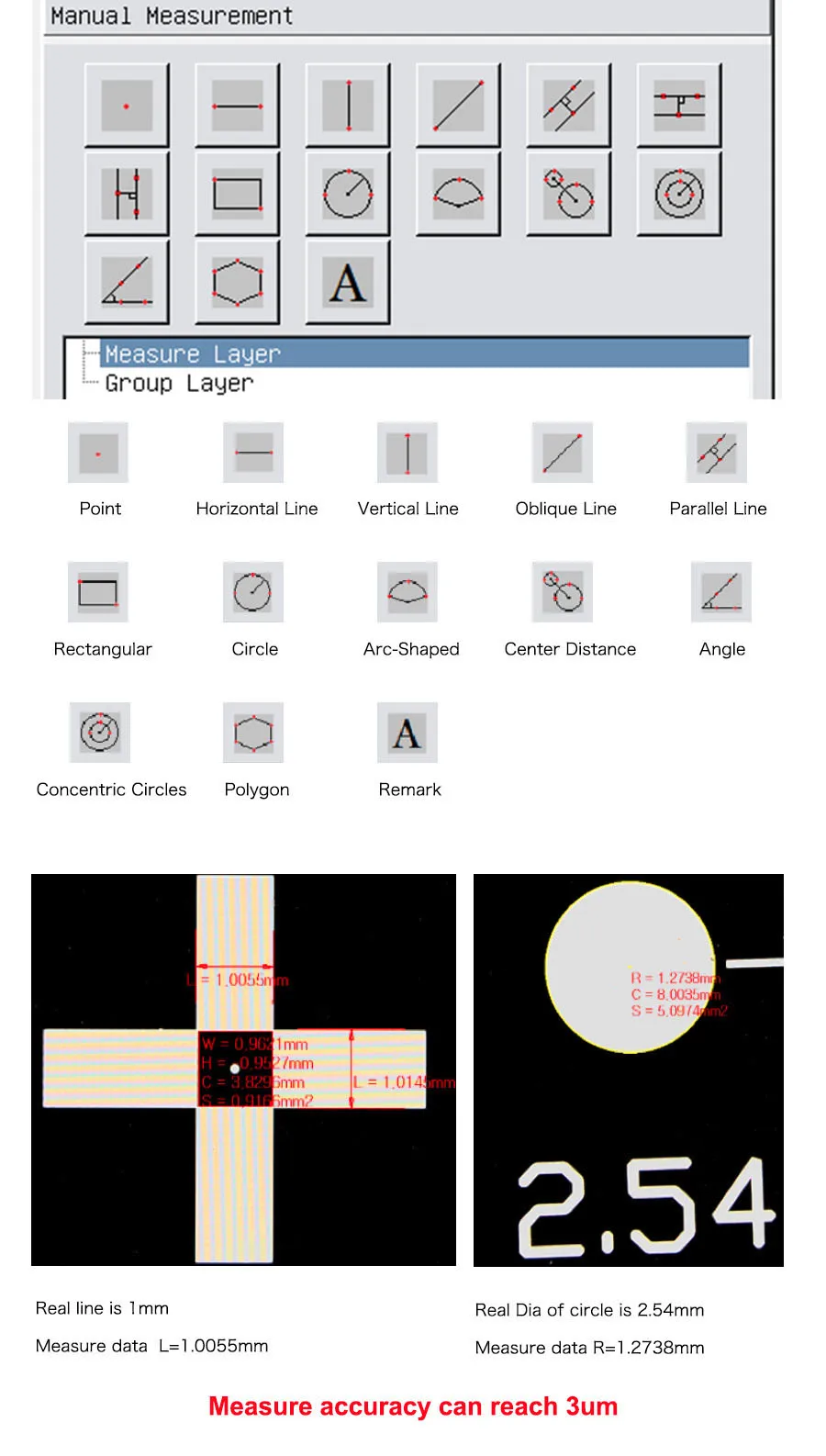

No need computer.No need calibration.Smart measuring. The measuring accuracy of the system can reach within 3 microns, and the repeated measuring accuracy is also within 5 microns.

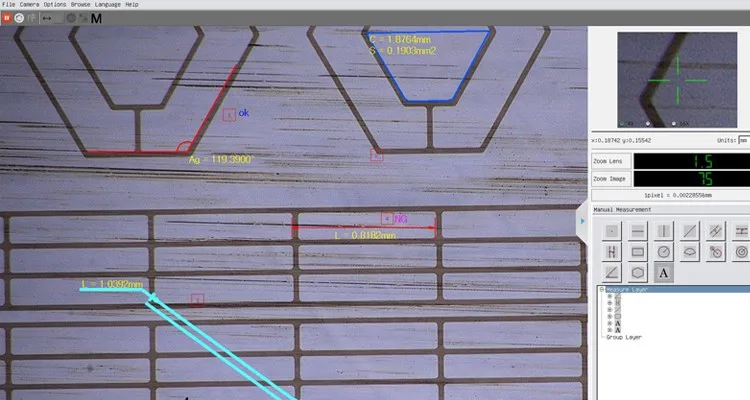

Support point, line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon.ect measuring
.Measurement data can be saved with picture or Excel. Numerical units can be freely selected (mm, UN, inch,mil)
Support point, line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon.ect measuring
.Measurement data can be saved with picture or Excel. Numerical units can be freely selected (mm, UN, inch,mil)

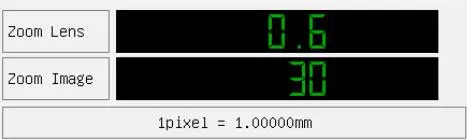

Real time display zoom optical magnification and total magnification
Real-time monitoring of magnification changes and automatic switching of the corresponding calibration value for measurement
Real-time monitoring of magnification changes and automatic switching of the corresponding calibration value for measurement

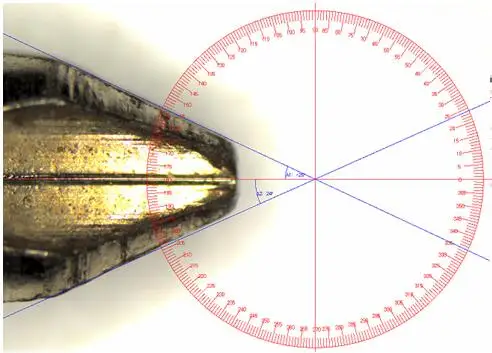

Angle Gauge and crosshair
Built-in Angle gauge screen printing and crosshair. Can add any angle .Adjust Angle freely. Can Move the center of angle gauge.
Built-in Angle gauge screen printing and crosshair. Can add any angle .Adjust Angle freely. Can Move the center of angle gauge.

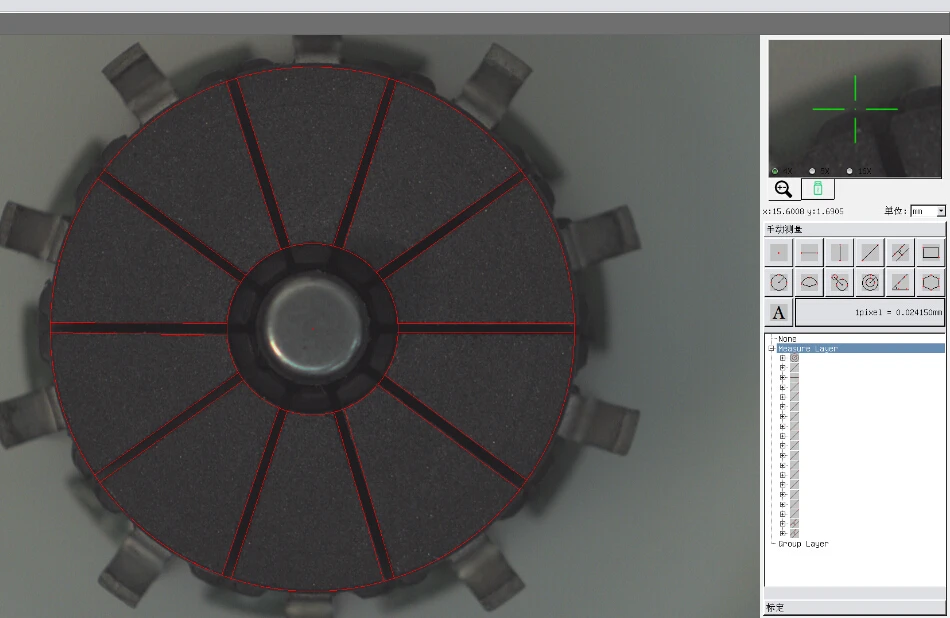

Screen printing drawing function.
For Special irregular parts ,can draw a variety of graphics and support the secondary editing of the drawing diagram. Graph
can be added with new group, new group unlimited, can be used at any time
For Special irregular parts ,can draw a variety of graphics and support the secondary editing of the drawing diagram. Graph
can be added with new group, new group unlimited, can be used at any time

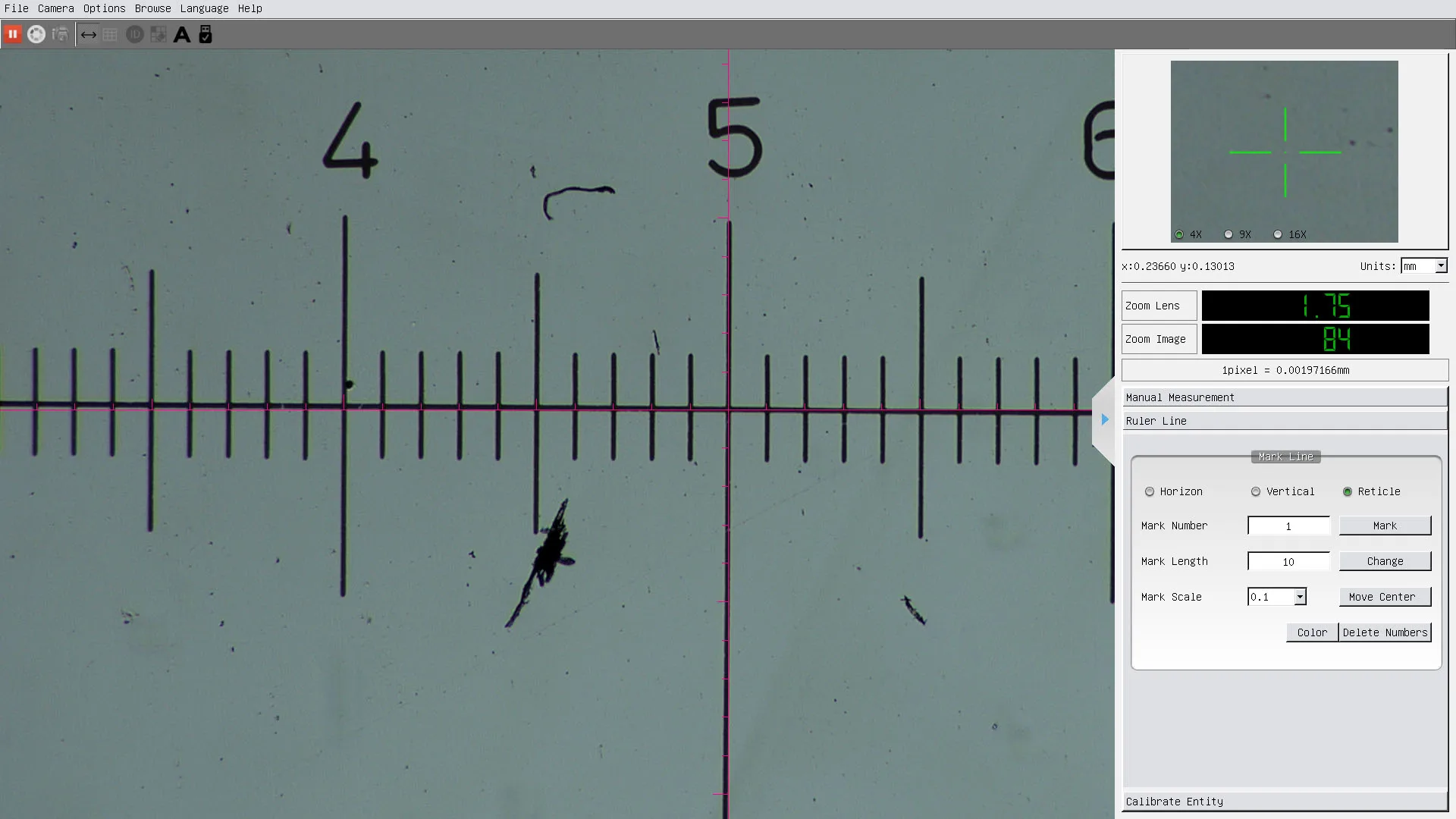

Ruler line. Zoom in or zoom out with magnification. Like put an real ruler on display

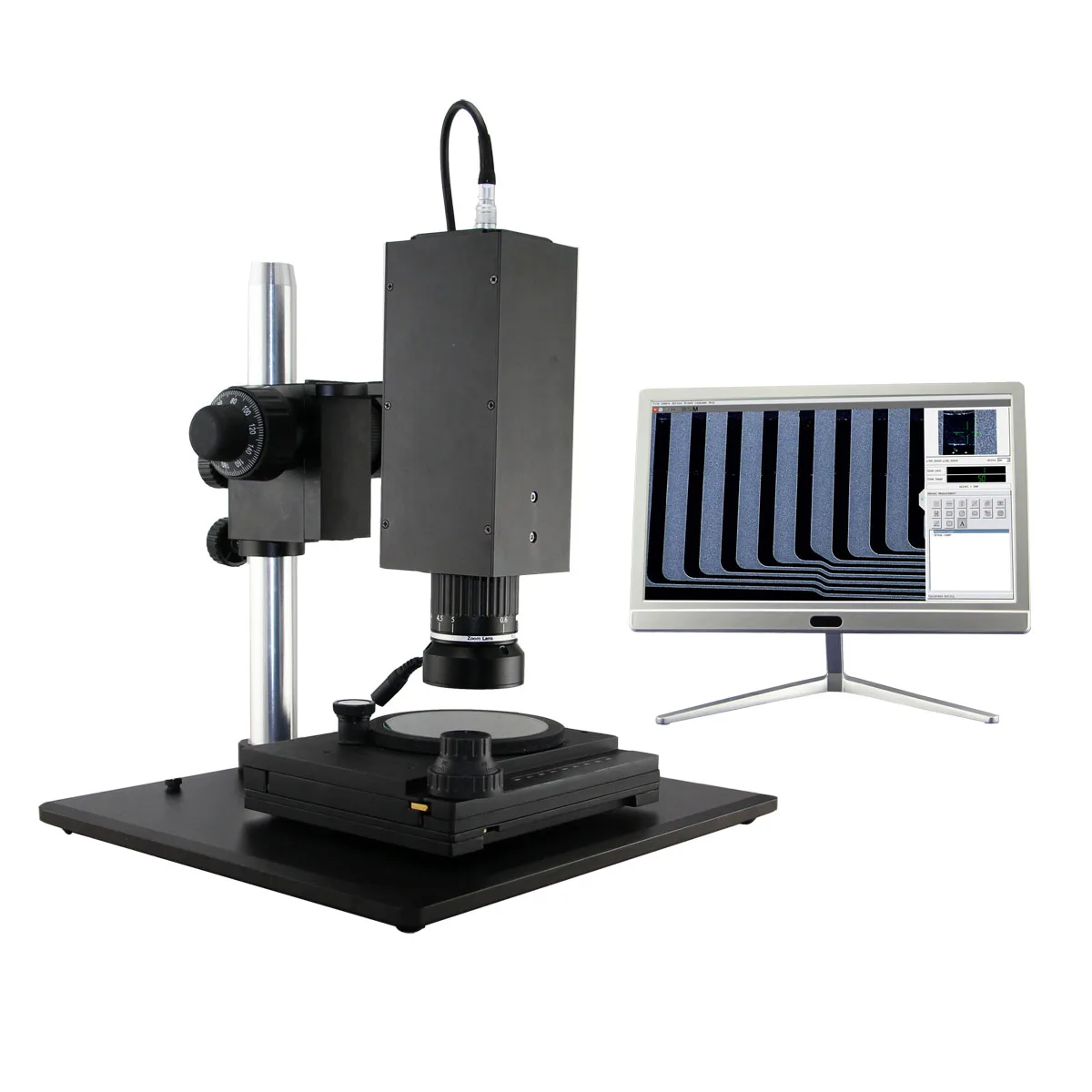

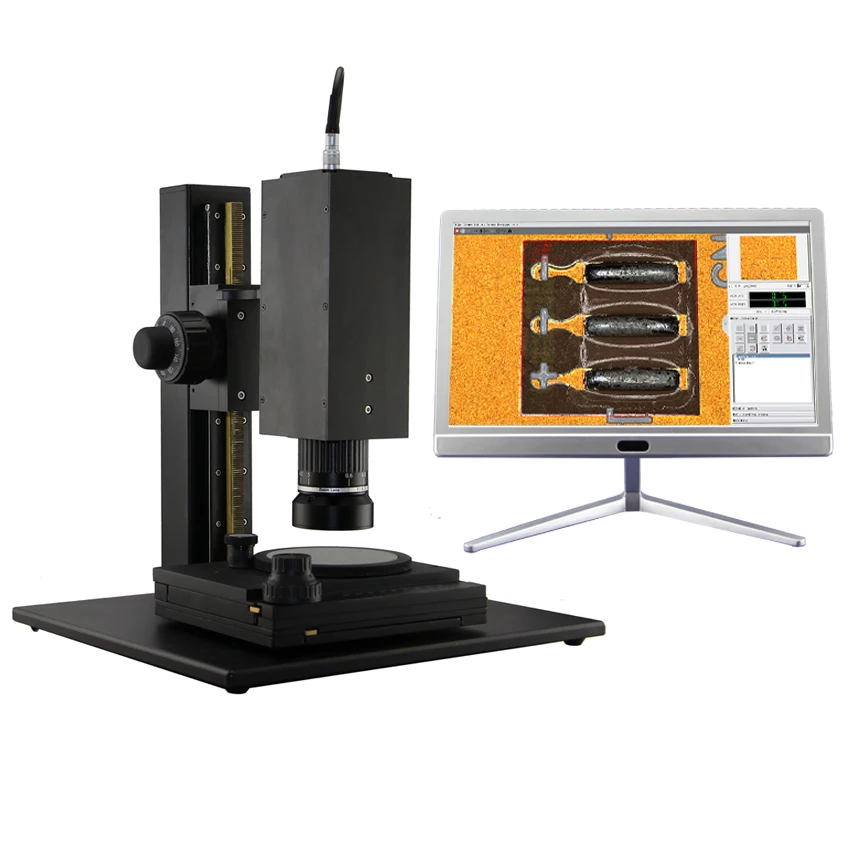

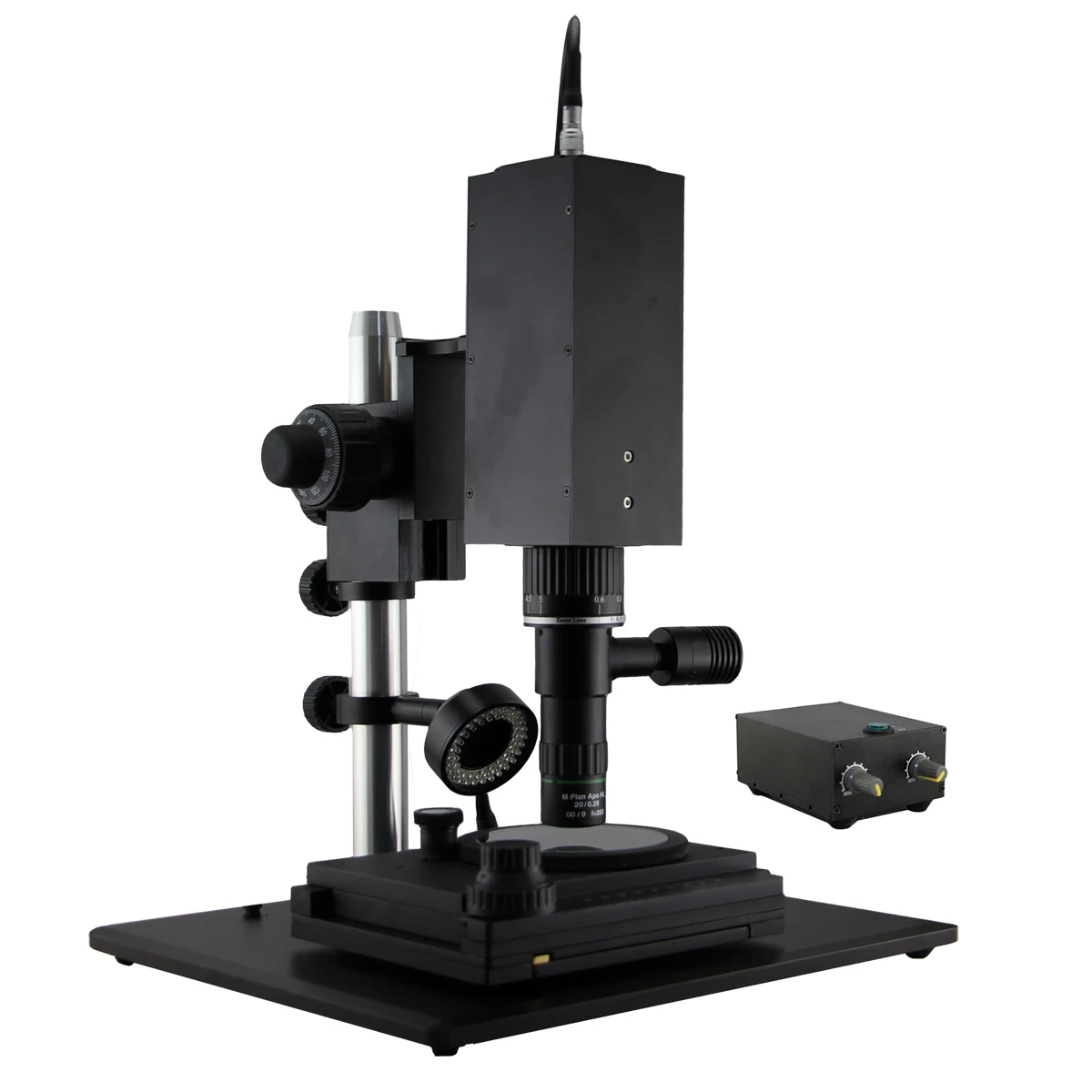

Product Picture

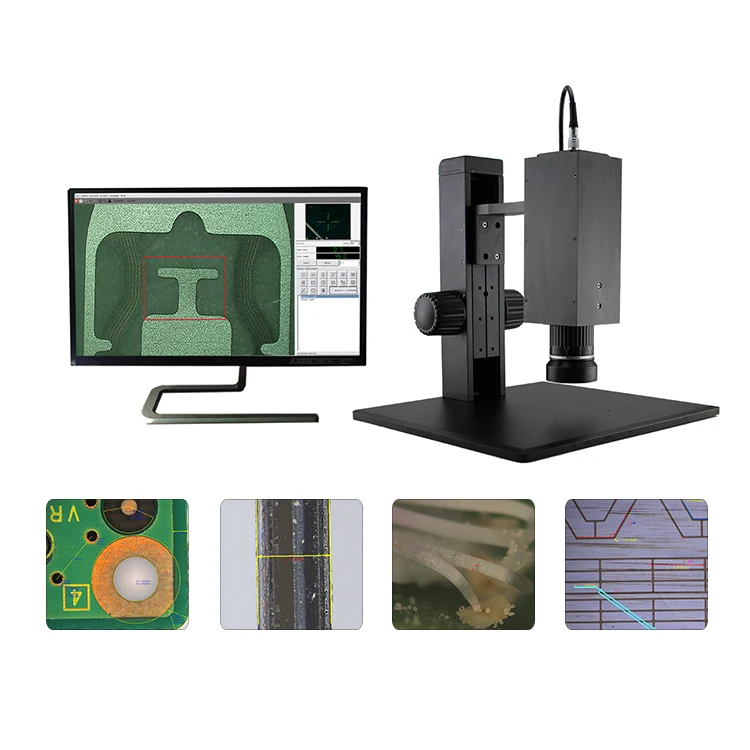

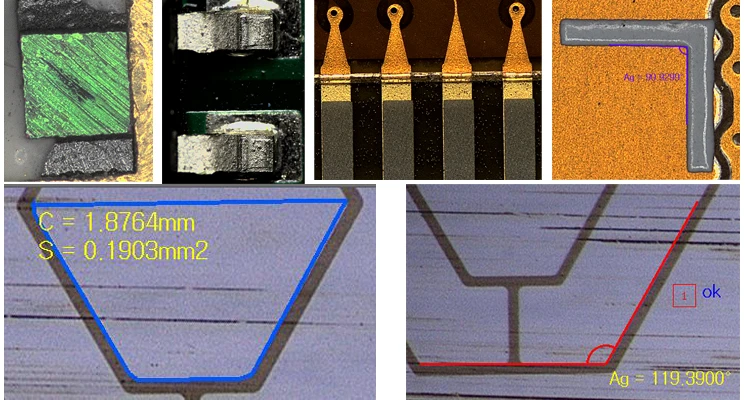

Actual Effect Image
More Choice

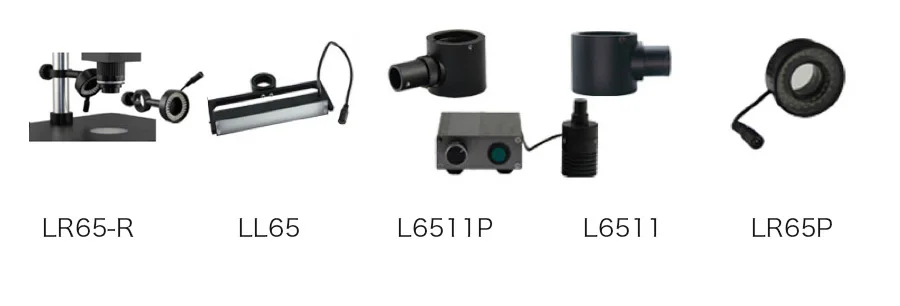

Optional Accessory
LR65-R | 12V 5W ring LED light source for Circular column of stand, the installation diameter is 32mm | ||||
LL65 | Bar LED illumination, large lighting, suitable for low range, good uniformity | ||||
LC6511P | 3W Coaxil light source with polarizer | ||||
LC511 | 3W Coaxil light source | ||||
LR5P | 12V 5W Polarized ring LED light source | ||||
Stand | Standard is coarse focus post stand.Track stand,fine focus stand and transmitted light stand optional<<view more | ||||
Packing & Delivery
Packing size | 39*36*47mm |
Gross weight | 16.5kgs |
Packing style | The standard package is polyfoam protection and strong cartonOptional package is aluminum box with polyfoam protection and strong carton |
Delivery time | Sample order within 7 days |
Our Company
Guilin FT-OPTO Co.,Ltd established in 2009, with 10 years of optial experienxce ,with good reputation in optical industrial.
We are a Chinese factory of high resolution zoom lens, video microscope, measuring microscope, smart microscope,auto inspection system microscope and microscope accessory.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products.
