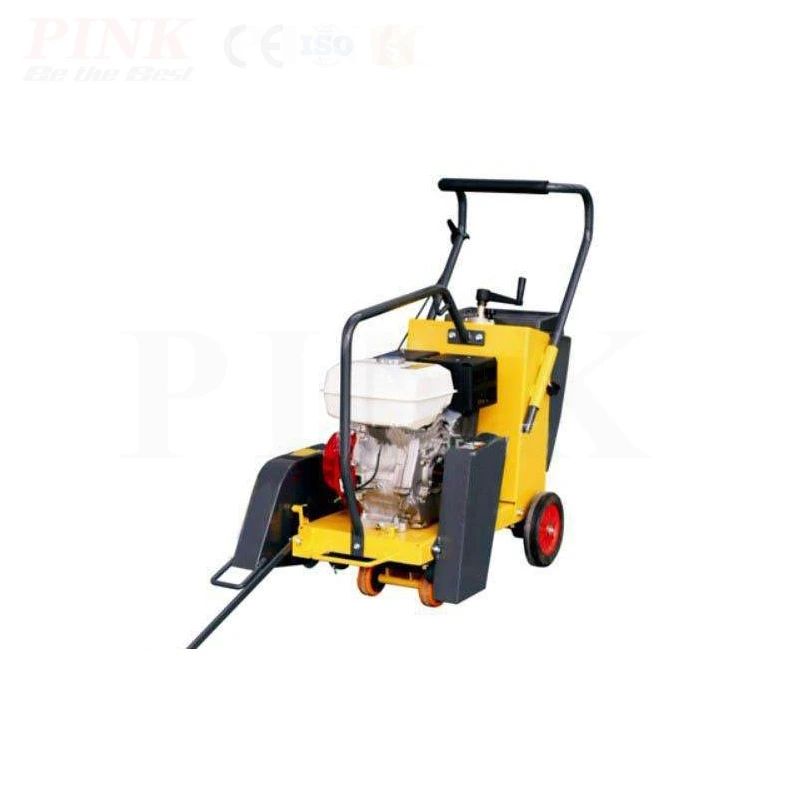

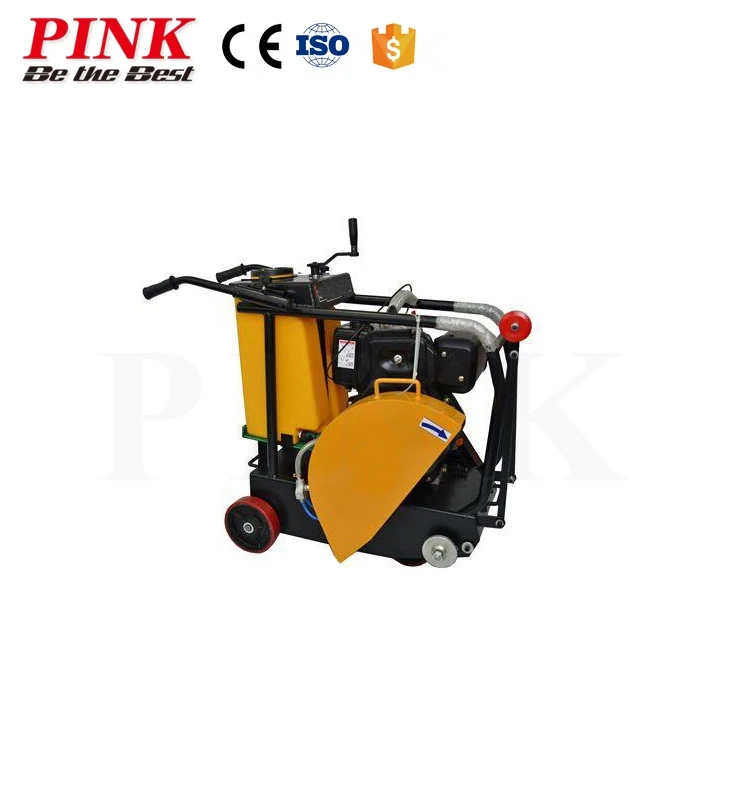

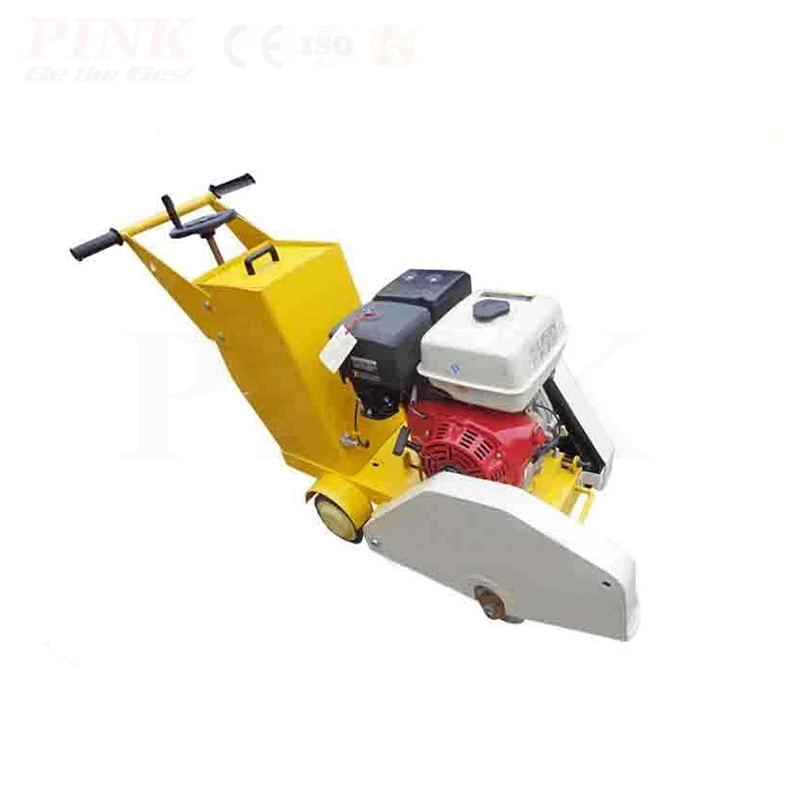

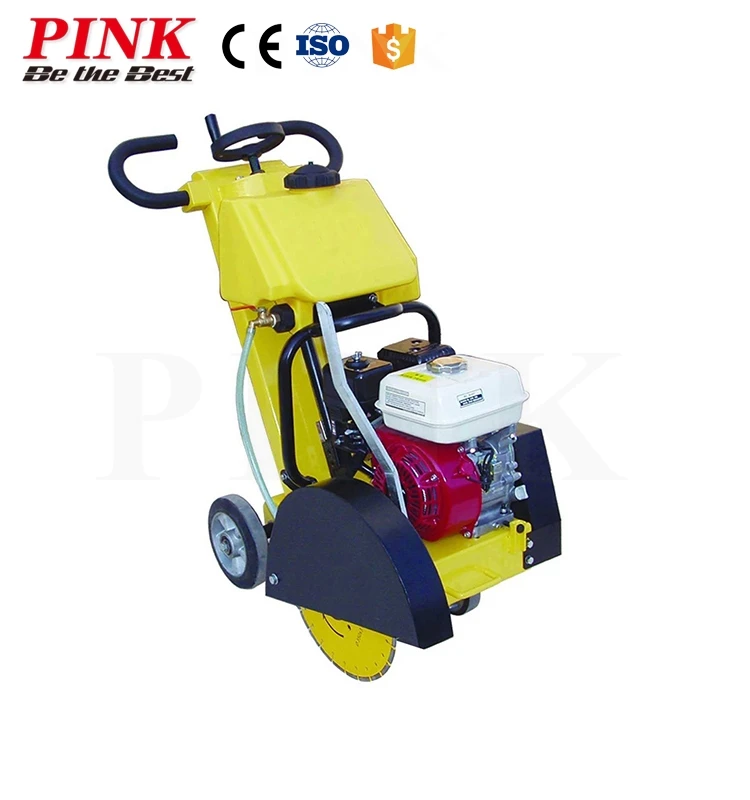

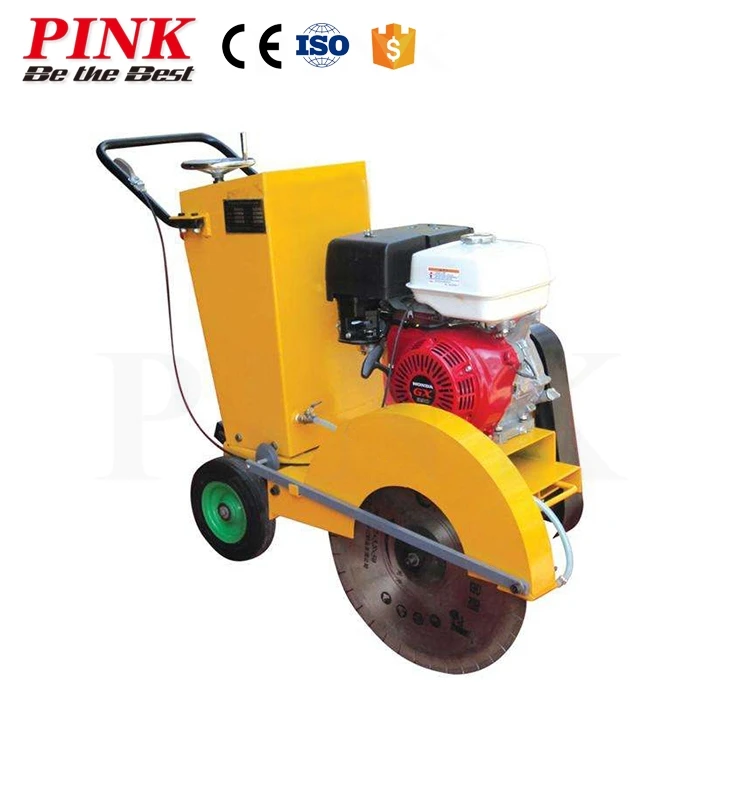

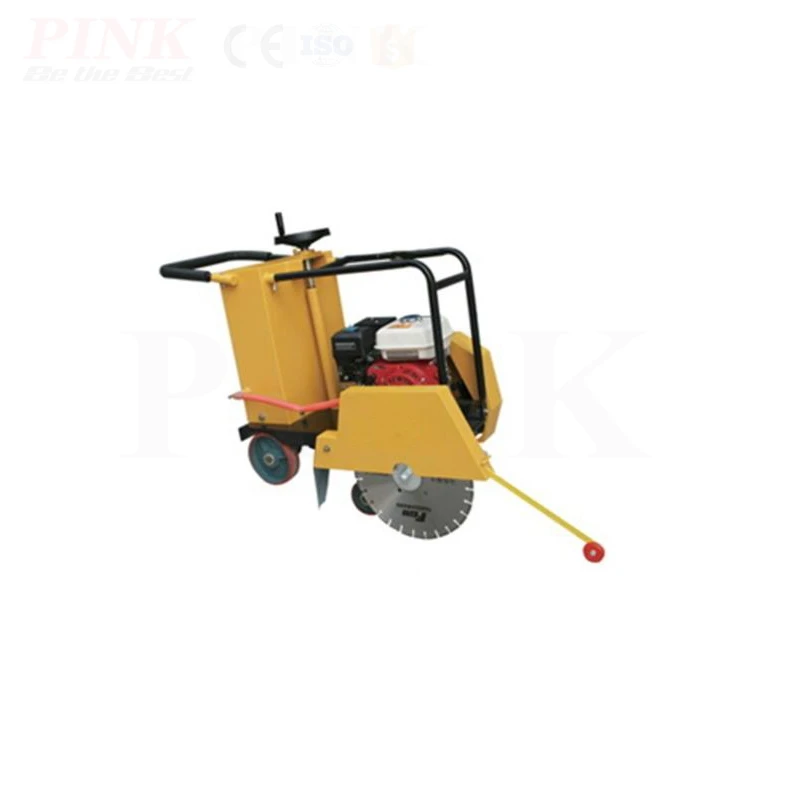

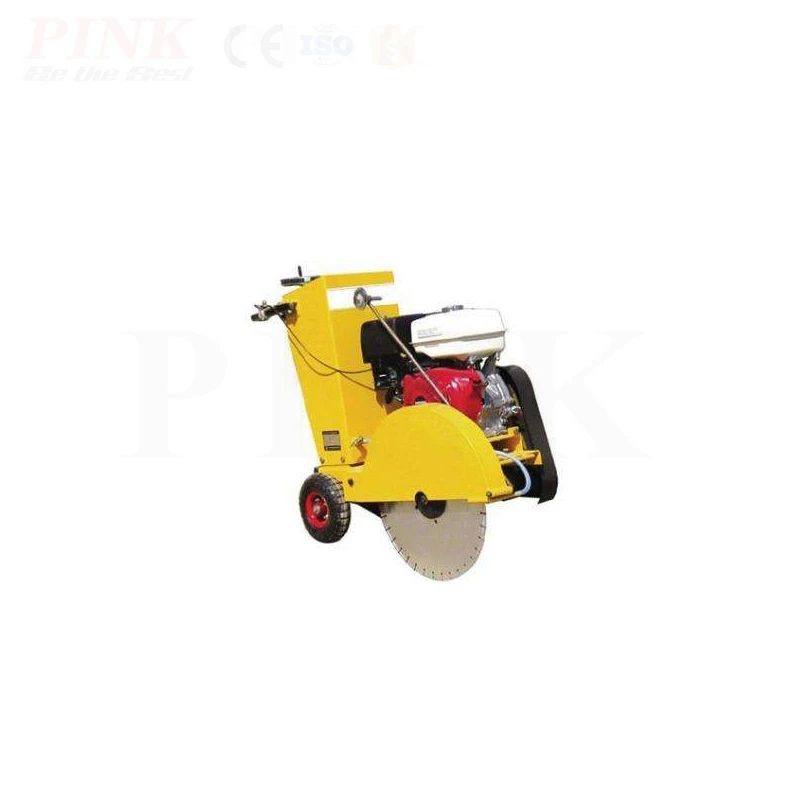

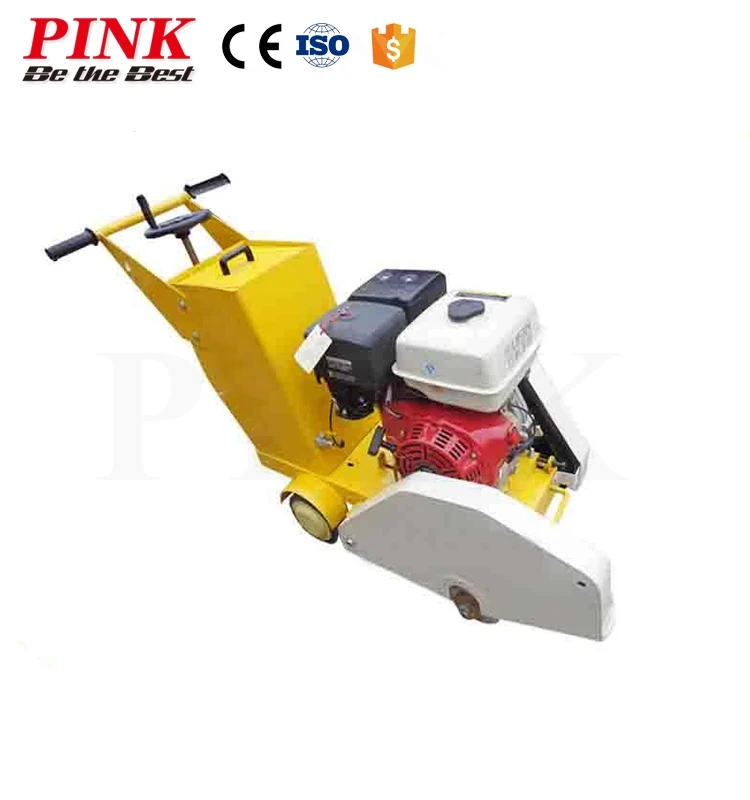

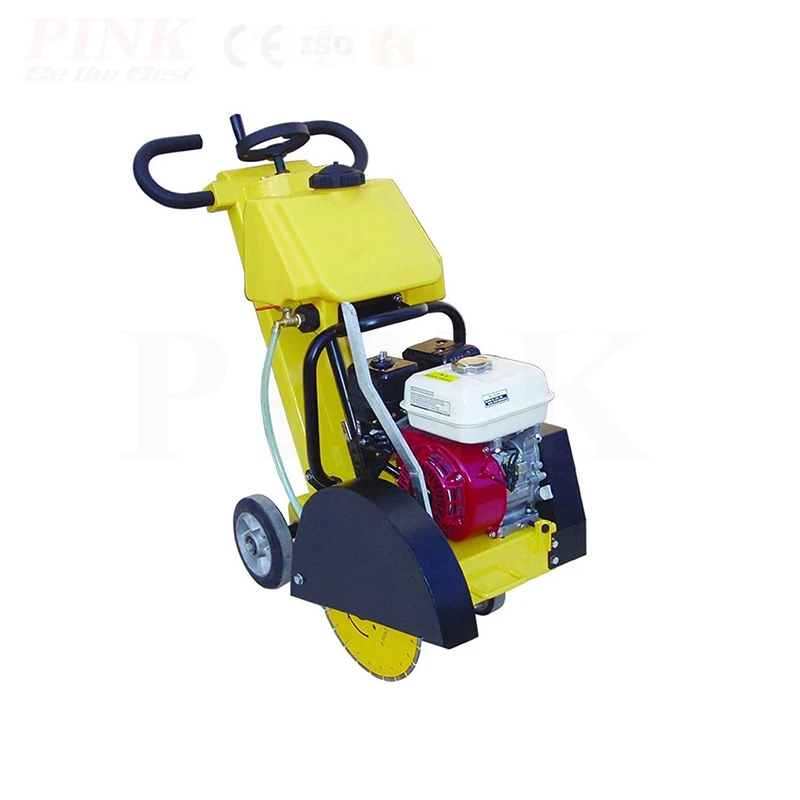

Diesel Concrete Cutter

Product Overview

Description



Concrete Cutter Detail:
1.Blade diameter:300,350,400,450,500mm(12,14,16,18,20 inch)

2.Water tank capacity:40,45L

3.Engine:Lifan, Hond, Loncin, Robin

4.Engine Power:7.5,9,13hp

5.Weight:110,140,150,180kg

6.Certificate: GS,CE, EMC,ROHS



Concrete Cutter Features and Functions:

1. The road cutting machine is a tool for road maintenance construction. The main function is a slit on the road surface, and a thin line with a depth of up to 100mm-400mm.
2. Commonly used on cement pavement and asphalt pavement, the operation of the machine requires a certain level of proficiency in order to normal construction.
3. The road cutting machine adopts thickened frame and diamond saw blade, which is mainly used for cutting the expansion joint of concrete pavement. At the same time, it can cut and slot various concrete products and marble and granite products. Construction machinery necessary for road construction.
4. The road cutting machine uses a diamond blade for cutting, which has a fast cutting speed, a smooth and beautiful cut, and can cut the steel in the concrete.
5. The structure is simple, reliable, flexible and convenient to operate, and durable; the cutting machine sprays the cutting blade with its own water source, so that the blade life will be longer.
6. The road cutting machine is powerful and easy to move. The super-rigid box frame guarantees a straight cut, resists warping and vibration; and extends the life of the saw and blade.
7. The product design is ergonomic. The height of the handle can be adjusted according to the comfort of the human body. The crank can be rotated to adjust the depth of the incision. The front hinge and the blade protection design make it easy to replace the blade. The rustless water tank provides the blade with the right amount of water and water.
8. Product use, specializing in professional cutting for municipal construction re-election, road maintenance construction, airport pavement cutting, communication engineering embedding, floor and driveway.
9. In the process of replacing different types of saw blades, it can effectively cut new and old concrete and asphalt pavements, and can be loaded with water tanks for water-jet cutting operations.
10. This machine is mainly used for cutting concrete, cement, floor and stone pavement; cutting pavement shrinkage seam or damaged pavement, its operation is simple to use, and it is more convenient in the absence of power supply conditions.



Model	Product Name	Specification	Packing Size(cm)	G.W/N.W (kg)	PCS/CTN	20´GP(pcs)
NECEC-01 (CE)	Concrete Cutter	Engine:GX270 Power:13HP Gasolion Blade diameter:300-500mm Cutting depth:50-180mm Water tank capacity:40L Starting mode:Hand	145*100*110	145/140	1	16
NECEC-02 (CE)	Concrete Cutter	Engine:GX390 Power:7.5kw  Gasoline Blade diameter:300-500mm Cutting depth:50-180mm Water tank capacity:45L Starting mode:Hand	145*100*110	165/160	1	16
NECEC-03 (CE)	Concrete Cutter	Engine:CF186 Power:9.5HP   Diesel Blade diameter:300-500mm Cutting depth:50-180mm Water tank capacity:45L Starting mode:Hand,Electric	145*100*110	155/150	1	16







If you are interested in our Concrete Cutter, please don't hesitate to contact us.
