Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
Plastic Liquid Detergent Container/PET Stretch Blow Molding Machine For Preform
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou,Sico,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Why Choose Us
1. PLC with touch screen
2. Support multiple languages
Including Chinese,English,Spanish, Arabic, Russian....
3. Support bottle drop automatic. (Extra charge if needed)
2 Cavity Semi Automatic PET Plastic Bottle Blowing Machine | ||
Bottle Volume: | 50ml-2L | |
Cavity: | 2 cavities | |
Output: | 800-1000BPH | |
Bottle Type: | PET bottle | |
Auxiliary Equipment Needed | Air compressor Air filter Air dryer (optional) Chiller (optional) Bottle mold | |
Advantage
1.Semi automatic running with theoretical output 800-1000BPH for 50ml-2L bottle.
2.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
4.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5.Preforms are rotating in the heater to ensure being heated evenly.
6.Equipped with air cooling system ensure the bottle neck not deform.
7.Equipped with special designed air storage unit.
8.The machine surface is treated with baking varnish.

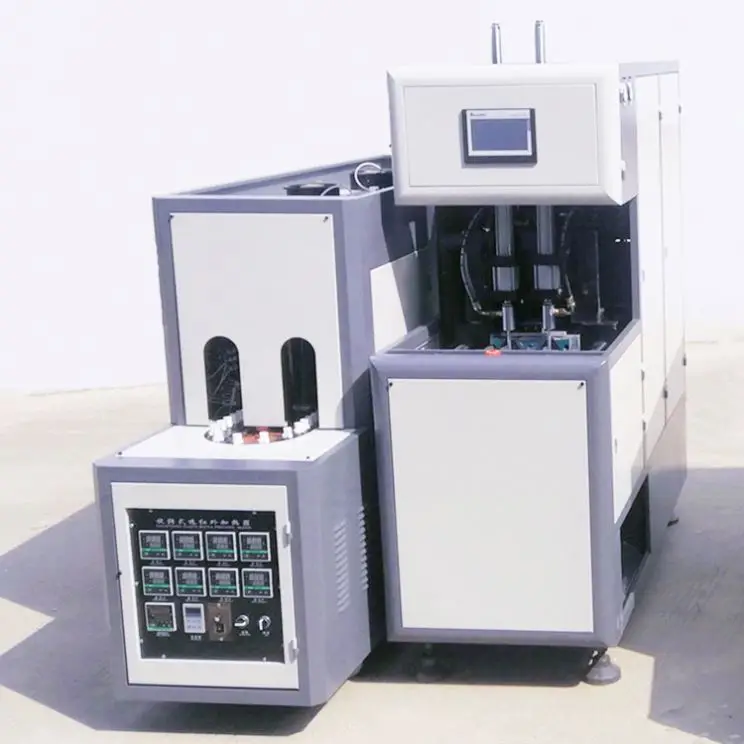

Model | SC-1000A Semi Automatic PET Bottle Blowing Machine | ||
Theoretical output | 800--1000 pcs/h | ||
Finished bottle | Max. bottle volume | 2L | |
Max. neck diameter | 80mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 2 cavity | |
Mold thickness | 110mm-230mm | ||
Open stroke | 180mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 14kw | ||
Actual power consumption | 5kw | ||
Air source | Recommend air compressor | 1.2m³/min 30Kg | |
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 1630*620*1590mm/650kg | |
Heater size | Length*width*height/weight | 1780*570*1380mm/350kg | |
Production Line
Auxiliary Equipment
1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )
2. Air Tank : Store high pressure air.
3. Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.
4. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
5. Chiller : Cooling mould,make the machine suitable to working 24 hour per day.
Bottle Design
We offer free bottle design service,a good bottle make your product competitor.
Terms
1. Payment Method
30% by T/T as down payment, 70% by T/T paid before delivery. (Other payment please notice in advance.)
2 . Mechanical Warranty
One year warranty and come with at least one year recommended spare parts.
3. Delivery & Packing
Delivery Time: 15 days after get down payment &confirm bottle design.
Packaging requirement:
1) The special packaging wooden case is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
