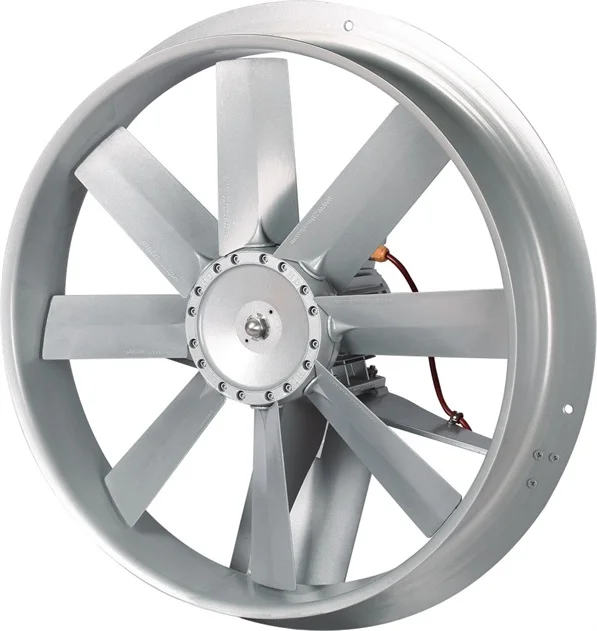

Drying kiln use high temperature high humidity wall mounted axial exhaust fan

Wood Drying use

GKW Series

Drying kiln special use high temperature high humidity axial fan

 1. The fan is specific designed for drying kiln ventilator equipment, which is resistant to high temperature, high humidity, large air volume, high efficiency, energy saving.

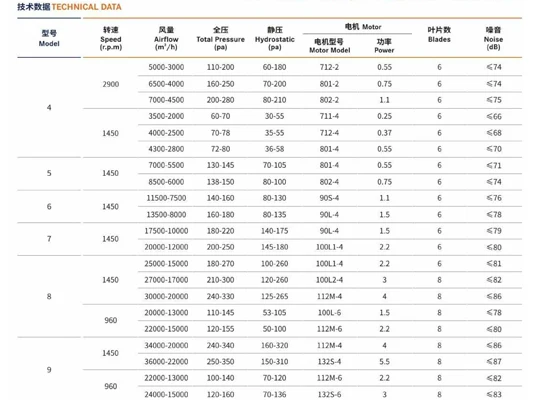

2. There are 7 model, NO.4, 5, 6, 7, 8, 9, 10.

3. Three different rotational speed: 2900 r/min, 1450 r/min, 960 r/min.

4. The angle of fan can be adjusted

Different appearance design according to clients' requirements

Max. Ambient Temp: <130℃ Relative humidity: ≤98% Rated voltage: 220V, 220/440V, 220/380/660V, 230/400/690V, 240/415/720V Cooling Method: IC411,    Protection Class: IP54/IP55 Insulation Class: Class F(120℃), Class H(180℃) Fan Blade: Aluminium/ Stainless steel Motor: Double speed Motor/ Explosion-proof Motor Pipe: Iron Stainless steel

Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China. Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003. All of our products sell all over the world with good reputation and reliablity. On 2009,"GKF" series was selected a standard products by China administration of tobacco.

Well-equipped with production lines and testing machines of motor and fans,we’re advanced in manufacturing and management in our area. Besides,our R&D team is very strong.We cooperate with academic institutions and have many intellectual properties. Mostly,we can customize all kinds of special fans for customers.
