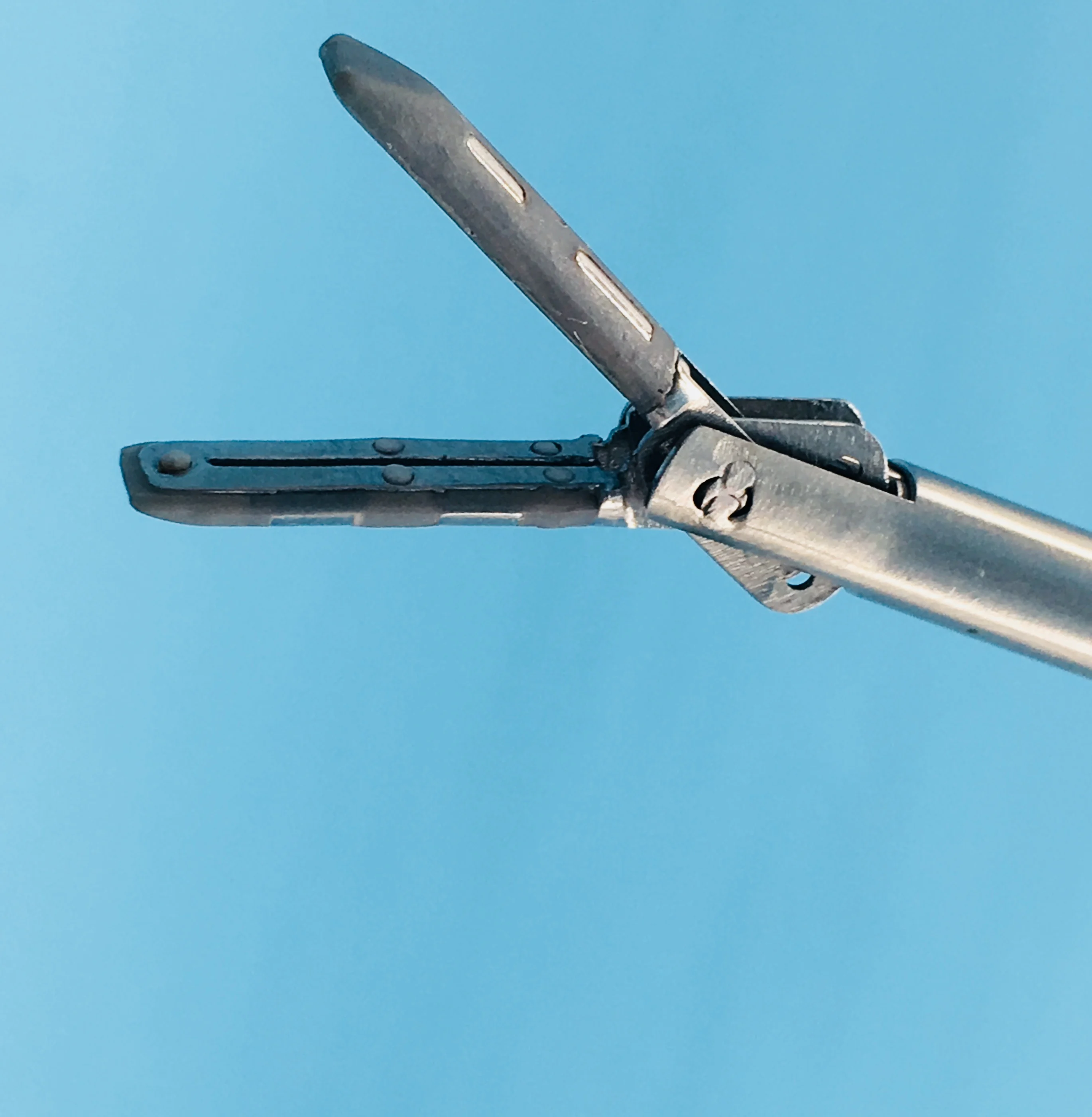

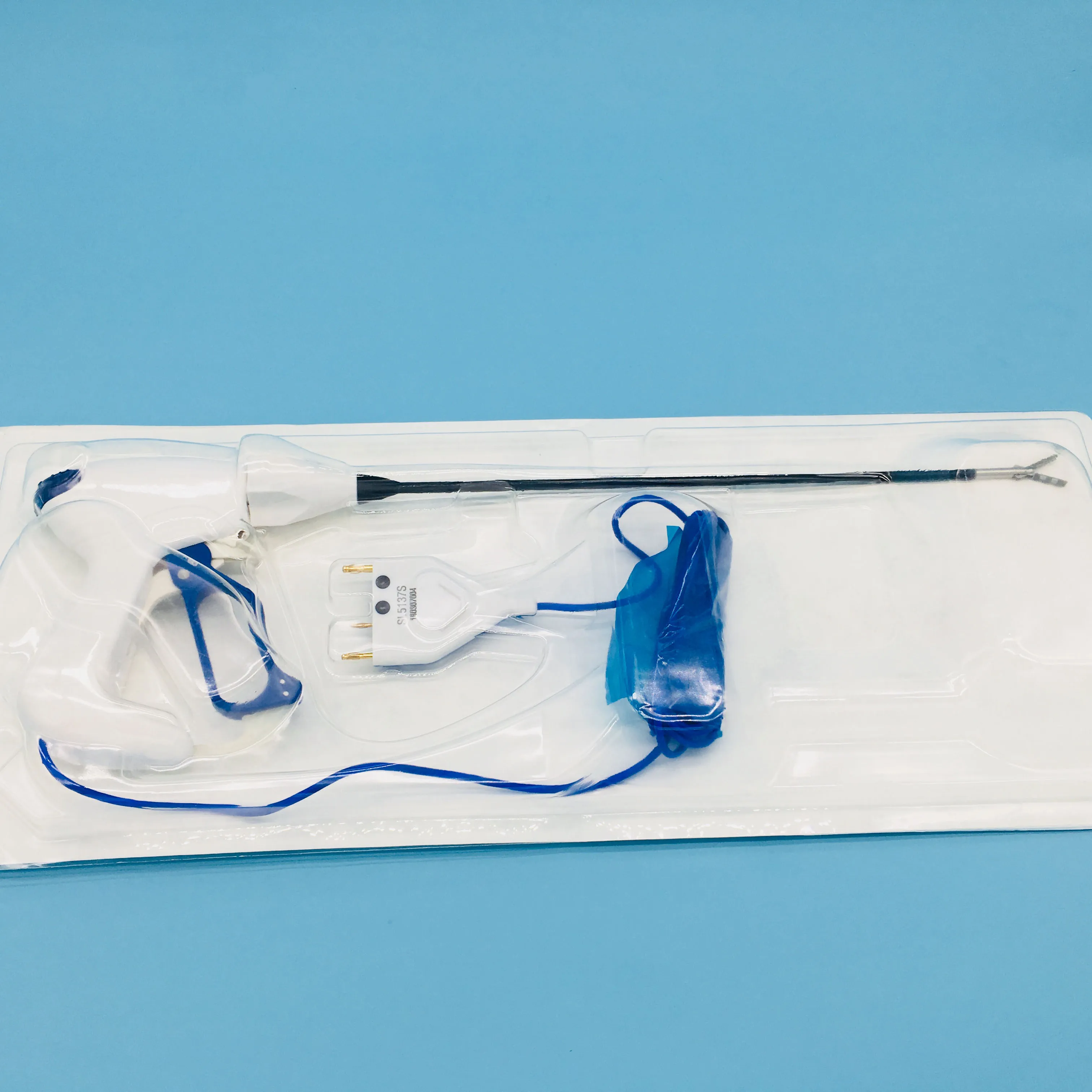

Laparoscopic surgery hand switch laparoscopic grasping forceps

Product Overview

Description

(1) Product name:

  Shouliang detachable bipolar vessel ligasure instrument

(2)How it work:

Patented technology provides unique combination of pressure and energy to create vessel fusion, leaving no foreign material behind. Permanently fuses tissue bundles and vessels up to and including 7 mm in diameter without dissection or isolation. Seals withstand 3x normal systolic blood pressure. Reduced thermal speed. Virtually no sticking or charring. Potential time savings compared to suture. Reduces risk of needle stick injuries.

(3)Procedures used for:

Adrenalectomy        Axillary dissection      Gastrectomy       Colectomy     Nephrectomy

Liver resection         Splenectomy                 Whipple(pancreatoduodenectomy)

(4)Types

Item	Code Number	Shaft Diameter	Lenth(mm)	Tip
1	SL1120A	10	200	Straight
2	SL1137A	10	370	Straight
3	SL1120S	10	200	Straight
4	SL1137S	10	370	Straight
5	SL5137S	5	370	Straight
6	SL5137A	5	370	Straight
7	SL5120S	5	200	Straight
8	SL5300S	5	/	Curved

(5)Advantages of clinical use :

   1. Full  intelligent performance seal cycle no man made factors

   2. Sealing vascular up to 7mm permenently and safety

   3. Fuse tissue bundle directly ,easy and fast

   4. Minimum thermal damage and spread

   5. Minimum sticking and charing

   6. No foreign material remains ,  good for absorption and healing of wound

(6)Overview



 1.Sealer/divider

 2.Hand/foot switching

 3.Fuse vessels(including pulmonary vasculature) up to and including 7mm in size ,lymphatics  and tissue bundles

 4. 2-4 seconds seal cycle

 5. Potential time saving compared to suturing

 6.Compatible with Ligasure generator , ForceTriad energy platform and High frequency vessel sealing system Generator  SM5000 .

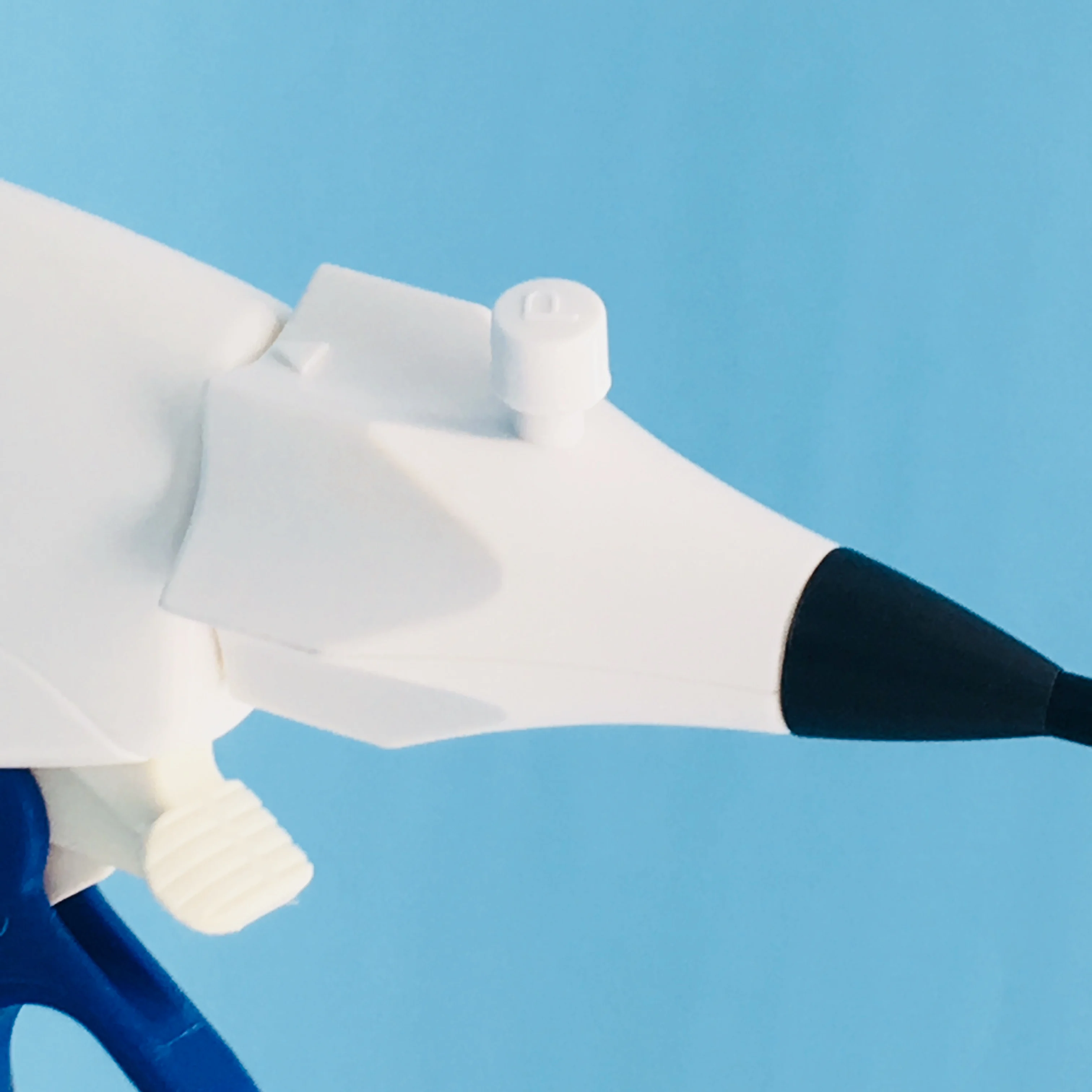

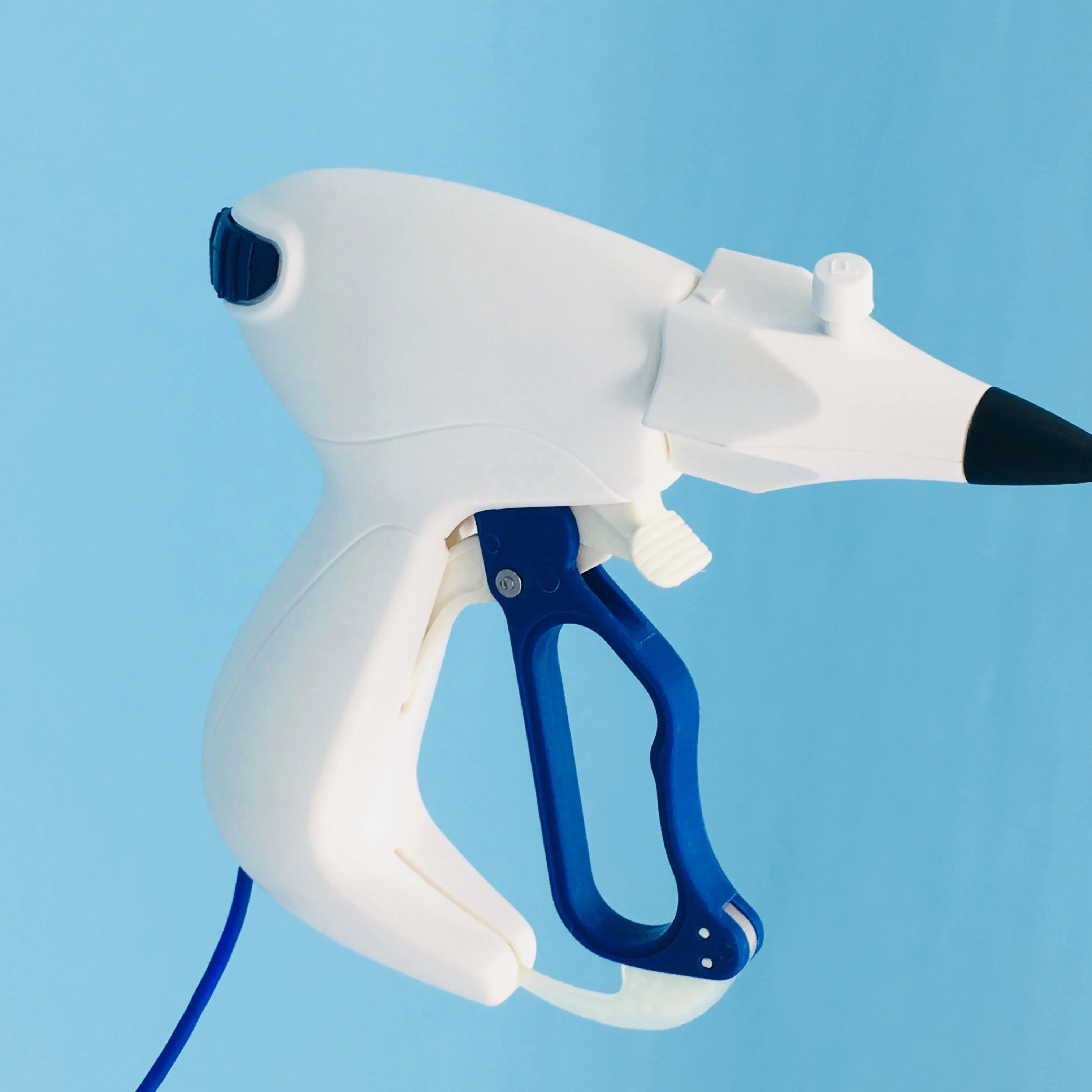

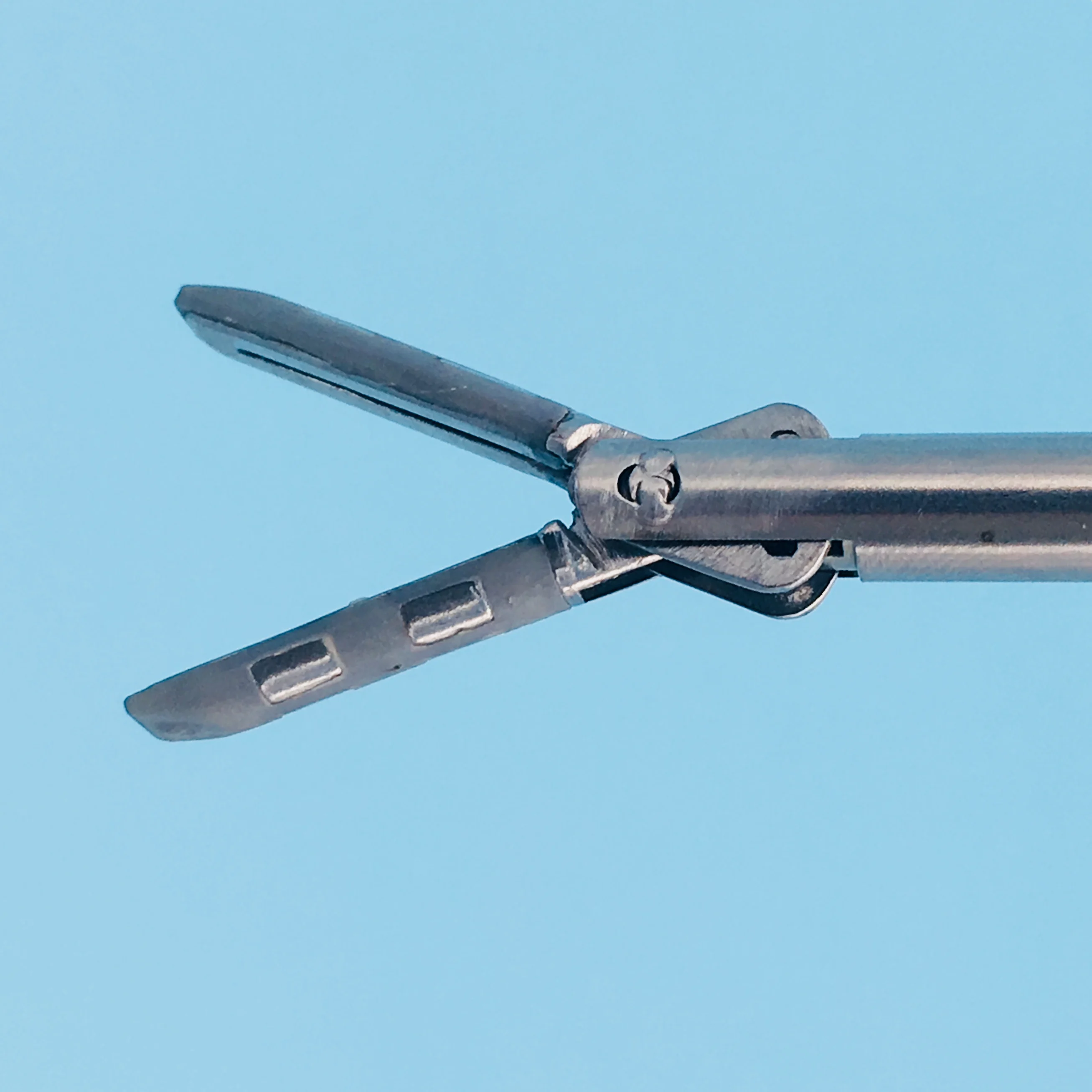

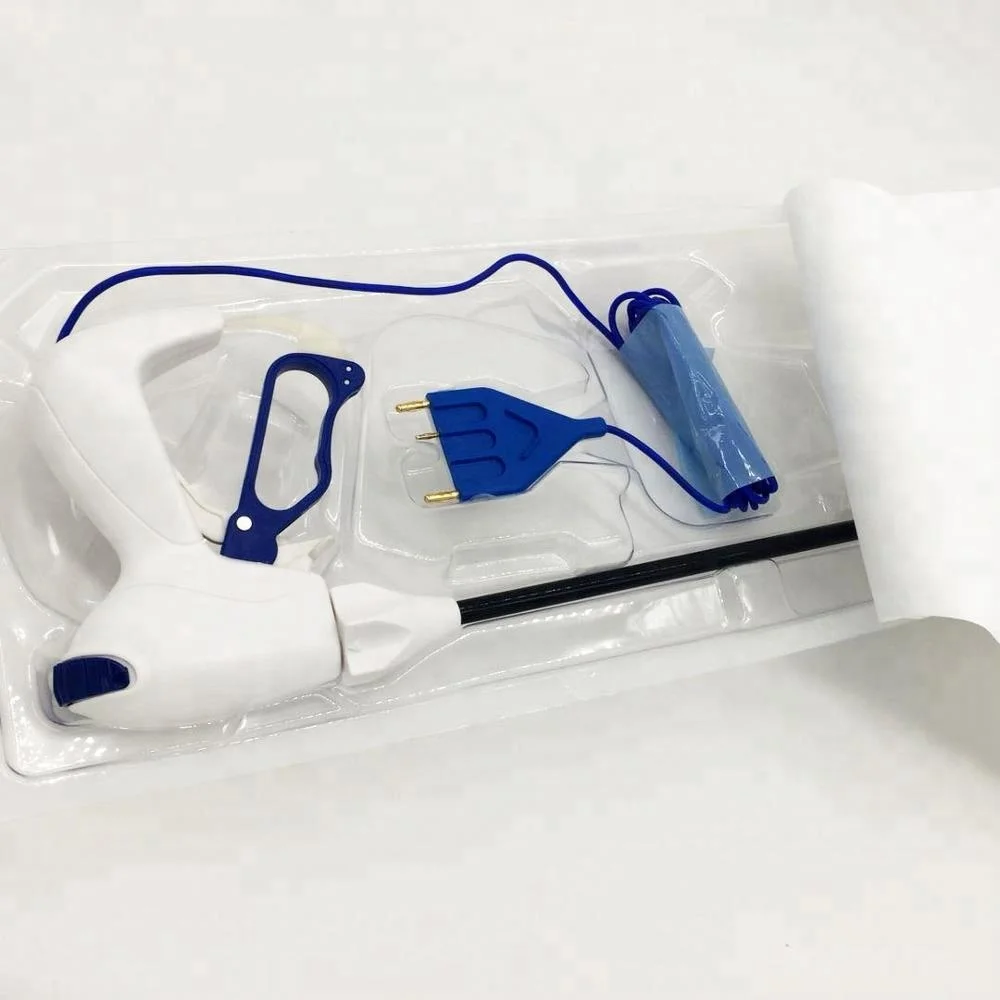

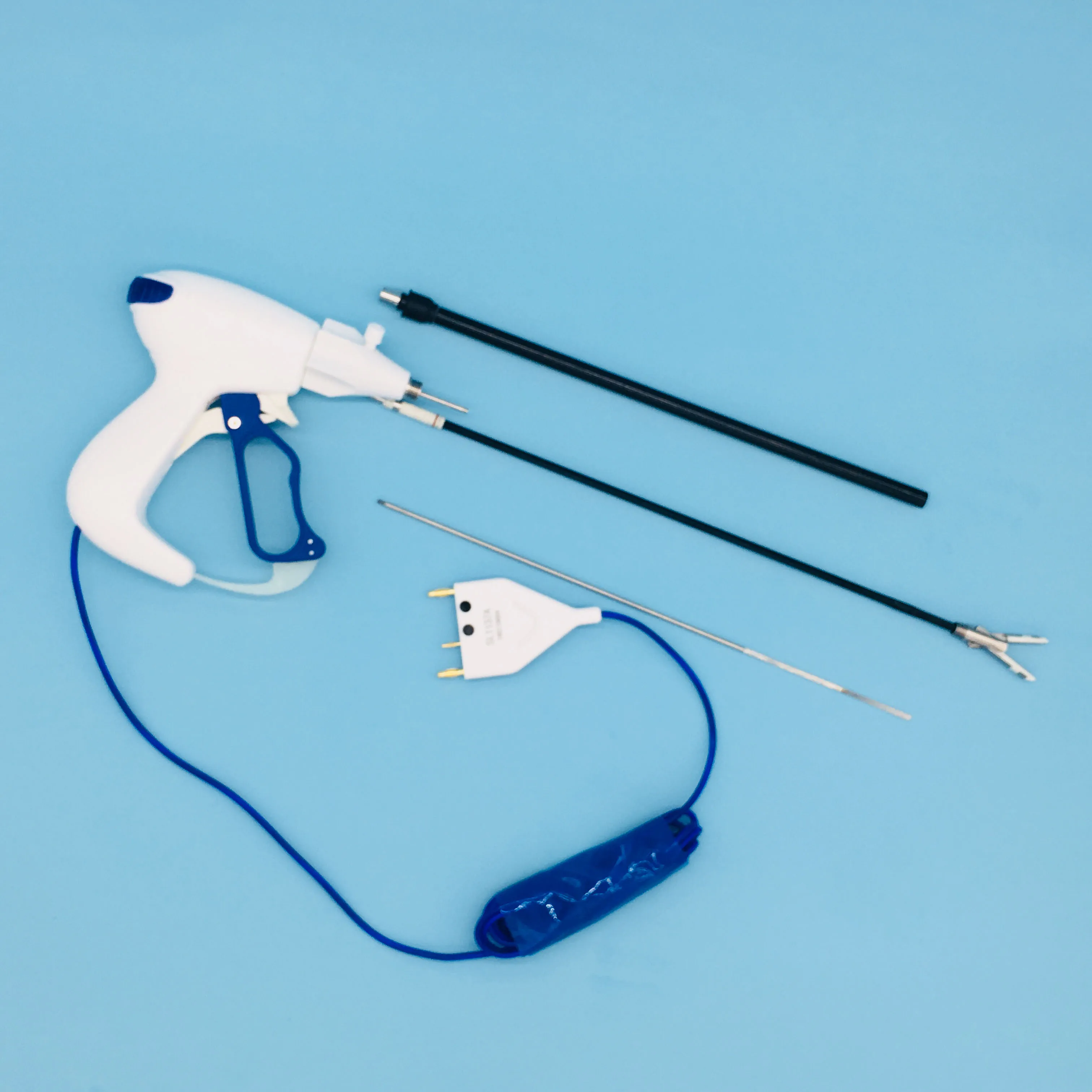

The main structure





The first 7 models in the above table are composed of a closed/cut electrode for electrosurgery consisting of a handle, a pliers head, a rotary head, a clamp rod, a bipolar electric coagulation line, a high frequency wire plug, a cutting knife, a master wrench, and a start button.
