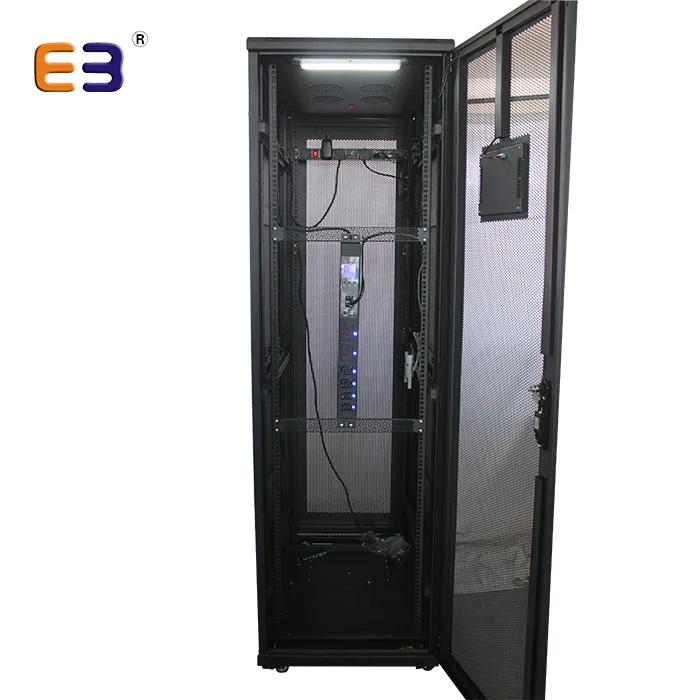

Intelligent Smart Server Rack Cabinet with Network Remote Control Function
- Category: >>>
- Supplier: Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co. Ltd.
Share on (62078102839):
Product Overview
Description
Intelligent Smart Server Rack Cabinet with Network Remote Control Function
Features
Parameter
Structure
| NO. | Item | 600W | 800W | Materials | Treatment | Note |
| 1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
| 2 | Front Door | 1 | 1 | 1.2mm SPCC | Powder coating | mesh door |
| 3 | Side Panel | 2 | 2 | 1.2mm SPCC steel | Powder coating | removable |
| 4 | Back Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | mesh door |
| 5 | Cylinder Lock | 3 | 3 | Zinc alloy | - | back & side |
| 6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
| 7 | Electrical lock | 1 | 1 | Zinc alloy | Powder coating | |
| 8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | 4 fans |

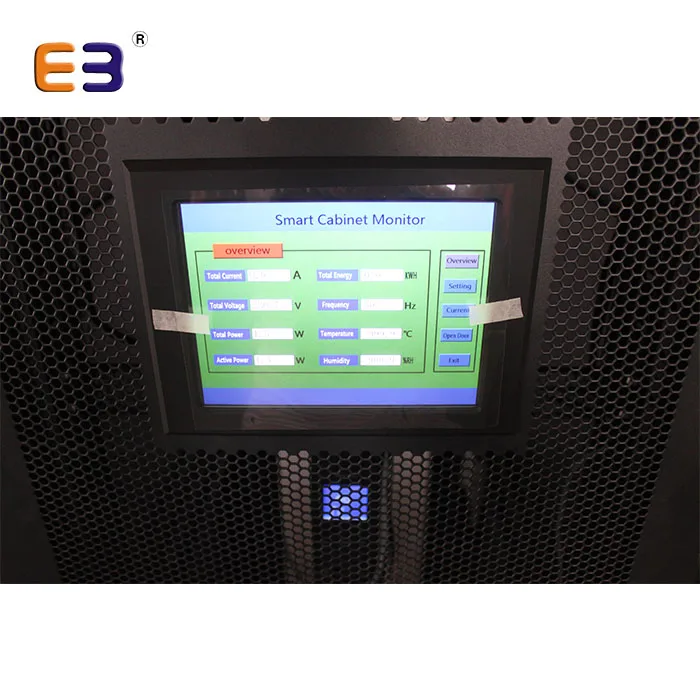

| 9 | LCD panel | 1 | 1 | LCD screen | - | |
| 10 | Bottom panel | 1 | 1 | 1.2mm SPCC steel | Powder coating | Optional parts |
| 11 | Earthing cable | 2 | 2 | Y/G cable | - | 25 cm |
| 12 | Castors & Feet | 4 | 4 | Carbon steel, PU | Powder coating | |

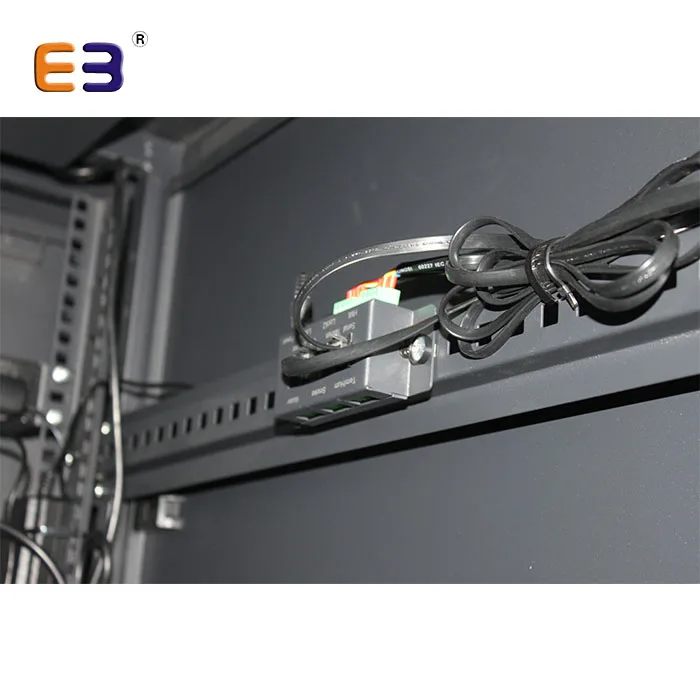

| 13 | Sensors | 1 | 1 | T & H detector | - | |
| 14 | Intelligent PDU | 1 | 1 | IP PDU | Powder coating | SNMP |
| 15 | Mounting angle | 6 | 6 | SPCC T=1.2 | Powder coating | |
| 16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
| 17 | Vertical C/M | \\ | 2 | SPCC T=1.2 | Powder coating | Only for 800 W |

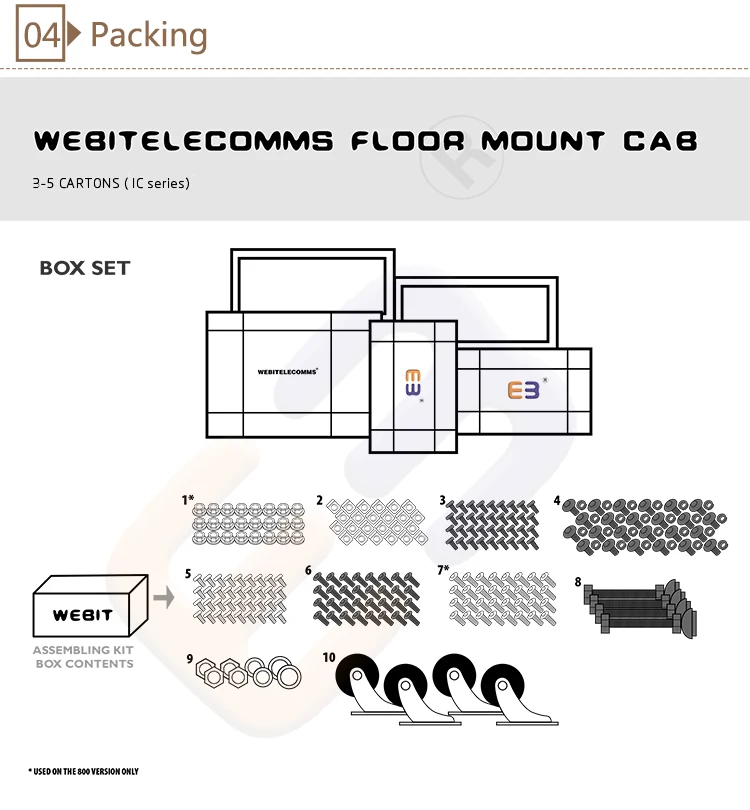

Packing
