Food grade inclined conveyor chains conveyor belt machine for fruit and vegetable
- Category: >>>
- Supplier: Guangdong Jiabao Conveying Machinery Co. Ltd.
Share on (62078105192):
Product Overview
Description
Product Description

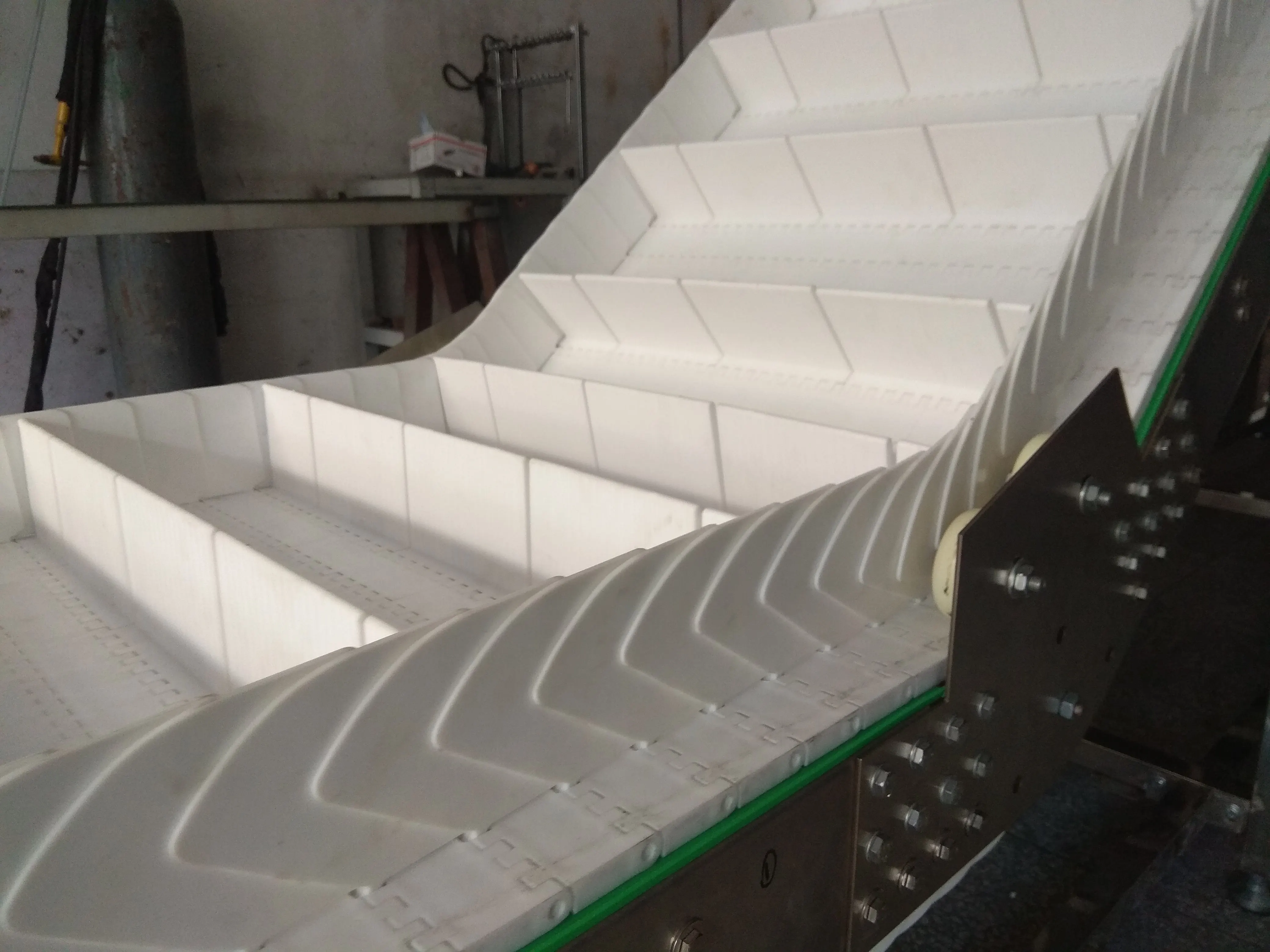

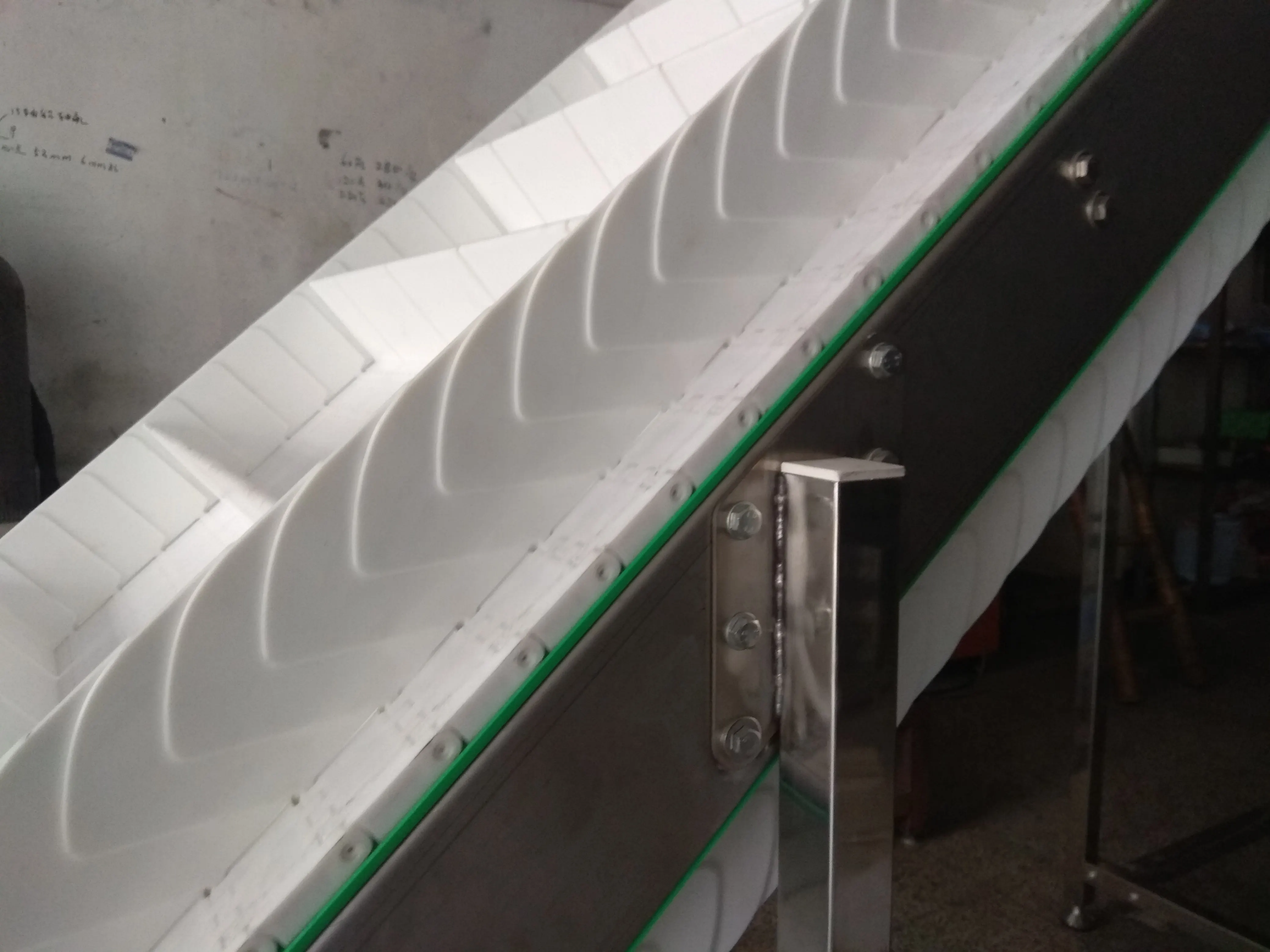

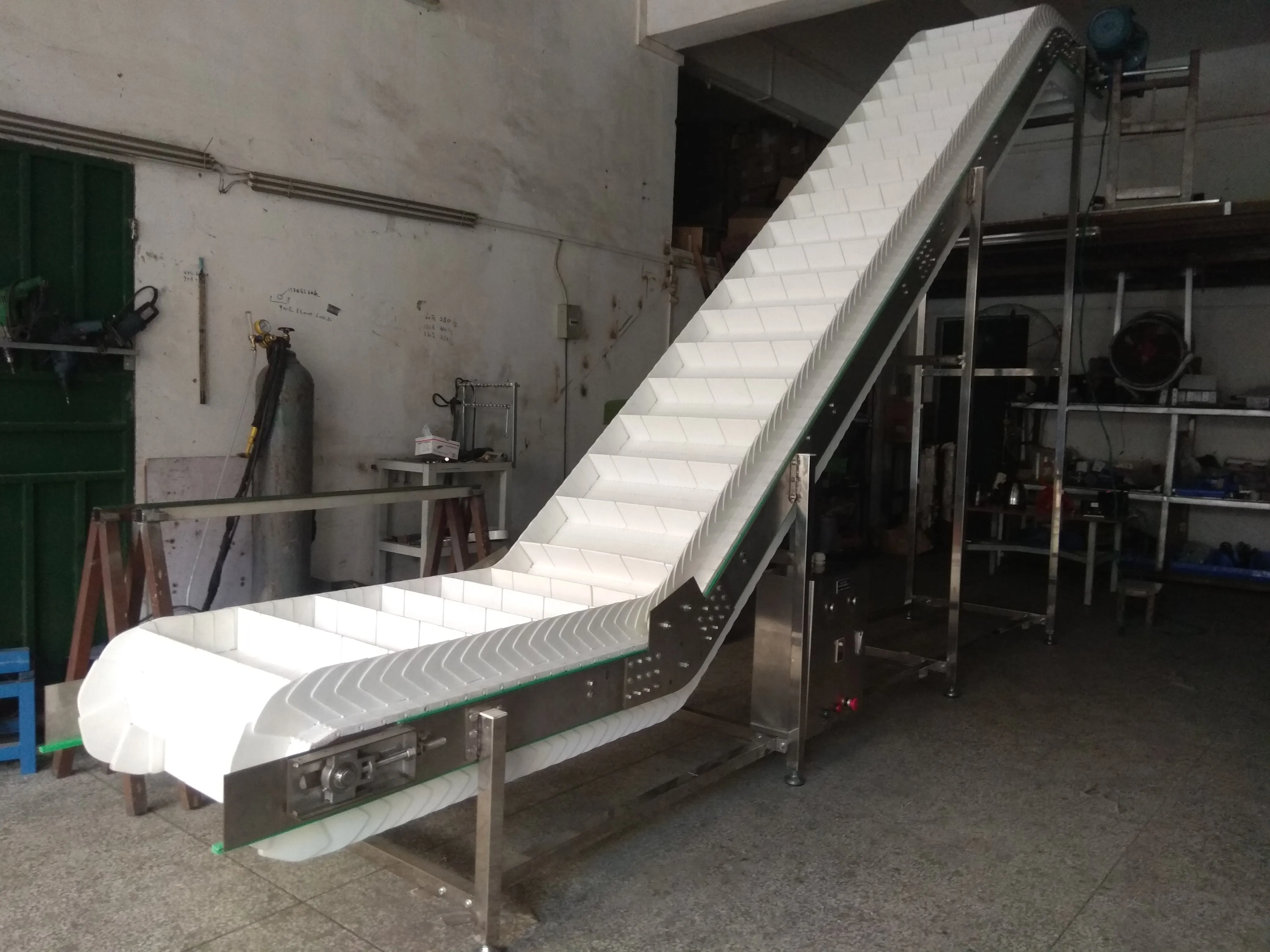

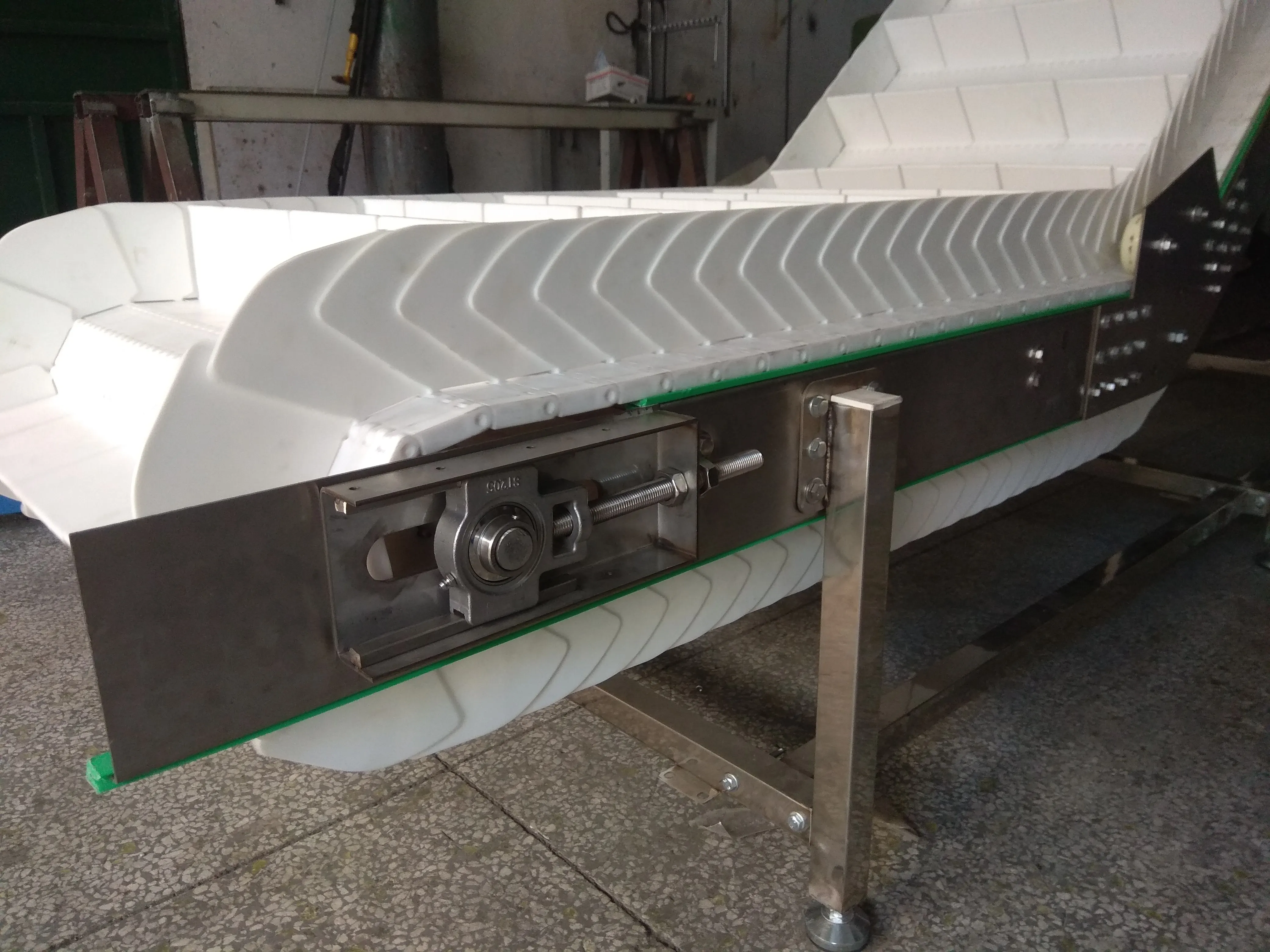

Food grade inclined conveyor chains conveyor belt machine for fruit and vegetable
| Main technical parameters | |||||||
| Bearing roller form | Bend speed | Bend width(mm) | |||||
| (m/s) | 500 | 650 | 800 | 100 | 1200 | 1400 | |
| Conveying capacityQ(m3/h) | |||||||
| Through roller | 0.8 | 78 | 138 | - | - | - | - |
| 1.0~2.5 | 97~232 | 164~391 | 278~661 | 435~1033 | 655~1556 | 891~2118 | |
| 3.15 | - | - | 821 | 123.3 | 1858 | 2528 | |
| 4 | - | - | - | - | 2202 | 2996 | |
| Flat roller | 0.8 | 41 | 67 | 118 | - | - | - |
| 1.0~2.5 | 52~125 | 88~211 | 147~350 | 230~546 | 345~821 | 467~1117 | |
| Power (kw) | 1.5~40 | 1.5~50 | 2.2~75 | 4~100 | 7~185 | 4~185 | |
Learn more products
Click the picture below to learn more about PVC/PU/RUBBER conveyor
Working Process
Our Certificates
5S workshop
ABOUT JIABAO
FAQ
1Q: Manufacturer or Trading company?
A: Manufacturer. We have rich experiences in conveyor manufacture industry for over 15 years, we have 5s workshop environment to make sure all the procedure can be in order and we check in every procedure to confirm the quality and standard.
2Q: Customized?
A: Sure. We build machines by every steps with process standard, every process quality should be strictly controlled, and all the materials are decided by customer’s request such as SS304, carbon steel, pvc, pu, rubber...We always stand on our customer’s side and try our best to help them to make the most benefits.
3Q: How can you describe your service?
A: We always ready to provide professional service for each customers, no matter which supplier you will choose, the same warmly reception won't be absent.
