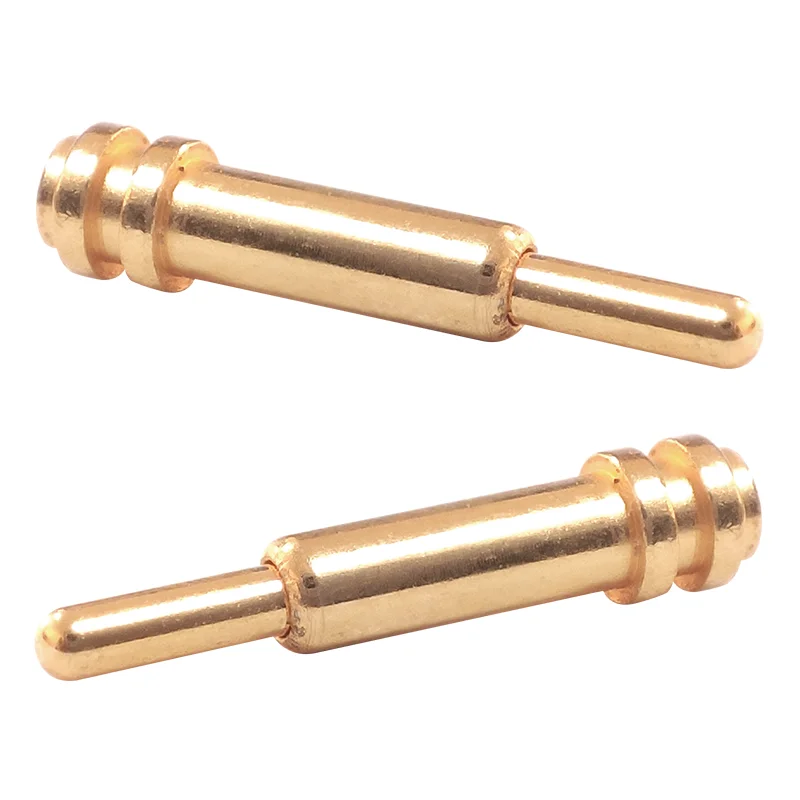

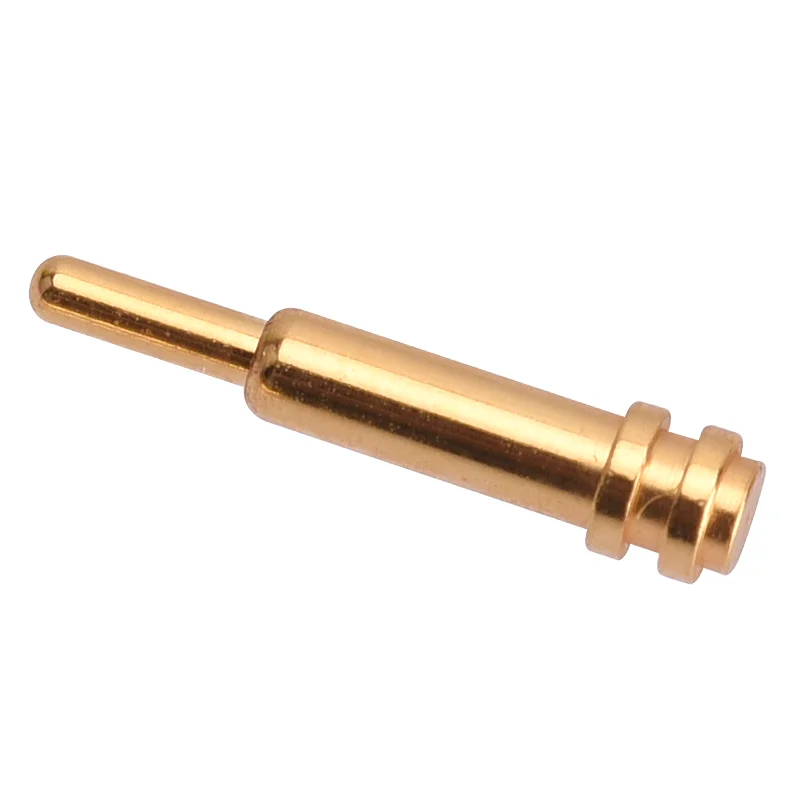

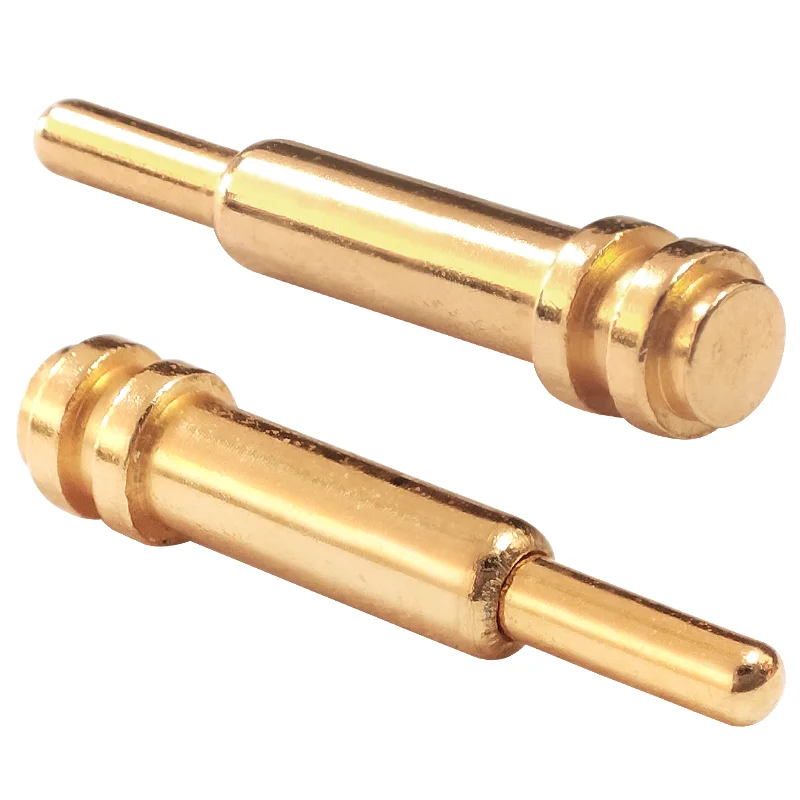

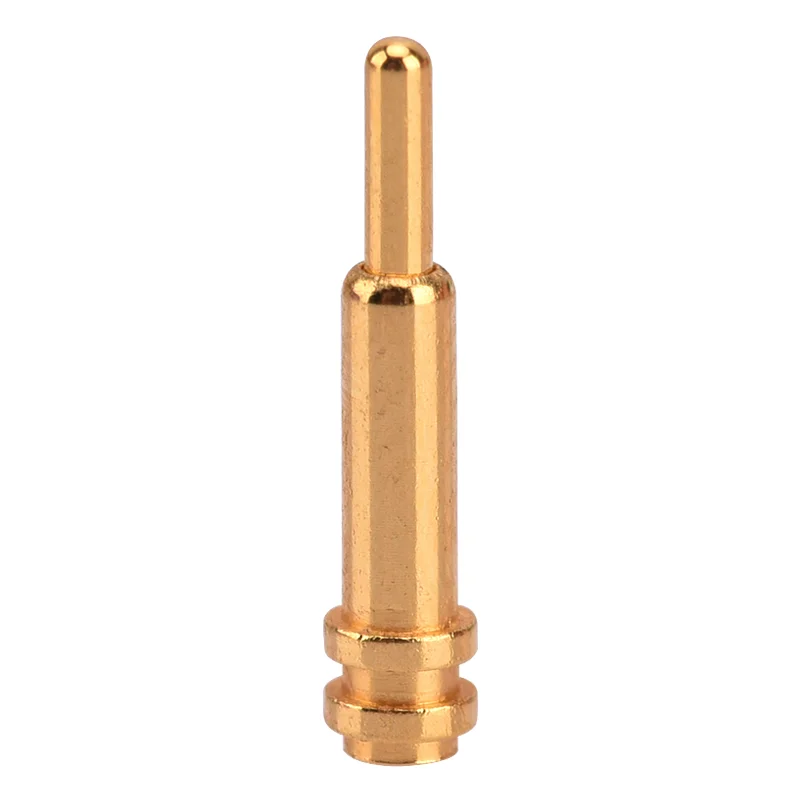

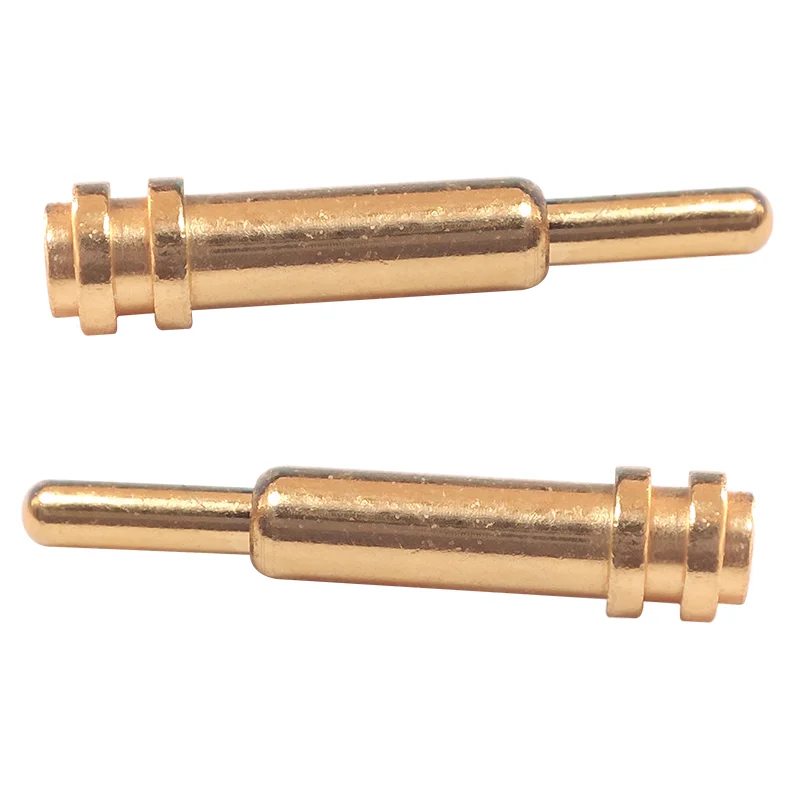

Customize Length 5V2A 12V 2A Single Pin In Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector
Customize Length 5V2A 12V 2A Single Pin In-Mold Injection Gold Plated Waterproof Pogo Pin Connector

Customize Length 5V2A 12V 2A Single Pin In Mold Injection Gold Plated Waterproof Pogo Pin Connector

Share on (62078112163):


Price:

Quantity:


Product Overview

Description



Hot Product




Products Description




A. Electrical
1) Contact resistance
30mOhm Max
2) Voltage rating
12V DC Max
3) Current rating
2.0A
B. Material/Finish

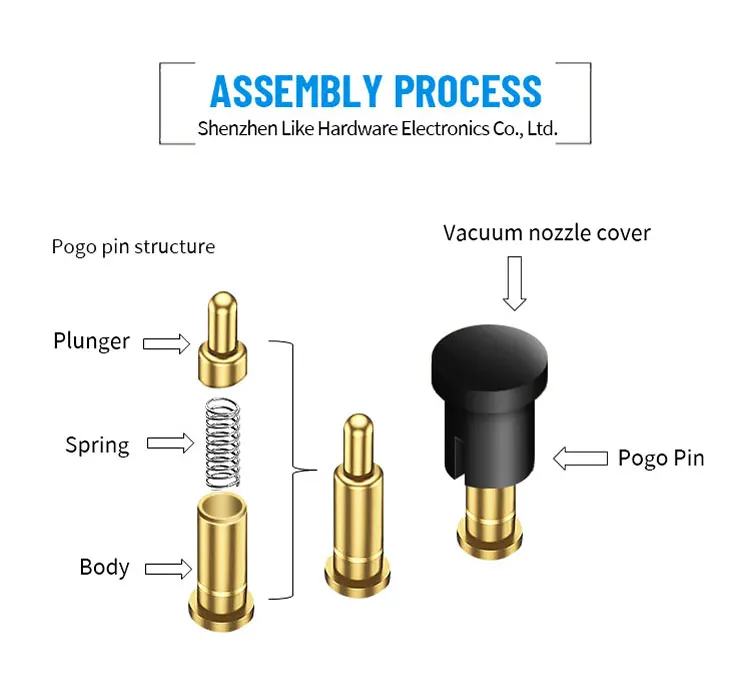

1) Body&Plunger
Green copper brass，Gold plating over Nickel plating
2) Spring
SUS 304，No plating
3) Housing&Cap
PA46+30% glass fiber; Black(UL94V-0)
C. Mechanical
1) Mechanical life:
10,000 cycle min.
2) Plunger swing angle
±5° Max.
D. Environmental
1) Storage and operating temperature range
-40°C~+85°C
2) Humidity range
10% RH to 95% RH
3) Salt spray
48H
4) High temperature resistance
260℃ ,3 minutes

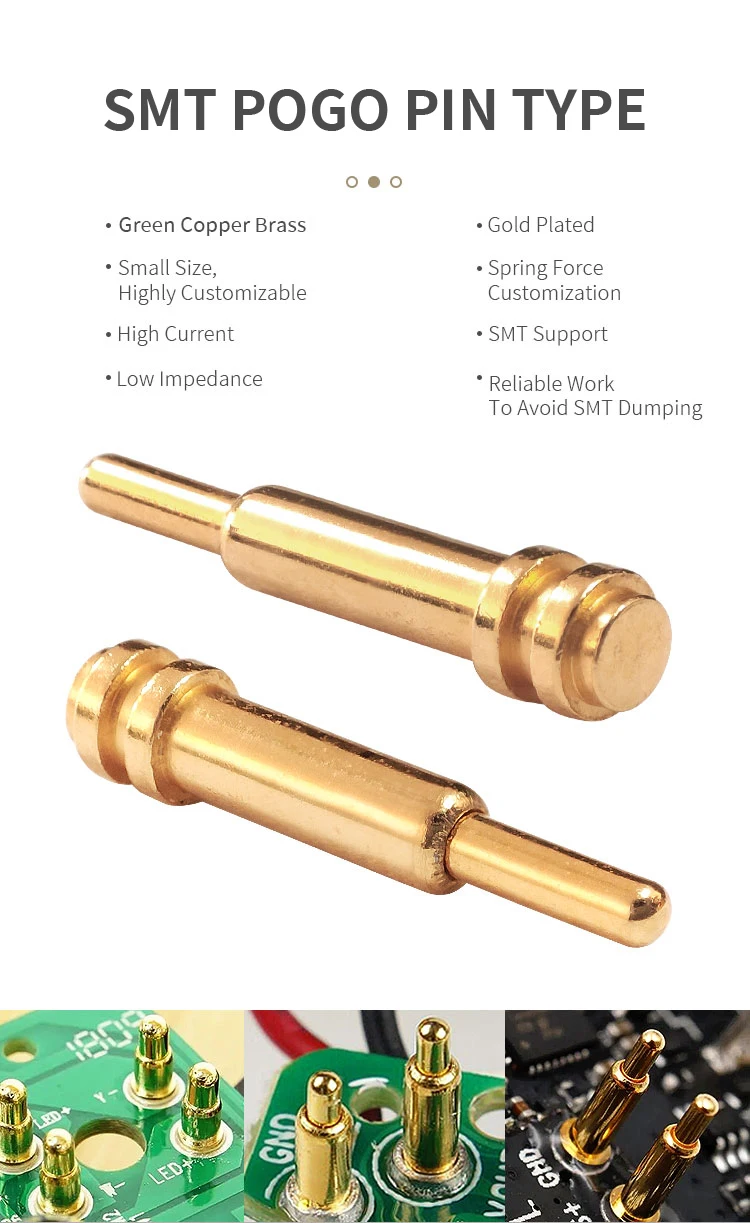

Details Images

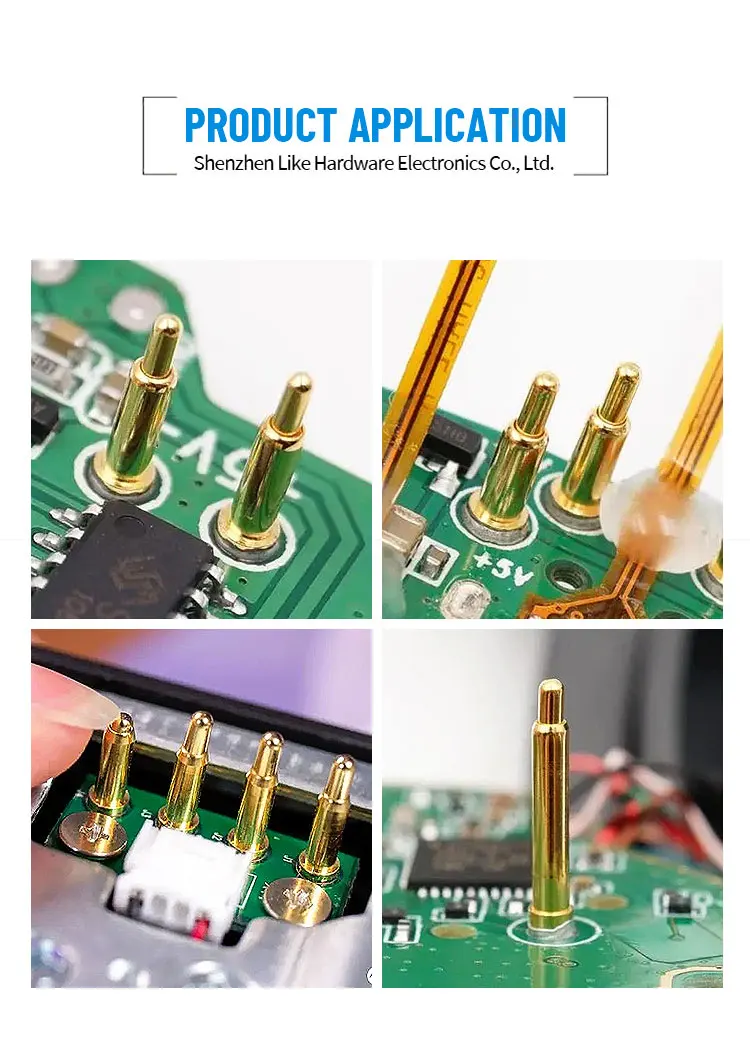

Product Application

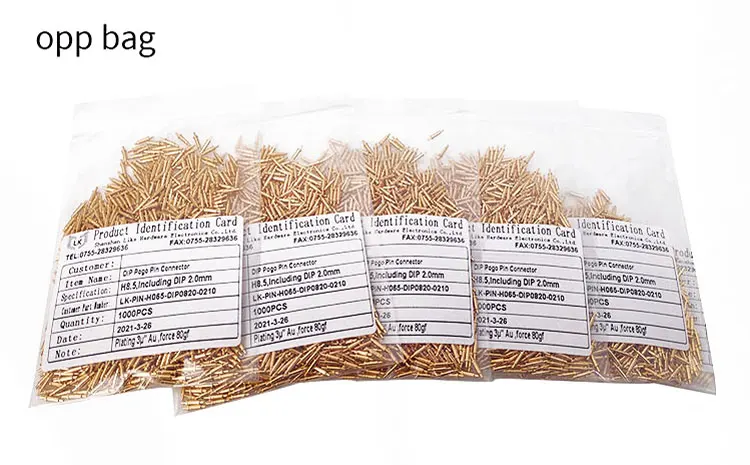

Packing & Delivery










Customer Photos




Factory Workshop
