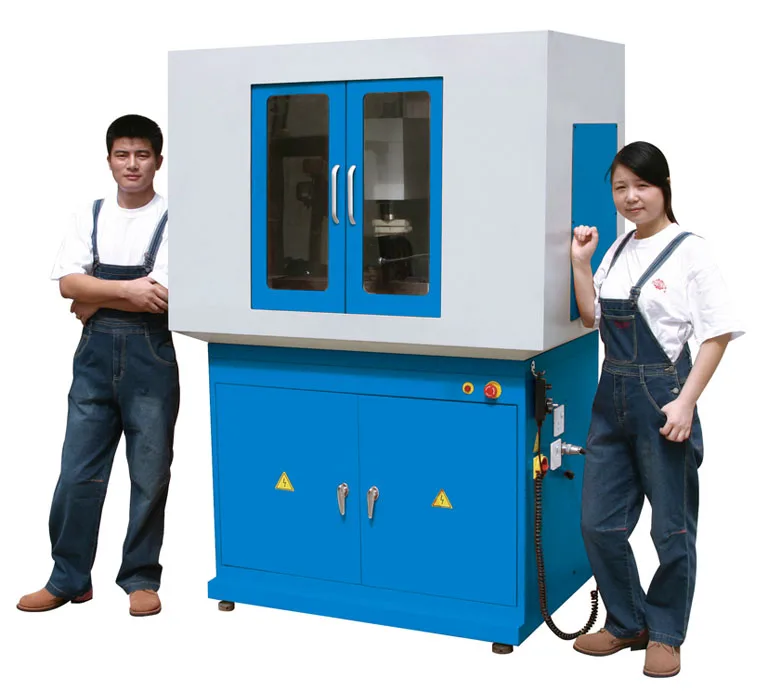

High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine
High speed high precision 3 axis cnc milling machine

High speed high precision 3 axis cnc milling machine

Share on (62078153544):


Price:

Quantity:


Product Overview

Description


Product Description

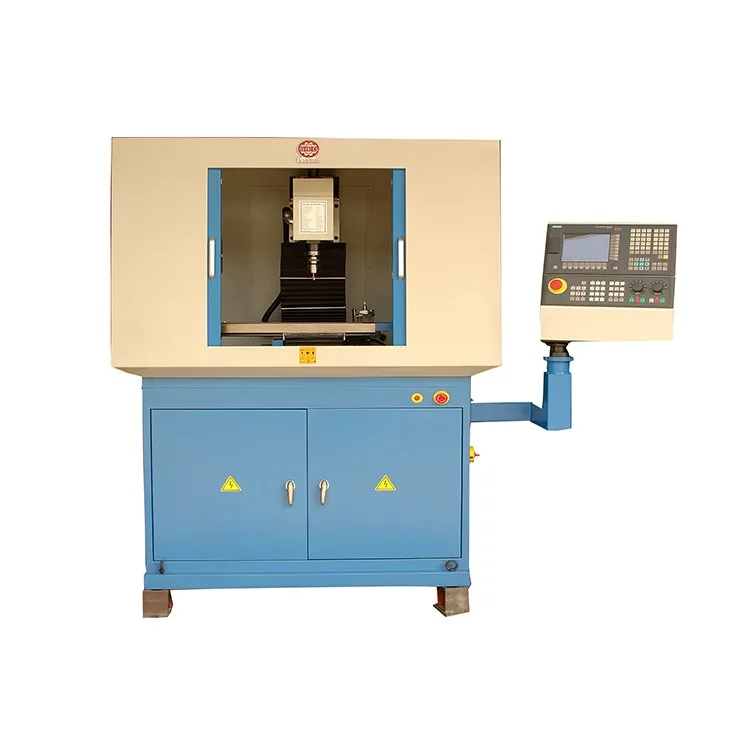

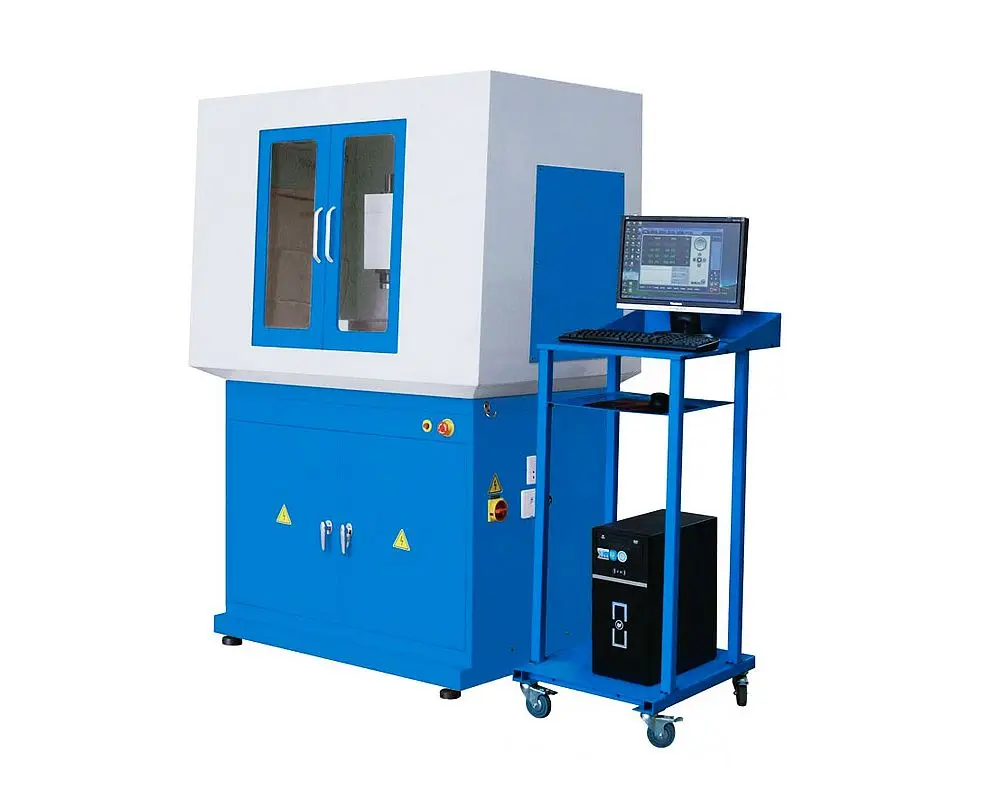

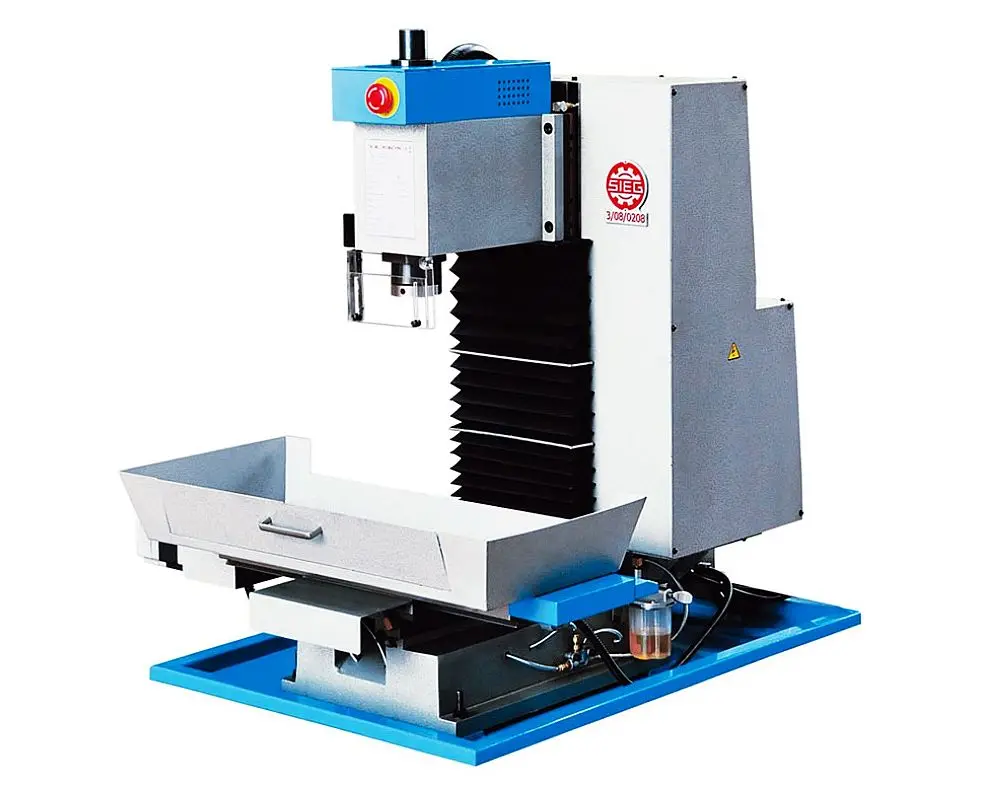

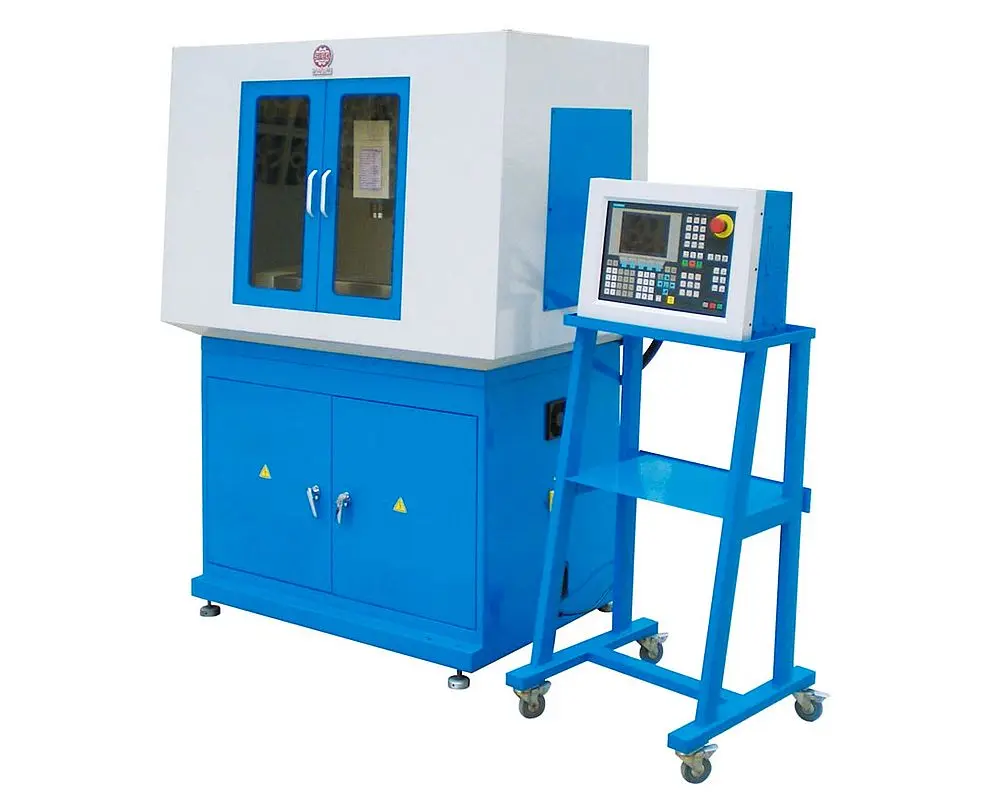

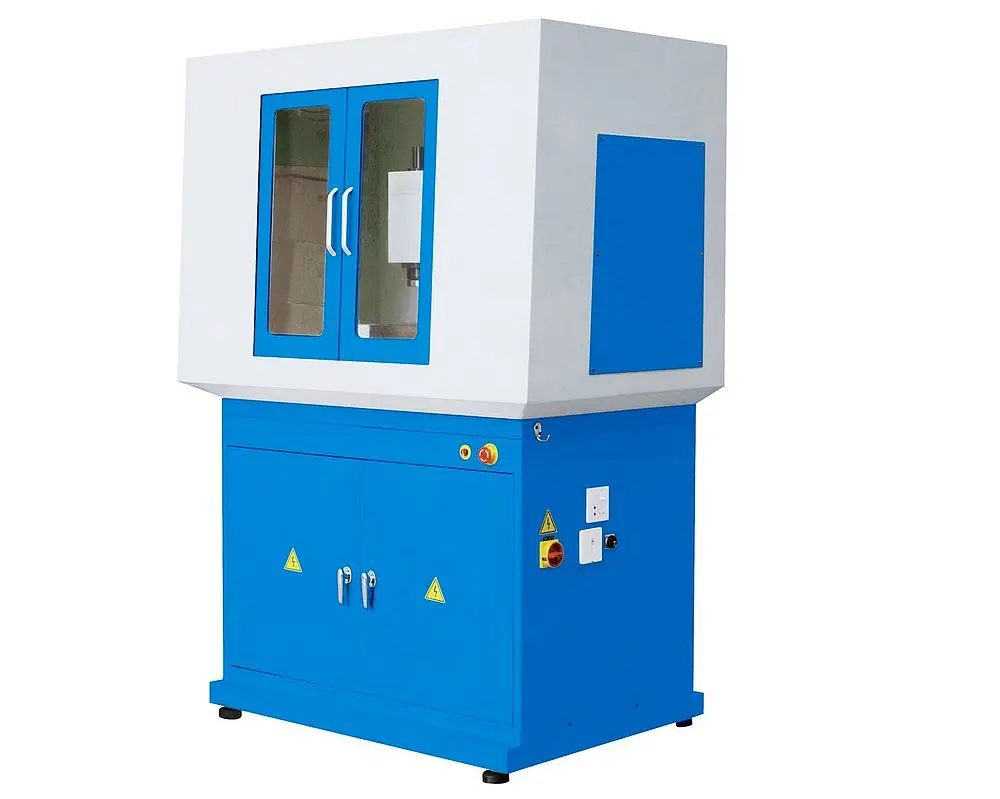

Product Images

High speed high precision 3 axis cnc milling machine

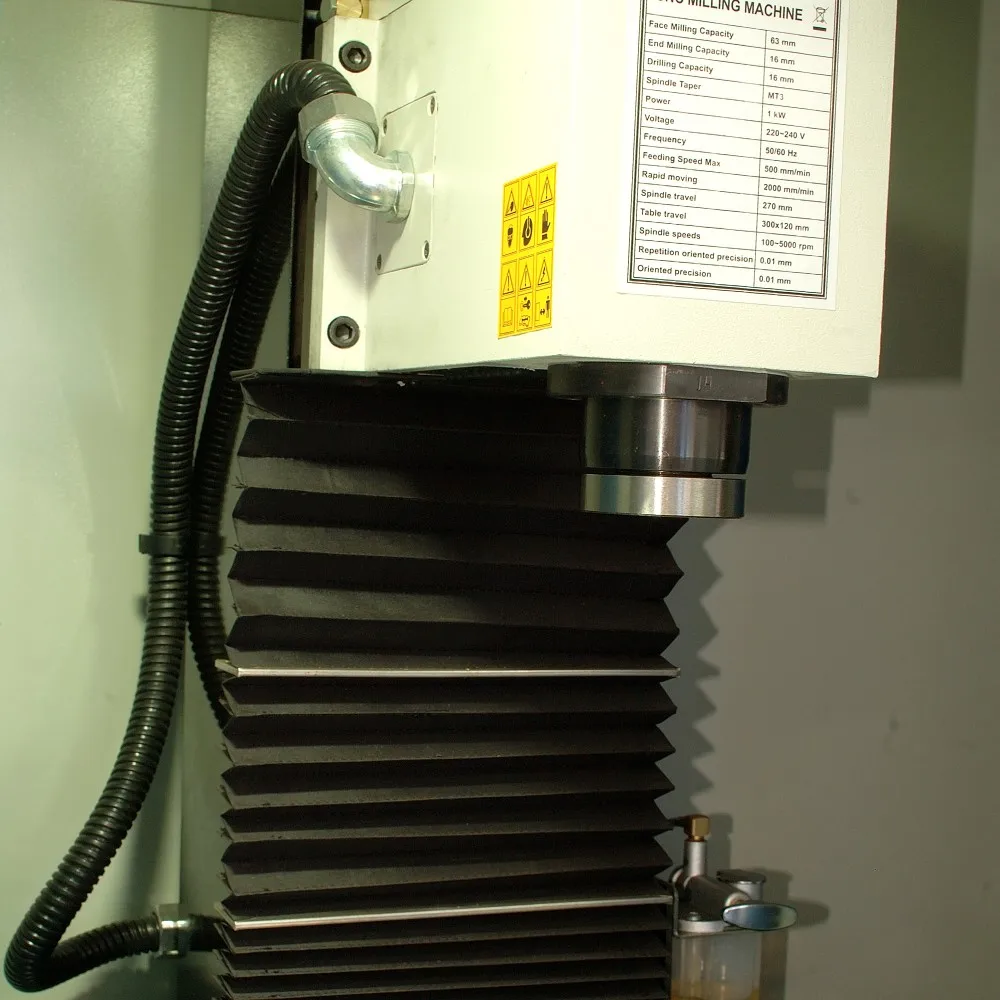

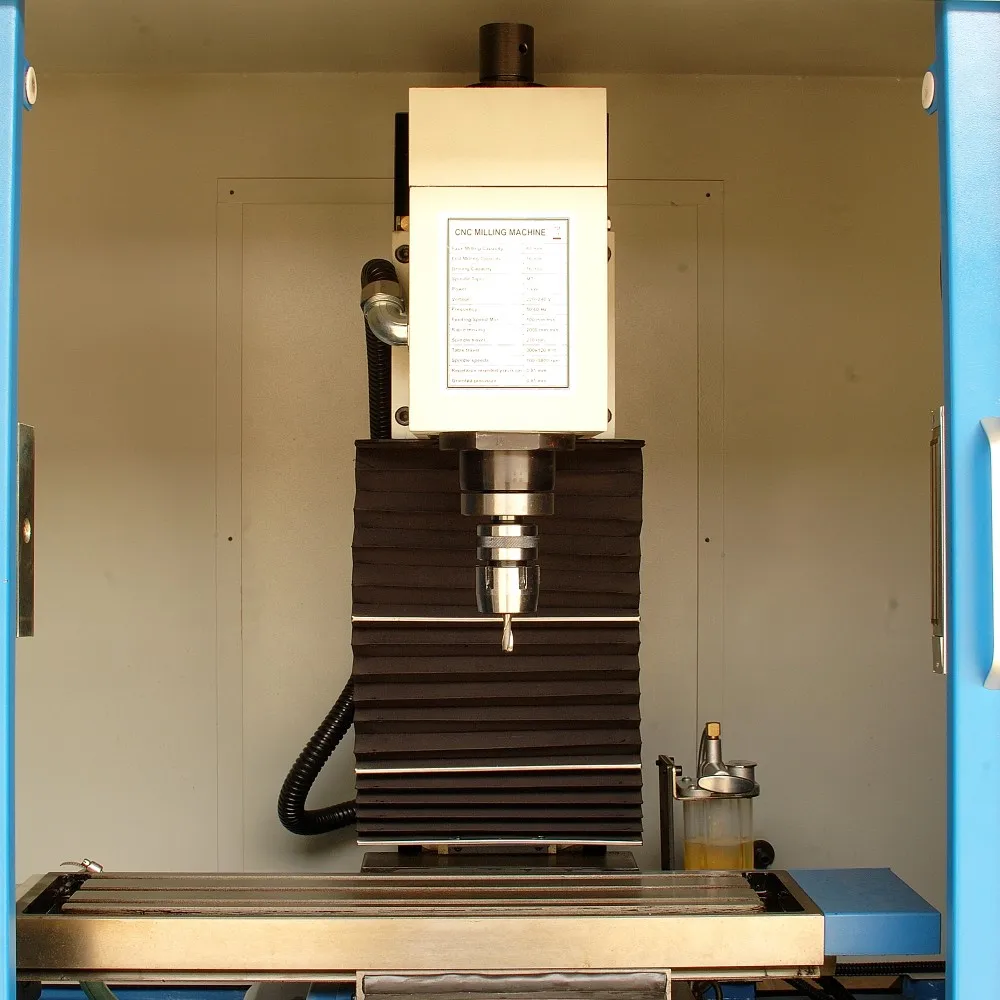

Detailed Images

Detail images


Specification of KX3

\t

TABLE
\t
Table size
\t
550×160mm
\t
T slot (amount×width×distance)
\t
3×12mm×43mm
\t
Max. load
\t
30kg
\t



TRAVEL
\t
X travel
\t
280mm
\t
Y travel
\t
120mm
\t
Z travel
\t
270mm
\t
Spindle nose to table
\t
80-350mm
\t
Spindle center to column
\t
200mm
\t

SPINDLE
\t
Spindle taper
\t
MT3/NT3/R8
\t
Spindle motor
\t
1000w
\t
Spindle speed
\t
100-5000r/min
\t


FEED(STEPPER)
\t
The max moving speed
\t
2000mm/min
\t
The max feeding speed
\t
500mm/min
\t
Power of X/Y
\t
4Nm
\t
Power of Z
\t
6Nm
\t


FEED(SERVO)
\t
The max moving speed
\t
5000mm/min
\t
The max feeding speed
\t
1000mm/min
\t
Power of X/Y
\t
400W
\t
Power of Z
\t
750W
\t

ACCURACY
\t
Positioning accuracy
\t
0.015mm
\t
Repeatability accuracy
\t
0.01mm
\t


OTHERS
\t
Power
\t
230/120V
\t
Weight(NW/GW)
\t
380/460kg
\t
Overall dimension
\t
1280×895×1845mm
\t
Packing size
\t
1420×1060×2035mm

Main structure and feature

  ● Taiwan PMI Ballscrew


       ● Sweden SKF linear guide


  ● German FAG bearing


 ● 45 degree slant bed

SIEMENS system.

GSK

system.


FANUC

system.

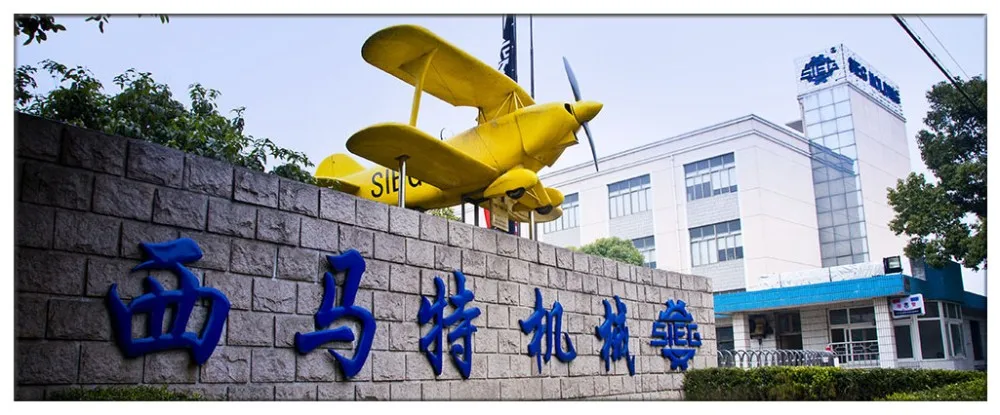

Our Company

Our Company



     Liuzhou Gluck Imp&Exp Co., Ltd is an office(located in Liuzhou City,Guangxi Province) of Shanghai SIEG CNC Machinery factory,which belong to SIEG Group, was founded in 1988.

    As we have grown, we have gained extensive knowledge and experience to meet your requirements.professional in exporting machine equipment, such as milling machines, lathe machine, engraving machines.

    Especially, we have a lot of experience in providing CNC and manual machines for hobby DIY, education and light industry. We know exactly "What you want" and "How you want it".

      We have a team of well qualified technicians and service personnel, who are well geared to produce some of the world's hottest machines. We also provide an extensive range of accessories ideally matched for use with our machines.

Enterprise Culture

    Intelligent science and technology,Start in the future, According to the mature technology and the high quality products and services customers,Contribute to society,Develop themselves!


    There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!which can enrich employee life, increase the affection between the colleague, make the job more passionate, make good products, good services to our clients......


Customer Case

    Small CNC machine tools have the advantages of small volume and convenient operation, and are deeply loved by the majority of users


Our Customers

We have more than 10 countries customers with good cooperation, Listed some for your reference.

Hope can be your best supplier ASAP!! Happy....



Quality Management

Ball bar testing.

Inspecting the type of tolerance/ERRORS and value.

Laser inspection.

Inspecting repeatable position accuracy/micro displacement precision,and do compensation

to CNC machine.

CMM(Coordinate Measuring Machine).

Inspecting position accuracy/geometic accuracy and outline accuracy.


Factory and Machine PICTURES

Certifications
Packing & Delivery

Packaging Details:1 set/normal carton or based on your requirement

SHIPPING:

1. By Express, by Sea,by Air Cargo,depend on your choice.

2. About 45 days after received your depoist, based on your quantity.

Our Service
FAQ


Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.

Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.

Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.

Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.

Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.

Q6: What is the Control of your lathe? Can I change it to other brand?
A6: The standard control of our lathe is GSK. You also can change other controls, such as FANUC,Siemens and so on.

Q7: How can I get the quotation?
A7: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q8: What's the main products of your company?
A8: We specialized in many kinds of CNC machines, such as CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center..

Q9: How can I choose the most suitable machines ?
A9: Please tell us your requirement of the machine, or you can also send us the products drawing,our engineer can help to choose the best model for you.

Q10: If still confused. What can I do?
A10: Please feel free to contact us via Email or trade manager.

Conatct US

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
