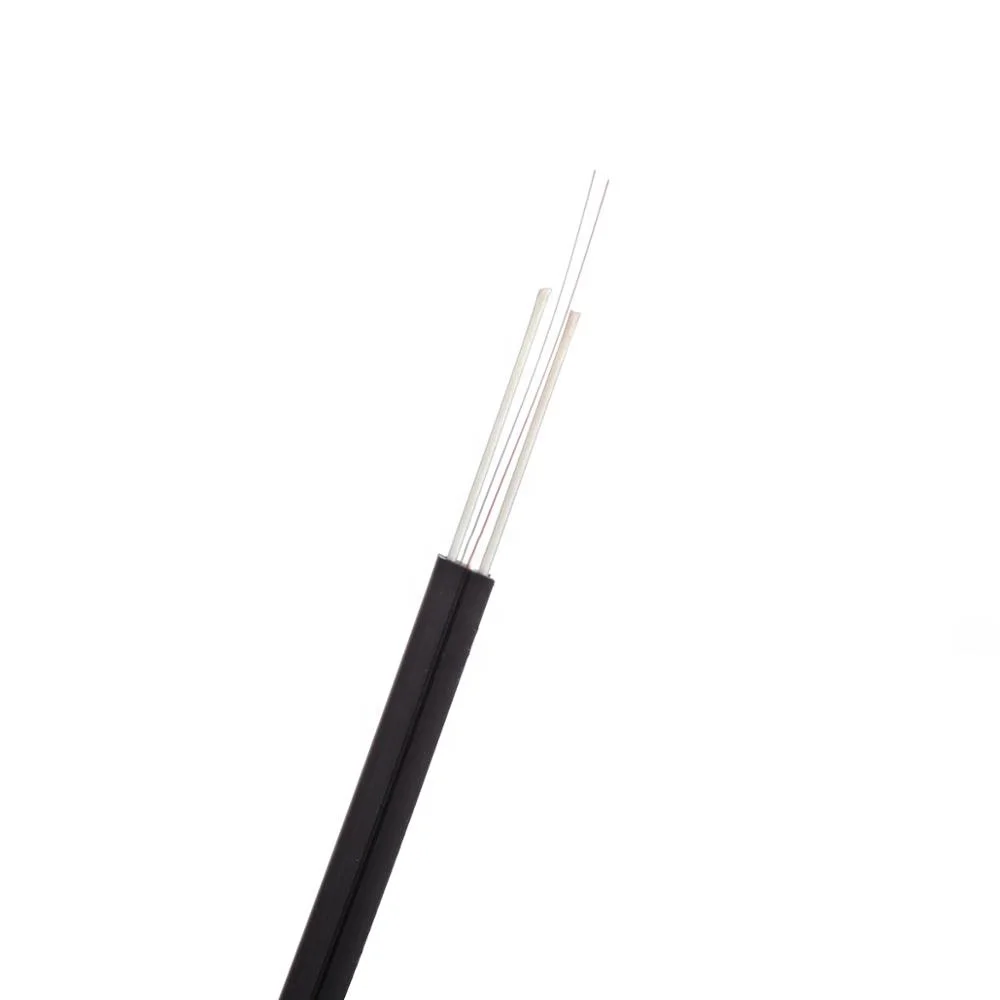

FTTH GJFXH FRP Strength member LSZH 1 2 4 Core Indoor Fiber Optic Cable 1km price
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (62078169992):
Product Overview
Description
FTTH GJFXH FRP Strength member LSZH Jacket 1 2 4 Core Indoor Fiber Optic Cable 1km price
Product Description
FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.
Features
Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.
Applications
Used as access building cable.
Used in indoor cabling, especially used for FTTH
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |

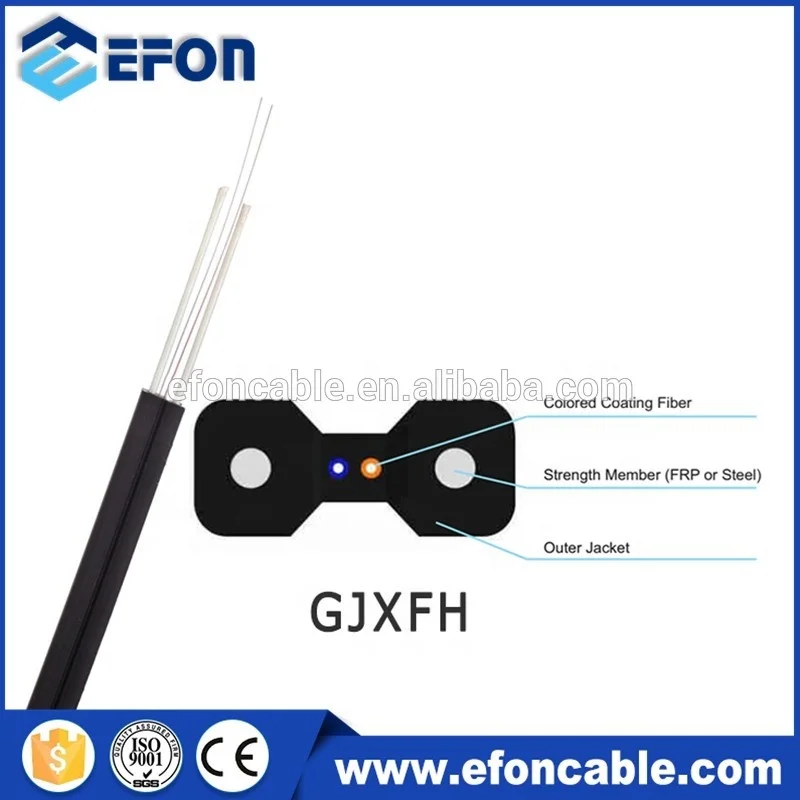

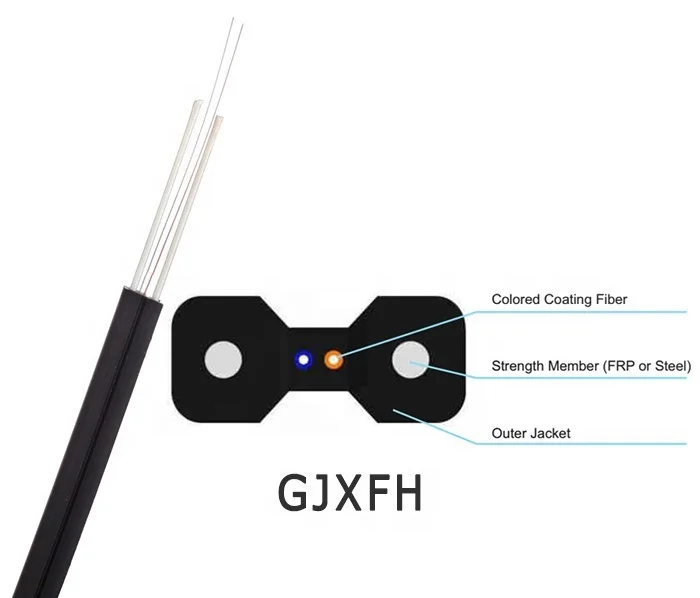

Structure and Technical Specifications
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
(N/100mm) | Crush Resistance (N/100mm) | |||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 3.0*2.0 | 9.0 | 80/200 | 40/100 | 1000/2200 | 500/1000 | |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
We produce and test cable compl with following standard
You May Like

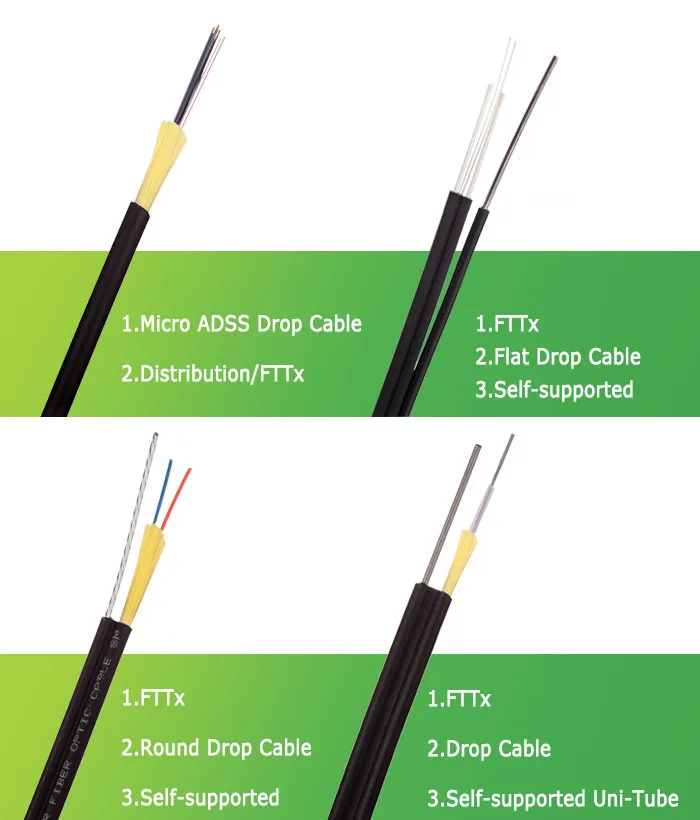

You May Need : Cable Fitting for FTTX Drop Cable
main products
ahout us
Located in Ningbo, the main seaport city in China, Ningbo Haishu Efon Communication Limited is a professional manufacturer of fiber optic cables. We have more than 15 years' experience in producing communication cables and fiber optic cables. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the world.
Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.
Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other

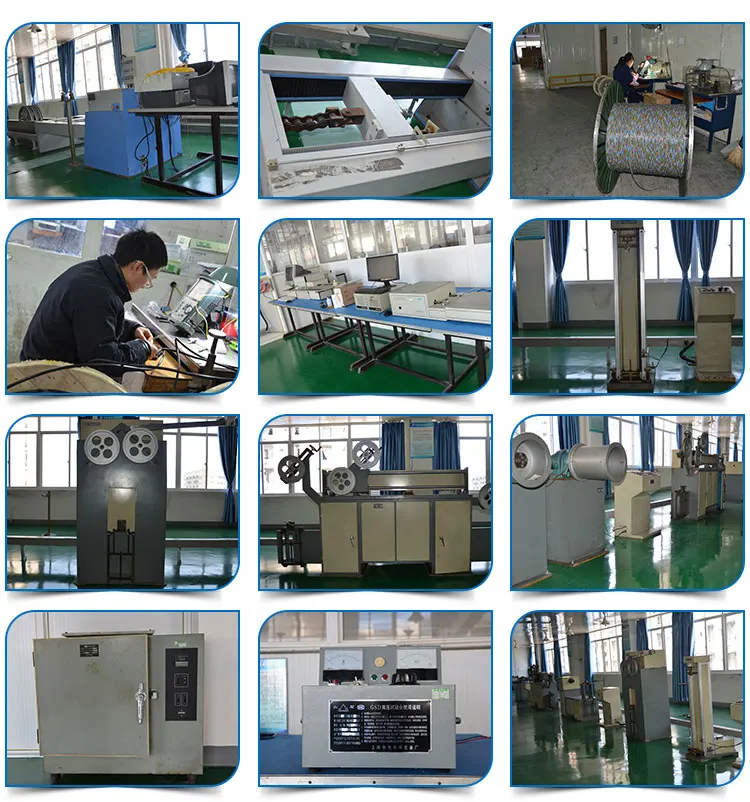

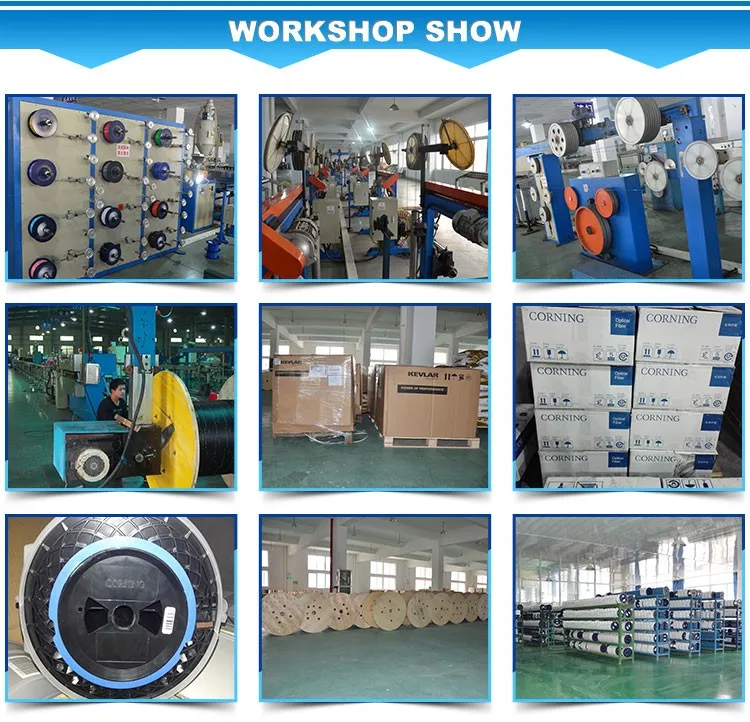

workshop show
