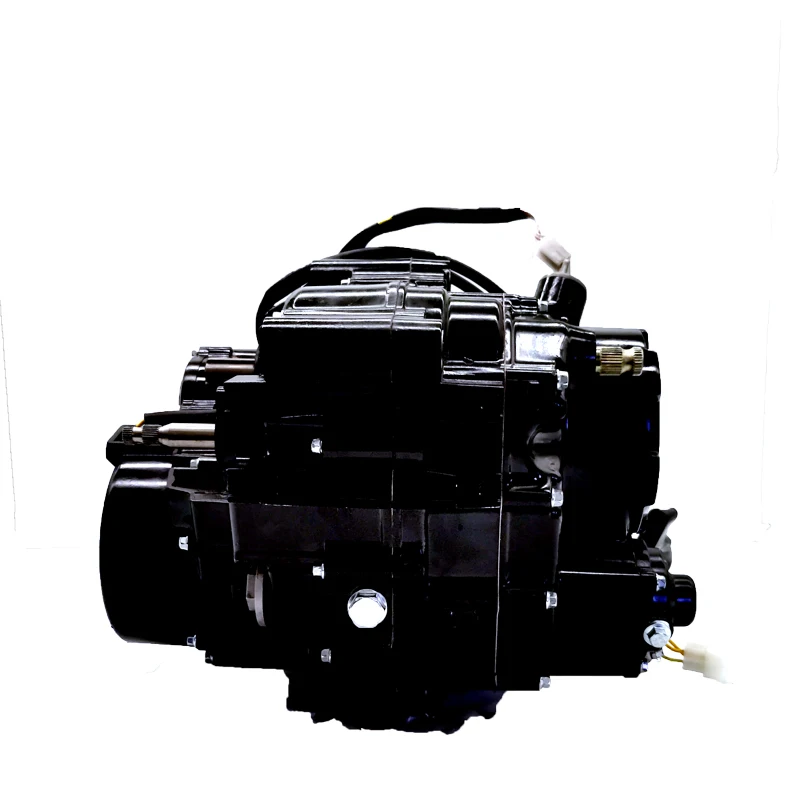

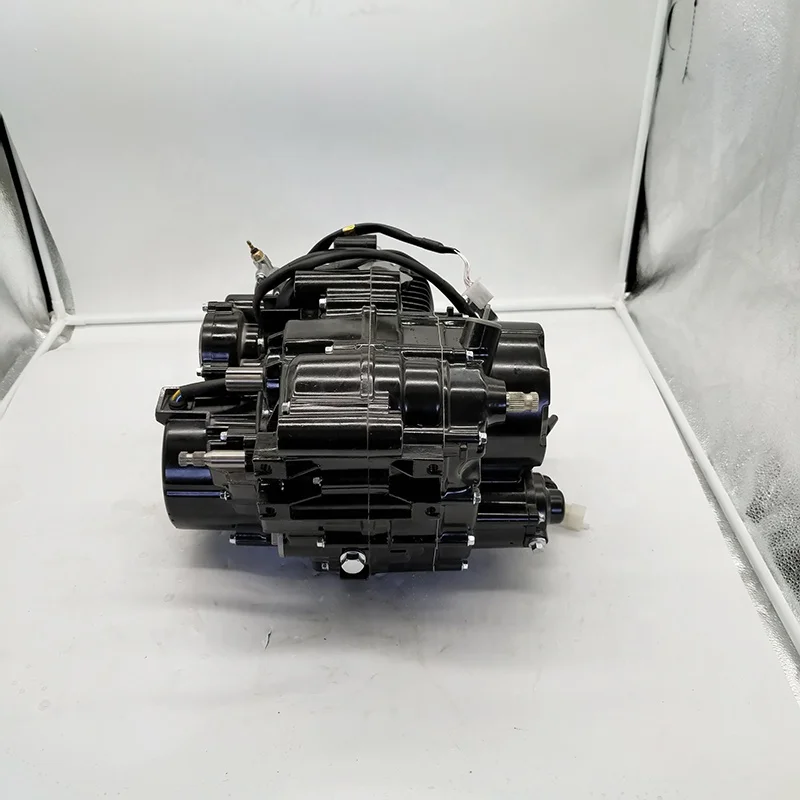

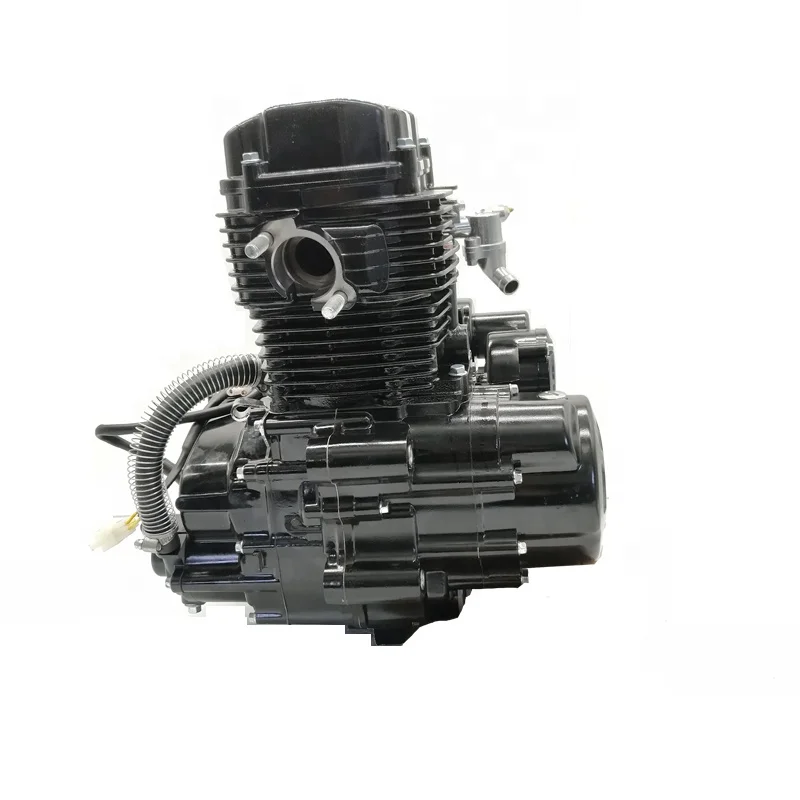

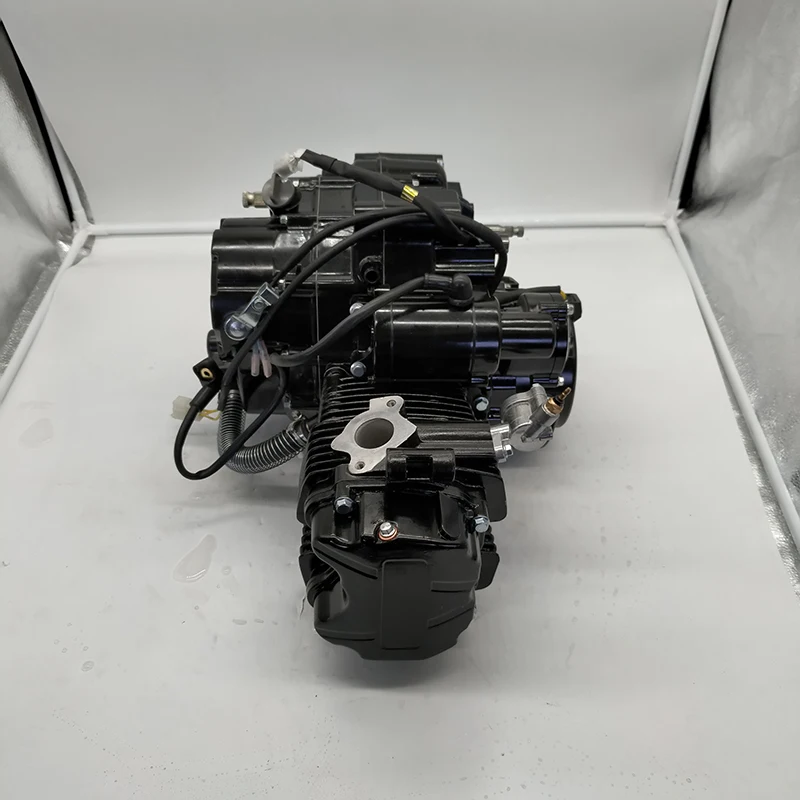

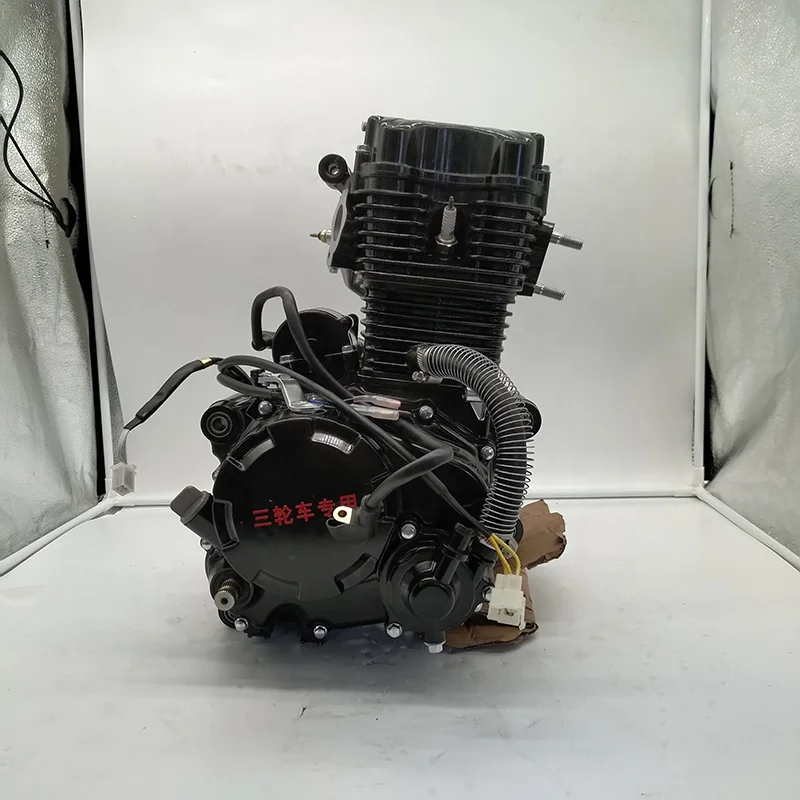

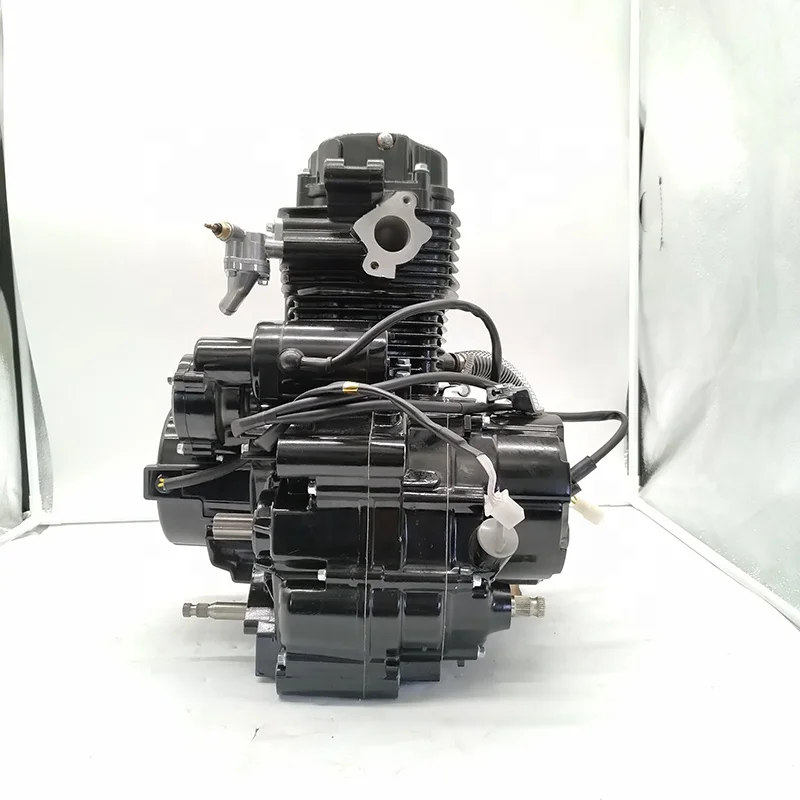

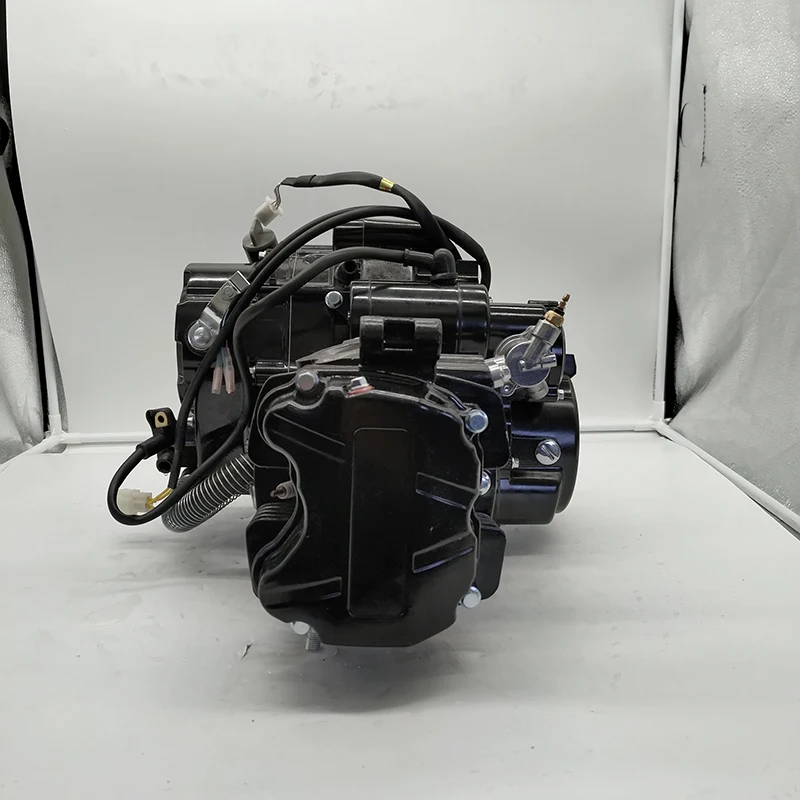

200cc chinese motorcycle engine assembly oil engine for motorcycles
- Category: Other Motorcycle Engines >>>
- Supplier: Chongqing Bull Motorcycle&Engine Manufacture Co. Ltd.
Share on (62078211069):
Product Overview
Description
Product Description
Engine Type | 198ml,1-Cylinder, 4-Stroke, air-cooled Vertical, overhead camshaft type |
Bore x Stroke | 69×53mm |
Compression Ratio | 9.8:1 |
Ignition and spark plug | CDI, D8TC |
Maximum Power Kw/(r/min) | 12.5KW/8000r/min |
Maximum Torque N·m/(r/min) | 15N*m/6000r/min |
Minimum fuel consumption (g/kw·h) | ≤354g/kw*h |
Starting method | Electric/Kick |
Dimension | 350x330x420mm |
Net weight | 31.5Kg |
Our Services
Our service
1. We will reply for your inquiry in 12 hours.
2. Sample order available
3. We accept custom logo and color as long as the demand is more than 40 unit.
Warranty:
a. We can offer one year warranty or engine 6000kms.
b. 1% easy-damaging spare parts are provided for free.
| Easy broken spare parts list |
No. | spare parts name |
1 | carburetor |
2 | electric parts |
3 | headlight assy |
4 | meter assy |
5 | L. front turning light |
6 | R. front truning litht |
7 | L. rear turning light |
8 | R. raer turning light |
9 | tail light assy |
10 | front and rear inner tube |
11 | rearview mirror |
12 | pasoes |
13 | chain |
14 | handle switch |
15 | handle bar |
16 | cable |
17 | battery |
18 | seat |
19 | rear shock |
20 | footrest |
21 | starting arm |
22 | gear pedal |
23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard mark |
Packaging & Shipping
Packaging & Shipping
Two different packing way for choose:
a. SKD: means Semi Knocked Down. steel frame + carton or wooden frame + carton.
b. CKD: means Completely Knock Down, except engine, we pack all other parts in a carton, the carton made by plywood, steel strips fix fringe and corner.
Difference between SKD and CKD
One container can load more CKD than SKD.
After customer get the bikes, SKD is easy assemble, but need more freight.
CKD can save more freight, but need worker to assemble completely.
CBU also accepted
We use the iron frame to fix the goods and then use the carton packaging.
FAQ
FAQ
1. Why choose us ?
a.Strong quality control:
We test and checked all the parts before on production line.
check and test each unit when it's ready.
Third time check when in packing.
b.We are factory with 20 years' experience.
2. Can I get sample and how long will it take?
Yes, of course. Sample bike is available all the times.
Usually it will take around 15-25 days according to your country location.
3. Separate parts available?
Yes, it is available.
Please don't hesitate to contact us if you need.
4. What's the MOQ?
If you need customized order, the MOQ going to be more than 38 UNITS.
If you need only one unit, the price going to be Retail price.
Wholesale price based on a MOQ 10 units.
5. Can I have my own customized product?
Of cause you can!
If you need custom logo or color, the MOQ is 35.
You can change its configuration as long as you order more than 50 UNITS.
Also you can change the print on the bike as long as you order more than 200 UNITS.
6. Can I mix different models in one container?
Yes, different models can be mixed in one container.
7. What's the delivery time?
Usually it will take about 15-30 days to finish an order.
But the exactly time it is depends on a actual situation.
8. What is the payment terms?
T/T, L/C or pay with Alibaba trade assurance.
9. How about the after-sales service?
We provide warranty, whatever you by it for your own use or for sale.
a. We offer engine 6000kms or 1 year warranty on the basis of normal riding
b. We offer 1% easy-broken spare parts freely.
10.How do you guarantee?
We send the spare parts to you freely and we affoard the shipping cost.
11.What certificate do you have?
We only have 3C.
We don't have EC, EEC or E4 and so on.
