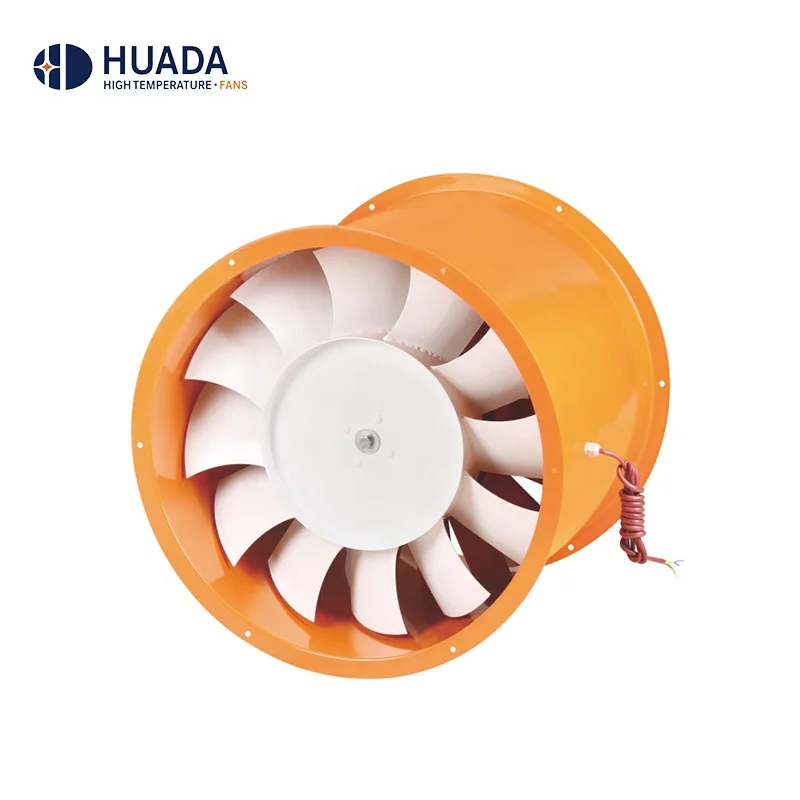

High pressure high air volume double impeller axial flow fan

Agricultural Use

DJF Series

High pressure high air volume double impeller axial flow fan

 1. The fan is suitable to the barn and mines, tunnel, basement by the environment of high pressure, high air volume.

2. Motor uses aluminum alloy shell, class H high temperature resistant insulating materials.

3. Fan blade adopts skewed swept blade enhanced axial pressure to meet high density for agricultural products baking room

Different appearance design according to clients' requirements

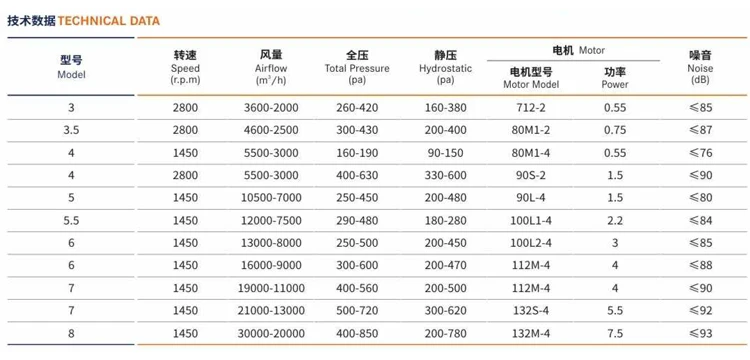

Max. Ambient Temp: <130℃ Relative humidity: ≤98% Rated voltage: 220V, 220/440V, 220/380/660V, 230/400/690V, 240/415/720V Cooling Method: IC411,    Protection Class: IP54/IP55 Insulation Class: Class F(120℃), Class H(180℃) Fan Blade: Aluminium/ Stainless steel Motor: Double speed Motor/ Explosion-proof Motor Pipe: Iron Stainless steel

Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China. Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003. All of our products sell all over the world with good reputation and reliablity. On 2009,"GKF" series was selected a standard products by China administration of tobacco.

Well-equipped with production lines and testing machines of motor and fans,we’re advanced in manufacturing and management in our area. Besides,our R&D team is very strong.We cooperate with academic institutions and have many intellectual properties. Mostly,we can customize all kinds of special fans for customers.
