high power wall wash linear outdoor lighting 10W led rgb wall washer
- Category: >>>
- Supplier: SHENZHEN BINGXIA TECHNOLOGY CO. LTD
Share on (62078371476):
Product Overview
Description

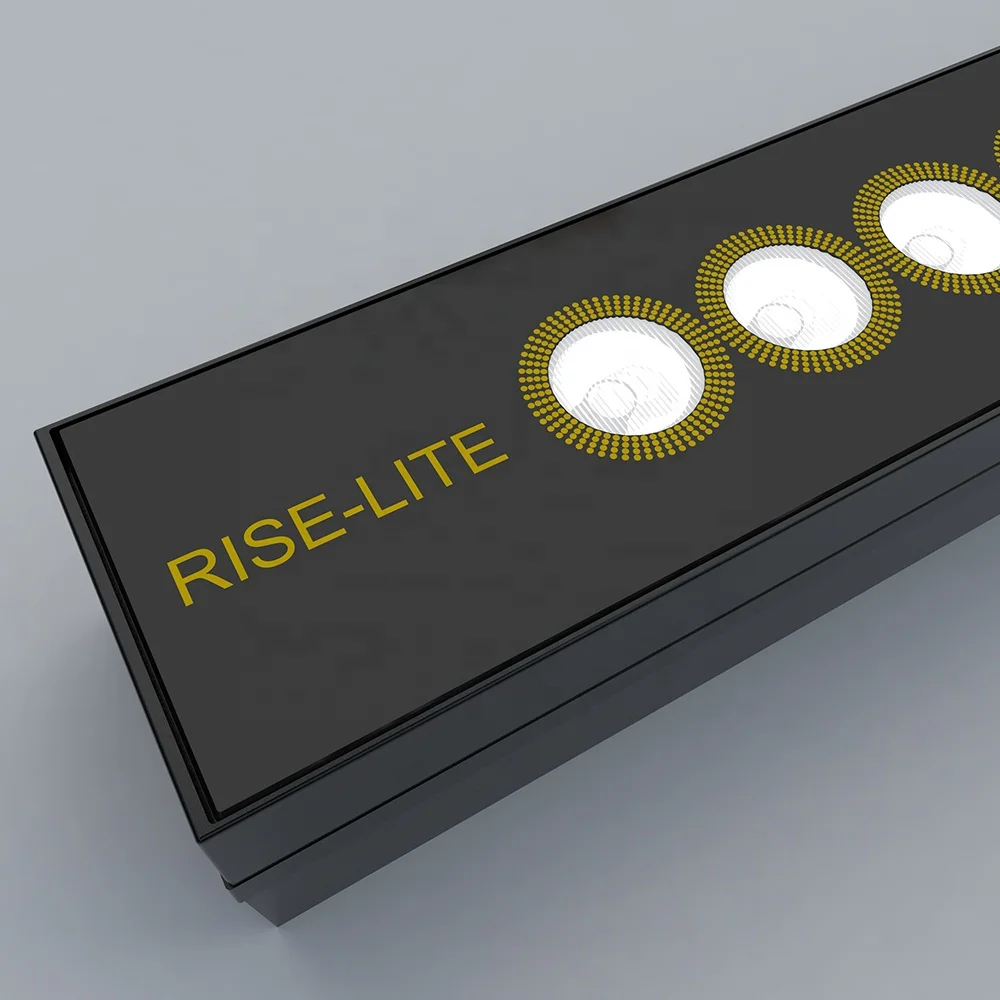

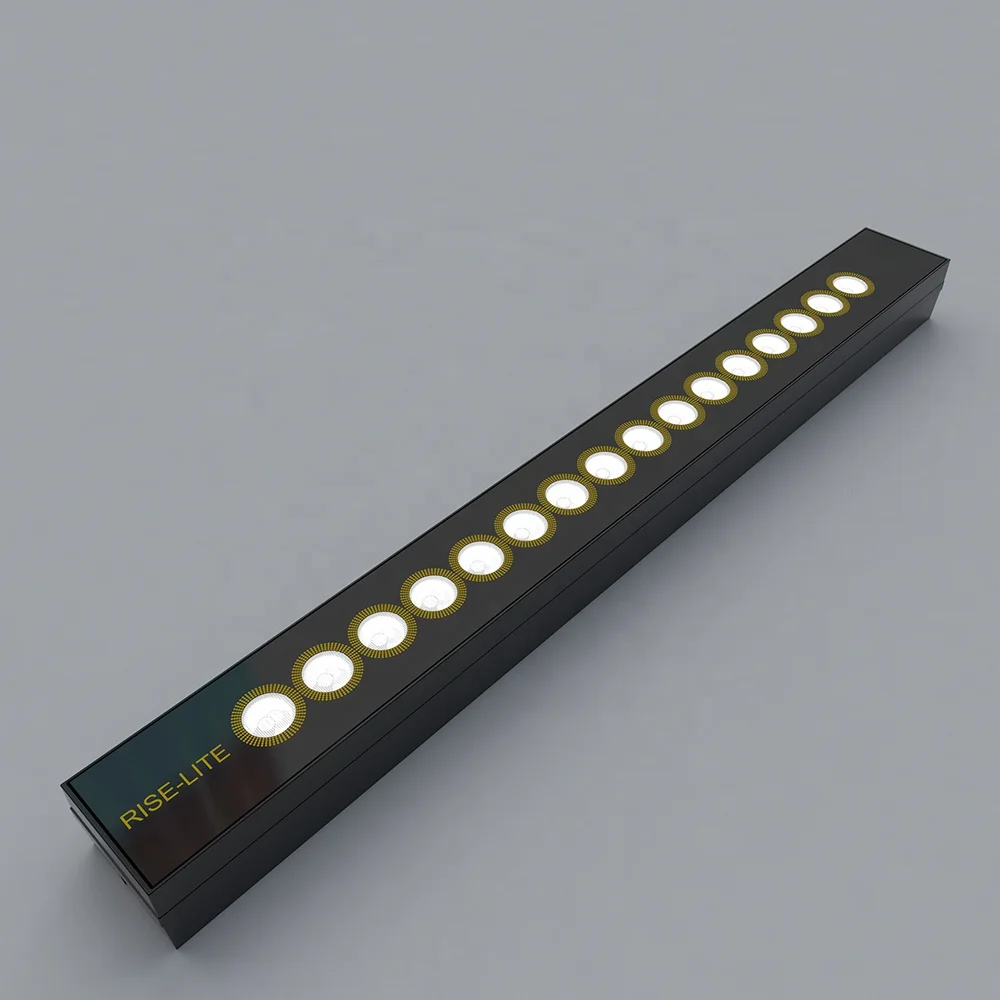

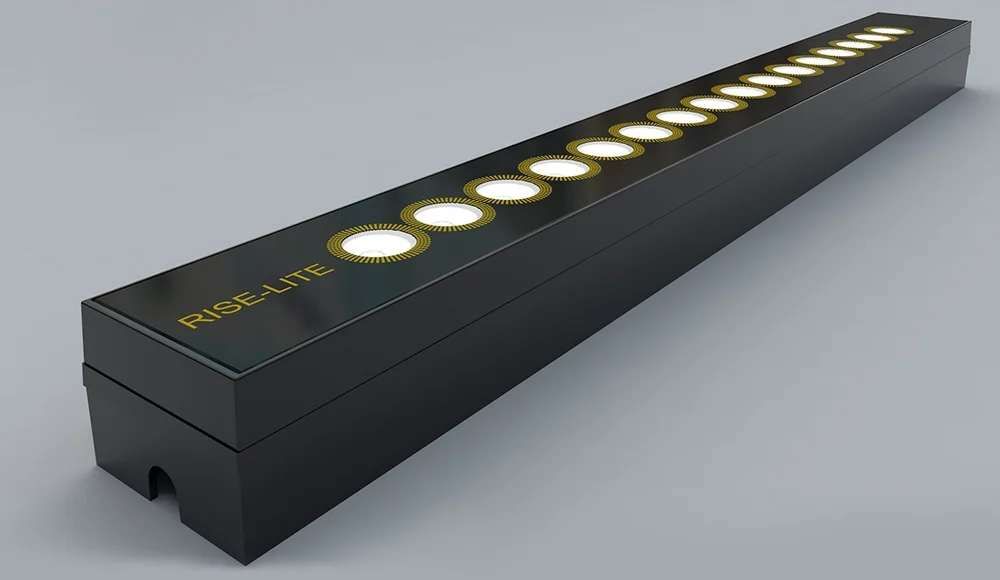

high power wall wash linear outdoor lighting 10W led rgb wall washer
Product Description
- Power Source: Extra Low Voltage for short runs, remote power supplies
- Power Options: 10W~45W
- Nominal Length: 500mm, 1000mm or custom length, please consult factory
- Beam Distribution: 15°/55° or 120°
- Body Color: Black or customize color
- Accessories: mounting brackets
- LED Color: Custom LED color combinations available
- Control:
• DMX, DALI or 0/1~10V dimming
• 500mm resolution, each 500mm section can be addressed autonomously, self-addressing fixtures
| Nominal Length | 500 | 1000 | |
| Electrical | Rated Input Voltage | 24VDC | |
| Power Consumption | 15W | 18W | |
| 18W | 24W | ||
| 24W | 36W | ||
| 45W | |||
| Optical | Light Source | 15x High Power LEDs per 500mm / 36x High Power LEDs per 1000mm | |
| CRI | >80 | ||
| CCT | RGB/RGBW Other CCT available, Consult factory | ||
| Beam Angle (FWHM) | 15°/55° or FR(frosted) | ||
| Projected Lumen Maintenance | L70 > 60,000hrs @ ta =55°C (77°F) | ||
| Control | Control Protocol | DMX, DALI or 0/1~10V | |
| Physical | Size (WxH) | 53*40mm (2*1.6 inch) | |
| Length(mm) | 500 | 1000 | |
| Housing | UV Proof ABS & Aluminum | ||
| Fixture Connections | IP68 rated input and output snap-in connectors for end-to-end connection (sealed unmated) | ||
| Rated Operation Temperature | -30°C to +45°C, -22°F to 113°F | ||
| Minimum Starting Temperature | -30°C, -22°F | ||
| Environment | Dry, Damp or Wet Locations, 0-100% humidity | ||
| Inquiry | Question | Requirement |
 |  |
YOU MAY LIKE
Company Information
Over 13 years' lighting and exporting experience, RISELITE have focusing on North American Market with DLC/ETL/CETL/ENEC Approved.
Hot selling products includes: led grow light ,led post top,led pole light,led street light,led canopy light,led shoebox light,led parking lot light,wall pack light,floodlight,sports stadium lighting,led tunnel light,led troffer,LED Retrofit Kits etc. and around 98% are exported worldwide. It can offer OEM&ODM services.

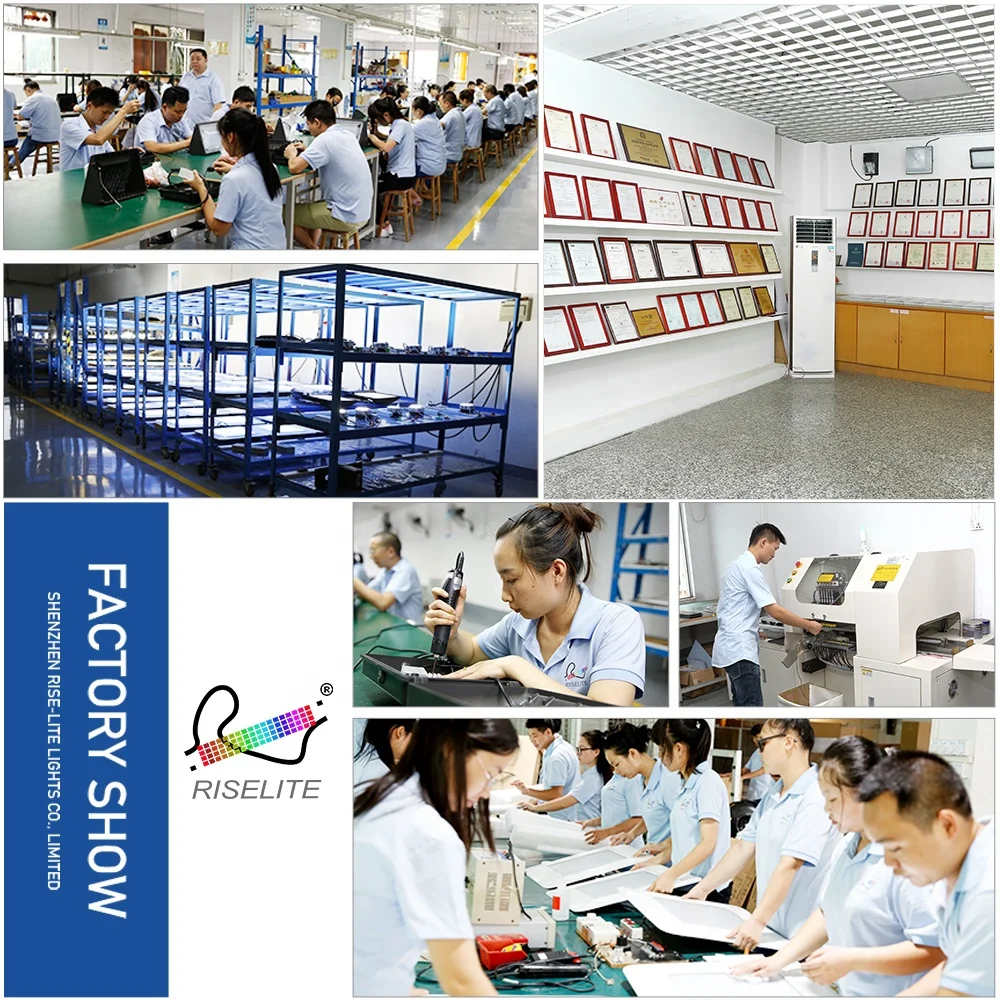

| Factory Show |
| Exhibition |
| Certificate |
| Inquiry | Question | Requirement | Home |
More detail information, please just feel free to contact us.
FAQ
Q1: What is the warranty ?
- A1: 5 years warranty
Q2: Are you a Factory ?
- A2: Yes,we are factory,we built in 2009,pls ask me for SGS factory inspection report.
Q3: Do you supply Free Sample?
- A3: Sorry,we do not supply free sample,but we can return back the sample cost from next bulk order
Q4:What's your advantange ?
- A4: We are factory,all our lamps are patent design with patent certificate.All with full CE ROHS ETL DLC certificate,high quality with low cost.
