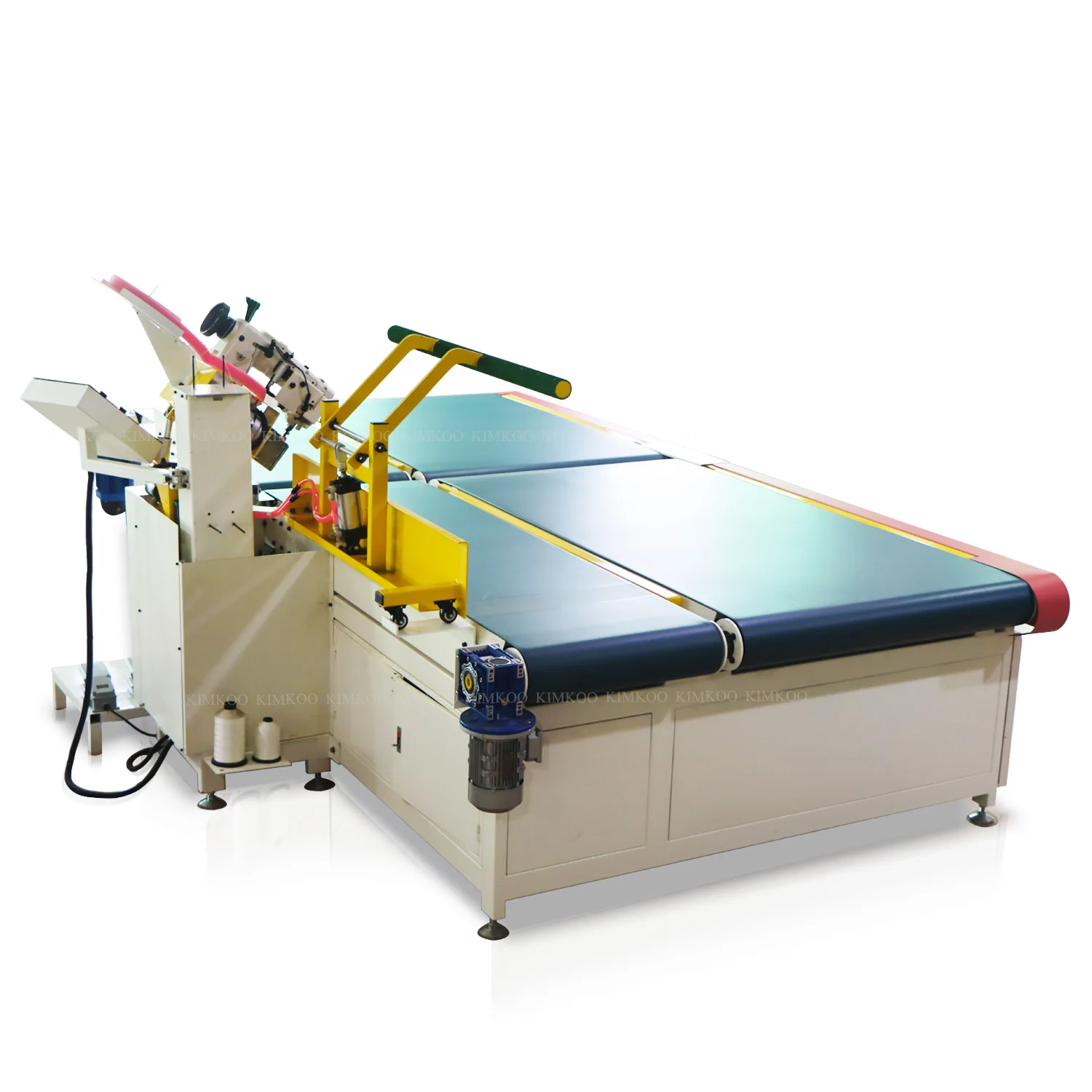

Automatic Mattress Manufacturing Tape Edge Sewing Machines
- Category: Furniture Making Machines >>>
- Supplier: Shenzhen Kimkoo Electronic & Machinery Co. Ltd.
Share on (62078450698):
Product Overview
Description
Product Description

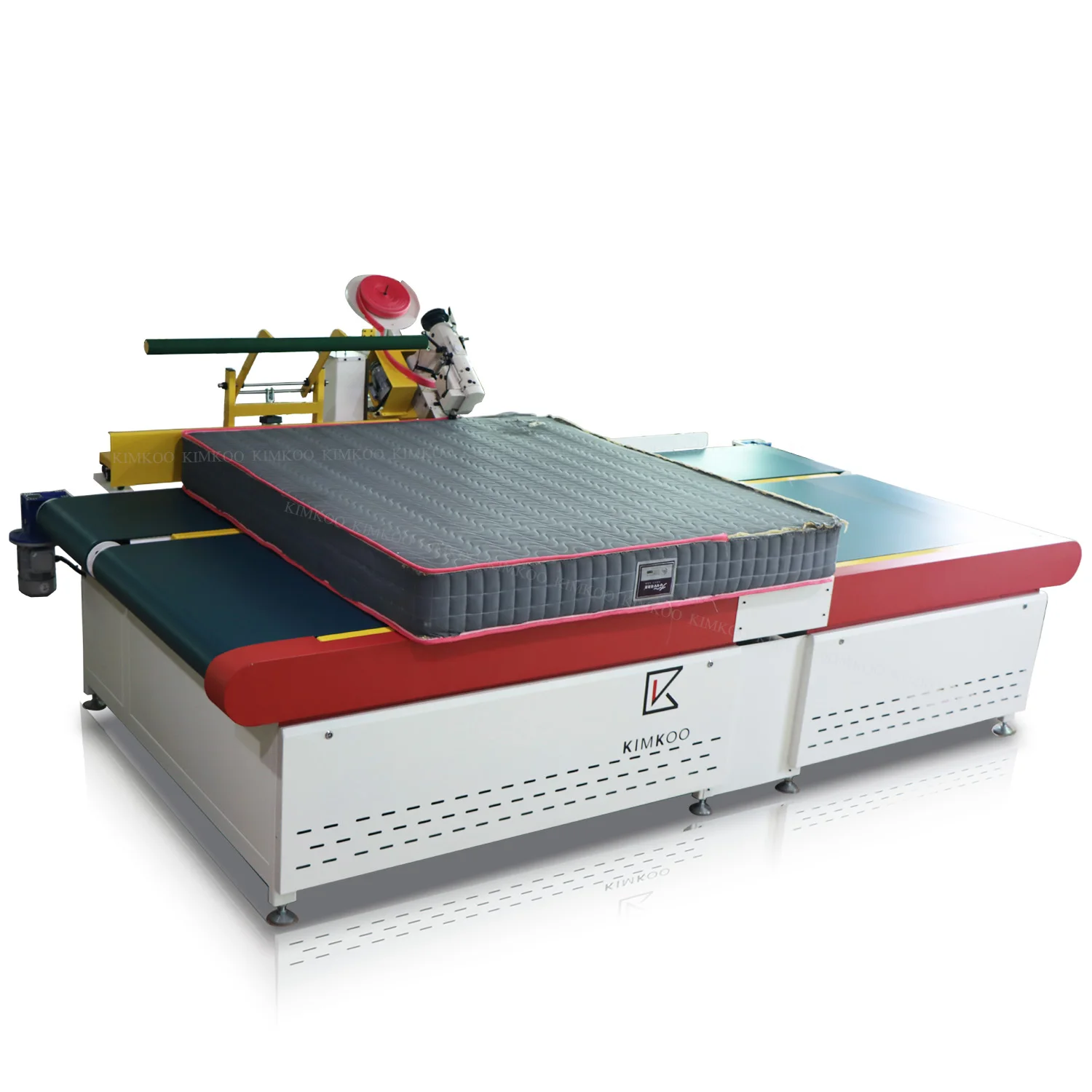

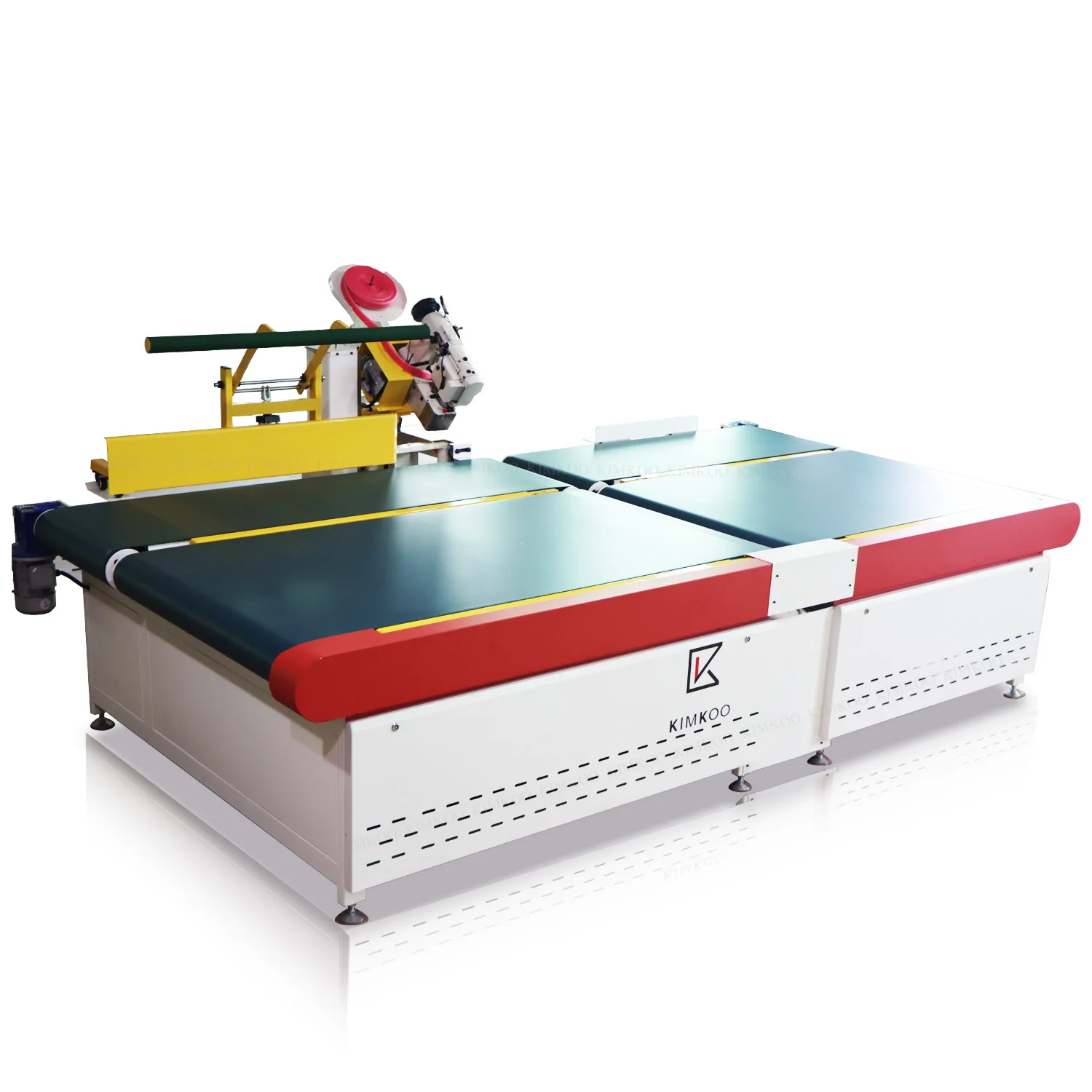

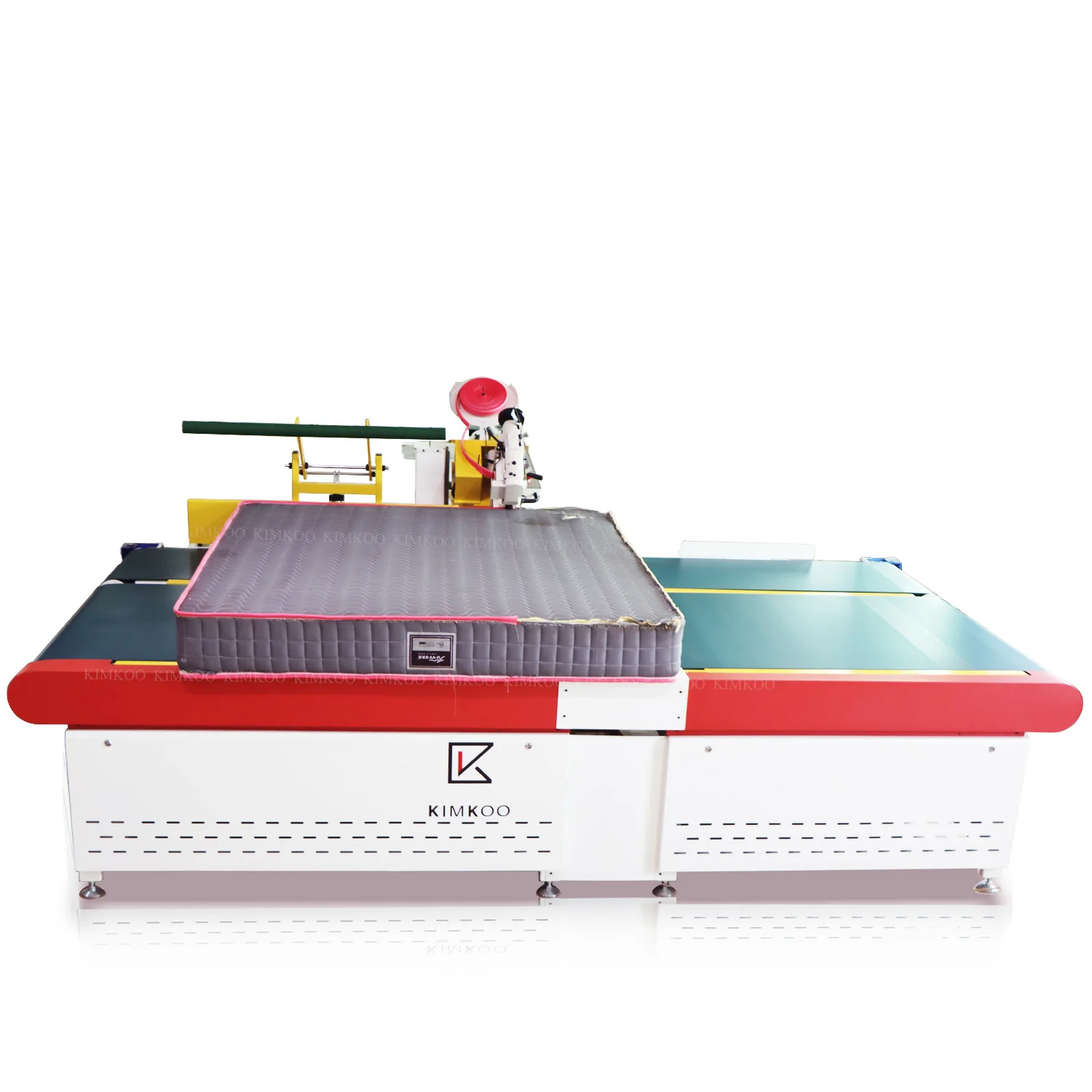

JK-T4 Automatic Mattress Manufacturing Tape Edge Machines Application
This automatic mattress edge tape machine is mainly use for tape-edging mattress panels. We use PLC control system to make the machine more durable and smooth. And the mattresses after weaved looks good.
Features
1.This mattress tape egde machine is a fully automatic machine. And the machine head we use the Singer head, It can be used at least 10 years.
2.This automatic mattress tape egde machine is with the PLC control system. It's more stable and effective. It can make 18 units mattresses in one hours.
3.The machine head of the automatic mattress tape edge machine can be adjustable according to the mattress height you make.
4.Easy operate and easy install.Using this mattress edge tape machine only need one worker, and about the installing, It's easy, we have a details install manual for you.
Specifications For Automatic Mattress Tape Edge Machine | ||||||
Sewing Thickness | ( 30 - 400 ) mm | |||||
Workingtable Lifting Range | ( 0 - 350 ) mm | |||||
Workingtable Size | 3800 mm * 2000 mm * 870 mm | |||||
Air Supply | ( 0.7 - 1.0 ) Mpa | |||||
Machine Dimensions | 3800 mm * 2650 mm * 2400 mm | |||||
Total Weight | 1300 kg | |||||
Total Power | 3 KW | |||||
Capecity | 18 units/h | |||||
Power | 3-Phase,220V/380V/50HZ | |||||
Condition | New | |||||
Detailed Images

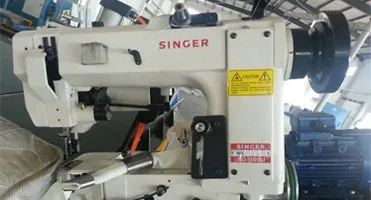

Sewing Head
Name: Singer Sewing Head
Brand: Singer
Original: United States
Computer controlled multi-function sewing machine head

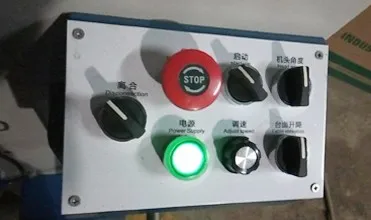

Control System
Name: Control System
Brand: KIMKOO
Original: China
With PLC control system, easy operate and stable performance.

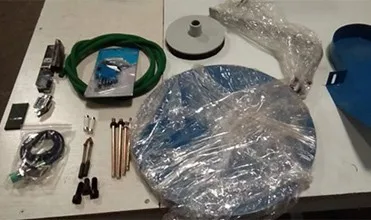

Other Machine Parts
Name: Other parts
Brand: KIMKOO
Original: China
1.Proximity switch --Quantity: 1
2.Fuse -- Quantity: 2
3.Carbon brush -- Quantity: 2
4.Belt -- Quantity: 1
5.Support frame -- Quantity: 1
6.Disc -- Quantity: 1
7.Brake pad -- Quantity: 1
8.Wire column -- Quantity: 4
9.Belt cover -- Quantity: 1
10.300U needle -- Quantity: 10
11.4.2cm Binder -- Quantity: 1
12.Allen wrench -- Quantity: 1
13.Φ10 hexagon socket screw -- Quantity: 3
14.Side tube bracket -- Quantity: 1
Certifications
Our Service
Pre-Sales Service
* Project Detail
Our sales will give you the machine details. For example the machine operate video, machine parameters, machine application. Moreover, we will provide all about or related to this projects.
Our sales will give you the machine details. For example the machine operate video, machine parameters, machine application. Moreover, we will provide all about or related to this projects.
* Project Solutions
Our sales will offer you solutions about this project, and then you can choose one you favorite.
Our sales will offer you solutions about this project, and then you can choose one you favorite.
* Customized Suggestions
* Cost Accounting
Our sales will help customers to account the costing about the project for customers reference before sales service.After-Sales Service
* Technology Support
-24-hour service hotline +86-755-21077364
-Contact us online with WhatsApp 15078897920
-Contact us by email and tell us the detail, We will help you solve the problem for as soon as possible.
* Repair Service
If have some problems with machine we will send technicians repair. but must in during the warranty period and not human error.
Our company will send professional maintenance personnel to repair. of course, door-to-door maintenance service support covers the whole world.
*One Year Warranty
1 year warranty from the date of original purchase. In fact, we will provide customers comprehensive and thoughtful service.
* Staff Training
KIMKOO provides after sales service also including regular skill trainnings.Professional staff will show you how to use and operate the machinery.
Packing & Delivery
Wooden Box Packaging | ||
Size | 2100mm (L) * 1600mm (W) * 820mm (D) | |
Weight | 620 kg | |
Packaging Details | The normal package is wooden box 2100mm (L) * 1600mm (W) * 820mm (D). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Film Packaging | ||
Size | 2100mm (L) * 1600mm (W) * 820mm (D) | |
Weight | 600 kg | |
Packaging Details | We will use pe film for packing or pack it according to customers special request. | |
