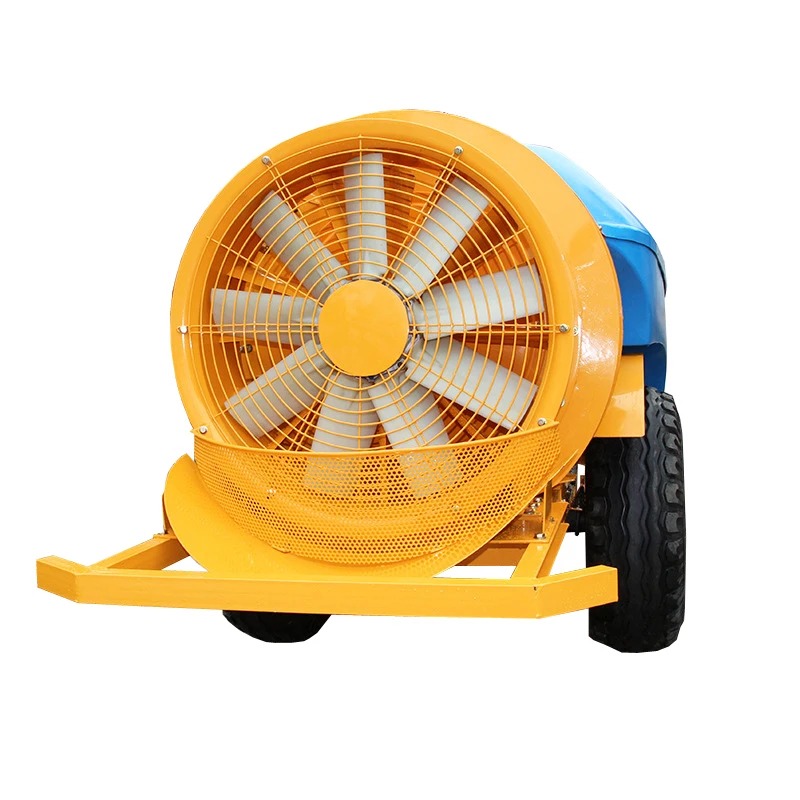

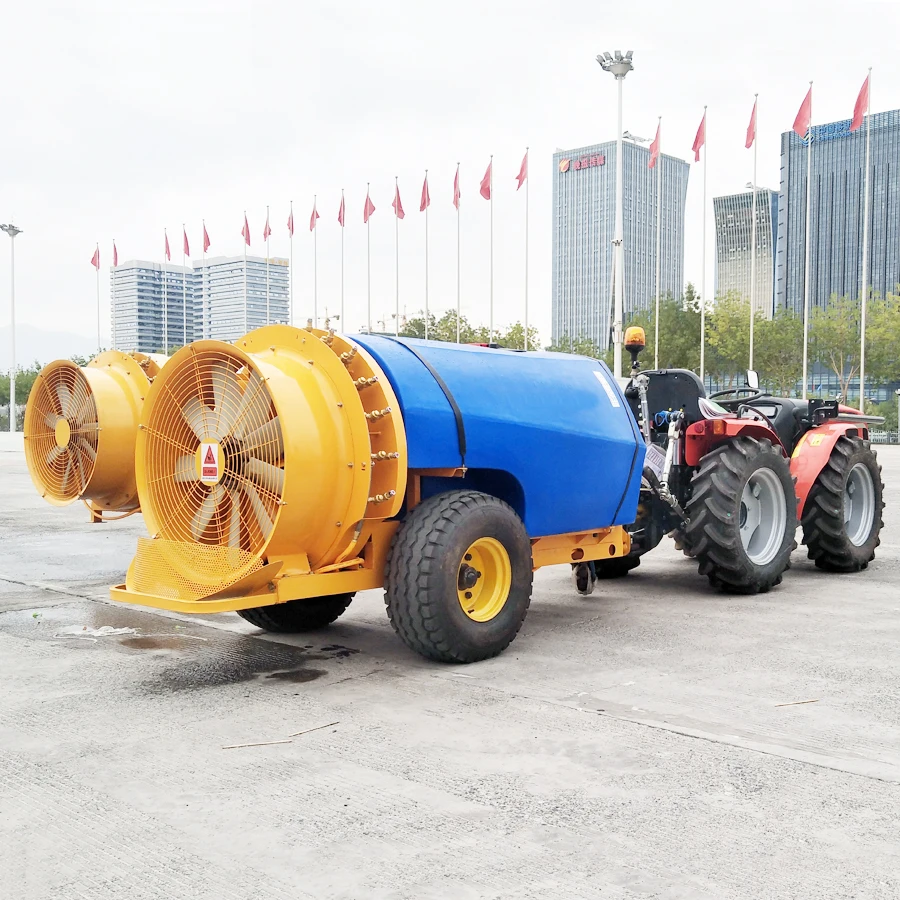

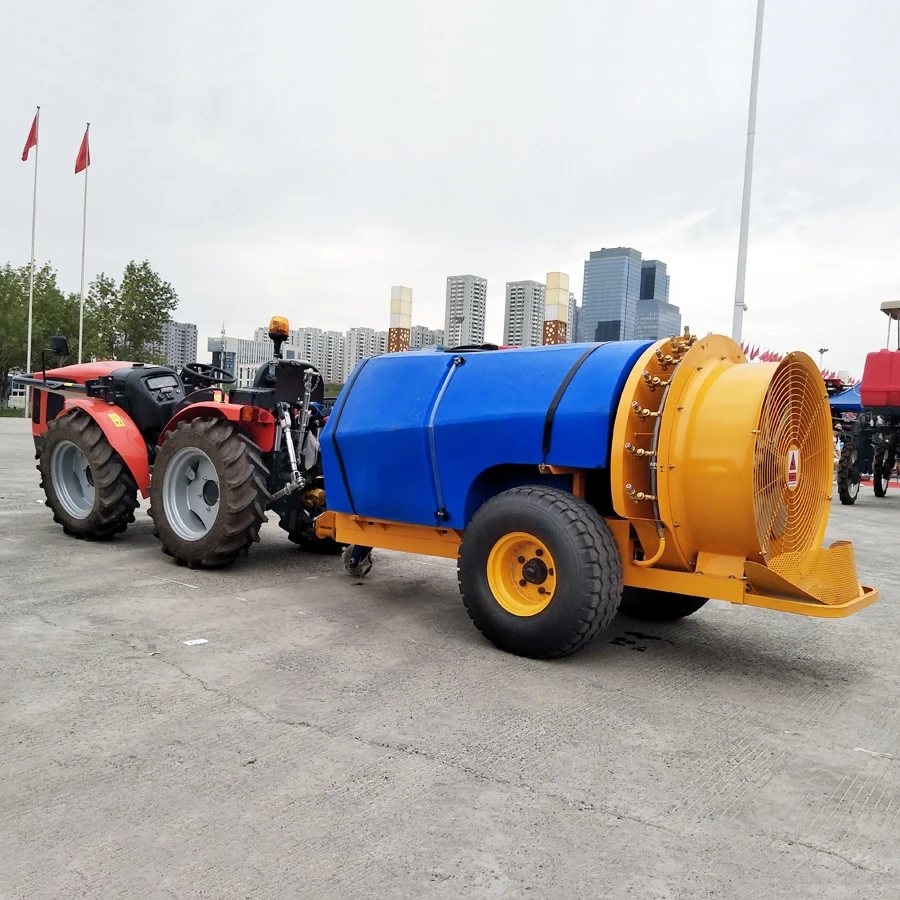

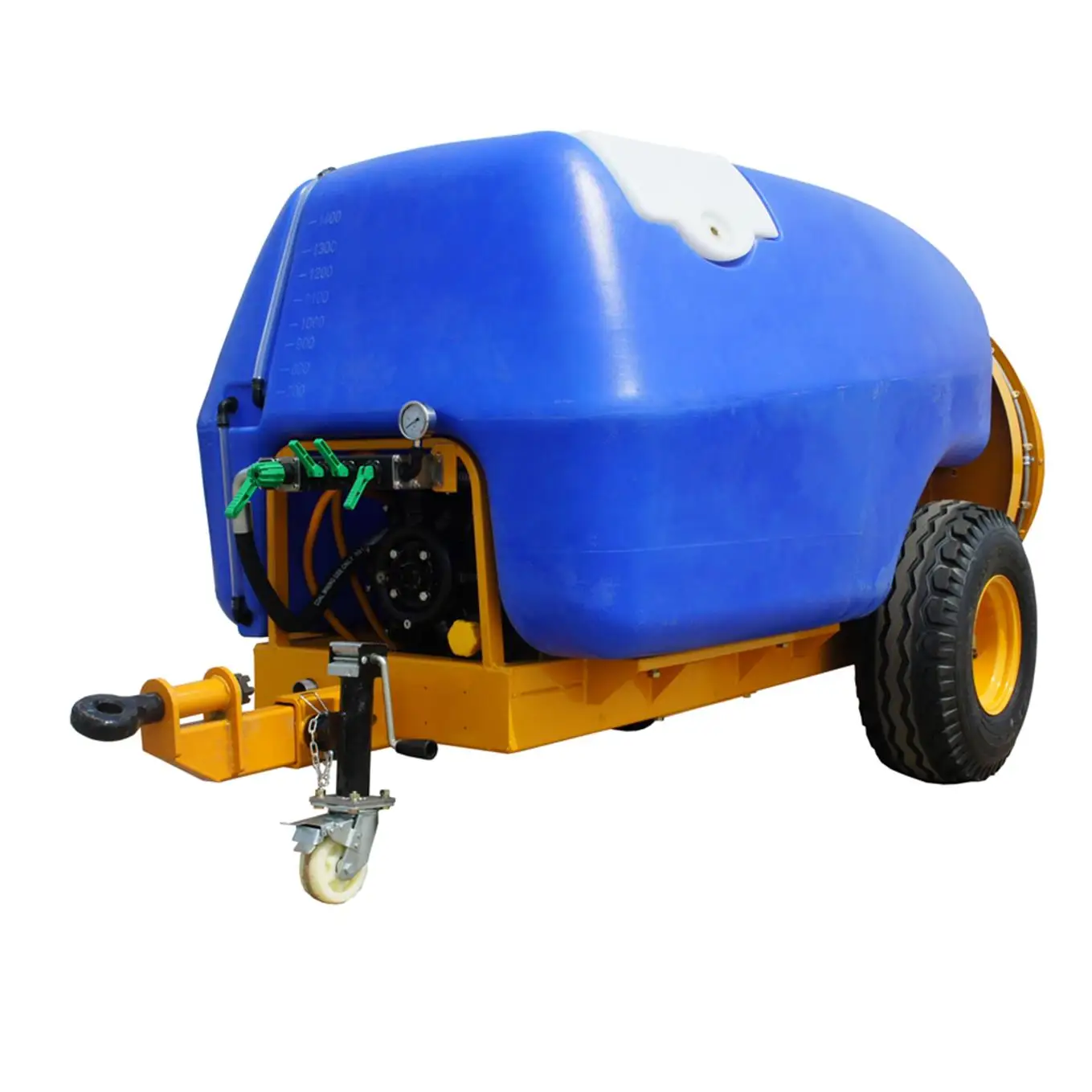

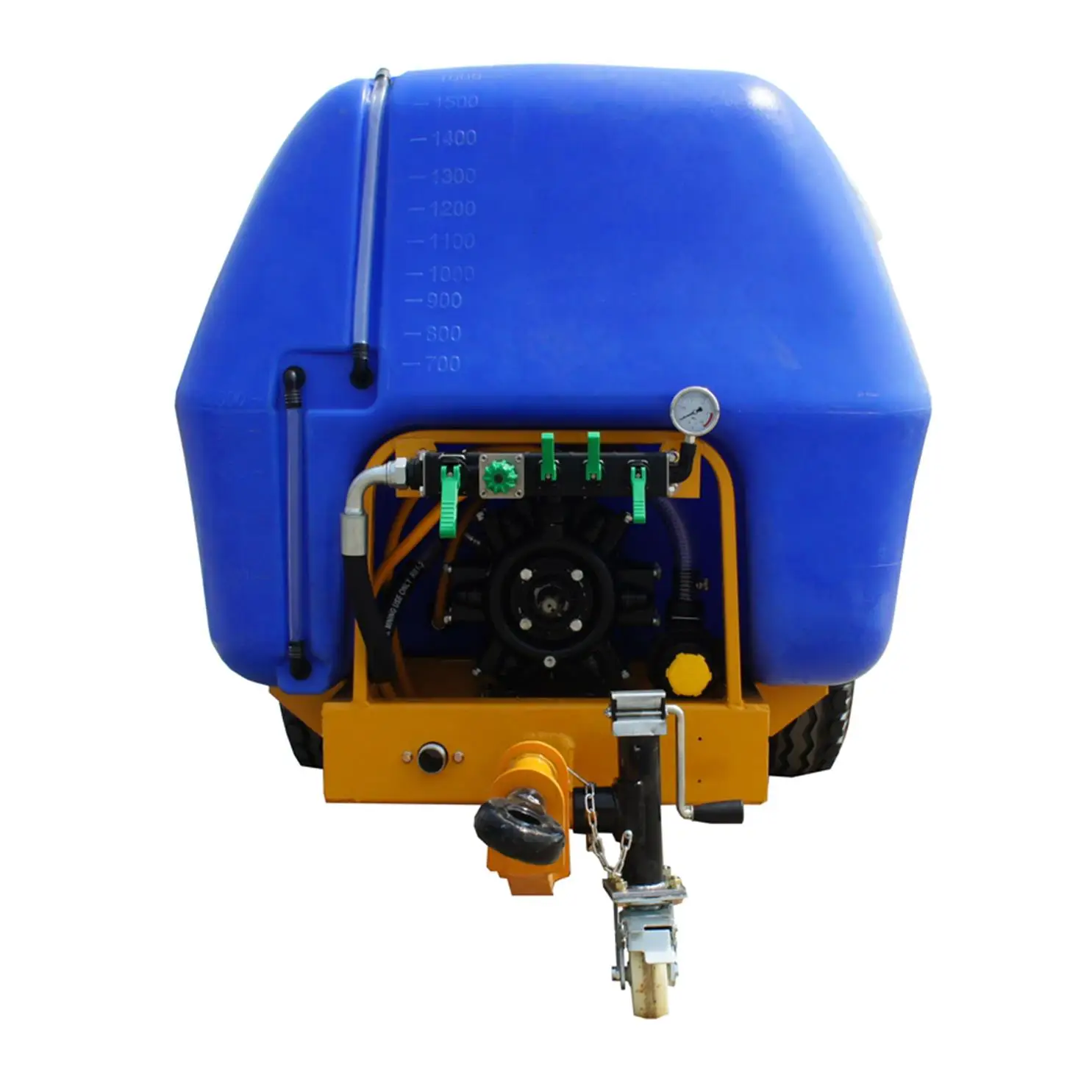

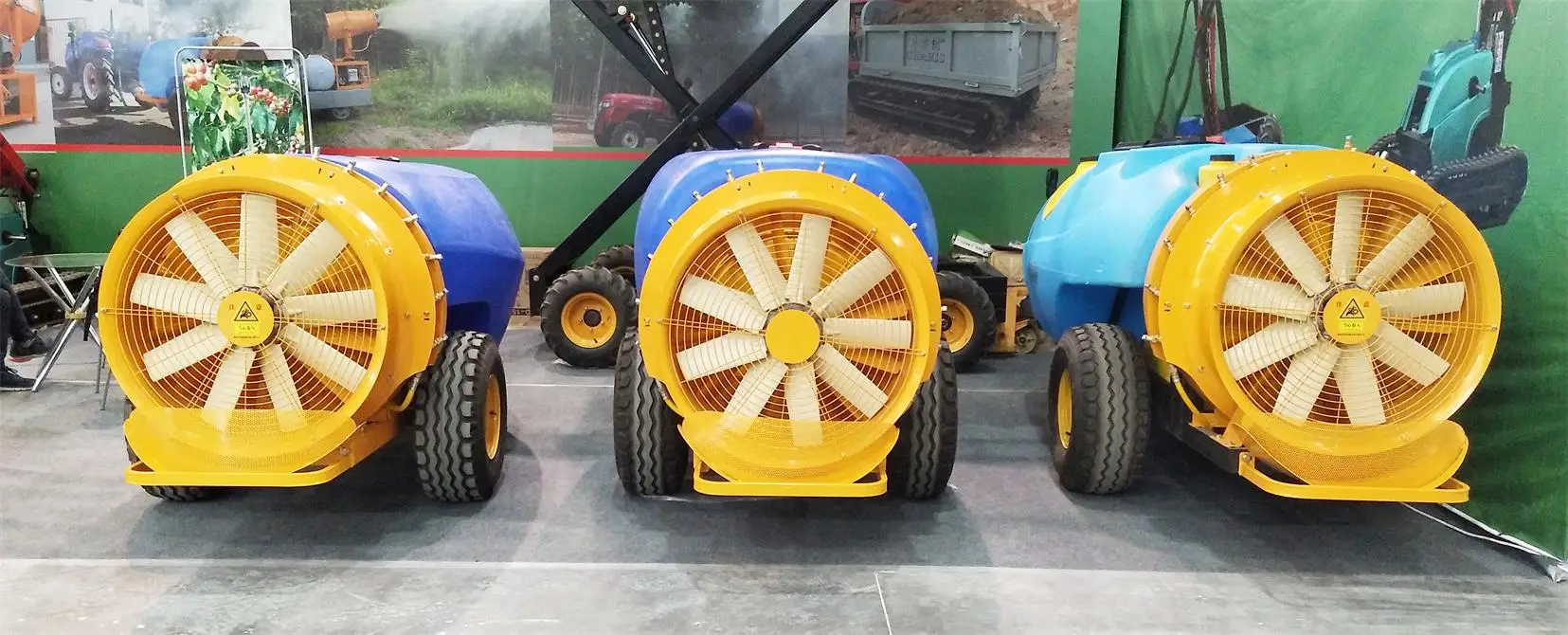

tractor trailed PTO drive orchard Air mist orchard sprayer

tractor trailer type PTO drive orchard air blast power sprayer

Tractor power: 60-100 HP.
Tank capacity: 800/1000/1600/2000L.
Sprayer pump: Four / six cylinder diaphragm pump.
Sprayer range: height 2-5m/ width 6-10m.

Configuration List

PE tank capacity: 800L / 1000 L /1600L /2000L.

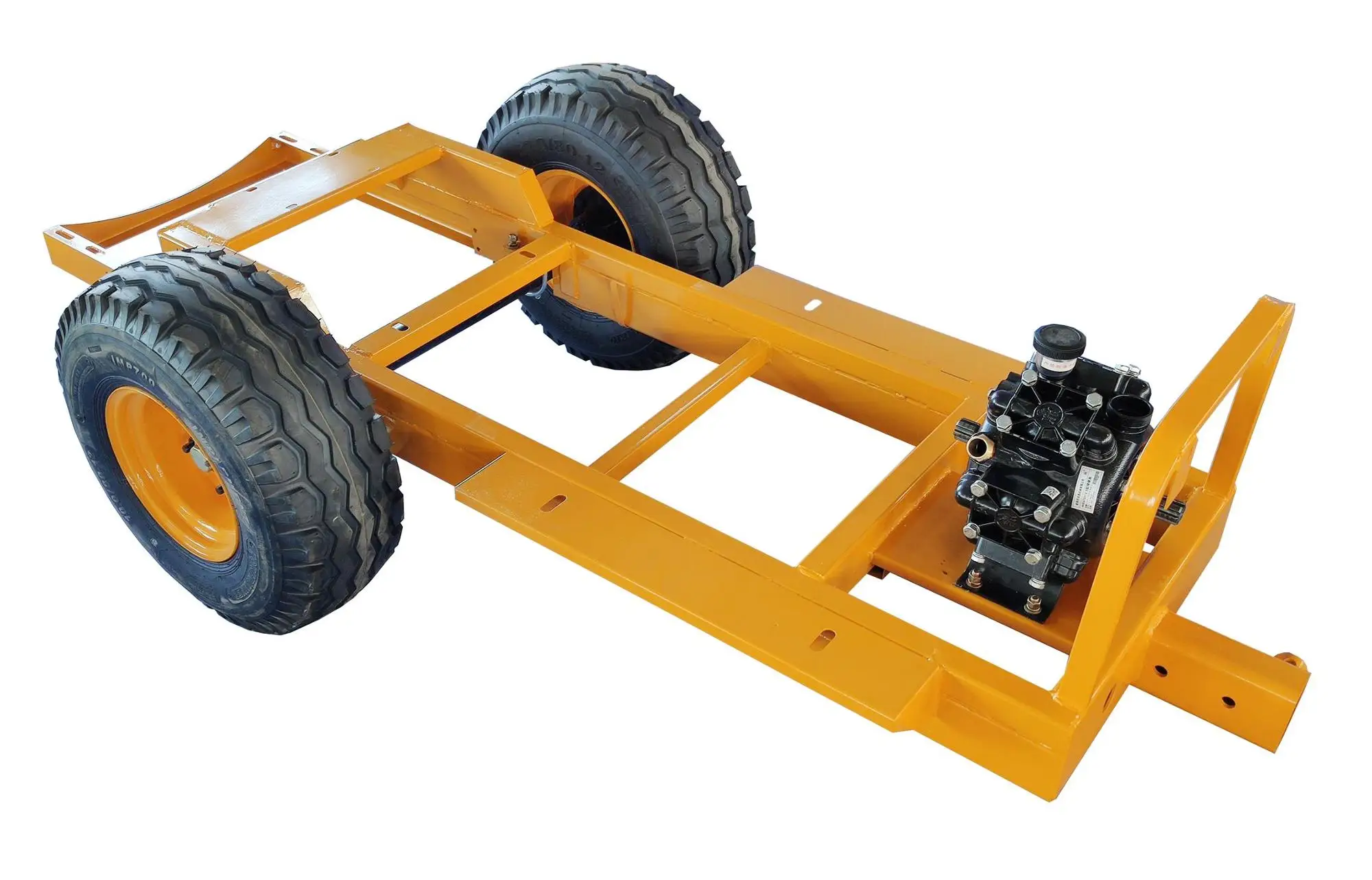

Chassis structure and ultra wide low pressure vacuum tire.

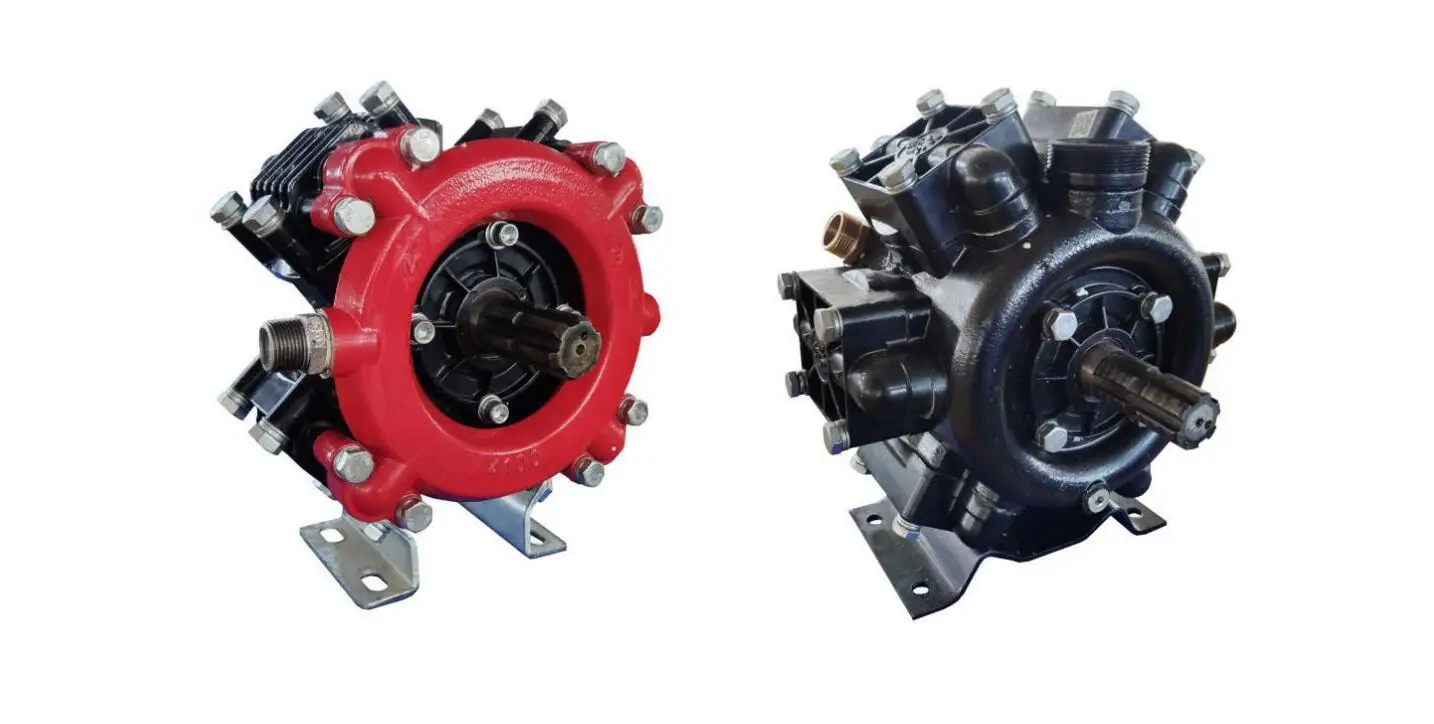

4 cylinder diaphragm pump (800L) / 6 cylinder diaphragm pump (1000/1600/2000L).

Transmission system, two years warranty.

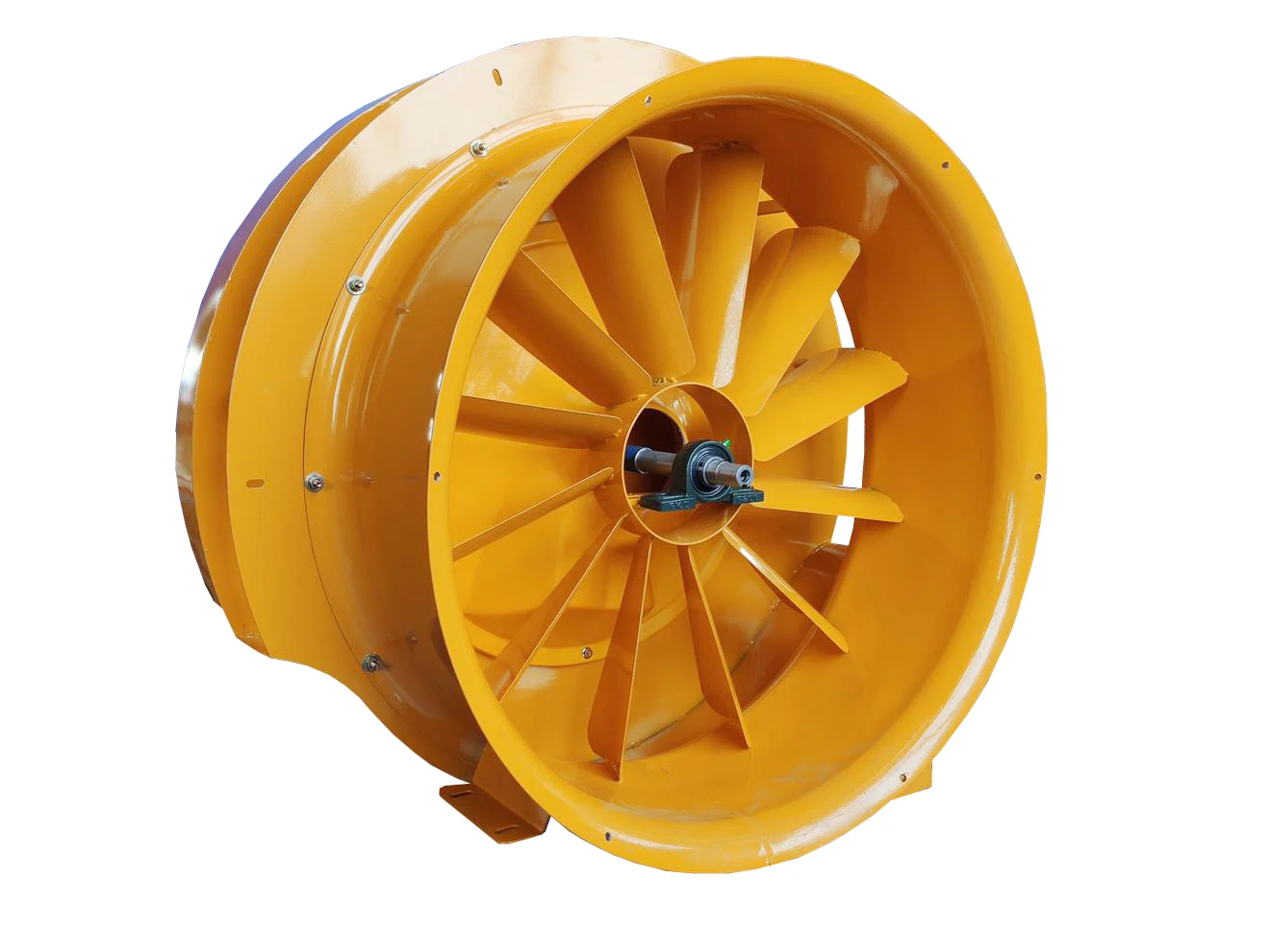

The special fan system, offer the max blowing rate and best atomize.

Sprayer Nozzle: Copper body, ceramic spray plate, independent switch, two flow options), better atomization effect and longer service life.

Standard European standard PTO shaft, longer service life, more safety.

 Tractor three point suspension matching status.

Model 3WFQ-1000
Overall size 3470x1250x1450 mm
Tank capacity 1000 L
Tractor power >30HP
Work height >7 m
Work width >16 m
Sprayer pump 6 cylinder Diaphragm pump
Flow 15-60 L
Fan diameter 800 mm
Tyre Vacuum width tyre
drive shaft speed 540r/min
Spray control type Sectional Control/Independent Switch
Sprayer nozzle 10-14 Pcs
Liquid mixing type Reflux stirring/jet stirring
Work effect 0.5 ha
Filter unit Two-stage filtration

Model 3WFQ-1600
Overall size 3470x1250x1450 mm
Tank capacity 1600 L
Tractor power >40 HP
Work height >7 m
Work width >16 m
Sprayer pump 6 cylinder Diaphragm pump
Flow 15-70 L
Fan diameter 800 mm
Tyre Vacuum width tyre
drive shaft speed 540r/min
Spray control type Sectional Control/Independent Switch
Sprayer nozzle 10-14 Pcs
Liquid mixing type Reflux stirring/jet stirring
Work effect 0.5 ha
Filter unit Two-stage filtration

Model 3WFQ-2000
Overall size 3670x1350x1550 mm
Tank capacity 2000 L
Tractor power >60 HP
Work height >7 m
Work width >16 m
Sprayer pump 6 cylinder Diaphragm pump
Flow 15-70 L
Fan diameter 800 mm
Tyre Vacuum width tyre
drive shaft speed 540r/min
Spray control type Sectional Control/Independent Switch
Sprayer nozzle 10-14 Pcs
Liquid mixing type Reflux stirring/jet stirring
Work effect 0.5 ha
Filter unit Two-stage filtration
