Product Description

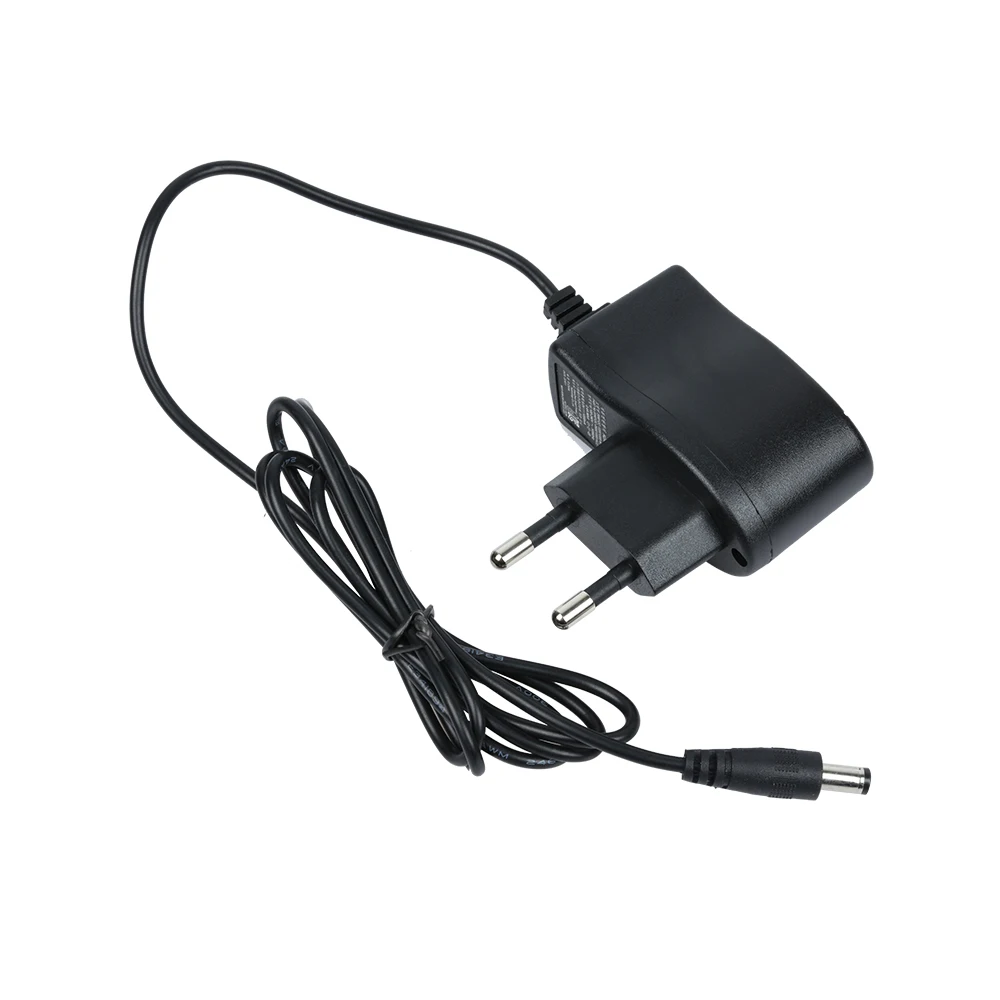

4.2V1000mA Lead Acid Battery Charger 6W Wall Mount  with UL/FCC , CE, PSE,KC, ,ROHS For Cleaner/Mops Machine/Children's Toy Car.





Products Name	4.2V1A Battery Charger For Lead Acid Cell
Input Voltage	96-264V AC 50/60Hz 0.5 A
Output Voltage /Current	4.2VDC 1000mA
Total Output Power	5W(Max)
Input Inlet	CE UL PSE KC UK
O/P DC Cord Length	1.2M, 1.5M, 1.8M, 2.5M,3.0M, etc.
DC Connector	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm,         4.0*1.7mm, 2.5*0.7mm ,etc.
Dimension / Net Weight	L63.0X W31.0xH35.0mm ; 60g/pc
Safety Approvals	UL/FCC, CE, PSE, KC,  Certificate, Level 6
MTBF	50,000 hours
Ripple and noise	<80mV
Operating temperature	-10 to 45°C
Storage temperature	-20 to 80°C
Humidity	5% to 95% RH (rockwell hardness)



POWER	MODEL	INPUT	OUTPUT		AC
			Voltage	Current	Input Inlet
5W Series	SW05C-XXXXYYYY-KC	96-264V/AC 1.0A	4.2-8.4Vdc	0.3-1.0A	CE+UL+KC+PSE+UK
	SW05C-04200500-KC		4.2V	0.5A
	SW05C-04201000-KC		4.2V	1.0A
	SW05C-07200600-KC		7.2V	0.6A
	SW05C-08400500-KC		8.4V	0.5A
