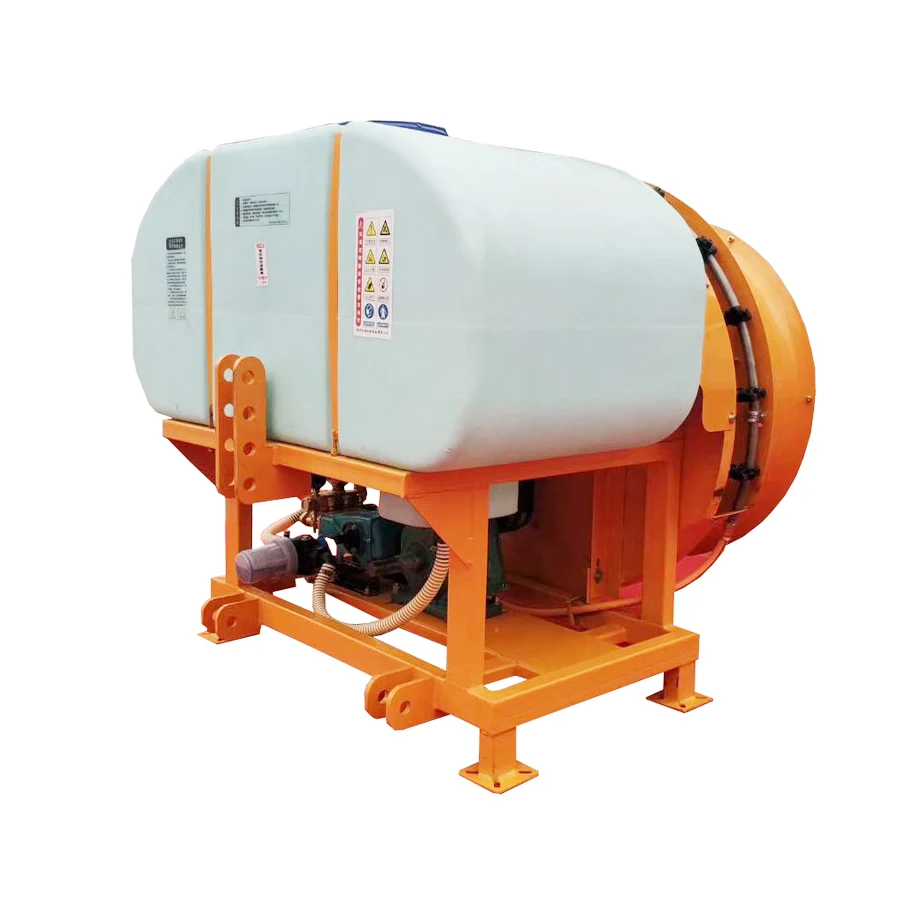

Agricultural tractor 3 point linkage mounted air blast power sprayer

Tractor mounted type orchard air blast atomizer sprayer

Tractor power: 30-60 HP
Tank capacity:360/400/500L
Sprayer pump: 3 cylinder plunger
Gear box: yes (Super long warranty)
Sprayer range: height 2-5 m/ width 6-10m

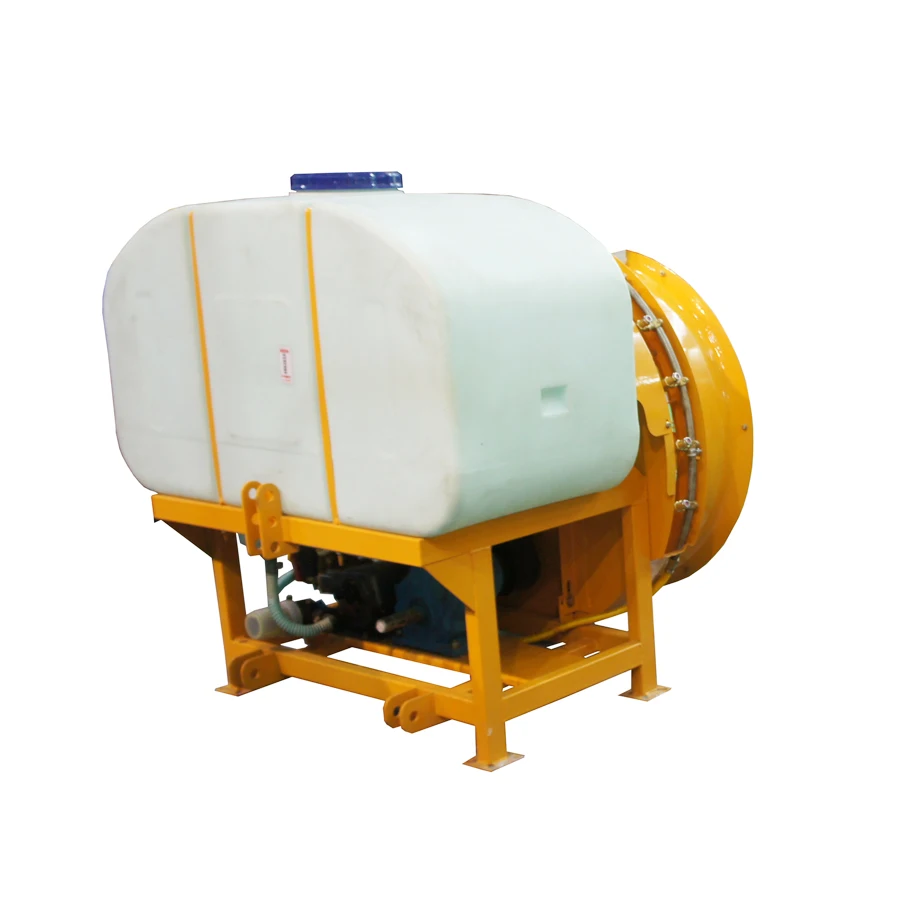

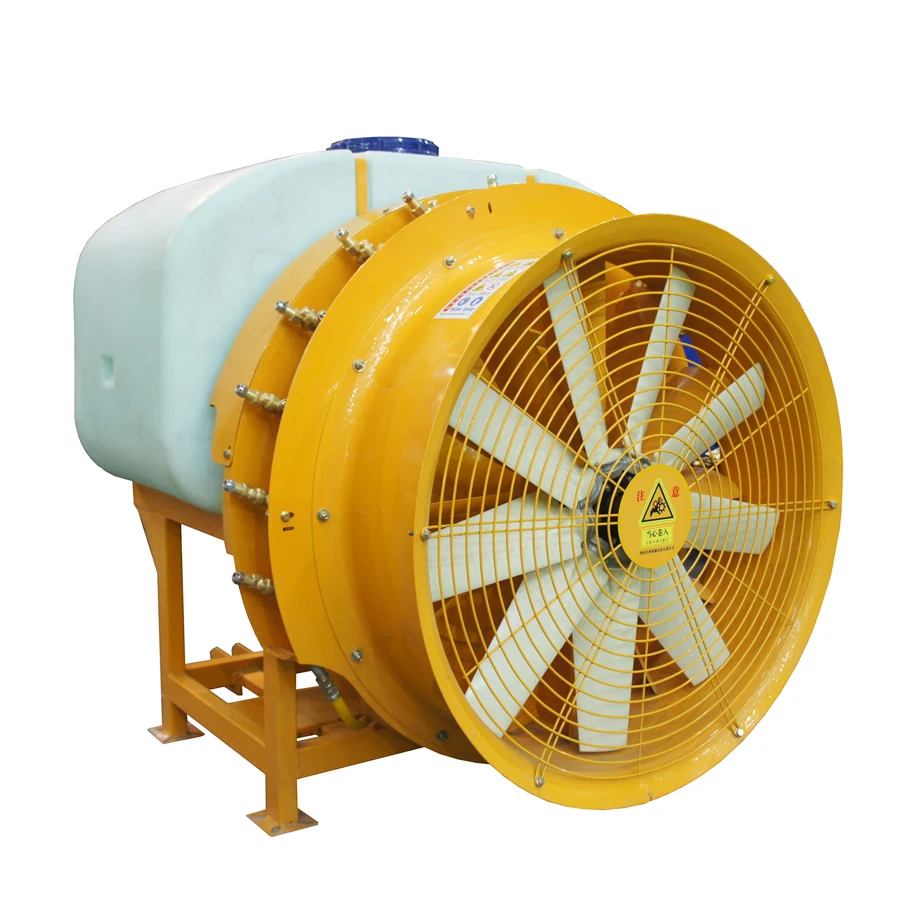

 3WFX-360 whole machine picture

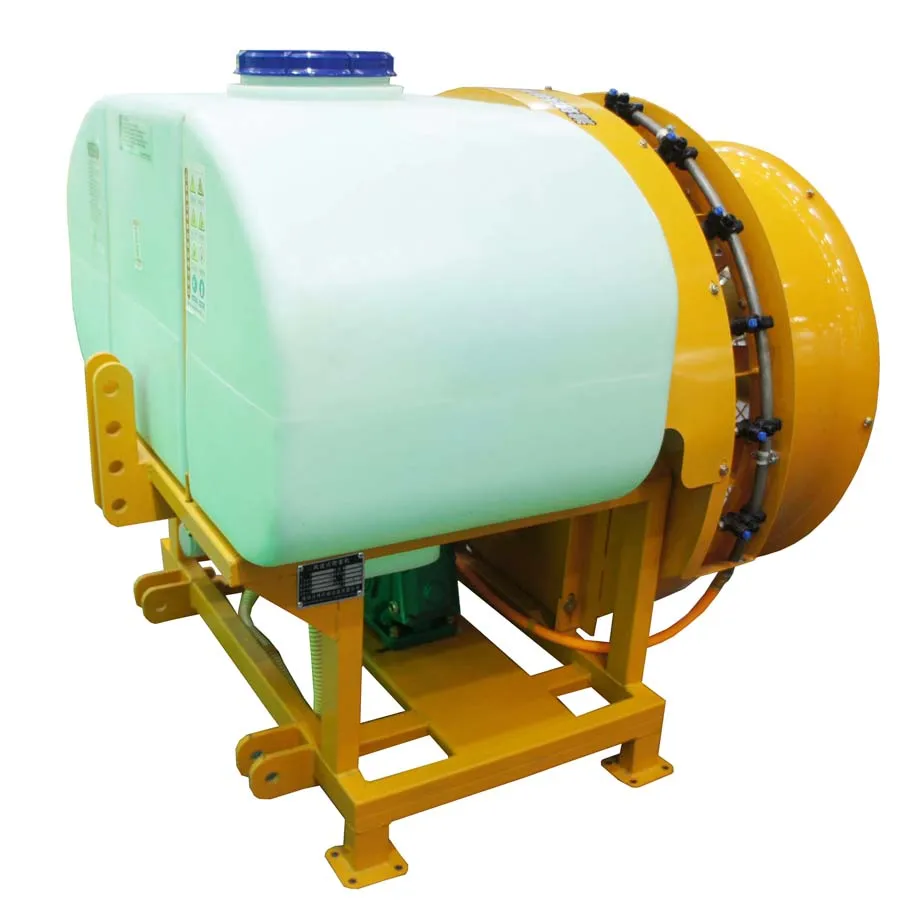

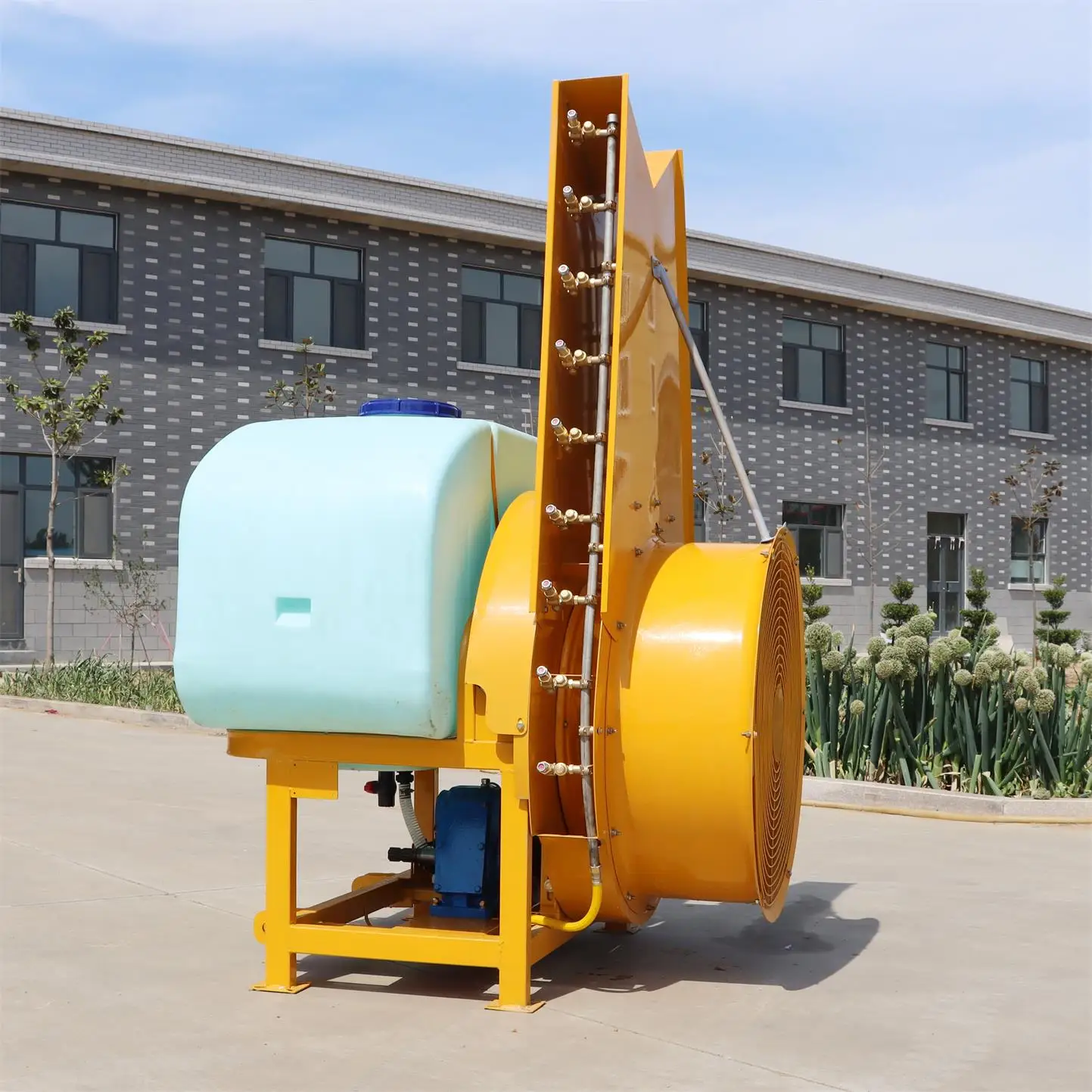

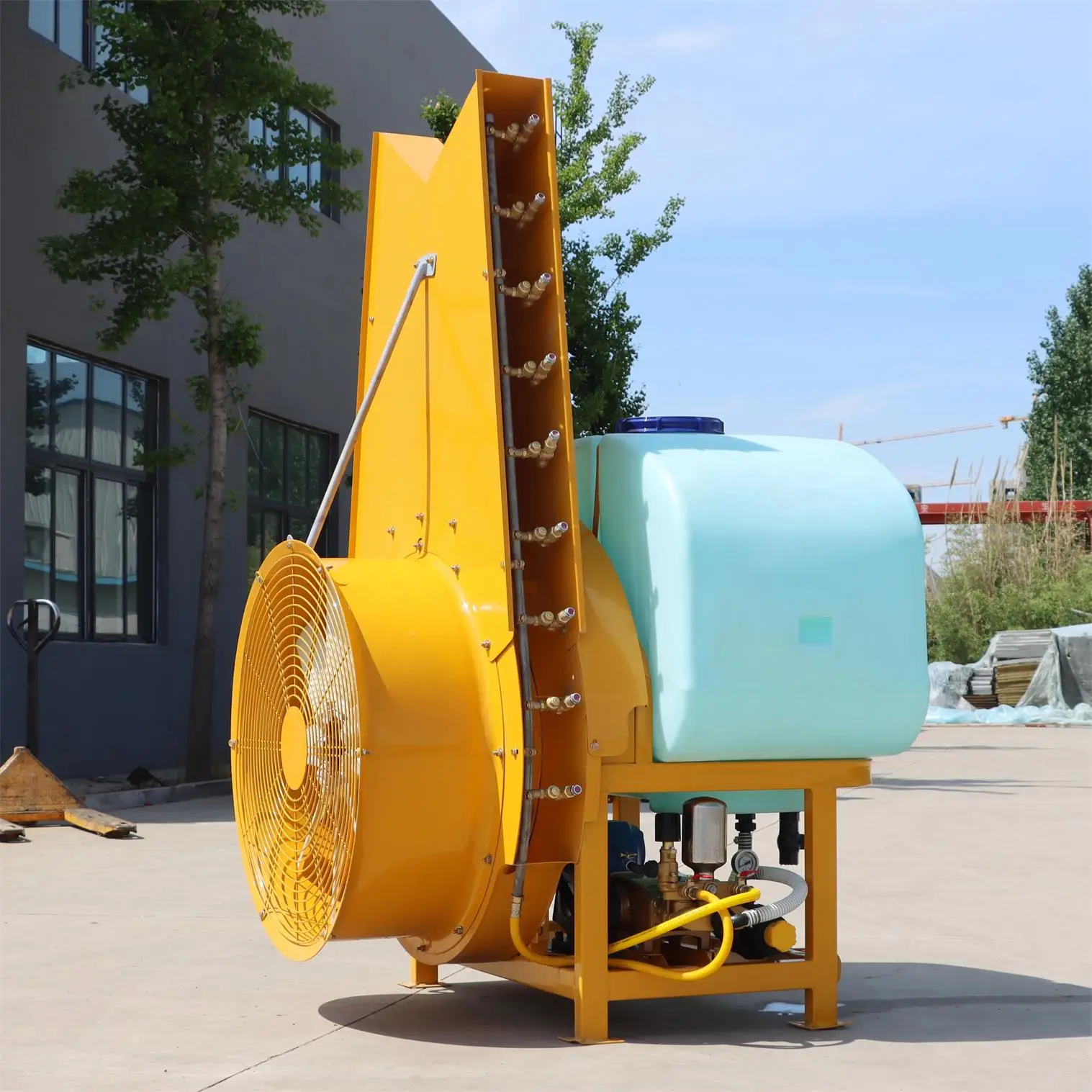

 3WFX-400/500 whole machine picture

Configuration List

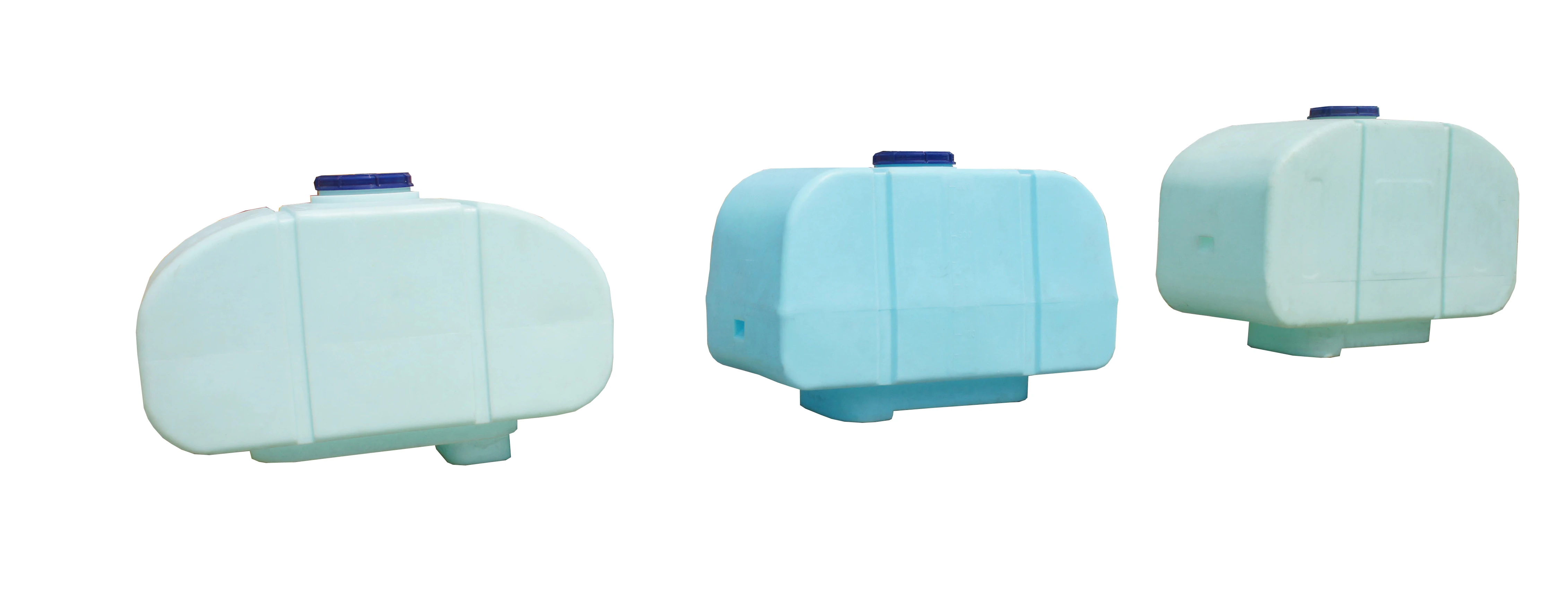

 PE Tank capacity 360/400/500L.

Taiwan Lu Xiong three cylinder plunger pump, the quality is more stable and the service life is longer (the warranty time 2 years).

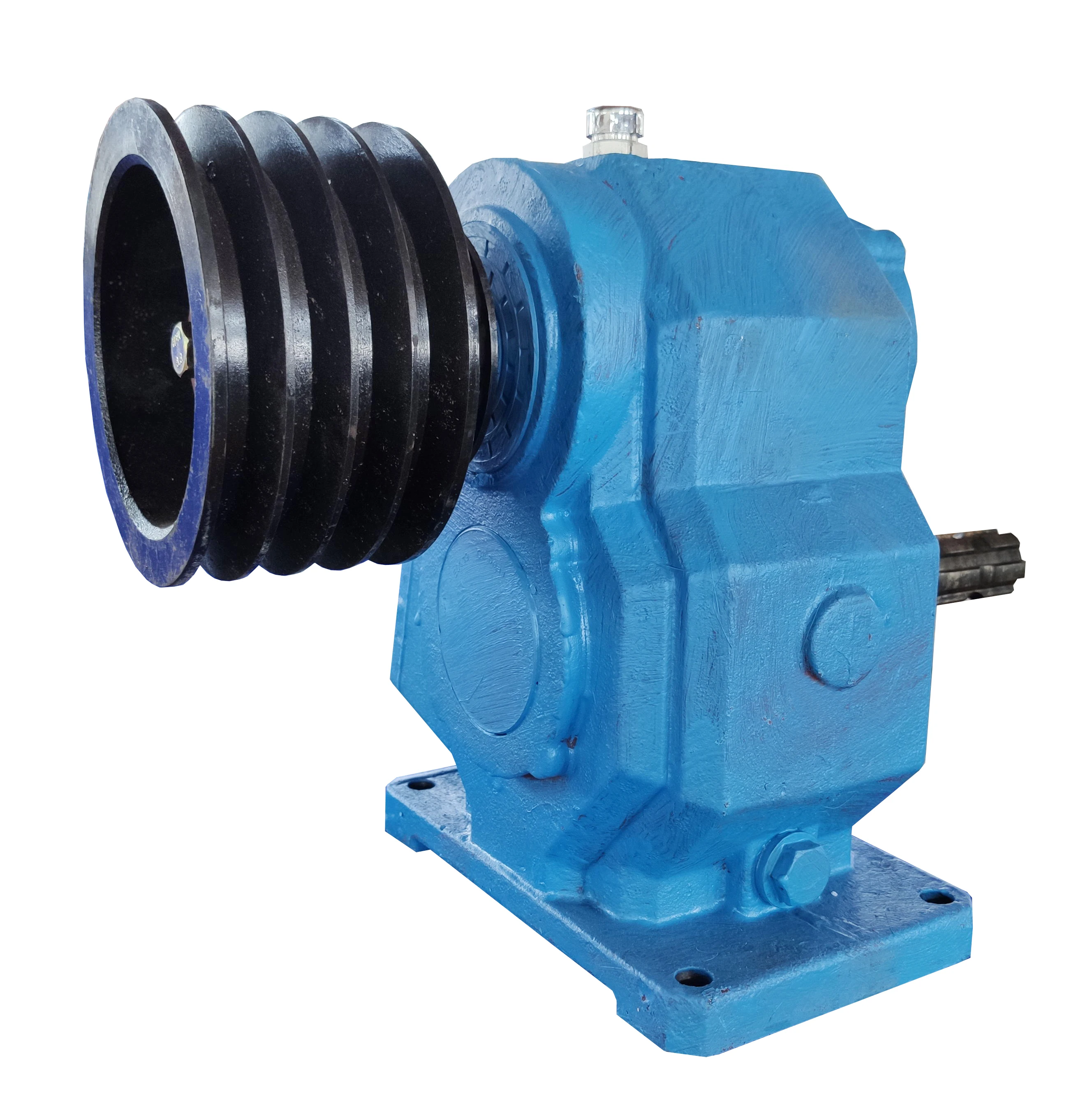

 Configuration gear box (the warranty time 2 years).

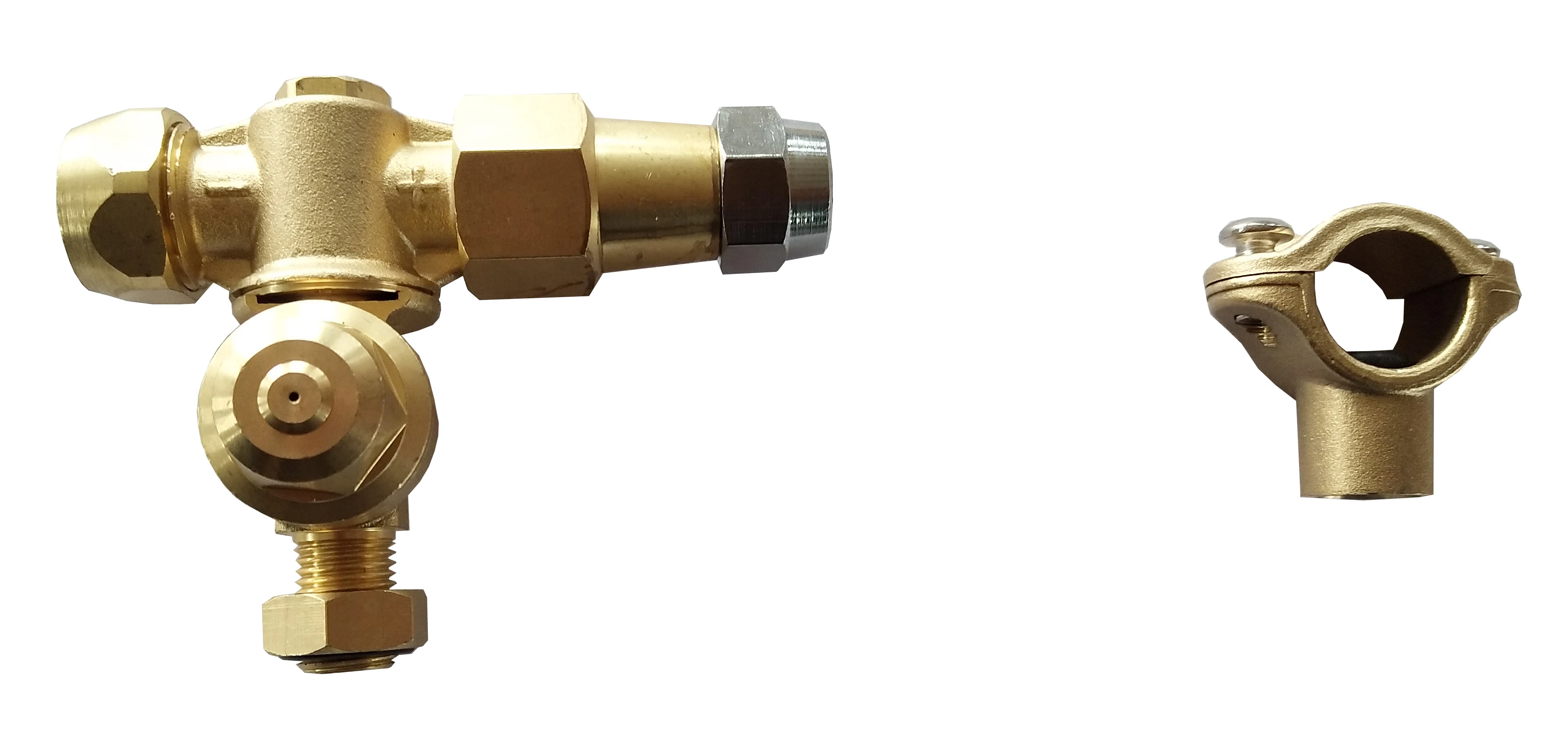

Sprayer nozzle: from Italy Copper body, ceramic spray, independent switch, two flow options

Standard European standard PTO shaft, longer service life, more safety.

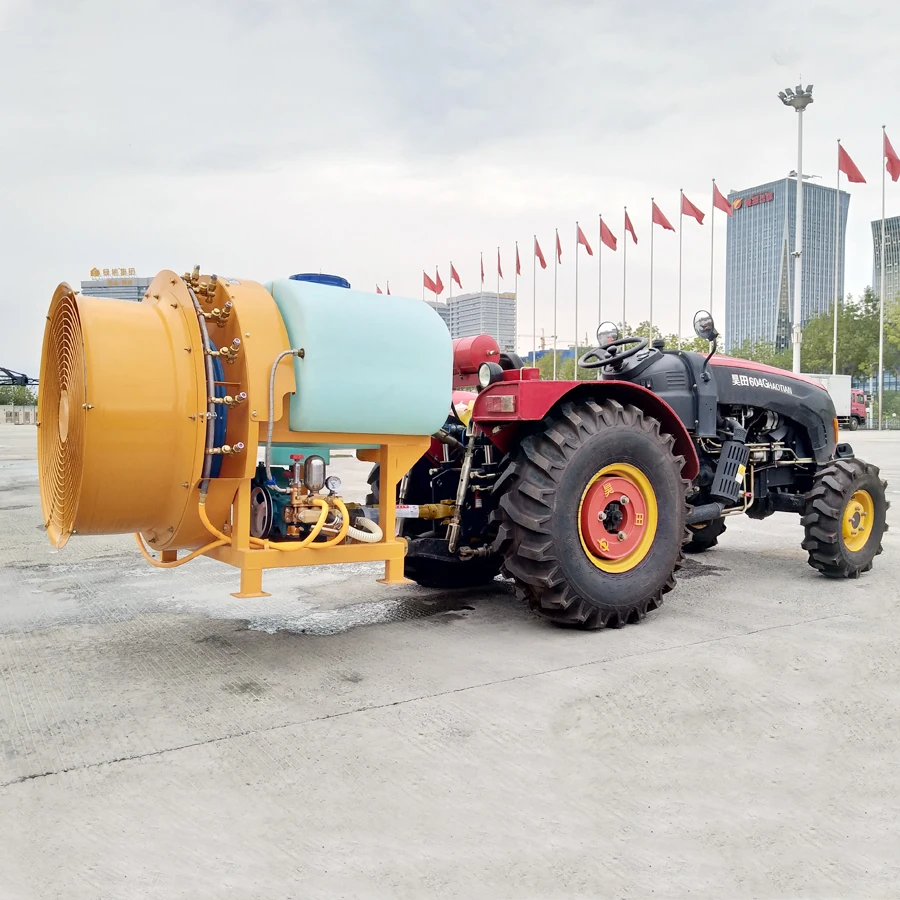

Tractor three point suspension matching status.

Model 3WFX-400
Overall size 1200×1200×1000 mm
Tank 400 L
Work height > 6-8 m
Work width > 16 m
Sprayer pump Three cylinder plunger pump
Pump flow 15-32 L/min
Fan diameter 800 mm
Tractor power >30HP / 540 r/minu
Sprayer nozzle 10-12 pc
Spray control type Sectional Control/Independent Switch
Liquid mixing type Reflux stirring/jet stirring
Work pressure 0.3-2.5 Mpa
Net weight 320 KG
Gear box Autonomous design

Model 3WFX-500A
Overall size 1300×1600×1300 mm
Tank 500 L
Work height > 6-8 m
Work width > 16 m
Sprayer pump Three cylinder plunger pump
Pump flow 15-32 L/min
Fan diameter 800 mm
Tractor power >50 HP / 540 r/minu
Sprayer nozzle 20 pc
Spray control type Sectional Control/Independent Switch
Liquid mixing type Reflux stirring/jet stirring
Work pressure 0.3-2.5 Mpa
Net weight 370 KG
Gear box Autonomous design

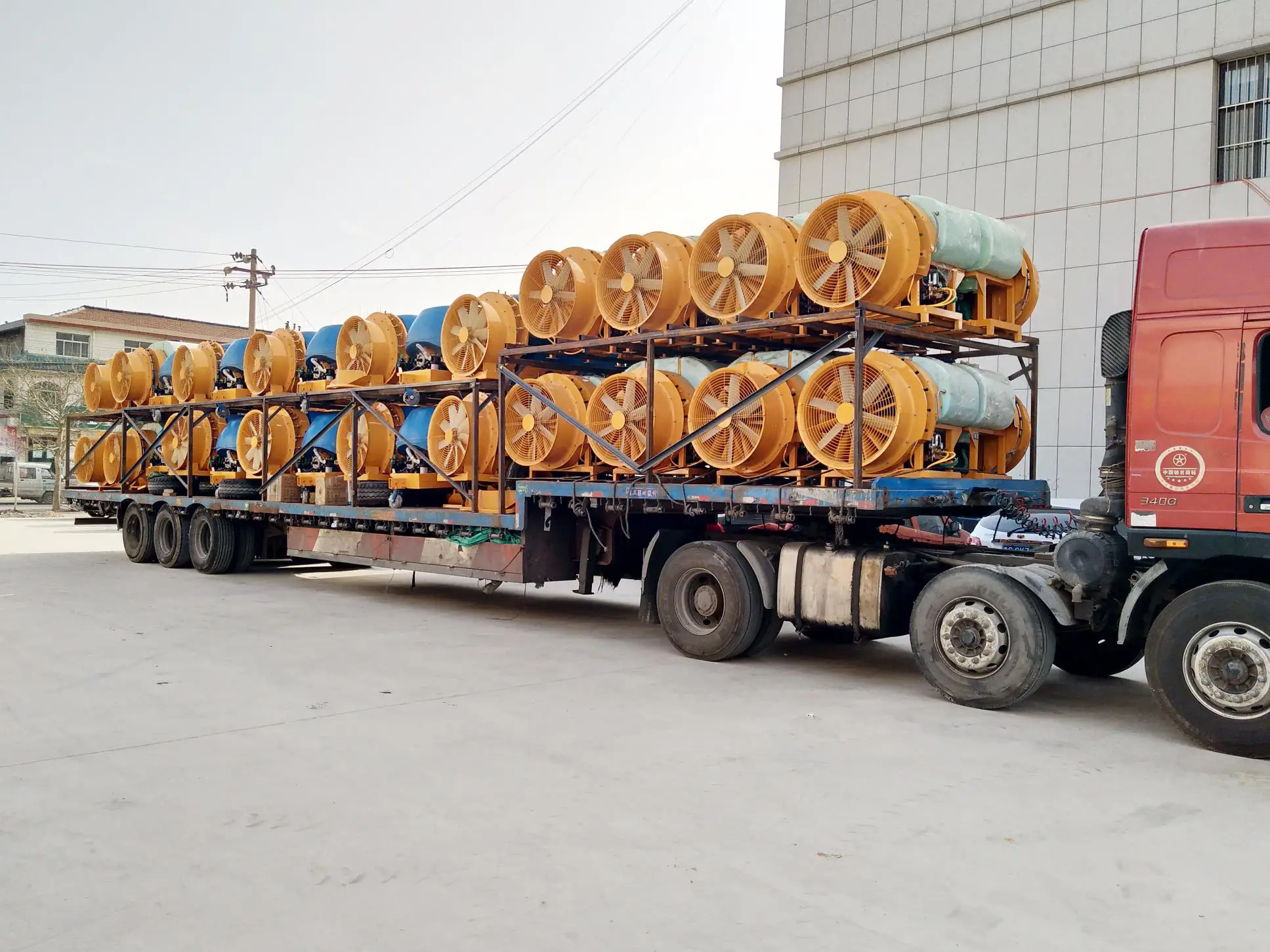

Factory supply capacity
