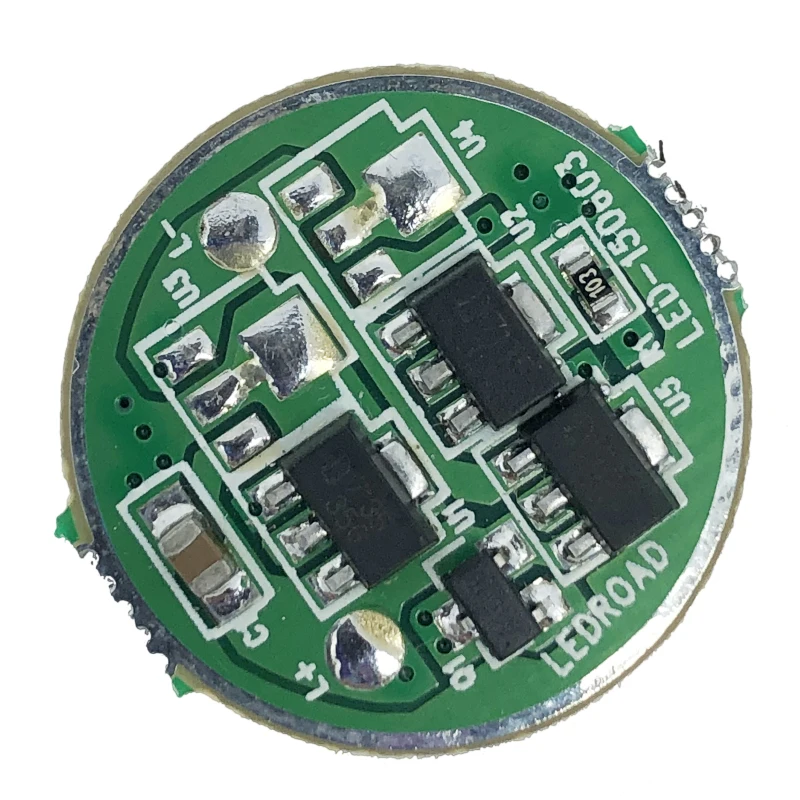

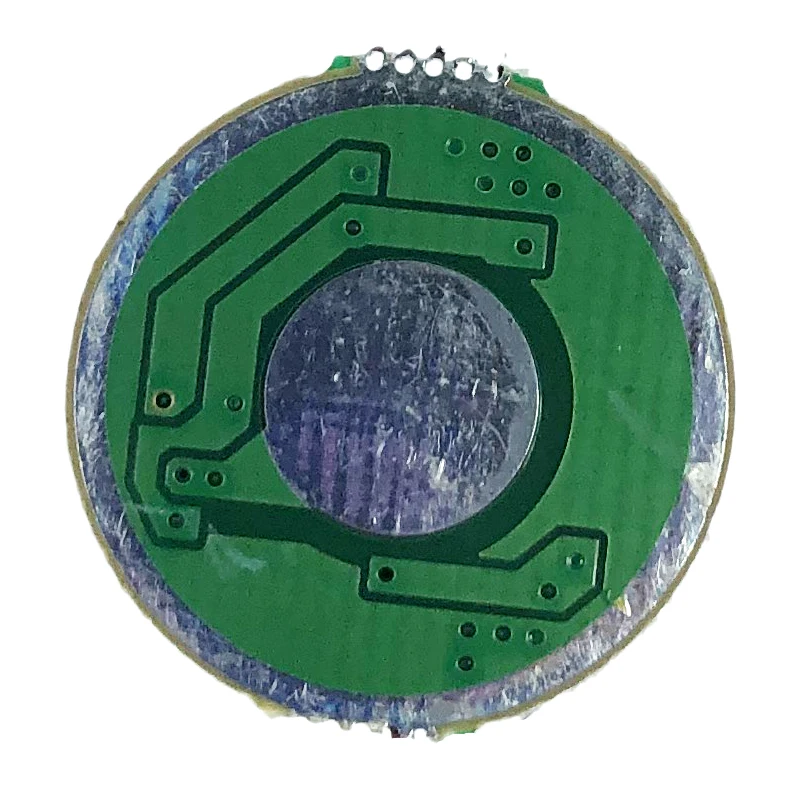

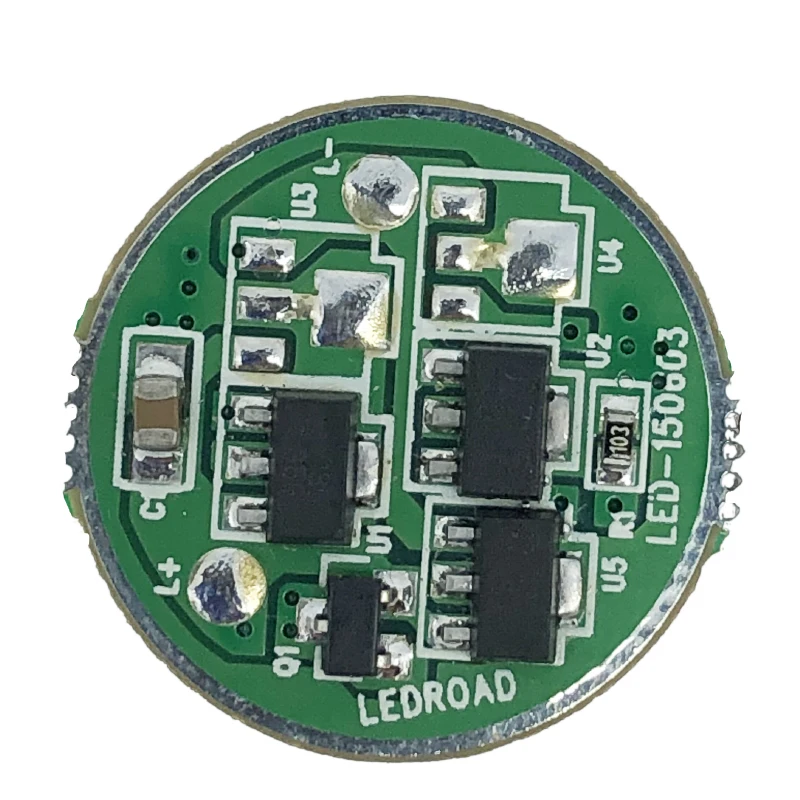

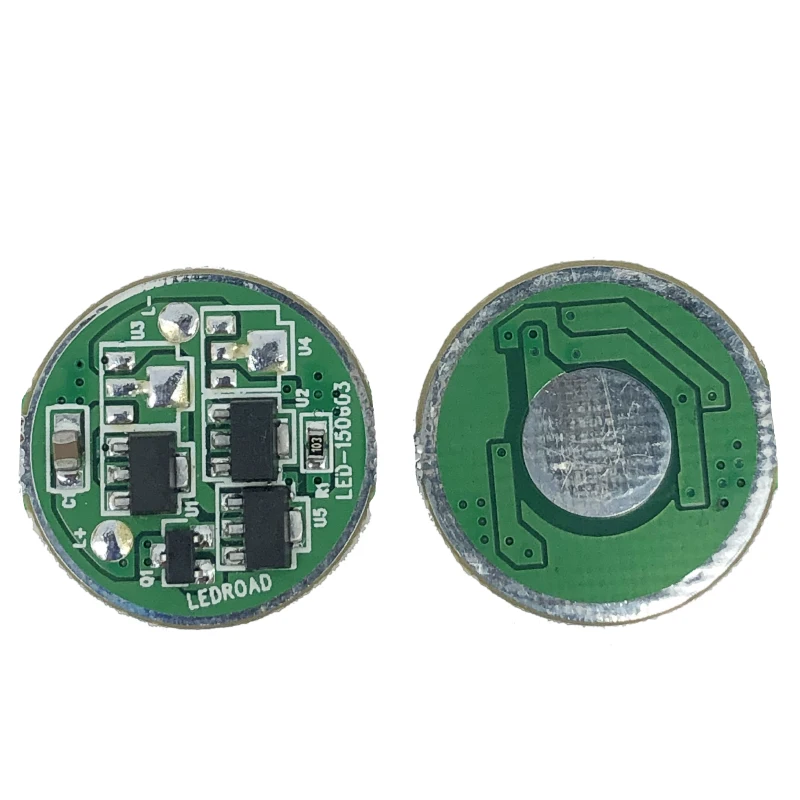

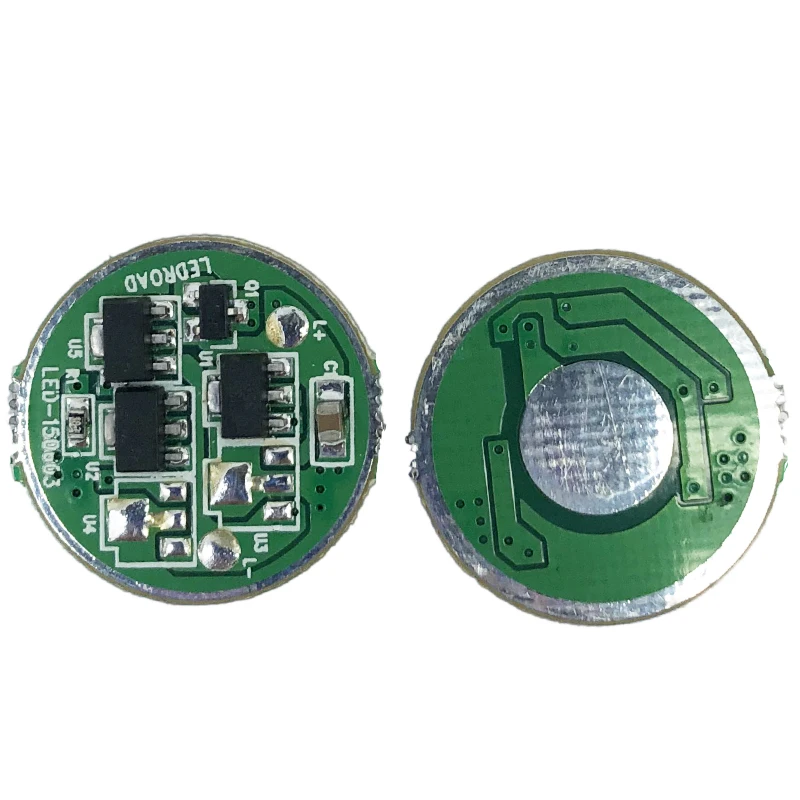

7135*12345 constant current single lithium battery 3W 5W 10W infrared CREE LED flashlight driver circuit board
- Category: >>>
- Supplier: Shenzhen Qunlang Electronic Limited
Share on (62078712648):
Product Overview
Description
7135*12345 constant current single lithium battery 3W 5W 10W infrared CREE LED flashlight driver circuit board
7135*12345 constant current single lithium battery 3W 5W 10W infrared CREE LED flashlight driver circuit board
Product Description
Specifications:
| Input voltage | 3-4.2V constant current , suitable for 18650 26650 etc. |
| Output current | 1A constant current |
| Product size | Diameter 20MM |
| Battery suitable for | 18650/26650 battery |
| LED suitable for | 350MA 1W 1W high power lamp beads 700MA 2W R2 1-3W universal lamp beads 1050MA 3.2W default current 1400MA 5W R5 1750MA 6W T6 U2 |
| Feature | Anti-reverse protection |
| Function | Single mode |
Product features:
1. QX7135 is a LED constant current driver with low dropout, linear step-down, and fixed output current. In addition to LEDs, QX7135 can form a constant current output LED driver without external components circuit.
2. QX7135 has a built-in overheating protection function, which can effectively protect the chip and avoid damage caused by overheating when the junction temperature exceeds 120oC. QX7135 also integrates LED short-circuit protection and power supply under-voltage protection. In addition, QX7135 comes with a soft start function.
3. QX7135 can provide multiple specifications of output current for customers to choose, the output current can be from 100mA to 380mA, the step length is 10mA, and the current drive capability of the LED can be expanded by multi-chip paralleling.
4. QX7135 adopts SOT-89-3 package form.
1. QX7135 is a LED constant current driver with low dropout, linear step-down, and fixed output current. In addition to LEDs, QX7135 can form a constant current output LED driver without external components circuit.
2. QX7135 has a built-in overheating protection function, which can effectively protect the chip and avoid damage caused by overheating when the junction temperature exceeds 120oC. QX7135 also integrates LED short-circuit protection and power supply under-voltage protection. In addition, QX7135 comes with a soft start function.
3. QX7135 can provide multiple specifications of output current for customers to choose, the output current can be from 100mA to 380mA, the step length is 10mA, and the current drive capability of the LED can be expanded by multi-chip paralleling.
4. QX7135 adopts SOT-89-3 package form.
Package includes:
1 x driver
