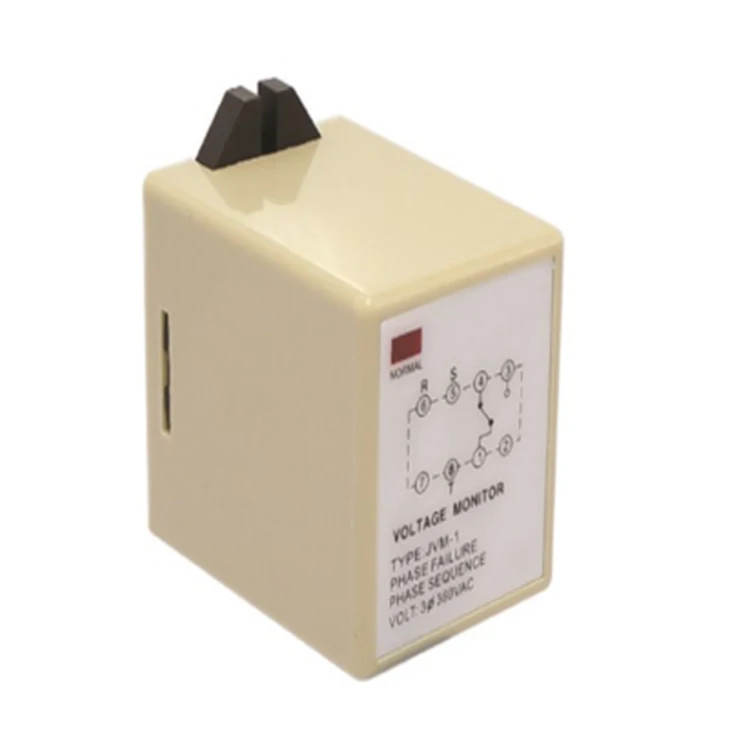

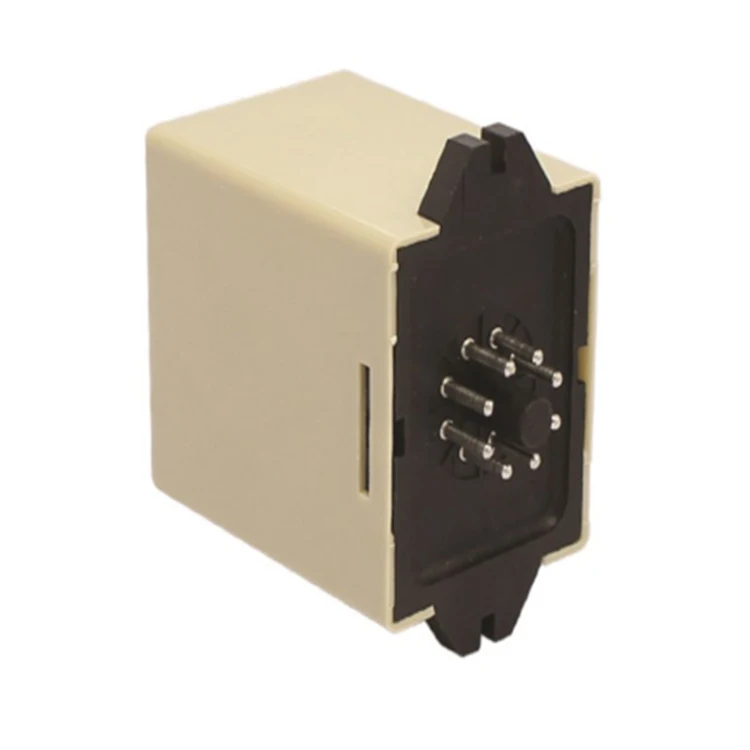

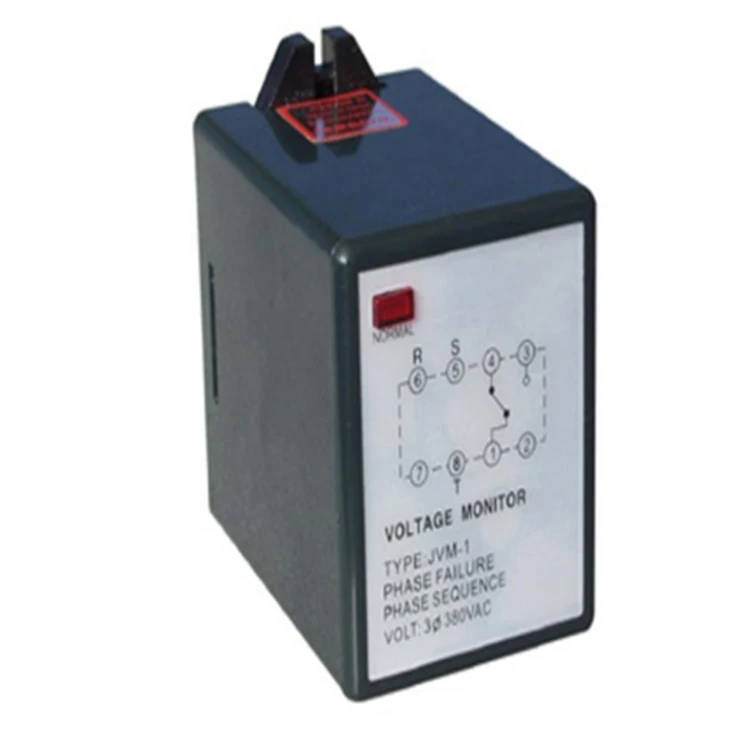

Miniature Product Three Phase AC380V/50Hz voltage unbalance JVM 1 Phase Failure Relay AC Sealed Relay
- Category: >>>
- Supplier: Yueqing Topsun Electronic Technology Co. Ltd.
Share on (62078724529):
Product Overview
Description
Product Description
| Product Type | JVM-1 |

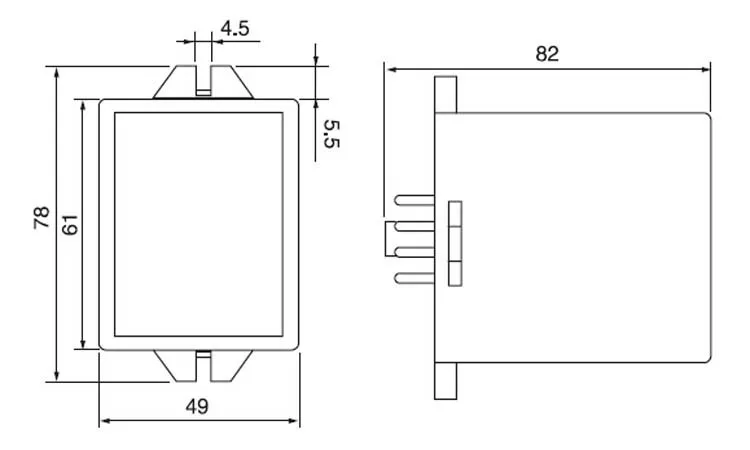

| Dimensions (mm) | 61H × 49W × 70D |
| Mouniing & Socket | PF083A(E) |
| Functions | To prevent the reverse run of three-phase induction motor |
In addition the power surge absorber to prevent high voltage, which can effectively protect the load | |
| With phase sequence, phase lack protection function | |
| Life | Mechanical 5×106times |
| Electrical 1×105times | |
| Rated voltage | AC(V):220,240,380,415,440, 50/60Hz |
| Indicator operating | Normal Operating |
| Contact rating | 10A 250VAC(Resistive load) |
| Insulation resistance | 100MΩ(DC 500V)min |
| Dielectric strength | 1500VAC |
| Consumed power | 2VA |
| Ambient temperature | -10℃~+55℃ |
| Ambient humidity | 48~85%RH |
| Weight | 90g |
Our Services
1. Your inquiry will be replied within 24 hours. |
2. We offer you professional service in fluent English. |
3. Keep the mass production as the sample in high quality |
4. Freight forwarder: faster,safer, and convenient. |
5. Quality: we have QC on each process,provide high quality products. |
Company Information
Company Profile
FAQ
Q: Is sample available and free?
A: Sample is available , but express fee should be paied in advance.
Q: What cerficated do you got ?
A:We got CE , CCC , ISO...
Q: What's your warranty ?
A:Our warranty of the product is 1 years.
Q: What's the delivery time ?
A:Delivery time is depended on quantity . We will delivery as soon as possible.
Q: How about the transport ?
A:We usually transport by Express for samll order , transport by sea or by air for huge quantity.
