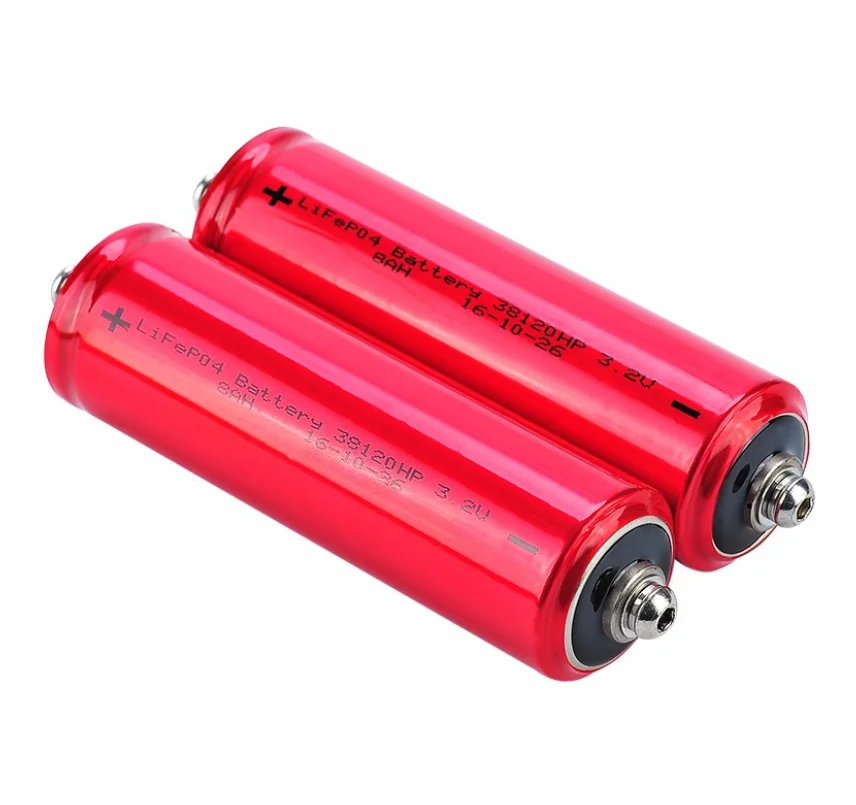

10C Charge 30C Discharge LiFePo4 Headway 38120HP 3.2v 8Ah High Power Battery Cell for 14.6V Car Audio
- Category: >>>
- Supplier: Shenzhen Baiguan Battery Co. Ltd.
Share on (62078760633):
Product Overview
Description
Product Description
10C Charge, 30C Discharge LiFePo4 Headway 38120HP 3.2v 8Ah High Power Battery Cell for 14.6V Car Audio
| 1.1 Capacity | Nominal Capacity 3000mAh (0.6A Discharge) |
| 1.2 Nominal Voltage | 3.2V |
| 1.3 Internal Impedance | ≤ 4mohm |
| 1.4 Discharge Cut-off Voltage | 2.5V |
| 1.5 Max Charge Voltage | 3.65V |
| 1.6 Standard Charge Current | 3C 24A |
| 1.7 Max Charge Current | 10C 80A |
| 1.8 Standard Discharge Current | 5C 40A |
| 1.9 Max Continue Discharge Current | 15C 120A |
| 1.10 Max Pulse Discharge Current | 30C 240A |
| 1.11 Weight | ≤350g |

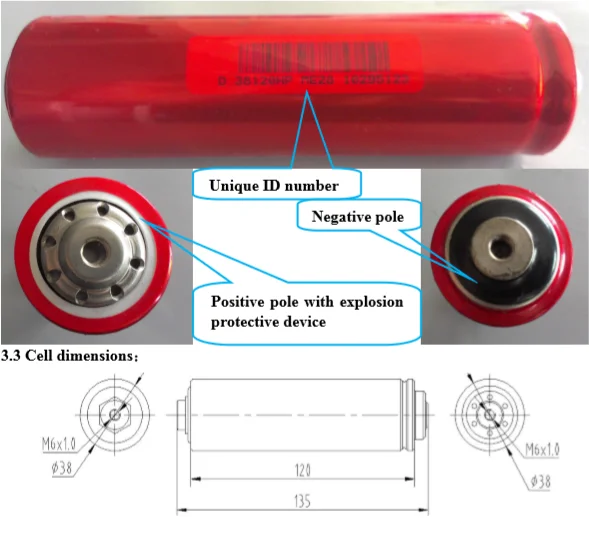

| 1.12 Max. Dimension | Max. Diameter(Ø): 38.5mm Height (H): 136mm |
| 1.13 Operating Temperature | Charge: 0 ~ 60°C Discharge: -20 ~ 75°C |
| 1.14 Storage Temperature | 0 ~ 45°C |
