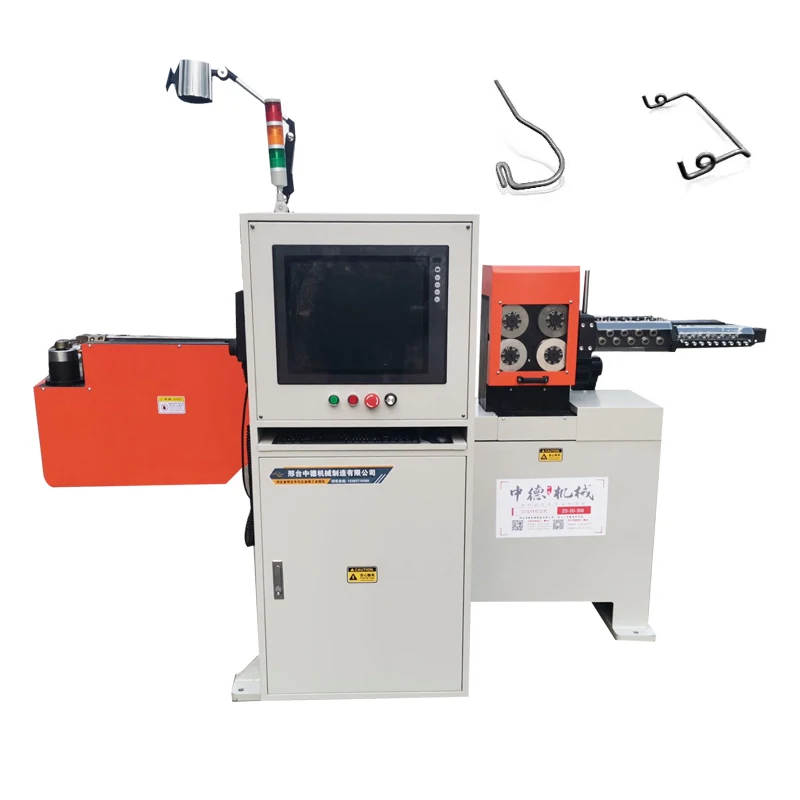

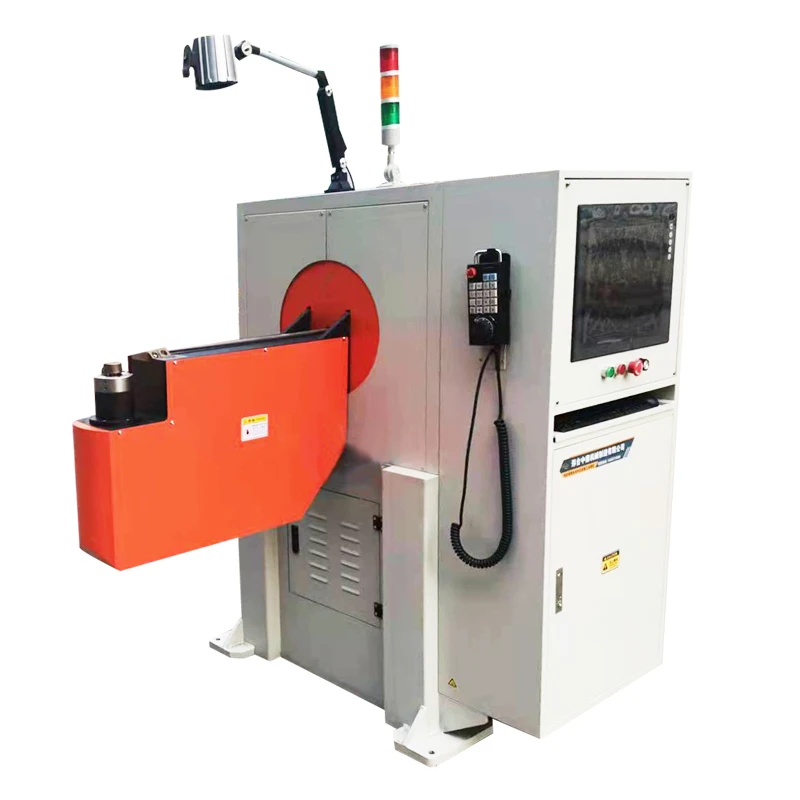

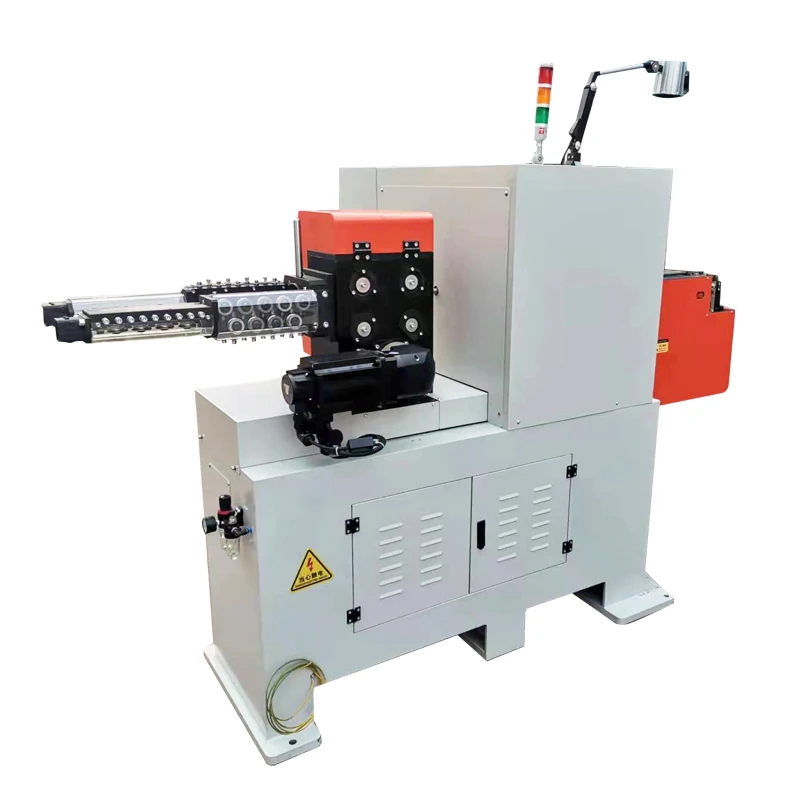

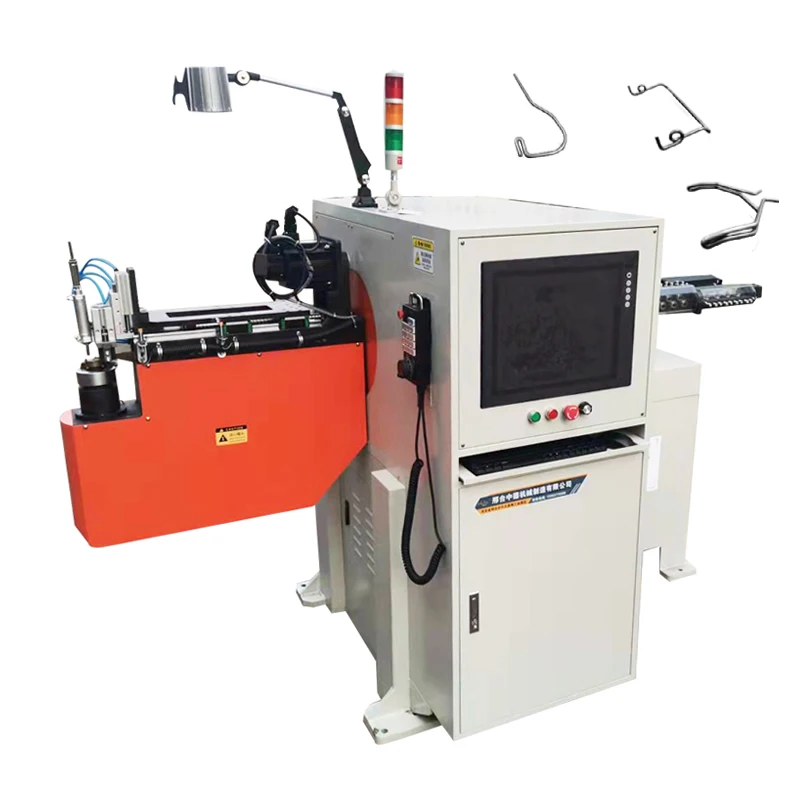

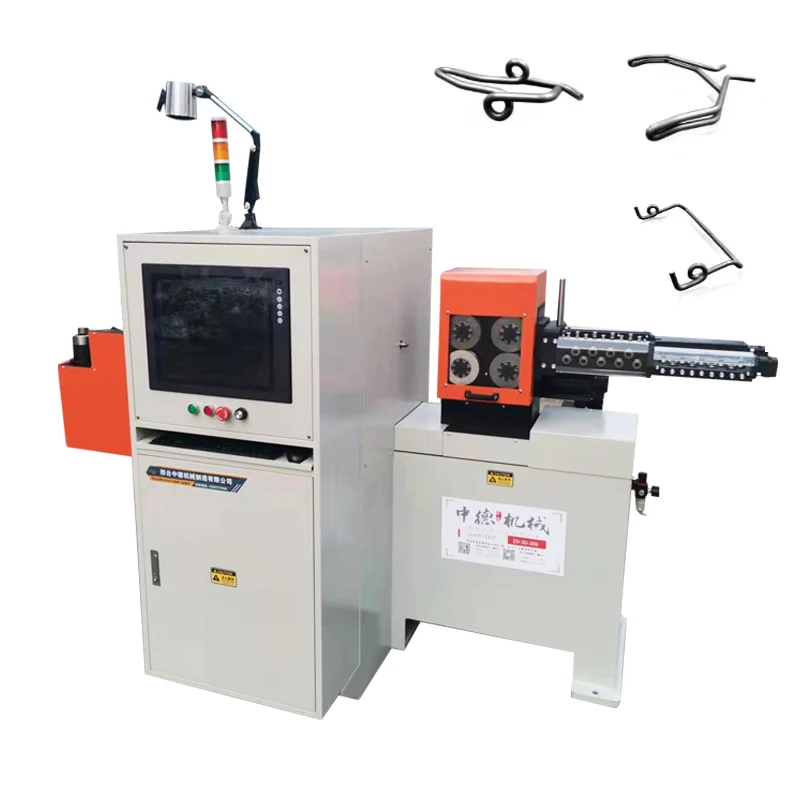

Factory price High speed stable 3 8mm automatic 3d cnc wire bending machine,stainless steel wire forming machine

 Characteristics for this model 3d cnc wire bending machine :

1. the model machine is a 5 axis CNC automatic wire forming machine developed by our company.

2. The machine uses a number of servo motors. The computer operating system, reducer and slideway slide are famous imported brands. It greatly improves the precision and performance of the machine, makes the machine produce fast, stable, durable, low failure rate, fast adjusting speed, 7 axis linkage and so on.

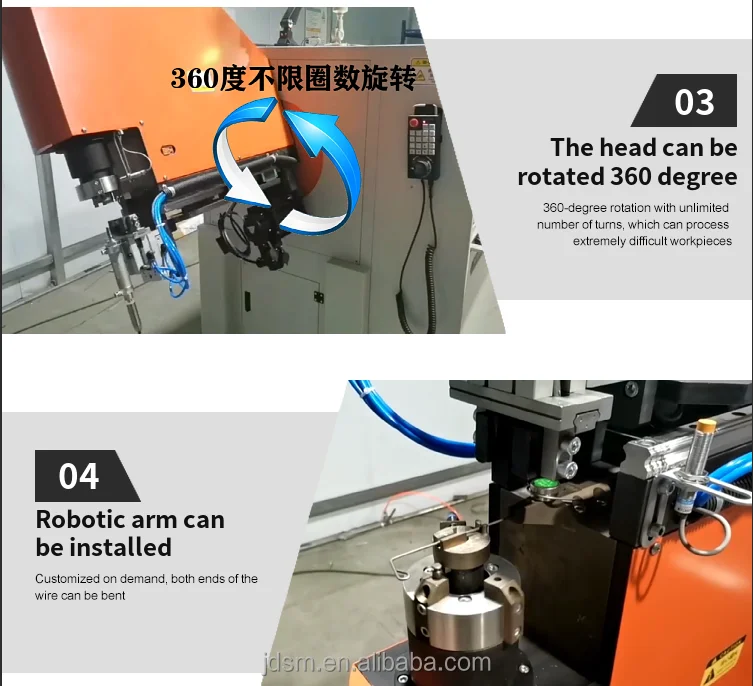

3, transfer line function through the rotation of rotating shaft itself, making the wire production more folding angle, debugging high difficult 3D product is more convenient and quick, the angle of the line can reach 340 degrees, greatly improving the angle of rotation in production.

4, the computer can control more than 1000 control procedures and actions through computer control.

5. the working turn can be lifted up and down, and the molding space is larger, which provides more convenience for the production of 3D products.

6. auxiliary lift tray: take the bearing function, avoid the product during the production due to the weight and the particularity of the product may occur in the deformation, to ensure the stability of the product.

7. the use of the system built-in intelligent module is simple and easy to learn. It can automatically detect the angle and set the quantity of production in production. If the unqualified product is stopped immediately, there is no material for automatic alarm stop, no empty machine and waste.

This model 3d cnc wire bending machine  basic parameters:

Diameter of wire: Φ3-Φ7mm     soft material: Φ3-Φ8mm

Control shaft number: 5 axis
Turning arm motor power :2.6 KW
Wire-feeding motor power :4.5 KW
bending motor power :3.8 KW
Lifting motor power :1.0 KW
Cutting motor power :1.0 KW
Maximum feed speed :94.2 m/min
Line feed accuracy: 300mm ± 0.1
Automatic feed rack maximum load-bearing :2000 Kg
Automatic feed frame disc diameter: φ 1900 mm
Automatic feed frame motor power: 2.2 KW or 4kw
The host uses a voltage of: 380V(± 20V)
The main machine weight: 1800kg.

Line length : infinitely long

Machine size: 2500 X1200 X 1600 mm

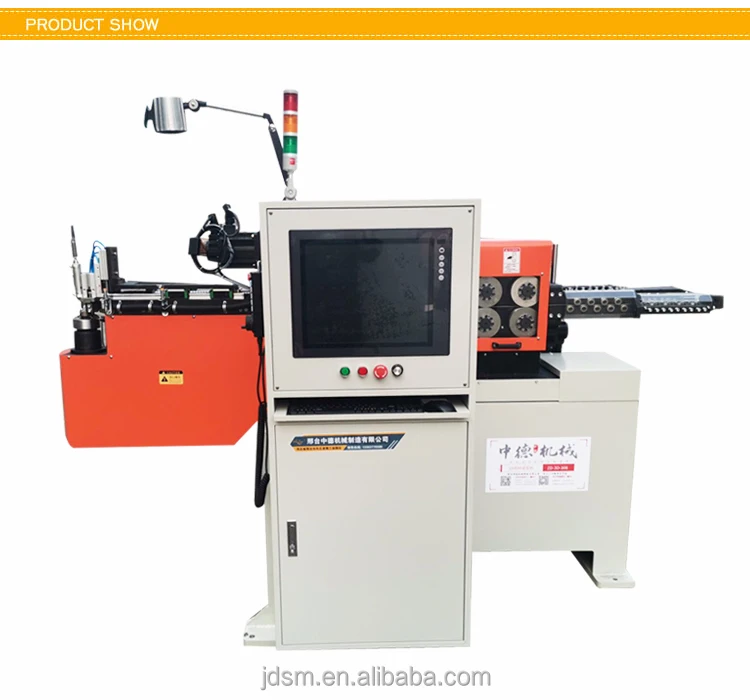

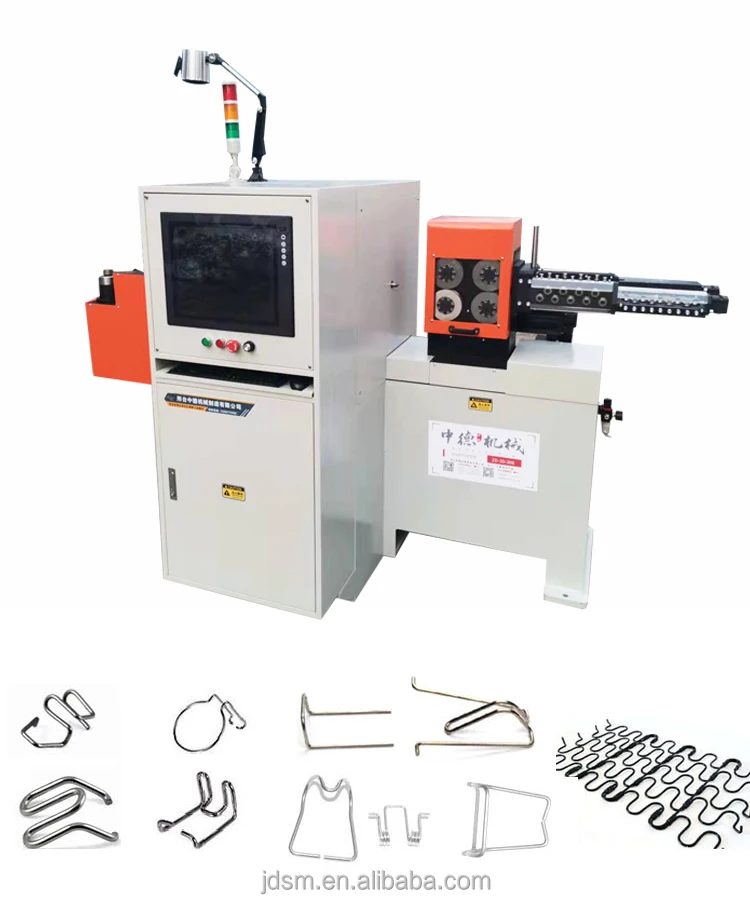

More detaild show for this model 3d cnc wire bending machine :

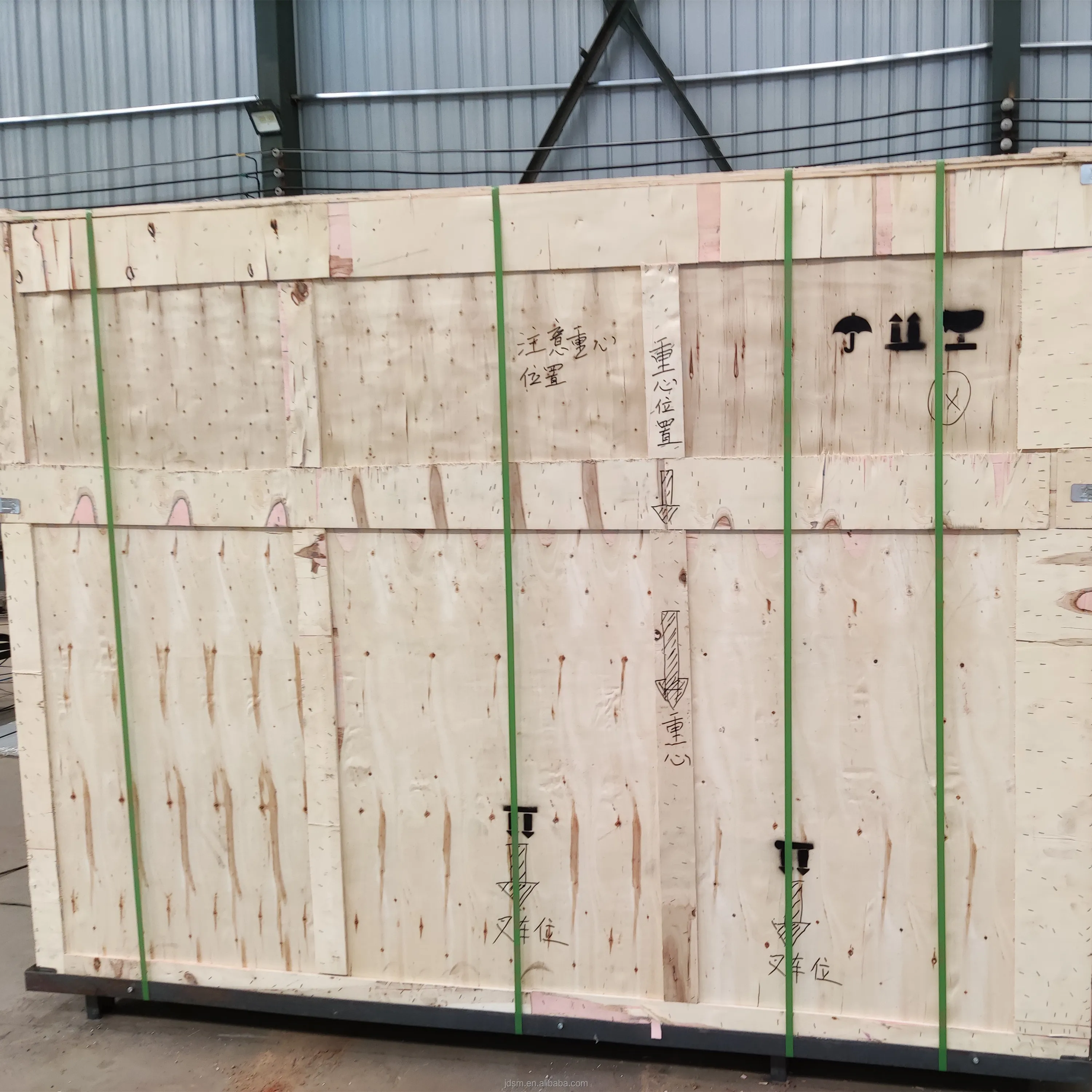

Packaging information: standard export wooden case packing for 3d cnc wire bending machine.

We have our own farwarder. and check the delivery information timely.

You can also choose your own forwarder . We will contact with him ASAP.

Delivery time: about 25 working days after receiving the deposit

1. Help you choose the most suitable steel wire cnc bending machine.

2. Making the machine according to your request.

3. Give you machine’s details  for help you use the machine more better.

4. 2 years warranty

5. Free repair whole using life without extra charge.

Xingtai Judu Technology Co.,LTD is with more than 10 years professional production of 2d and 3d cnc wire bending machine , hanger production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.

1.what is metal steel wire cnc bending machine Packaging?
 Free fumigation safe Wood case+iron pallet
2.what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM for 3d cnc wire bending machine ?

Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?

Warranty 5 years
5.what time for delivery?
25-30 working days for our own design.(motor:380v 50hz 3phases)
35-40 days for cusmoized model.
6.How do payment?
TT, 40-50% in advance as deposit ,balanced paid off when the machine is ready for the shipment

 Any questions or requirements for 3d cnc wire bending machine ,welcome to contact me at any time
