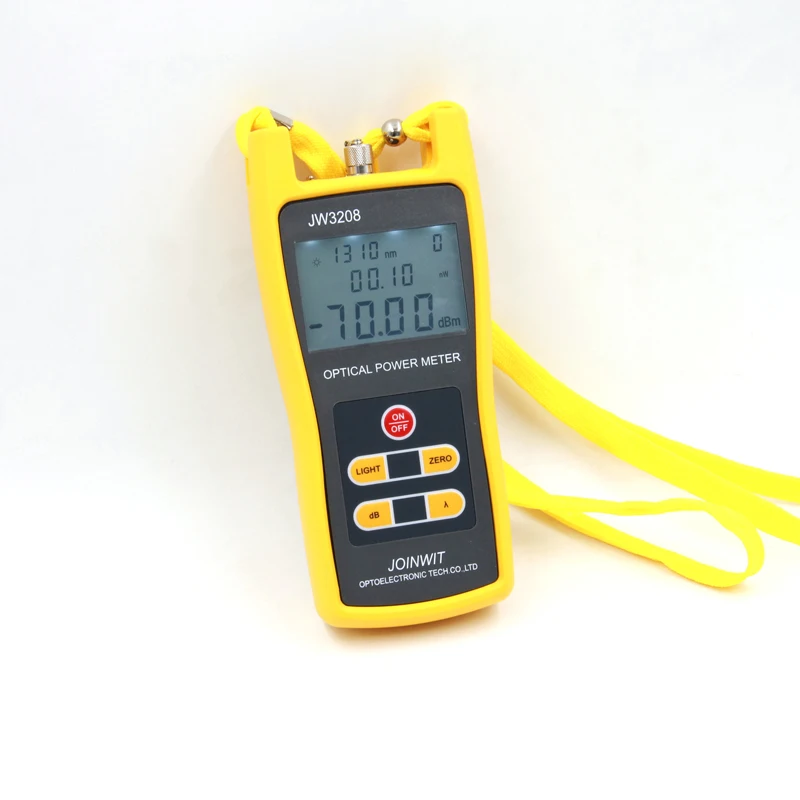

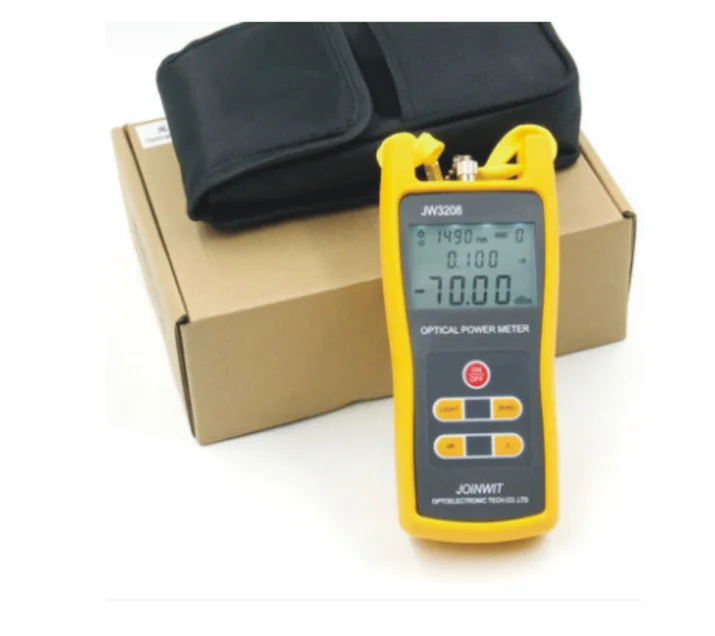

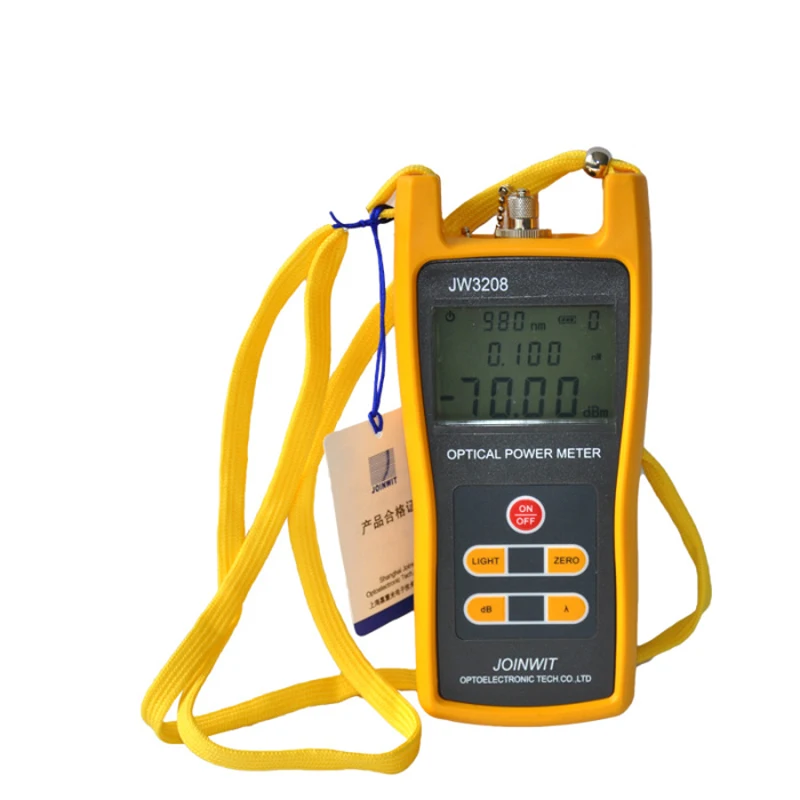

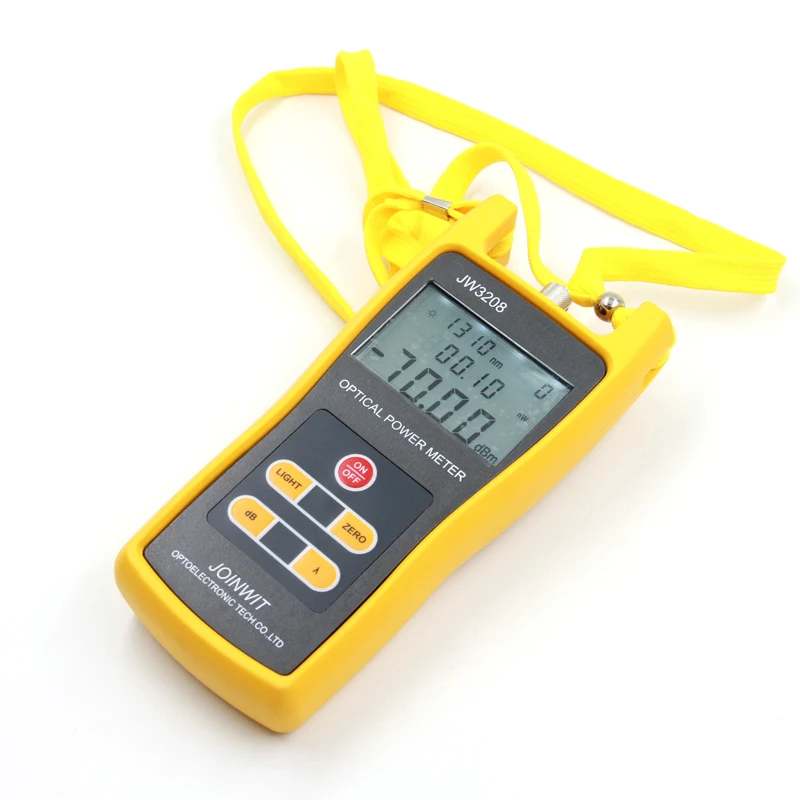

Optical Power Meter Joinwit JW3208A Portable Handheld Optical Power Meter with FC SC ST Connector
- Category: >>>
- Supplier: Shenzhen Hualink Technology Co. Ltd.
Share on (62079082363):
Product Overview
Description
Product Description
JW3208 Optical Power Meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features
User self calibration function
Comfortable LCD display and optional backlight LCD display supports night operation
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
| Model | JW3208A | JW3208C |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+6 | -50~+26 |
| Uncertainty | ±5% | |
| Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
| Resolution(dB) | 0.01dBm | |

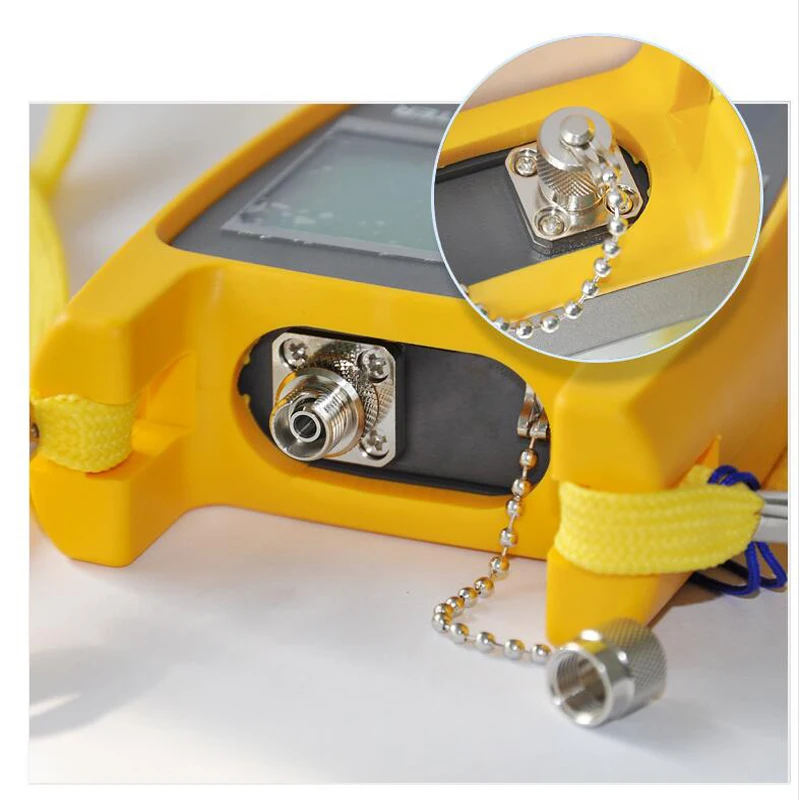

| Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
| Battery Operating Time | 240 h with 1.5V Battery(3) | |
| Operating Temperature(°C) | -10 ~ +60 °C | |
| Storage Temperature(°C) | -25 ~ +70 °C | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 175x82x33 | |
| Weight | 310g | |
Packaging & Shipping
Standard Packages
MODEL | INCLUDES |

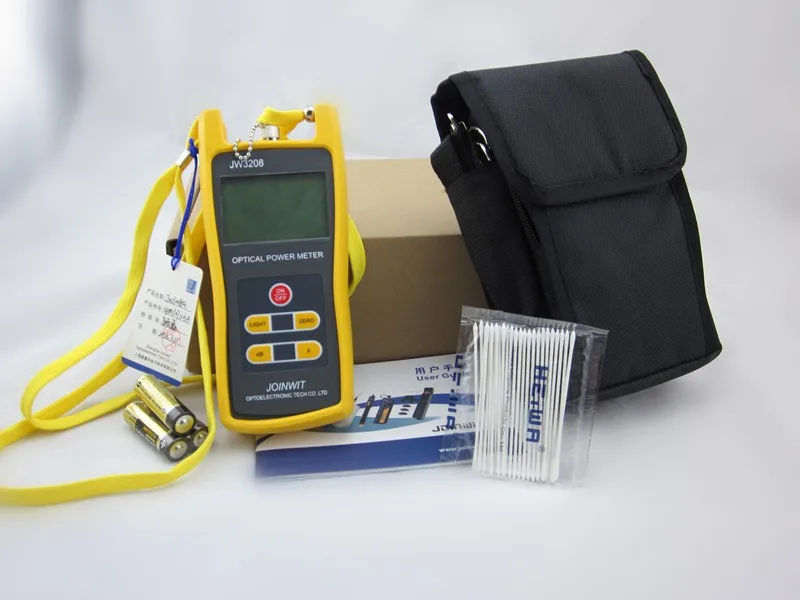

All JW3208 Models | JW3208 Optical Power Meter, Protective Rubber Boot, User Manual and Soft carrying case. |
