KC6S SIEG Full Function CNC Lathe Machine / benchtop cnc Type CNC Lathe / CNC Turning Center double spindle cnc lathe machine

Share on (62079094358):


Price:

Quantity:


Product Overview

Description


KC6S-SIEG Full Function CNC Lathe Machine / benchtop cnc Type CNC Lathe / CNC Turning Center double spindle cnc lathe machine



Product Description

 Technical Specification

WORKING AREATurning Diameter Over Bed (max)                    250mm
Travel Across Slide                                           110mm
Center Width                                                  450mm
SPINDLE

Chuck Diameter                                              125mm

Spindle Speed                                                 100-3000r/min
Spindle Through-hole                                      20mm
Spindle Mount                                                 MT3
Spindle Motor Power                                        1000W
TOOL RESTTools Position                                                   4
Tools Dimesion                                                10x10mm
TAILSTOCKTailstock Taper                                                  MT2
Tailstock Sleeve Diameter                                 30MM
Travel of Tailstock                                             50MM
FEEDX Travel                                                            90MM
Z Travel                                                           320MM
SteperThe Max Moving Speed                                     2000r/Min
Power of Motor                                                 4Nm
ServoThe Max Moving Speed                                    3000mm/min
Power of Motor                                                400W
AccuracyPositioning Accuracy                                         ±0.015mm
Repeatability Accuracy                                      ±0.01mm
OTHERSPower                                                             230/120V
Weight (N.W/G.W)                                           360/410kg
Overall Dimension                                1460×760×1450mm
Packaing Size                                      1630×1070×1685mm
Product Name:KC6S-SIEG Full Function CNC Lathe Machine / benchtop cnc Type CNC Lathe / CNC Turning Center double spindle cnc lathe machine

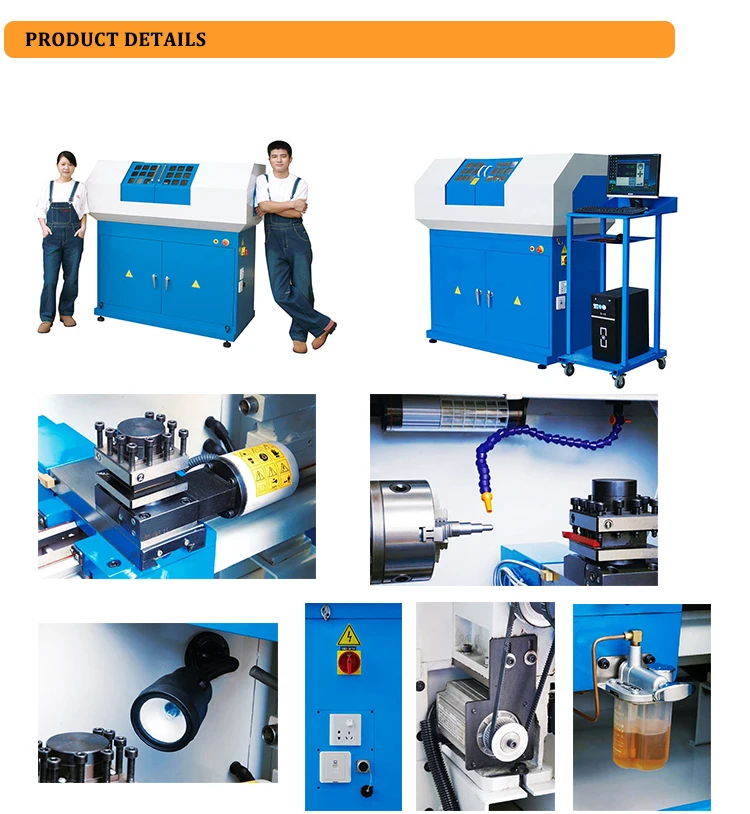

Product Details pictures

double spindle cnc lathe machine

KC6S -SIEG is one of the most popular products in Educational Market,Most of customers from Europe/Korea/Asia...

KC6S-SIEMENS  Large Spindle Bore CNC Lathe Machine for metal tools

KC6S-SIEG Full Function CNC Lathe Machine / benchtop cnc Type CNC Lathe / CNC Turning Center double spindle cnc lathe machine

MOQ:1PCS

Dimension(L*W*H):1630*1070*1685mm

double spindle cnc lathe machine

double spindle cnc lathe machine
double spindle cnc lathe machine



Our Services

double spindle cnc lathe machine

Company Information

double spindle cnc lathe machine



      Liuzhou Gluck Imp.&Exp.Co.Ltd ,Specializing in CNC Milling Machine /CNC Lathe machine with 30 years ,We have a team of well qualified technicians and service personnel, who are well geared to produce some of the world's hottest machines. We also provide an extensive range of accessories ideally matched for use with our machines

     There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!which can enrich employee life, increase the affection between the colleague, make the job more passionate, make good products, good services to our clients......

    KC6S-SIEG  Large Spindle Bore CNC Lathe Machine for metal tools

double spindle cnc lathe machine double spindle cnc lathe machine

Our Exhibition

double spindle cnc lathe machine

Packaging & Shipping

double spindle cnc lathe machine

FAQ

Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.

Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.

Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.

Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.

Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.

Q6: What is the Control of your lathe? Can I change it to other brand?
A6: The standard control of our lathe is GSK. You also can change other controls, such as FANUC,Siemens and so on.

Q7: How can I get the quotation?
A7: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q8: What's the main products of your company?
A8: We specialized in many kinds of CNC machines, such as CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center..

Q9: How can I choose the most suitable machines ?
A9: Please tell us your requirement of the machine, or you can also send us the products drawing,our engineer can help to choose the best model for you.

Q10: If still confused. What can I do?
A10: Please feel free to contact us via Email or trade manager.
