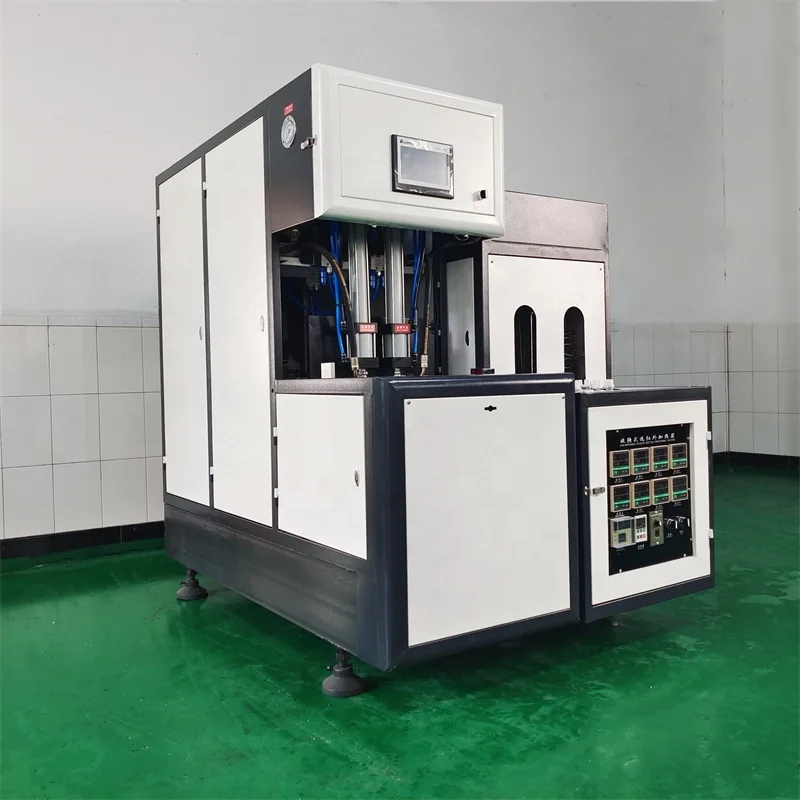

SC-1000A Model 2 Cavity Semi Automatic PET Bottle Blowing Machine

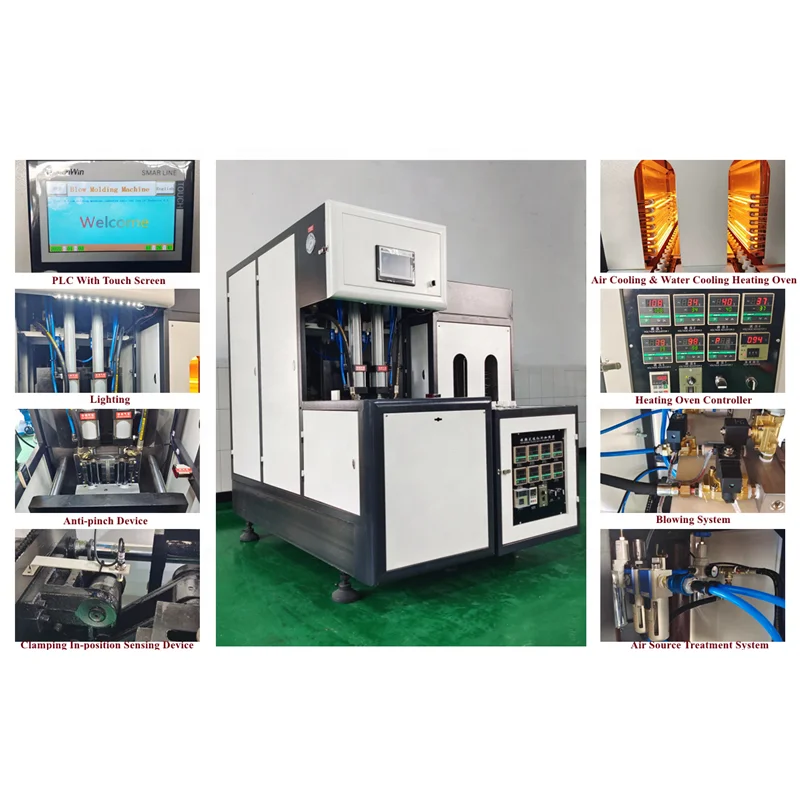

FEATURES AT A GLANCE

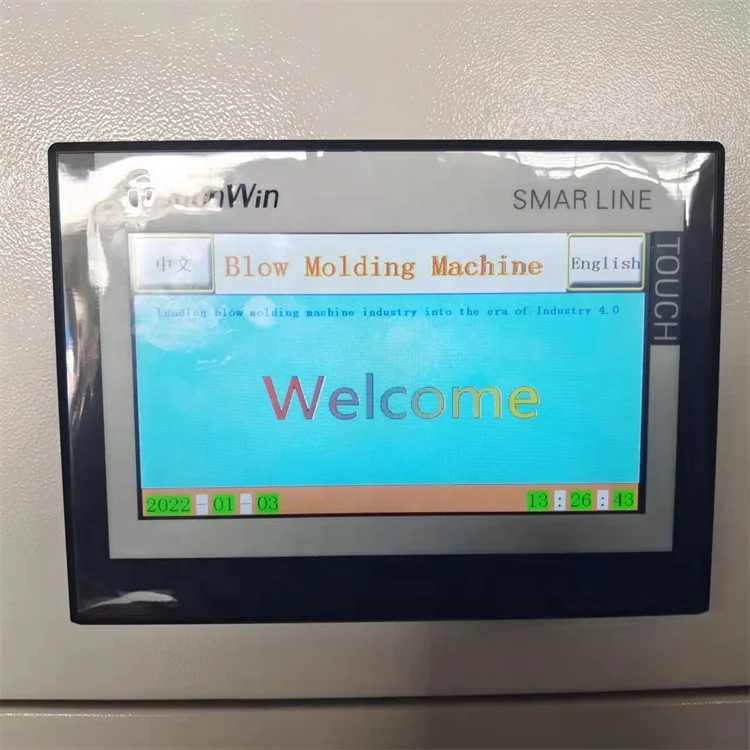

1. | Advanced PLC control system with use-friendly touch screen. |
2. | Simple installation & start up operation. |
3. | Heating oven equipped with air cooling & water cooling system ensure the bottle neck not deform. |

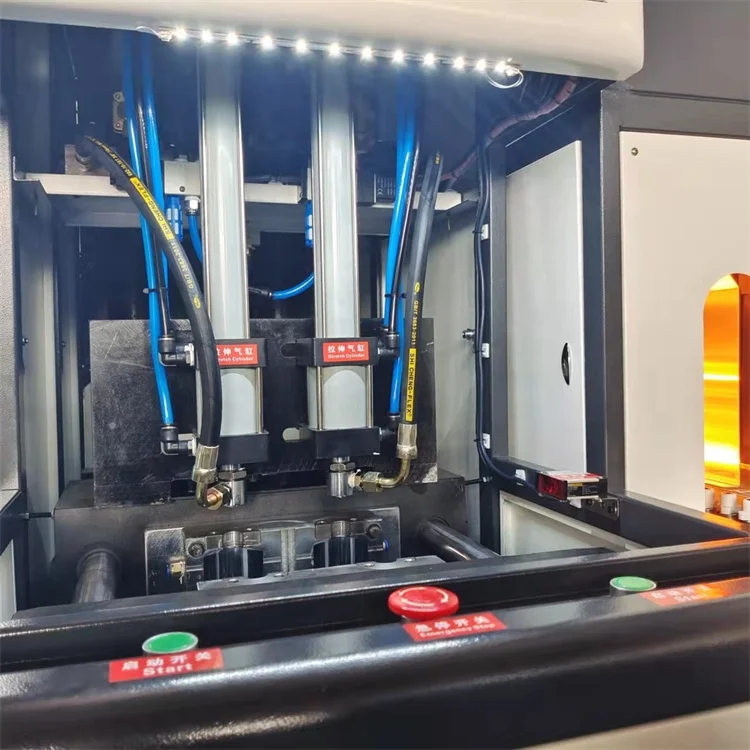

4. | Equipped with lighting and anti-pinch device to ensure safe production. |
5. | Equipped with mold clamping in-position sensing device to ensure safe production. |
6. | Each wire,button and meter mark with English,easy maintenance. |
PRODUCT SPECIFICATIONS
Model | SC-1000A Semi Automatic PET Bottle Blowing Machine | ||
Theoretical output | 800--1000 pcs/h | ||
Finished bottle | Max. bottle volume | 2L | |
Neck diameter | 20-80mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 2 cavity | |
Mold thickness | 110mm-230mm | ||
Open stroke | 180mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 16kw | ||
Actual power consumption | 5kw | ||

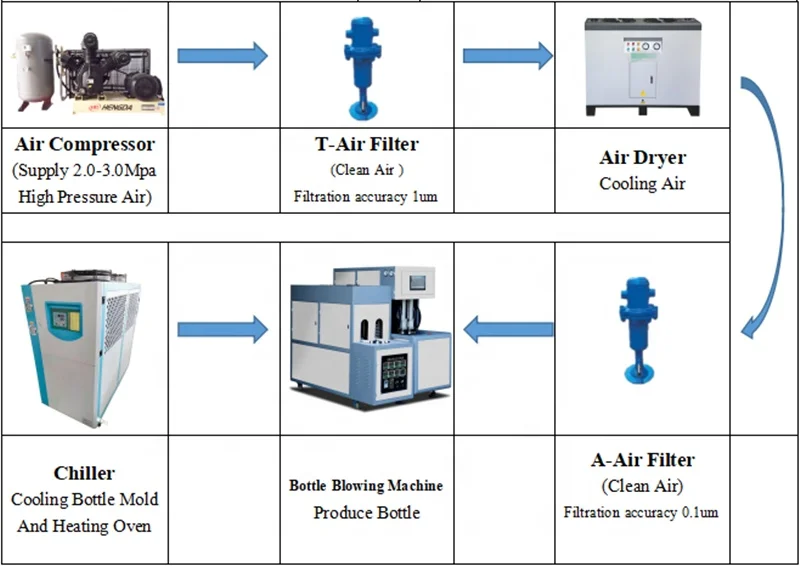

Air source | Recommend air compressor | 1.2m³/min 30Kg | |
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 1630*620*1590mm/750kg | |
Auto Loader size | Length*width*height/weight | 1780*570*1380mm/250kg | |
PRODUCT CONFIGURATION
Components Name | Brand |
PLC | Xinje |
Touch Screen | Xinje |
Cylinder | Yongcheng |
Blowing valve | Quanjia |
Operating valve | Airtac |
S.R.C | Zhen Yu |
Circuit Breaker | CHNT |
