industrial touch screen monitor Flush Mount PCAP Touch Monitor

Product Overview

Description





Model	ITD17OFT5Y1
IP	IP65(for front panel only)
Outline Dimensions	Width: 386.2mm  Height: 318.2mm  Depth: 49.5mm
Weight(N.W/G.W)	4.4kg
Packing Dimension	488.0×190.0×410.0mm
LCD Type	17"Active matrix TFT-LCD
Video Input	VGA/HDM
Recommend Resolution	1280×1080@60Hz,75Hz
OSD controls	Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 4A Max.
Power Consumption	20W
Mount Interface	1)VESA 75mm and 100mm 2)Rear Mounting Brackets
Regular Warranty	1 Year for TFT Panel, 2 Years for others
Agency Approval	FCC,CE,RoHS Certified







Active Area(mm)	337.92(H)×270.336(V)
Resolution	1280×1024
Pixel Pitch(mm)	0.264×0.264
Nominal Input Voltage VDD	+3.3V(Typ)
Viewing angle (L/R/T/B)	85°/85°/80°/80°
Contrast	1000:1
Luminance(cd/m2)	250
Response Time(Rising/Falling)	7.7/10.8ms
Support Color	16.2M/262K
Screen Scanning	60Hz
Backlight MTBF(hr)	50000h

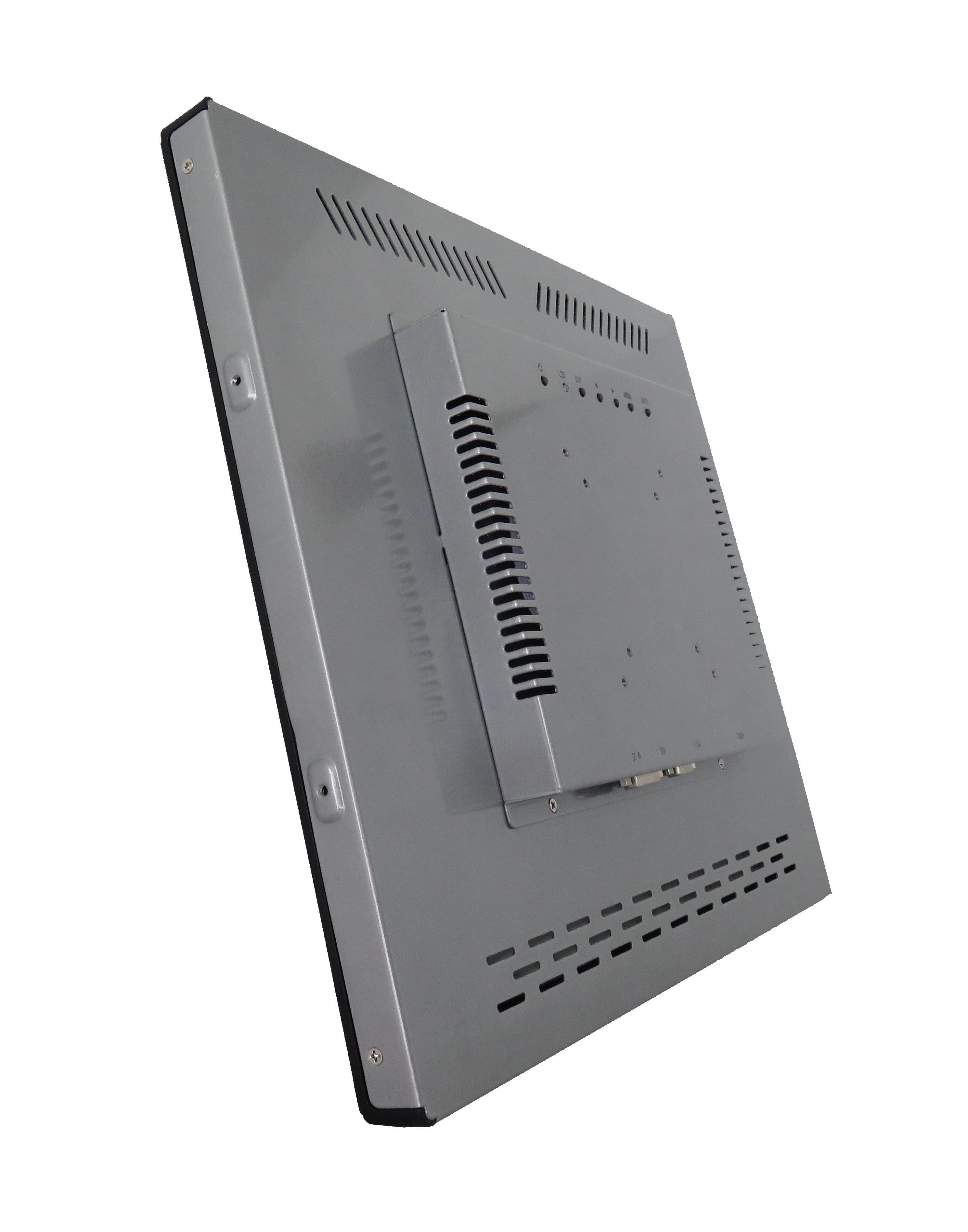

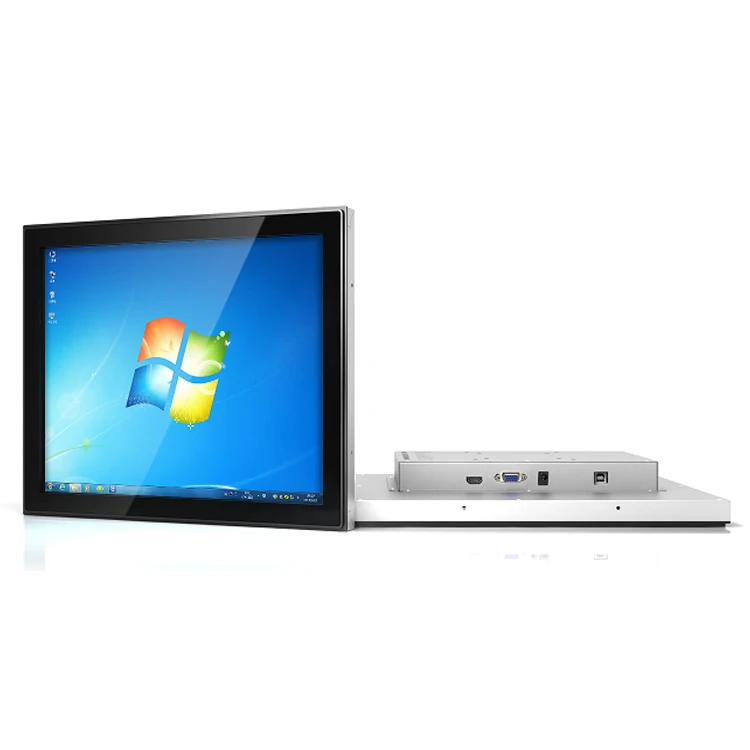

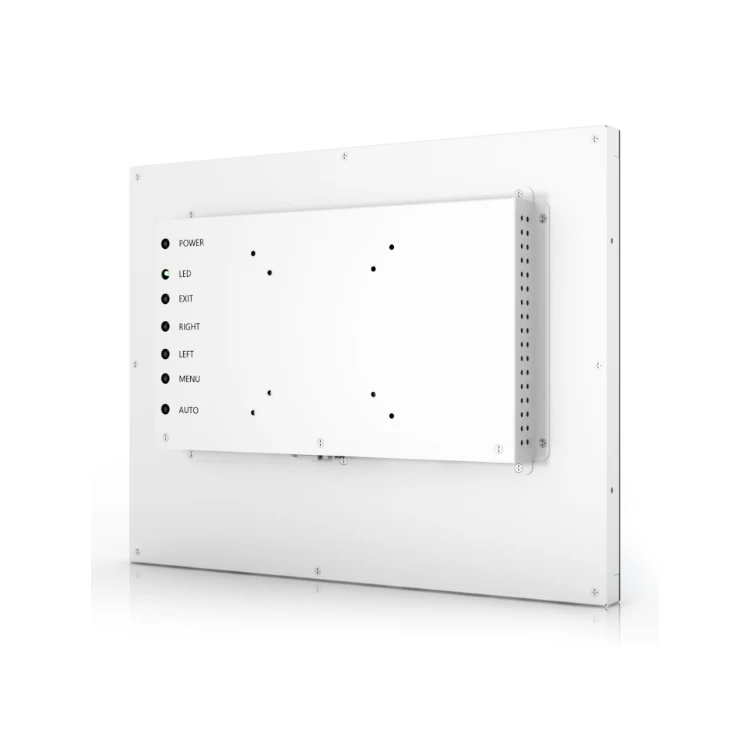

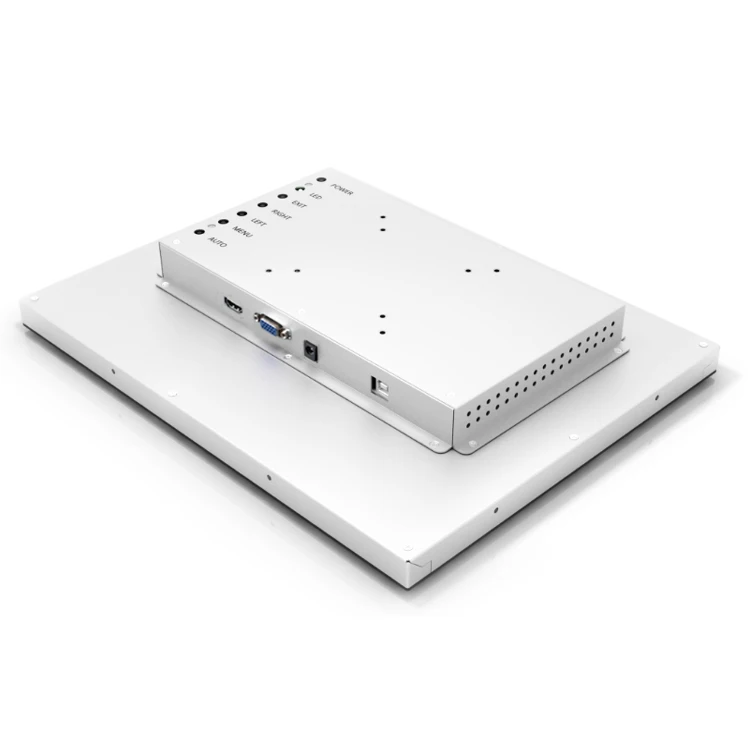

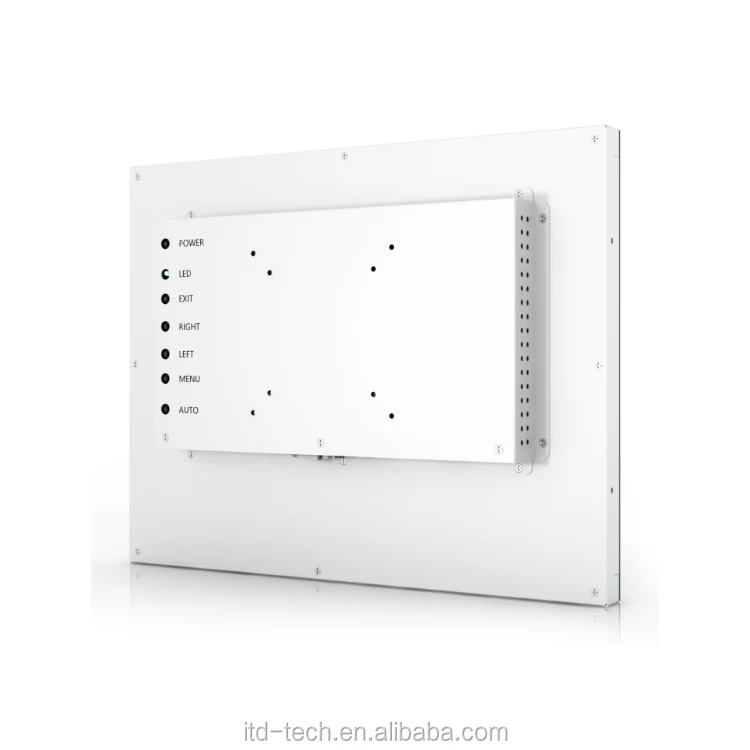

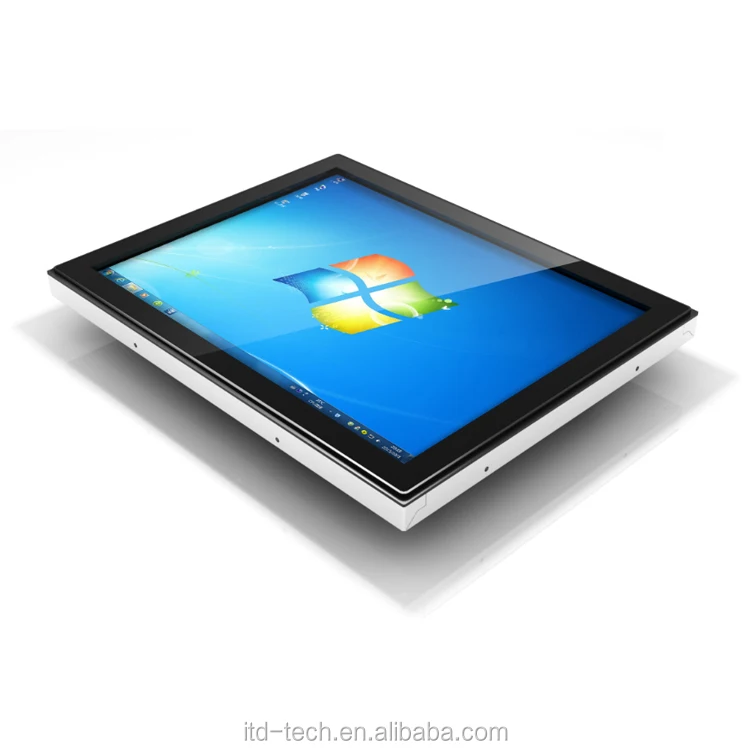

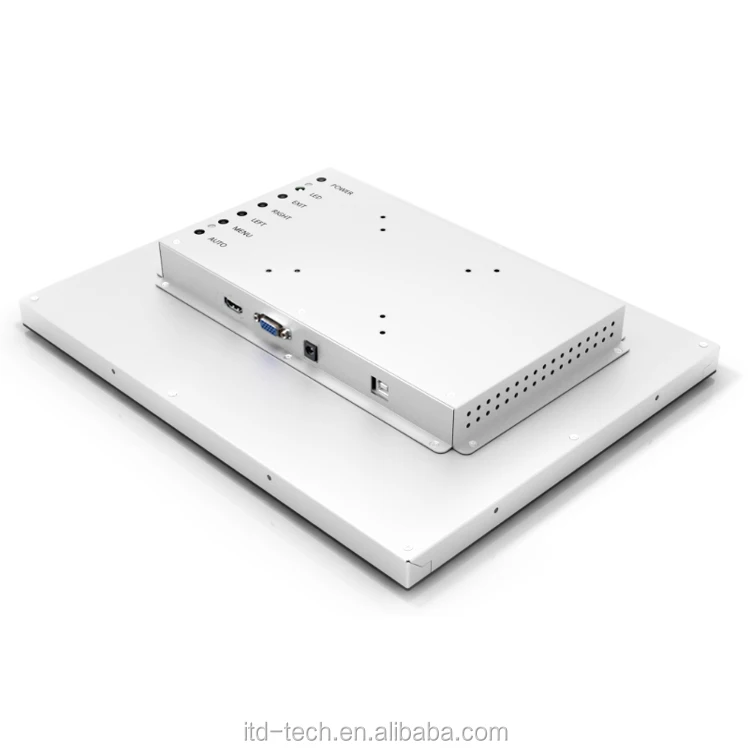

Product Display:























Advantages:







1.Long lasting product cycle for continuity thru all phases of project rollouts and servicing



2. Exceptional quality and highly engineered industrial monitors



3.Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc



4.All steel construction designed for harsh and industrial environments



5.Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis



6.Meets NEMA 4/4x/12 and IP65 standards



7.Multiple mounting options (75*100mm VESA mount and clamps mounting)



8.Accuracy in high-use applications



9.Supports Windows, Linux OS, Android, Mac OS, etc



10.CE, FCC, RoHS, ISO9001:2008 compliance.



11.VGA, DVI, AV, S-Video, BNC etc multiple inputs/outputs optional



12. Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running









Terms & Conditions:





Payment	T/T
Delivery Time	7-15 working days for normal orders. Big orders will depend on production time.
Shipment	Express courier -DHL, UPS, FEDEX, TNT 3-5 Days.
	EMS,China Post ,Hong Kong post 10-20 Days.
	Air cargo 5-10 Days.
	Sea cargo 5-30 Days.
Warranty	1-3 years’ warranty with DOA, RMA and Paid Service
Samples	Samples for quality test are available, but we kindly ask you to pay for samples and the freight.
Service	Professional&reliable pre-sales service.All questions response in 24 hours. Latest information will be updated to you.

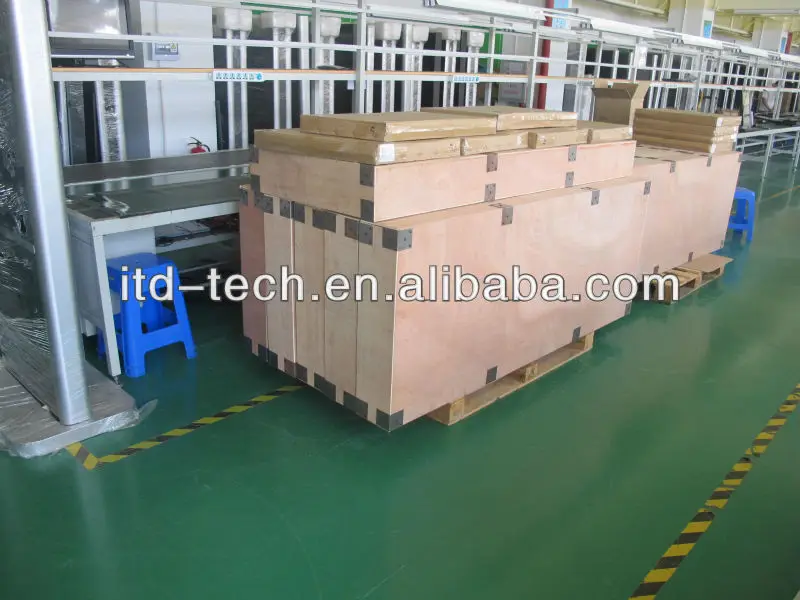

 Firm, safe, standard cartons with foams

Wooden Shelf or box for big sizes and big quanity











AFTER-SALES SERVICE



1-3 years’ warranty with DOA, RMA and Paid Service





Warranty



DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.



RMA Service (Return Merchandise Authorization):
To run RMA within 1 year after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
