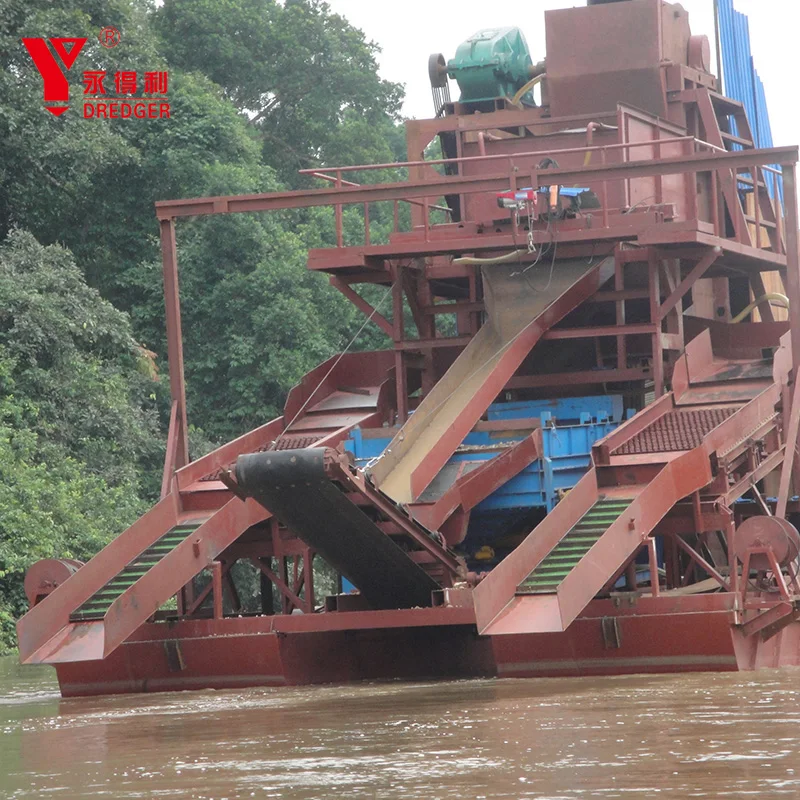

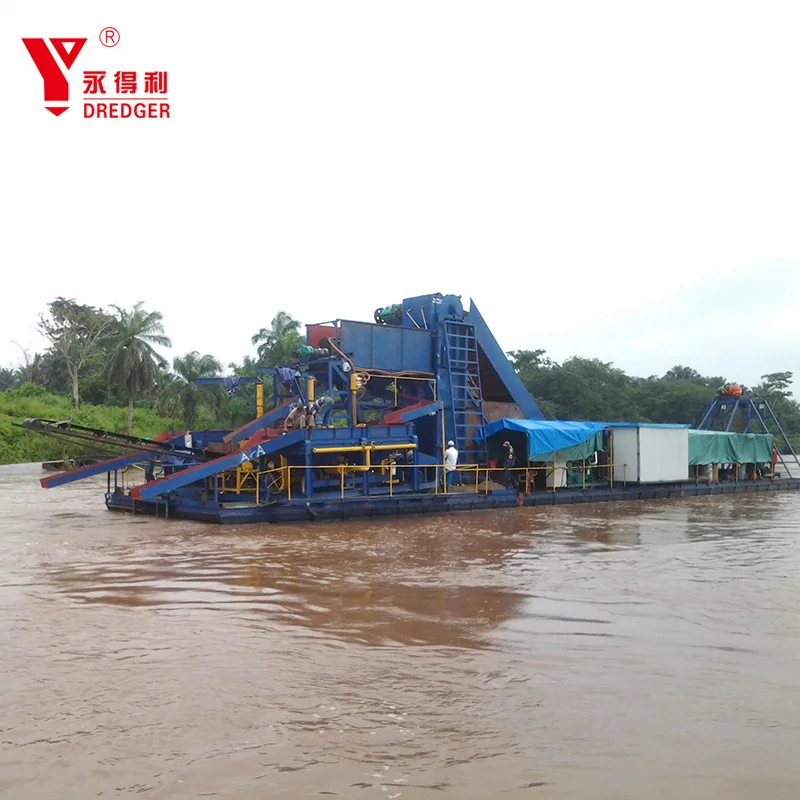

200m3/h, dredge depth 35m, Bucket Chain Sand Dredger Sales Price

Product Overview

Description

200m3/h,Dredge Depth:35m Bucket Chain Sand  Dredger Sales Price



1.Specification



Item	Specification
Total length	64.5m
Total width	7.2m
Total height	7.8m
Full load draft	0.9m
Dredge depth	3-35m
Total installed power	247.5kw
Deal capacity	200m3/hour
Total weight	270 tons





2.Product Principle

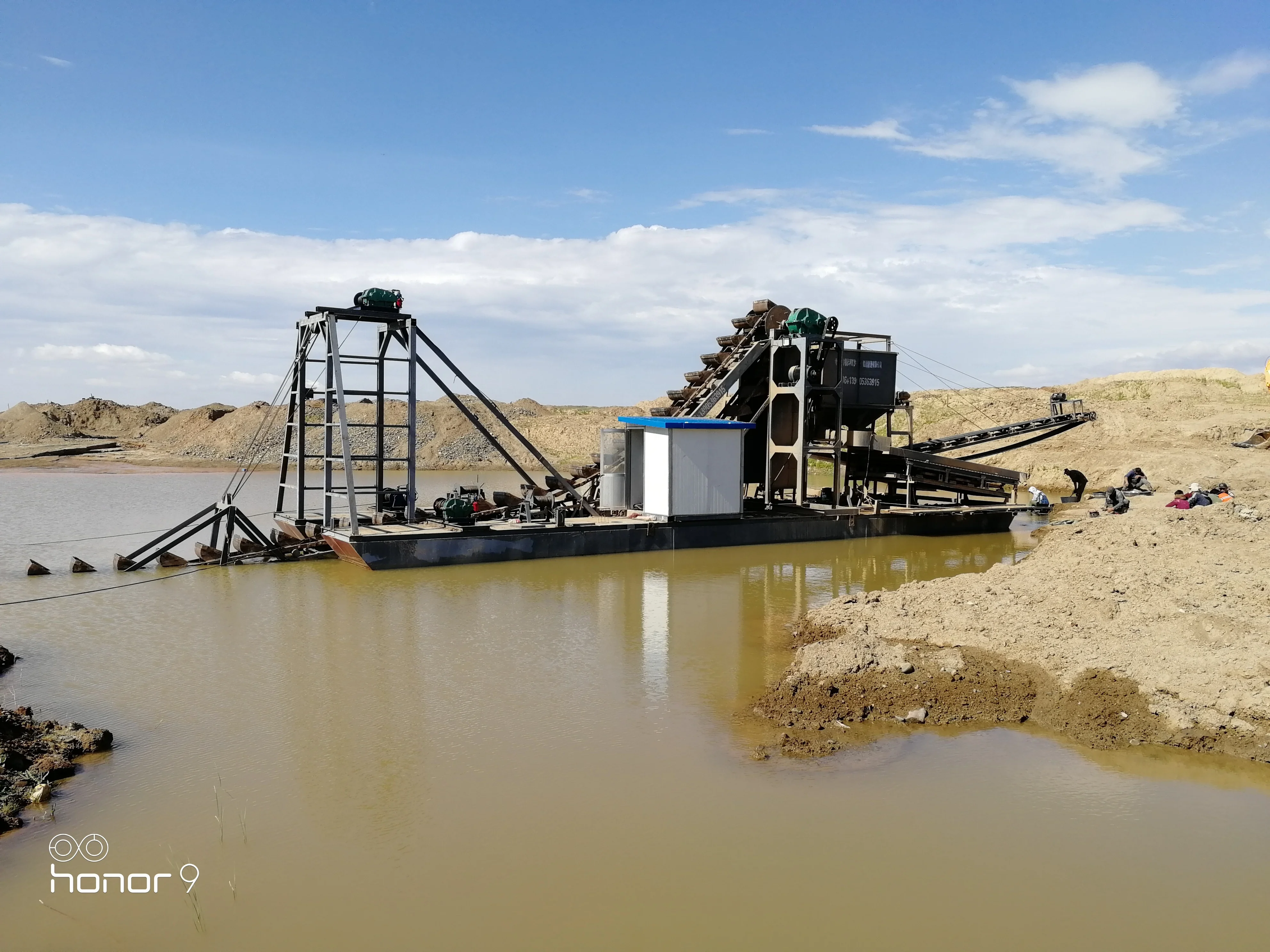

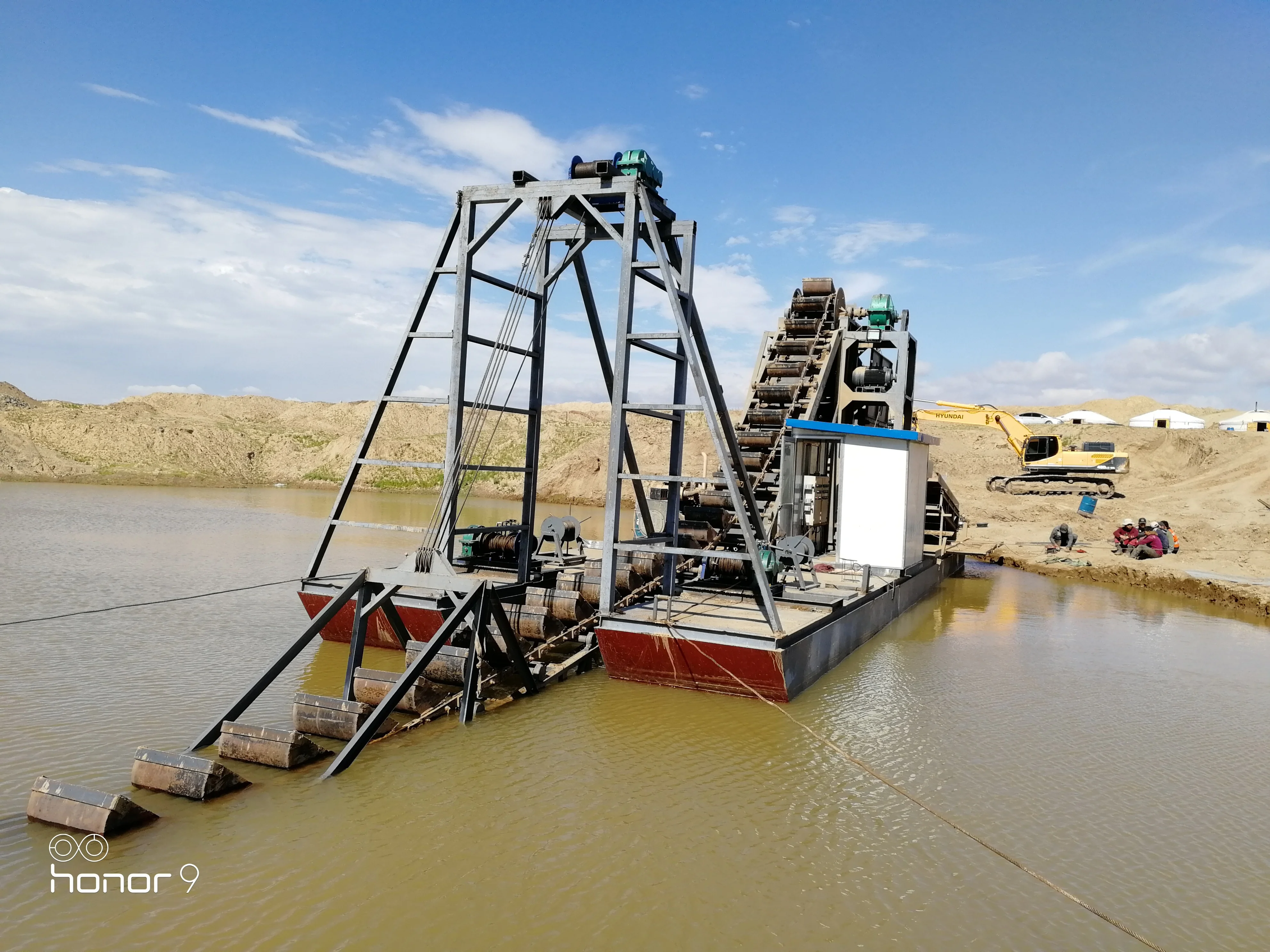

Working principle: Buckets rotate around the underwater dredging wheel, scooping up the soilds in the riverbed, then the raw sand comes into the  trommel classifier with single layer or double layer screens. The trommel screen will separate the gravels, clay, water plants with needed sand. The discharge system could be divided into single-discharge, multi-conveyor belts or chute. We can discard the waste stones into the river direclty or nearby transport barge.

Based on the customer's requirements, we can use the different screen mesh to classify the sands into different grades.



 3.Company Introduction

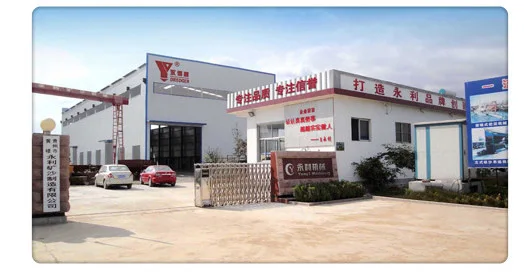

   Qingzhou Yongli Mining and Dredging Machinery Co.,Ltd, located in Qingzhou City---one of the Nine Ancient Cities in China, is one of china leading company in mining equipments. We are the professional manufacturer who has been dedicated in R&D, designing, producing and providing assembly and testing service.

   We always insist on the principles of honest, mutual benefit, co-development and welcome to our factory for investigation and discussion.

4. Request For Reply

a. How many tons of the raw sand mining do you want to deal with per hour?

b. How many meters for the dredging depth?

c.In the raw sand mining, the sand and stone percentage ratio?

d. How many different sizes of the raw sand do you want to classify?

e. How do you deal with the waste stones?
