Powder Mixing Machine
The machine applied to good liquidity dry powder and granular material mixing in pharmacy industry, chemical industry, food industry. This machine mixing cylinder structure special, efficiency is high, no blind angle,material adopt stainless steel, wall polishing treatment, nice appearance,equally mixing, can as per customer's request equip mixer, it can applied to fine powder material mixing.
Working Principle

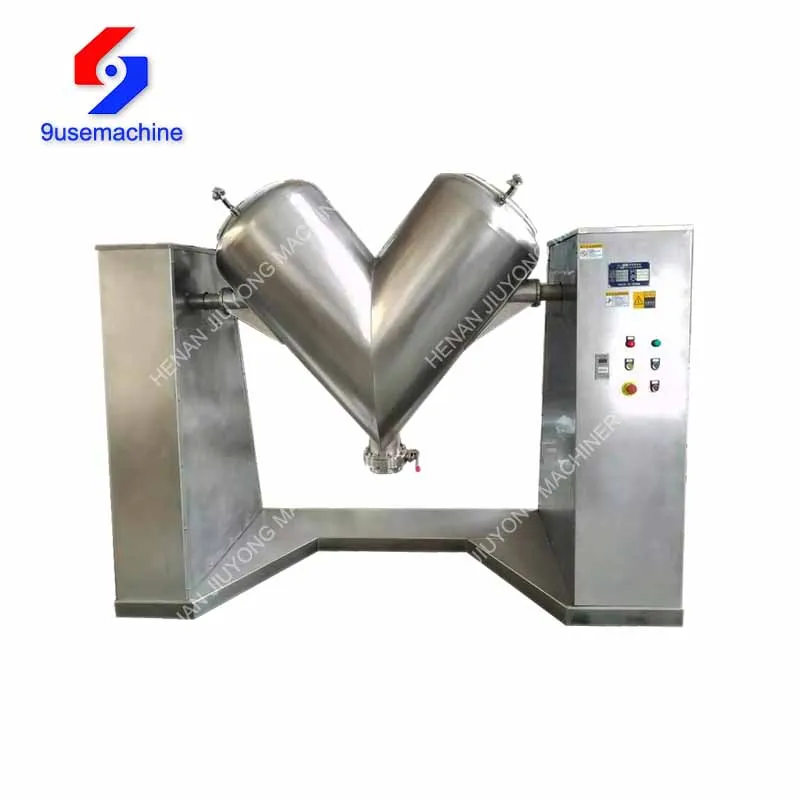

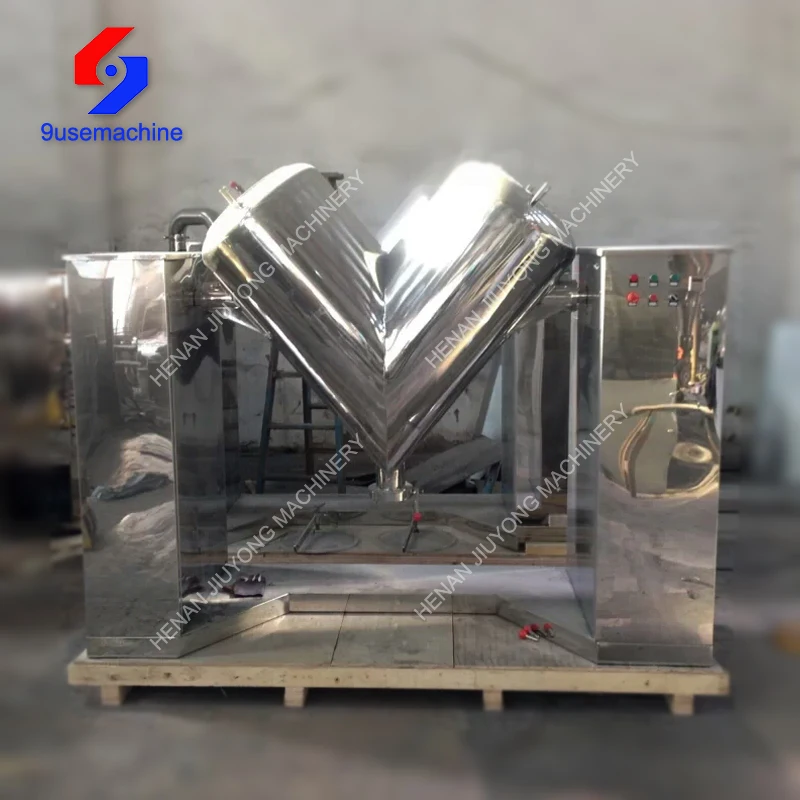

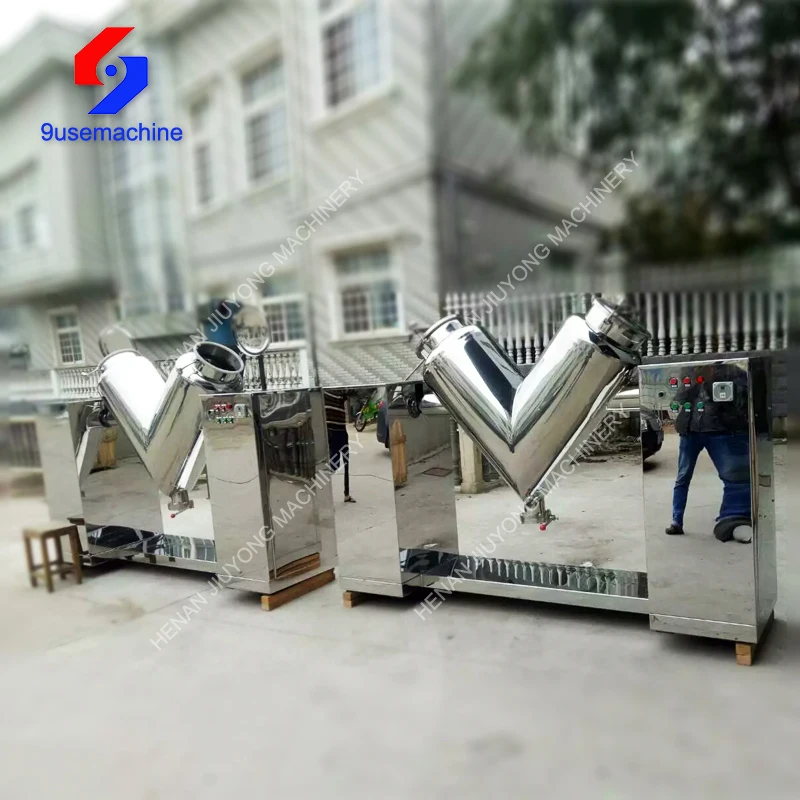

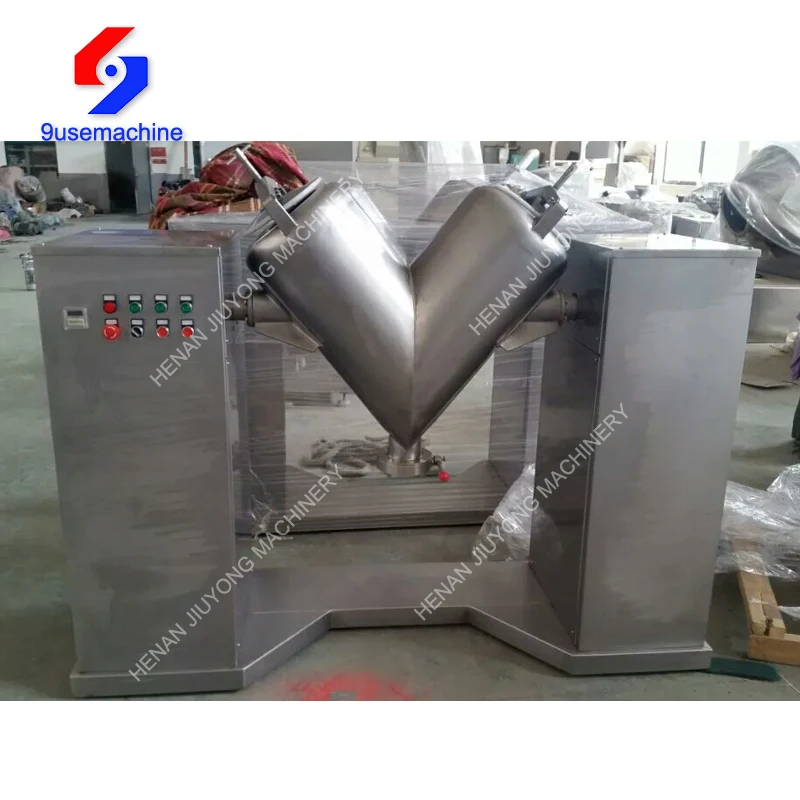

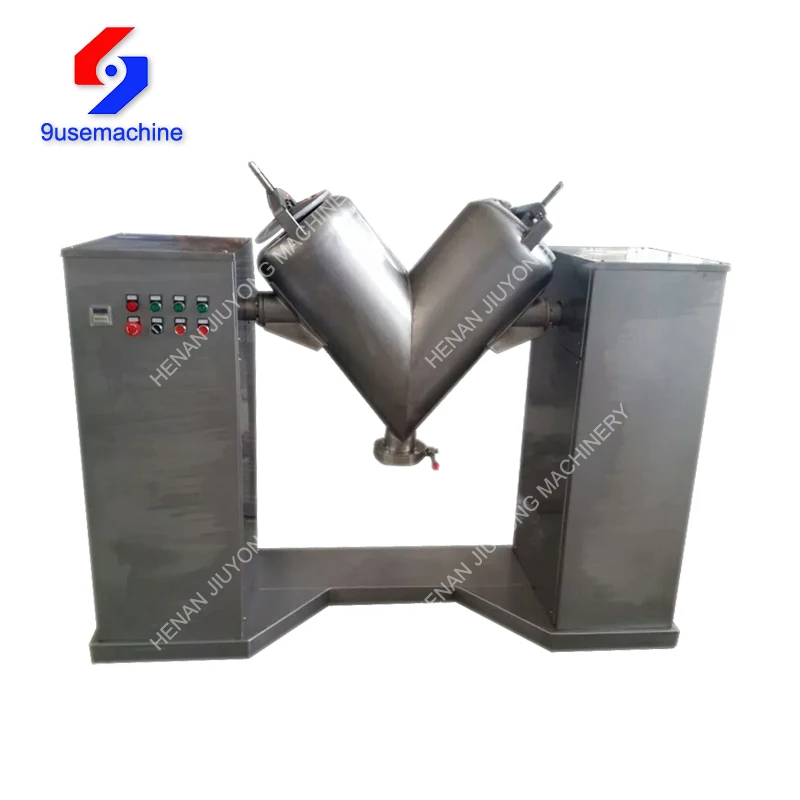

V-type mixer is composed of two cylinder V-type container welded together, the shape of the container is non-symmetricrelative to the axis. Since rotational movement,the powdercontinuously and alternately repeat, split, mergein the tilt cylinder.Material randomly pass from one area to another.While the powder or granular particlesslip,multiplestack in space.Repeated cutting, diffusion mixing.
Characteristics
1)Compact structure, operation simple, maintenance convenience.
2)All parts contact with materials are all made of high quality stainless steel, and the inside wall and outside wall of the mixing vat are mirror polished, easy to wash, no pollution, meet the GMP standard.
3)The machine adopts V type asymmetric mixing vat to compound, no dead angle, no accumulation of materials, high speed, and short mixing time, high uniform mixing.
4)The machine is equipped with a timing device, it can set mixing time to realize automatic stop.
Product Parameter:
| MODEL | TOTAL VOLUME (CBM) | PRODUCTION CAPACITY(KG/BATCH) | MIXING TIME (MIN) | MOTOR POWER (KW) | SPINDLE SPEED (R/MIN) | WEIGHT (KG) | DIMENSION (MM) |
| V50 | 0.05 | 12 | 6-10 | 0.55 | 12 | 220 | 1100*600*1100 |
| V200 | 0.2 | 48 | 6-10 | 1.1 | 12 | 290 | 1800*650*1550 |
| V500 | 0.5 | 120 | 6-10 | 2.2 | 12 | 550 | 2200*850*2320 |
| V1000 | 1 | 240 | 6-10 | 4 | 10 | 800 | 2295*1400*3000 |
| V1500 | 1.5 | 360 | 6-10 | 5.5 | 10 | 1100 | 3319*1450*3100 |
| V2000 | 2 | 480 | 6-10 | 7.5 | 10 | 1500 | 3380*1600*3310 |
| V2500 | 2.5 | 600 | 8-12 | 11 | 10 | 1800 | 4100*1800*3450 |
| V3000 | 3 | 720 | 8-12 | 11 | 8 | 2200 | 4300*2000*3860 |
| V4000 | 4 | 960 | 8-12 | 15 | 8 | 2800 | 4460*2200*4000 |
