Electric Shear Wrench
- Category: Electric Wrench >>>
- Supplier: Jiaxing Pink Electronic Technology Co. Ltd.
Share on (62079365243):
Product Overview
Description
Product Description

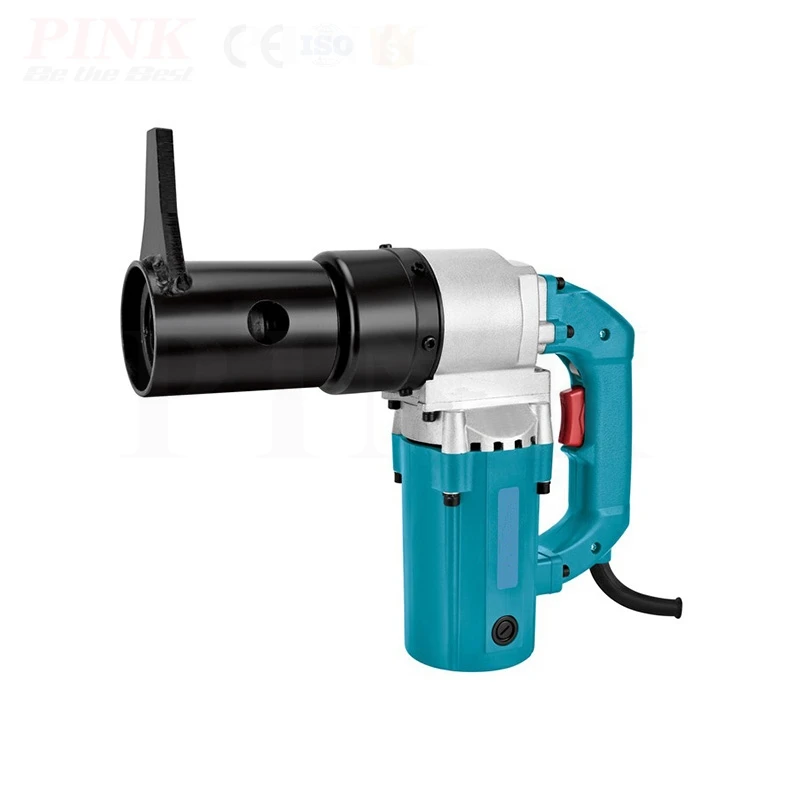

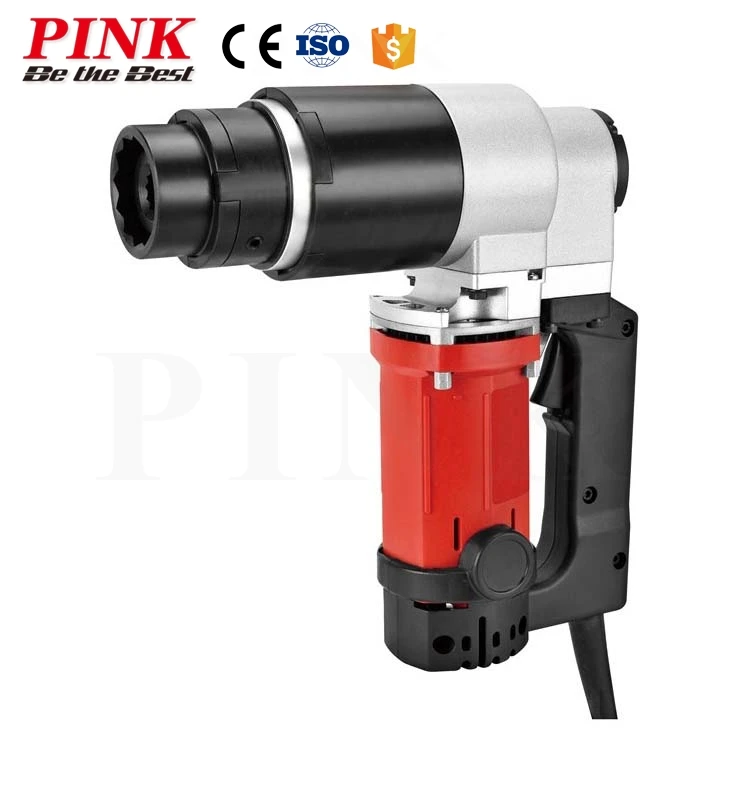

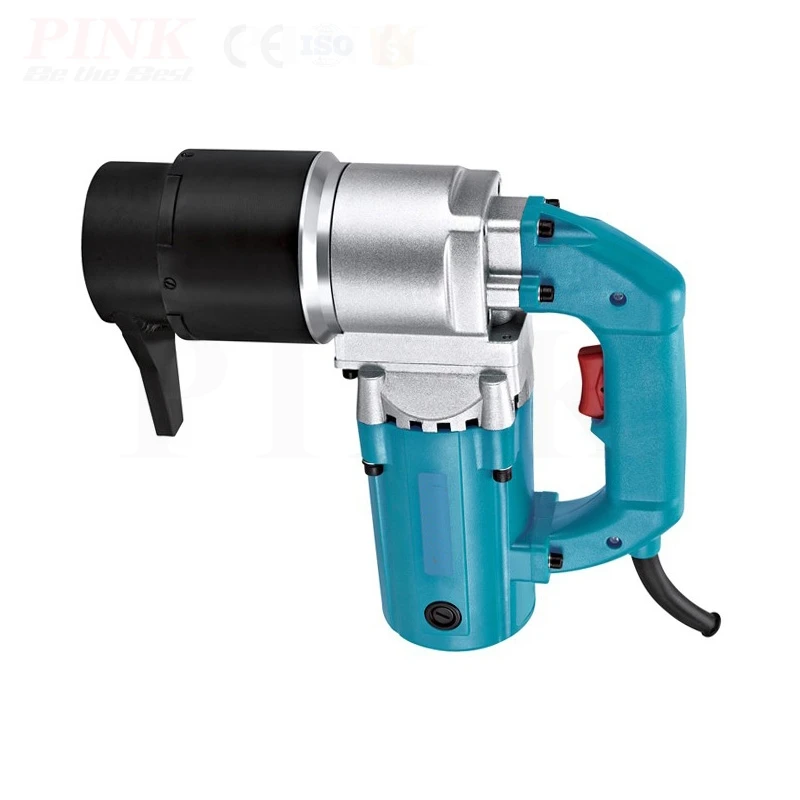

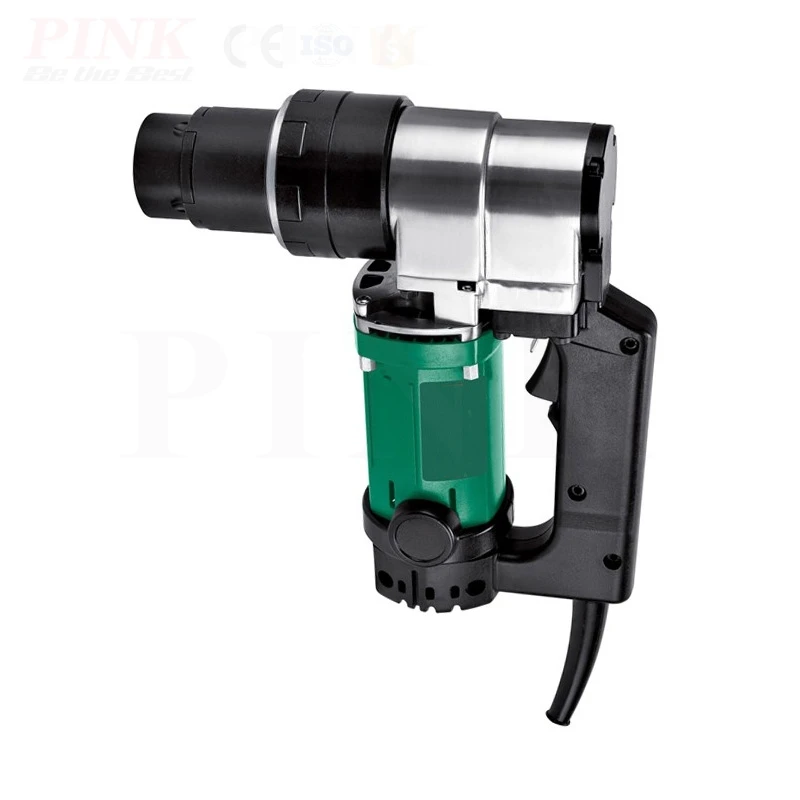

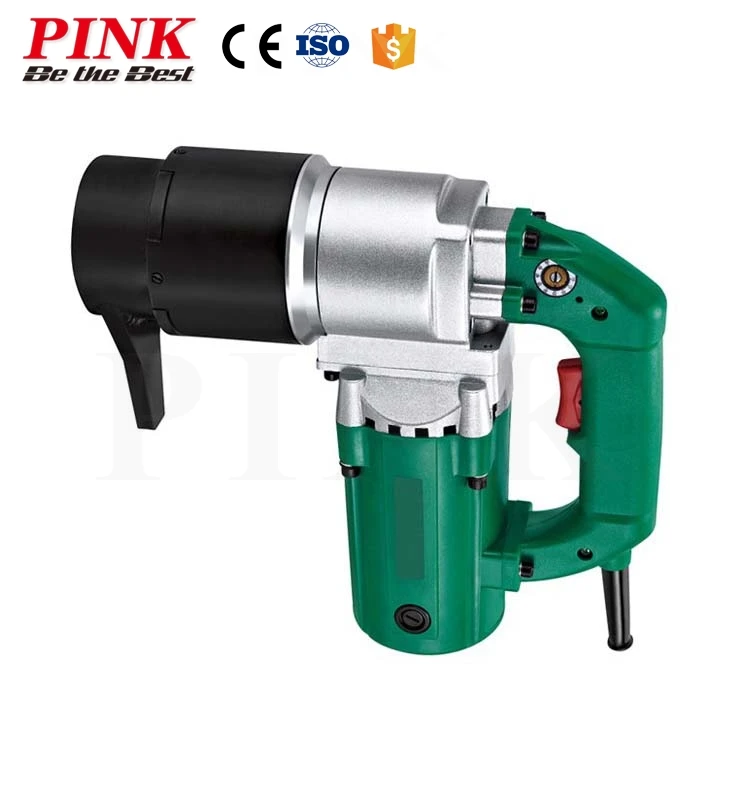

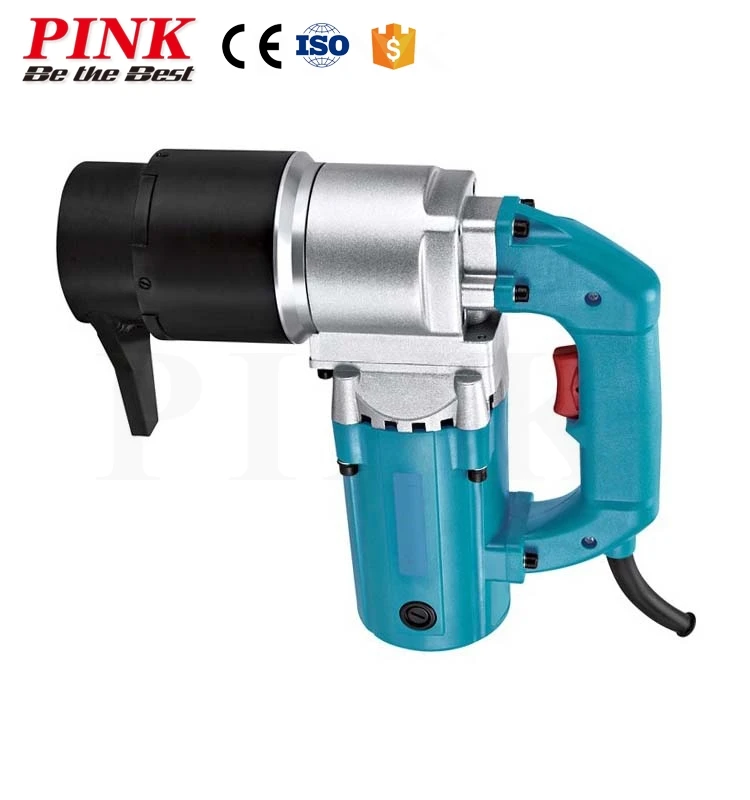

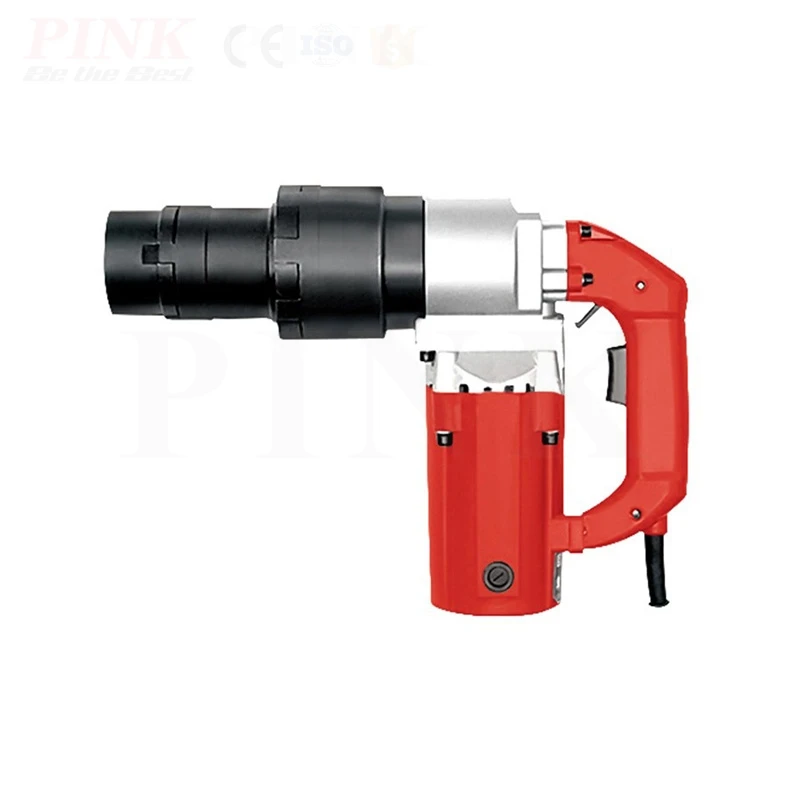

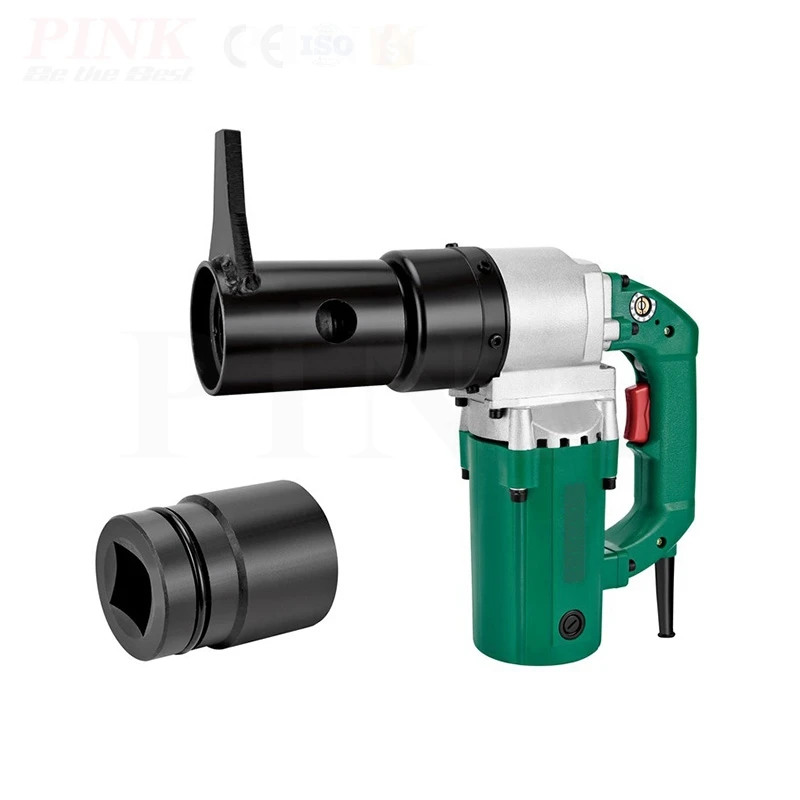

Electric Shear Wrench Detail:
1.Collet chuck size:25x25mm
2.Suitable bolt size:M16-M24,M27-M30
3.Maximum torque:800,1000,1300,1500Nm
4.Input power: 710,800,1000W
5.No-load speed:4,8,9,10,14r/min
6.Weight: 4.8,5,5.5,6.5,7.5kg
7.Certificate: GS,CE, EMC,ROHS
Electric Shear Wrench Features and Functions:
1. The torsion shear wrench is mainly a final tight-twist type high-strength bolt. Its purpose is to break the torsion-cut high-strength bolt's plum head.
2. When working, align the wrench head with the bolt head and pull the switch to start working. After a few seconds, the bolt head will be broken, then pull out the wrench and pull the trigger to pop the plum head, which will end the work.
3. Electric wrenches are mainly used in the steel structure installation industry, specializing in the installation of steel structure high-strength bolts, high-strength bolts are used to connect steel structure joints, usually in the form of bolts.
4. Generally, the fastening of high-strength bolts must be tightened first and then tight, and strict torque requirements are required for each step. Large hexagonal high-strength bolts must use a torque wrench for the initial and final tightening, so various electric wrenches are required for various fastening needs.
5. The disassembly and assembly torque is large and safer than manual. Convenient, beautiful, practical and easy to carry with the car. It is widely used in the construction of steel structure bridges, workshops, power generation facilities and other facilities.
| Model | Product Name | Specification | Packing Size(cm) | G.W/N.W (kg) | PCS/CTN | 20´GP(pcs) |
| NEESW-01 (CE) | Electric Shear Wrench | Collet chuck size: 25x25mm No-load speed: 9r/min Rated input power: 800W Rated voltage: 220V~ Rated frequency: 50Hz Max fastening torque: 1500N.m | 25*28*11 | 5.5/4.8 | 1 | 3376 |
| NEESW-02 (CE) | Electric Shear Wrench | Collet chuck size: 25x25mm No-load speed: 8r/min Rated input power: 800W Rated voltage: 220V~ Rated frequency: 50Hz Max fastening torque: 1000N.m | 25*28*11 | 6/5 | 1 | 3376 |
| NEESW-03 (CE) | Electric Shear Wrench | No-load speed: 4r/min Rated input power: 1000W Rated voltage: 220V~ Rated frequency: 50Hz Max fastening torque: 1300N.m Suitable bolt size: M27-M30 | 25*28*11 | 6/5 | 1 | 3376 |
| NEESW-04 (CE) | Electric Shear Wrench | No-load speed: 10r/min Rated input power: 1000W Rated voltage: 220V~ Rated frequency: 50Hz Max fastening torque: 1000N.m Suitable bolt size: M16-M24 | 25*28*11 | 6/5 | 1 | 3376 |
| NEESW-05 (CE) | Electric Shear Wrench | No-load speed: 14r/min Rated input power: 710W Rated voltage: 220V~ Rated frequency: 50Hz Max fastening torque: 800N.m Suitable bolt size: M16-M22 | 25*28*11 | 6/5 | 1 | 3376 |
Company Information
Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.
We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.
Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.
Packaging & Shipping
FAQ
If you are interested in our Electric Shear Wrench, please don't hesitate to contact us.
