2019 factory best price car spray booth oven
- Category: >>>
- Supplier: Zouping Jinding Coating Equipment Co. Ltd.
Share on (62079398494):
Product Overview
Description
2016 factory price car spray booth
Product Description

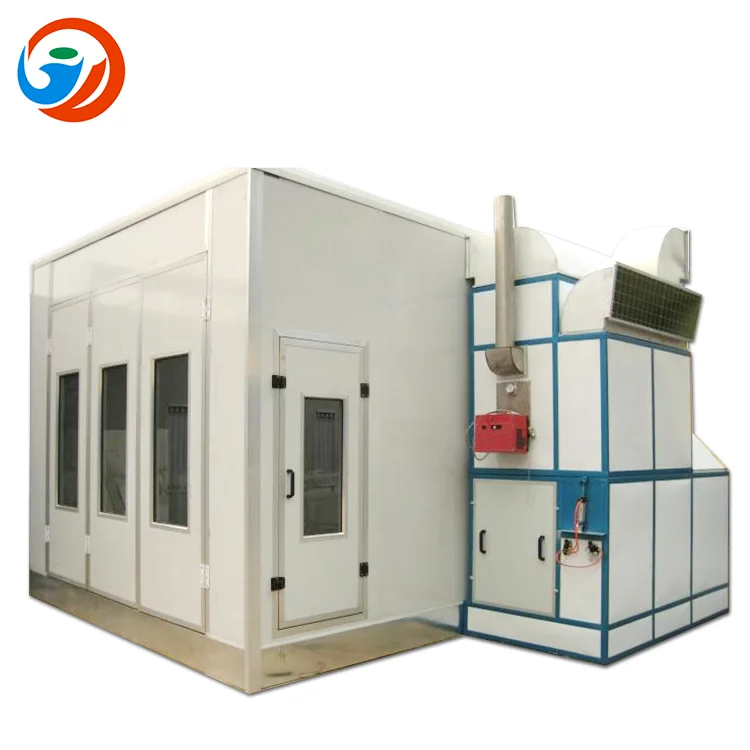

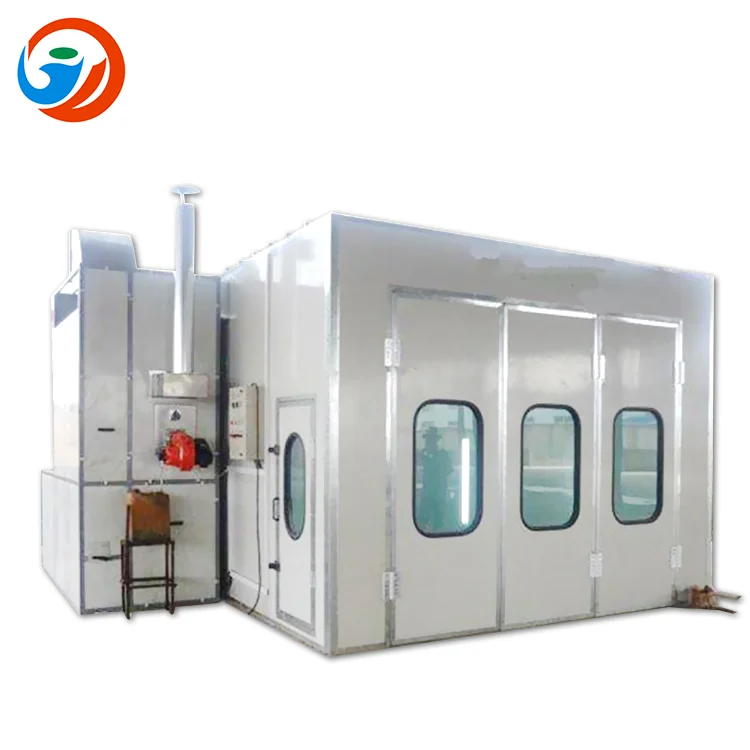

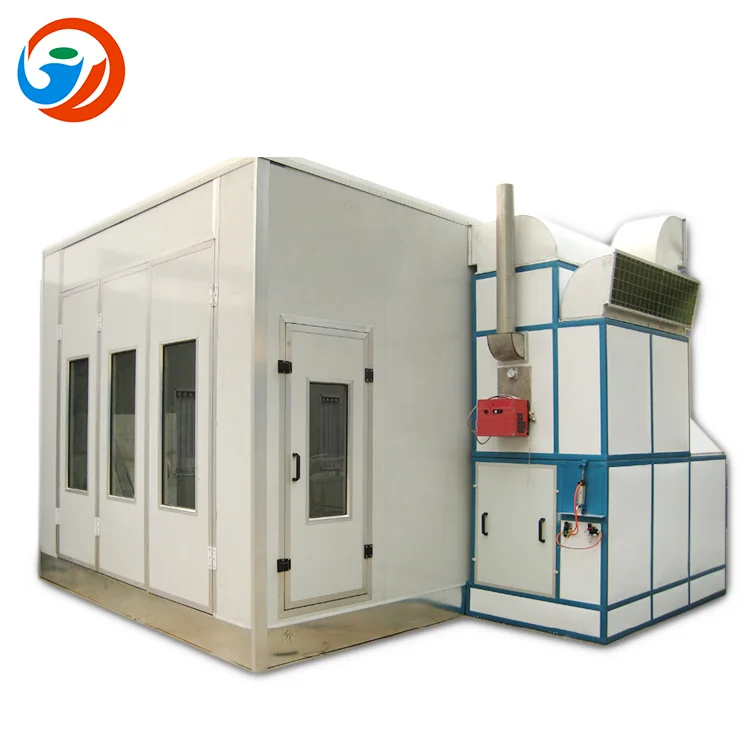

JD-A7 spray booth
Model | JD-A7 |
Inside Dimension | 6900*3900*2400mm (L×W×H) |
Outside Dimension | 7000*5300*3200mm (L×W×H) |
Personal Door | 1fold ,800×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock . |
composite board | 75mm foam board, density:10kg, Ironhide thickness:0.4mm |
Basement and Floor | Galvanized steel assemble,Full metal foundation, height is 300mm. |
Five rows flat steel Grilles (galvanized) | |
3 pieces of Ramps, each size 900×2000mm (W×L),diamond plate construction. | |
Climbing platform | Size:1.6*0.7m, Mechanism of bonding3*5 grille |
Lighting System | LED lighting, 24 groups |
Generator | -Side upper intake air, quadrate steel frame, coated steel. |
Setting Type | -Electric damper actuates from the spraying to baking cycle. |
Inlet Fan | 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h. |
Heating Method | Fuel oil heating, using the G - 20 burner |
Filter System | -The primary filter can capture granules larger than 10μm , filtering rate > 83%. |
-Ceiling filter can capture granules bigger than 4μm | |
-Floor filter( fiberglass paint-stop filter ),filtering rate > 70%. | |
-Activated carbon filter or granules put in cabinet. | |
Control System | Lighting switch, spraying , heat spraying , baking , temperature controller, |
time setting, emergency stop , failure indicator, hour meter, thermostat . | |
Total Power | 10.5KW |
1.Product description--jinding spray booth
2.The wall panels--75mm rock wall panels
3. The burner--Riello Brand G20 Diesel Burner
4.Our certificates
Our Services
1.All the device warranty one year from the date of acceptance.(except for man-made damage)
2.Give customers manual and some information when acceptance.
3.Set service hotline,give service such as advisory,difficult to answer
4.We probide spare parts with reasonable price for long-term
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Packaging & Shipping
Machine is well packed in container.
