high density ceramic fiber insulation sheets ceramic fiber boards

Product Overview

Description

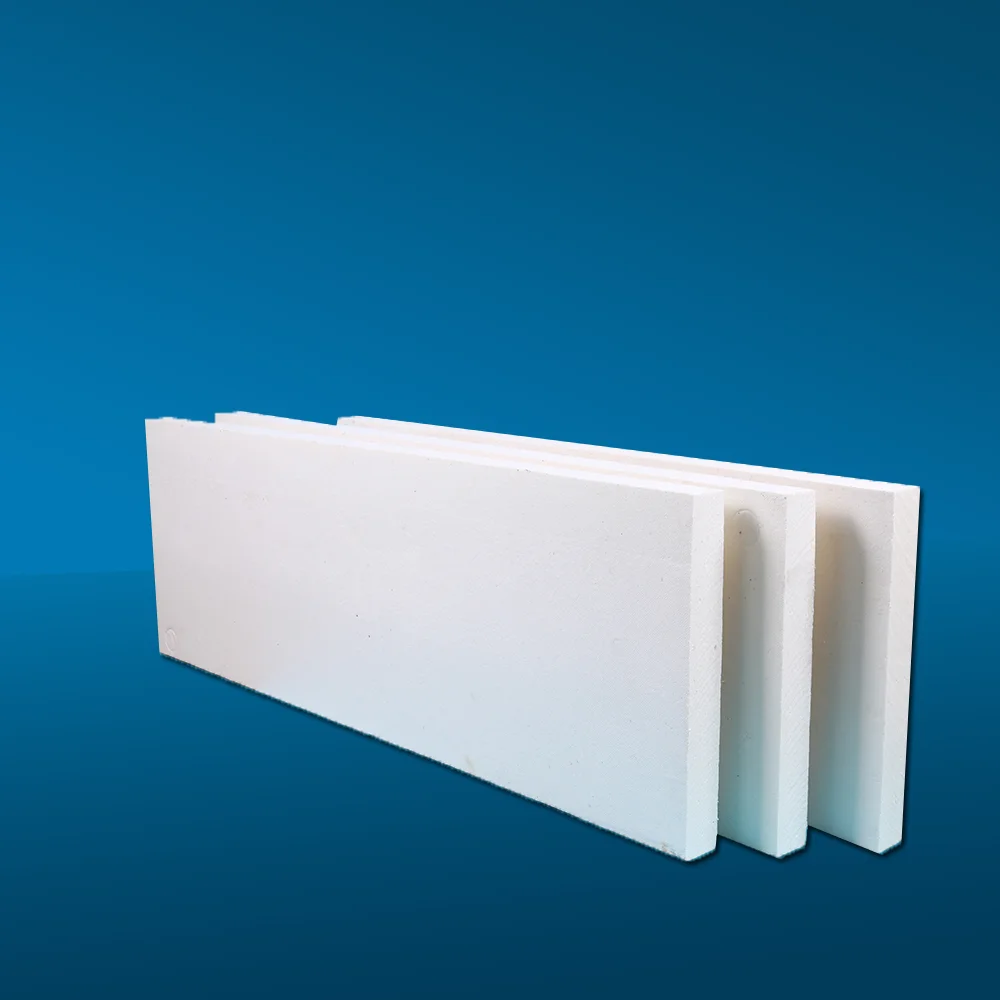

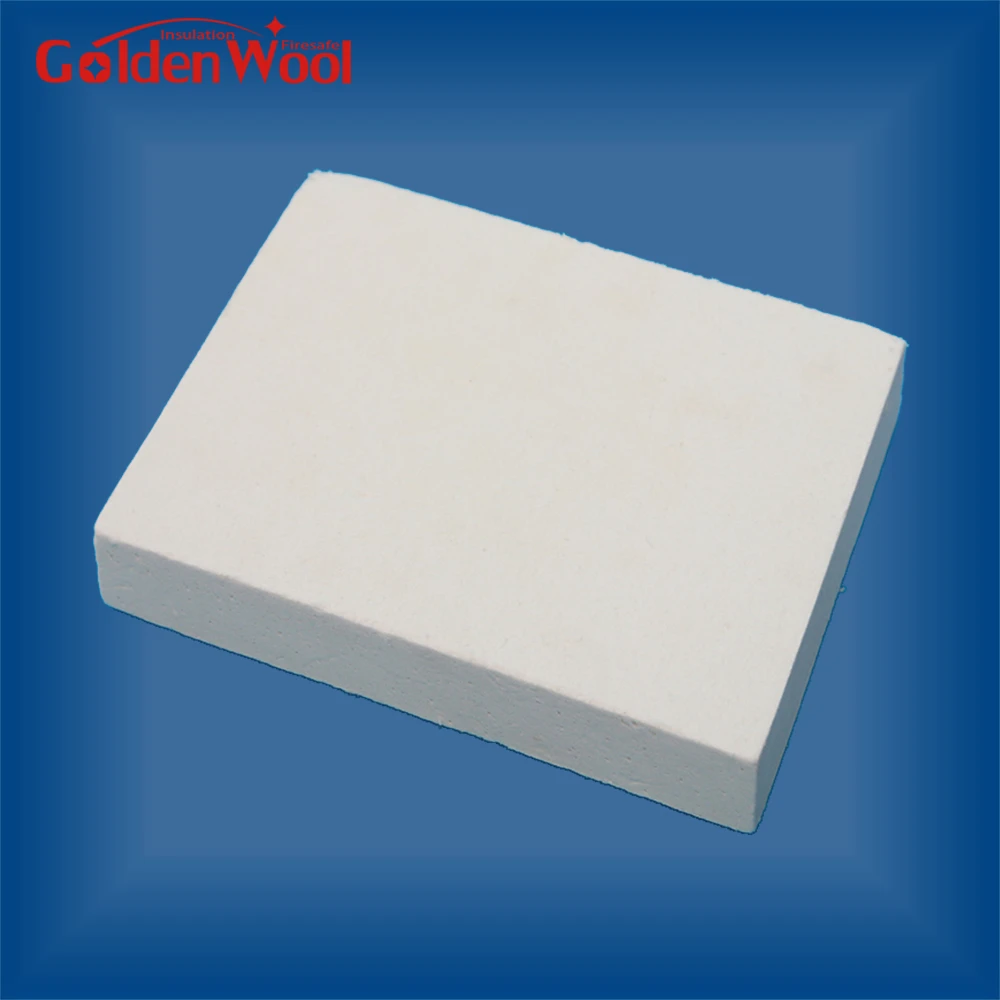

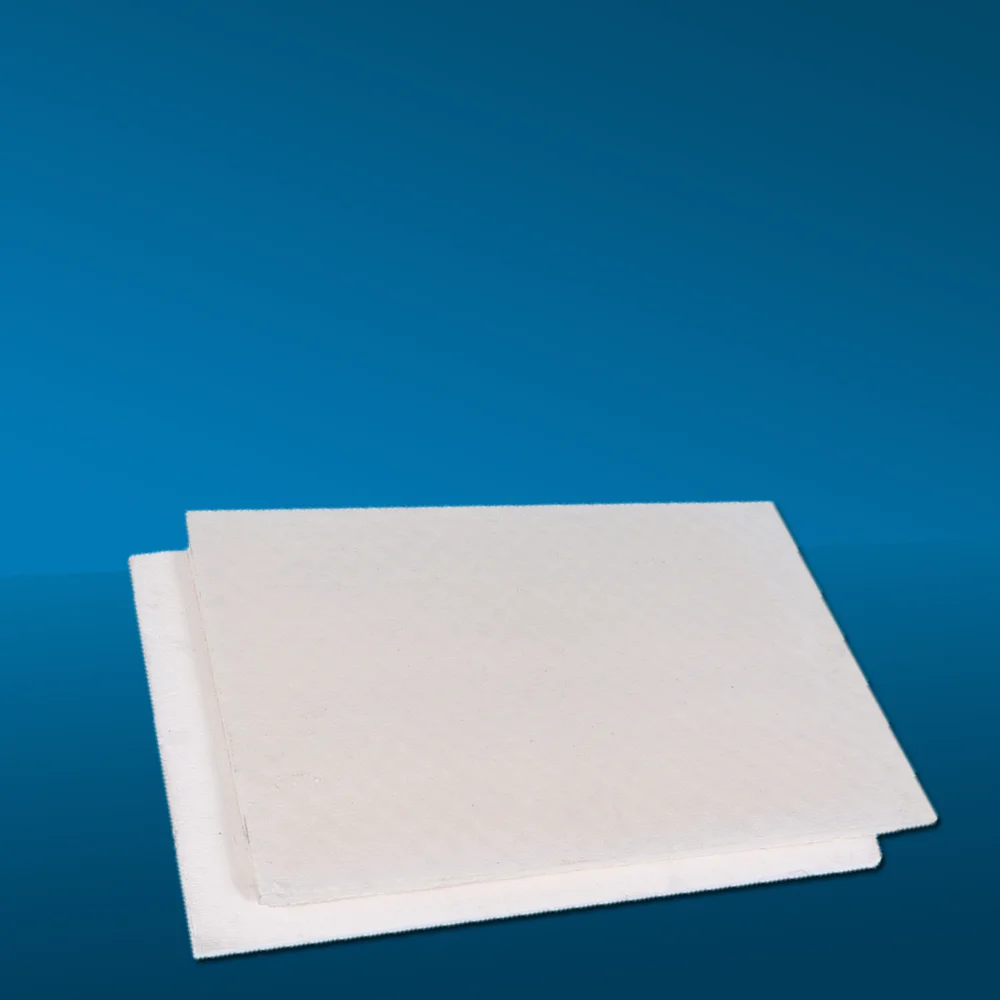

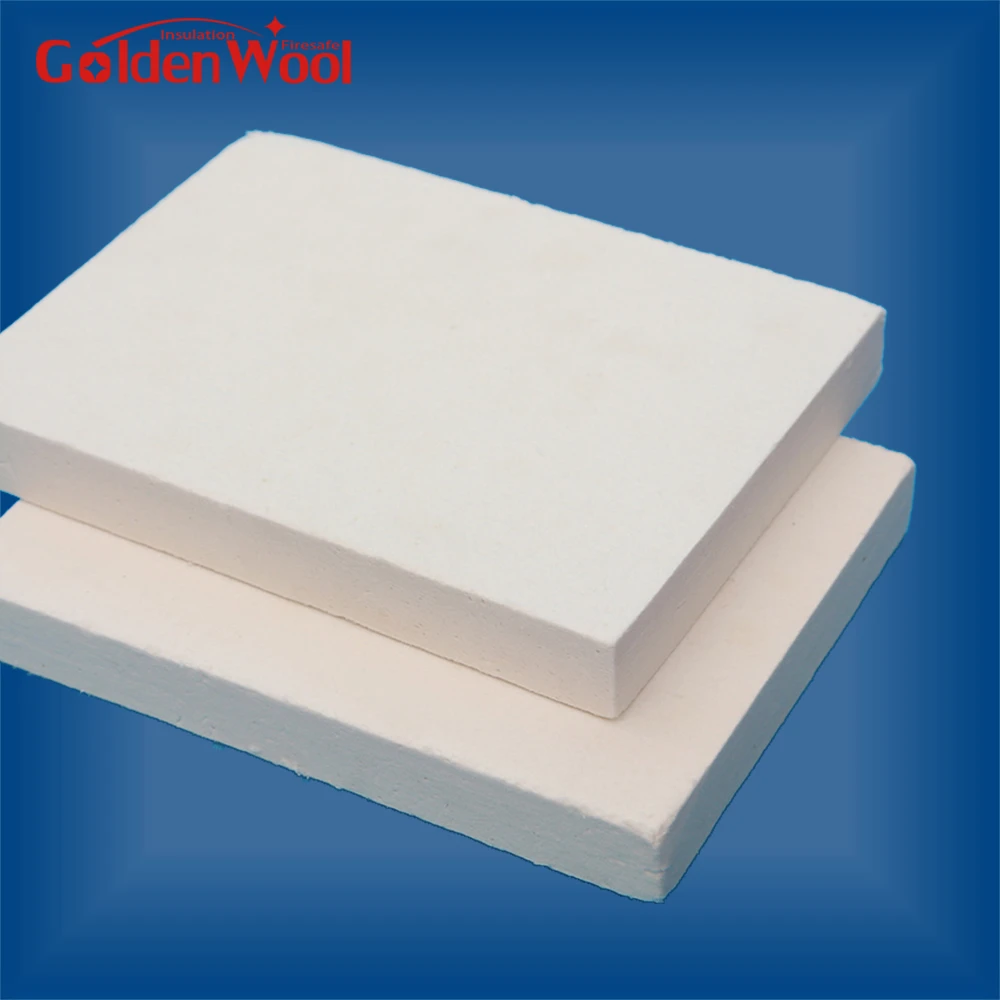

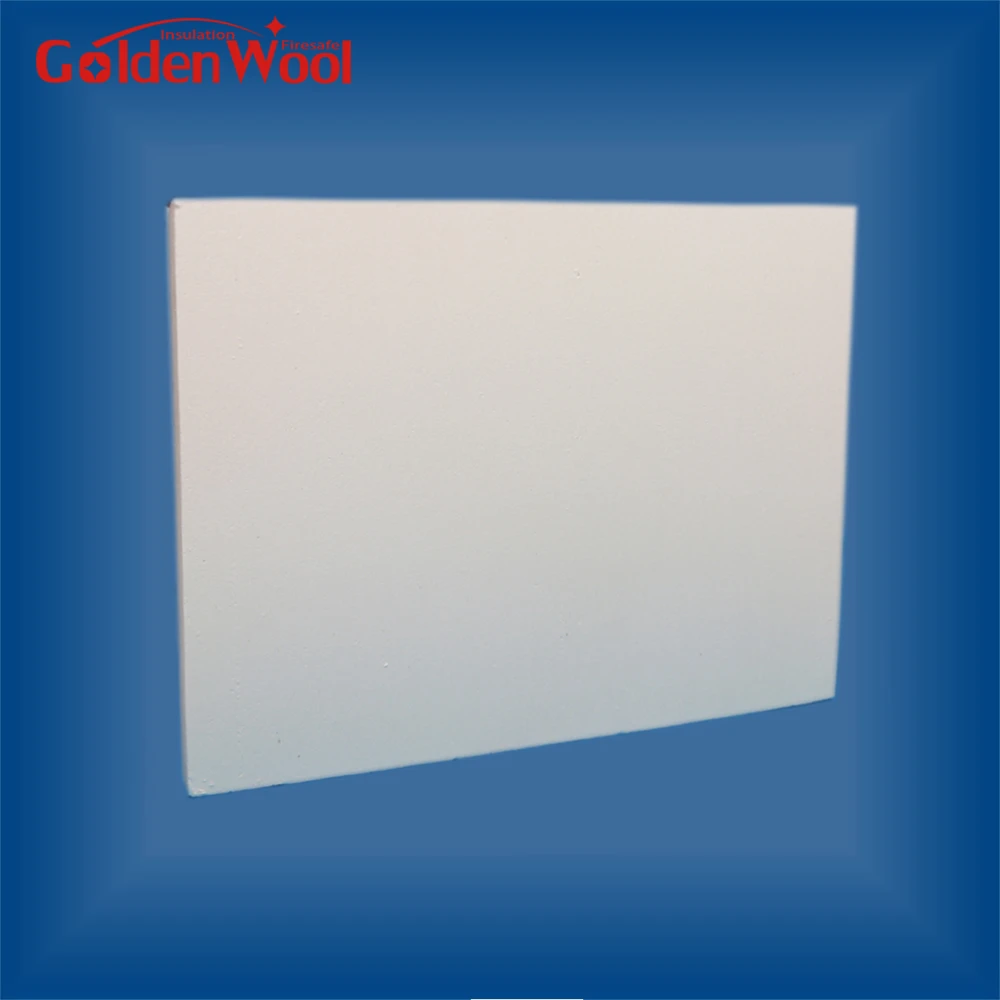

High density ceramic fiber insulation sheets ceramic fiber boards

Aluminum silicate ceramic fiber board is manufactured from aluminum silicate fiber bulk spinning from kaolinite, alumina silicon dioxide and zircon sand. The ceramic fiber board with the advantage of uniform quality, smoothly surface ,pure white color, completely inorganic ,good tensile strength, toughness and fiber structure.











Product Line of Ceramic Fiber Board













Character of Ceramic Fiber Board



·  Low heat storage and low thermal conductivity

·   High compression strength

·   Non –fragile materials and good toughness

·   Accurate dimension and good planeness

·   Structure homogeneity and easy machining

·   Easy to install

·   Continual production, even fiber with stable property

·   Excellent heat stability and thermal shock resistance





Data of Ceramic Fiber Board



	COM Board	ST Board	HP Board	HA Board	HZ Board
Classification Temperature(℃)	1100	1260	1260	1360	1430
Working Temperature(℃)	1000	1050	1100	1250	1350
Color	White	Pure White	Pure White	Pure White	Pure White
Density(kg/m3)	260-320	280-600	280-600	280-600	280-600
Shrinkage (1800℉, 3h)	-4 (1000℃)	-3 (1000℃)	-3 (1100℃)	-3 (1250℃)	-3 (1350℃)
Thermal Conductivity	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)
Chemical Composition	AL2O3+SIO2	AL2O3+SIO2	AL2O3+SIO2	AL2O3+SIO2	AL2O3+SIO2
Ultimate Strength (≥ MPa)	0.5	0.5	0.5	0.5	0.5
Size(mm)	600*400*10-50, 1000*500*10-50 Other is made according to customers' requirement.



Application of  Ceramic Fiber Board



♦ The wall liner and back lining materials of high-temperature reaction, reheating equipment and various industrial furnace .

♦ Insulating and fire proof plate of furnace door and roof or house chimney and fireplace.

♦ Lows fire proof and insulation for chimney cake ovens, pizza oven.

♦ boilers and heater combustion chamber



Shipping and Packing of Ceramic Fiber Board

1. Our packaging is as per customer's request.

2. Normal goods delivered by sea transport.

3. Sample shipping by express.









Certification of Ceramic Fiber Board
