Product Overview

Description

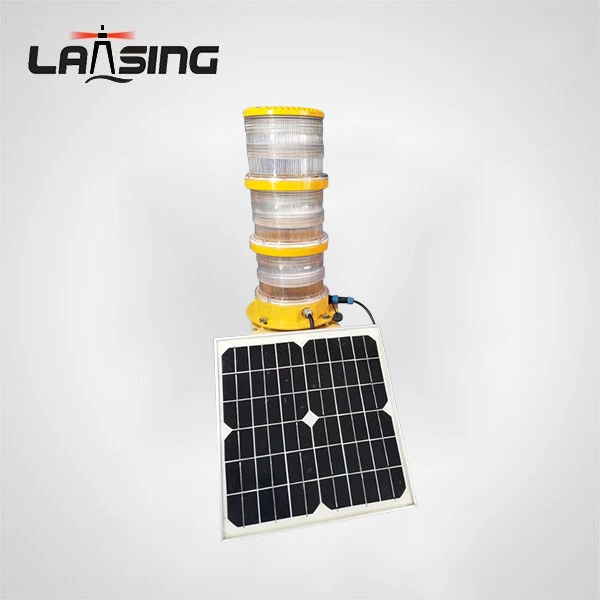

TY4W Solar Powered High Intensity Obstruction Light

Description:

TY4W solar powered LED high intensity red obstruction light, solar self-contained design makes it easy to install any emergency case.
Robust body built and surface coating provides good protection against hash environments. Other advantages like energy saving and cable saving make the solar powered light a good option on obstruction marking.
TY24Wis equipped with a 60W solar panel and 24Ah VRLA (Voltage-Regulated Lead Acid) rechargeable battery which could power the light up to 3-4 days when the weather is cloudy &rainy.



Features

•  High quality optics for excellent beam spread control


•  Ultra-light LEDs, energy saving


•  Self-contained without outside power supply


• Maximum visibility distance 40KM


•  Once fully charged, it can work for up to 6 days in flashing mode and 3 days in fixed mode


•  All hardware of obstruction lights are made of corrosion resistant metals.


•  Use of quality components and sophisticated technology reduce chances of maintenance and replacement.


•  LED light source ensures long lifetime, maintenance free


•  Shock and vibration resistant


•  Corrosion resistant and UV stable polycarbonate housing


•  Ease of mount, mount accessories available


•  No wiring job, nice & easy installation

Specifications:

LIGHT OUT-PUT
SPECIFICATIONS	( Night,red) 2000cd (±25%),(at dusk,white)20,000cd (±25%),(daytime,white)270,000cd
LED Color Available	Red and white
Vertical Divergence	Peak intensity at 1 Degree
Horizontal Out-put	360 Degree
Illumination	Ultra-bright LEDs
LED Lifespan	100,000 Hours
OPERATION
Autonomy	6 days (in cloudy&rainy days) in flashing mode, 3 days in steady mode
On & Off Level	70/100 Lux
Flash Pattern	Flashing (20-60 times/min available)
POWER SUPPLY
Solar panel	45W25V
Battery Type	Lead acid type. 24V/24AH(VRLA)
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Water-proof	IP65
Weight	17KG
Temperature Range	-40C ~ +55C
Warranty	5 years for light 2 years for Lead acid battery 10 years for solar panel











Applications

• High rise building marking


• Telecom tower marking


• Road obstruction marking


• Navigation aid


• Port, dock entrance&walkway


• Buoy marking
