Product Overview

Description



Product Description

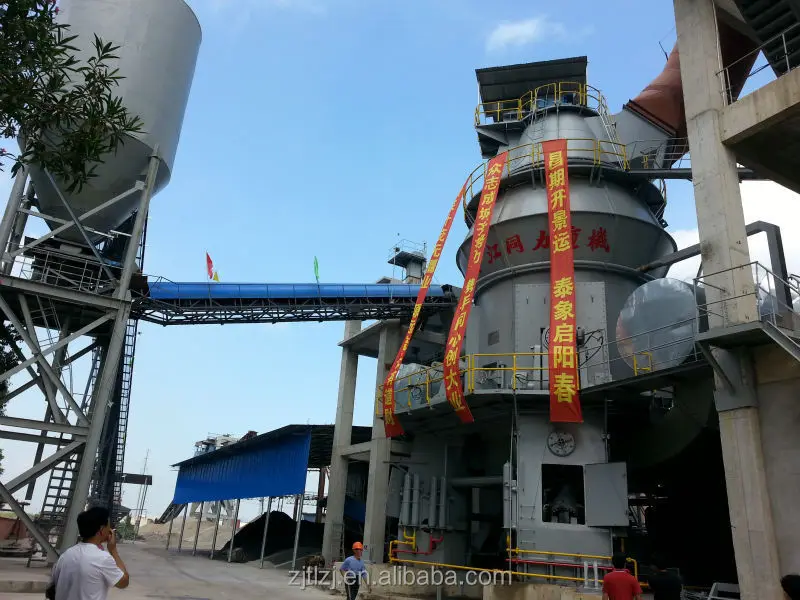

The vertical mill produced by our company is air-swept type, widely used in the grinding of raw cement, slag, cement clinker, raw coal and other raw materials. It gathers grinding, drying and powder selecting as a whole, with high grinding efficiency and high drying capacity ( the maximum material moisture can be up to 20% ). The vertical mill adopts dynamic powder selecting device, which comes with high powder-selecting efficiency and convenient adjustment of fineness.


Raw meal vertical mill
ZJTL raw material vertical mill is an honorary product launched by our company to solve the technical problems of low output and high energy consumption of raw material vertical mill in the production process of cement process. Vertical mill is a grinding and drying equipment with mature technology and superior performance. It is widely used in cement chemical industry, coal, electric power and other departments. It has many advantages, such as drying, grinding and powder selection. It has become a mainstream product in cement grinding industry.

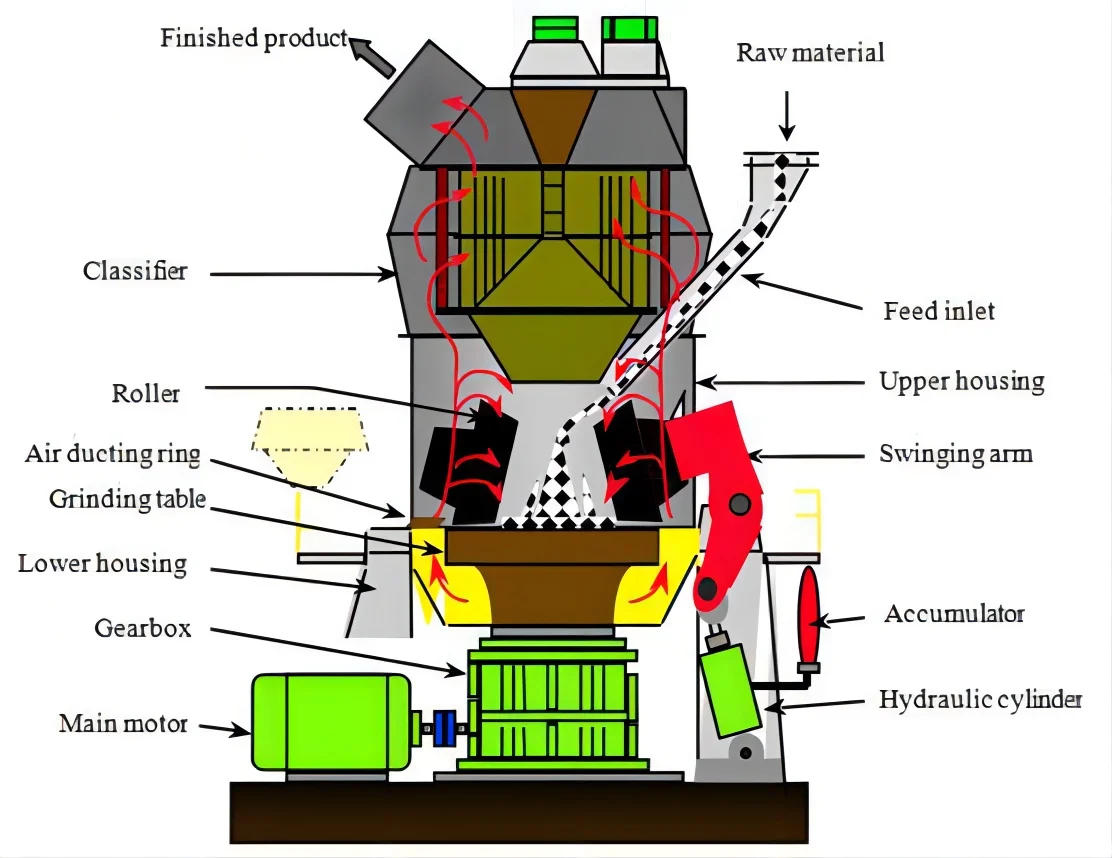

Working principle

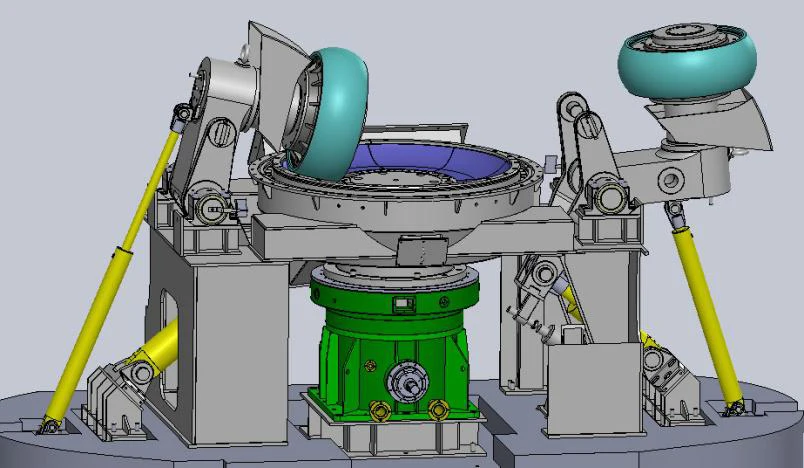

The vertical mill is mainly composed of powder concentrator, grinding roller device, grinding disc device, pressurizing device, reducer, motor, shell, etc. The separator is an efficient and energy-saving powder separation device. The grinding roller is a component used to roll and crush materials. The grinding disc is fixed on the output shaft of the reducer, which is the place where the grinding roller rolls materials. The pressurization device is a component that provides grinding pressure for the grinding roller and provides sufficient pressure to the grinding roller to crush materials. After being crushed by hammer crusher, the large material becomes smaller and is sent to the storage hopper by elevator, and evenly sent to the distribution board on the steering board through vibrating feeder and inclined feeding pipe. The grinding disc is driven by a motor through a reducer. The material falls from the feed opening onto the grinding plate. The material is driven to the edge of the disc by centrifugal force and crushed into fine powder by roller. Then, the hot air of the nozzle converts the fine powder into efficient classification. The qualified powder is brought to the powder collector through air for collection, and the unqualified powder is sent back for regrinding.






Low operation cost
(1) Low energy consumption: the grinding roller is used to directly roll and grind the materials on the grinding plate, which has low energy consumption and saves 30% ~ 40% energy consumption compared with the ball milling system.

(2) Less wear: because the grinding roller is not in direct contact with the grinding disc during work, and the grinding roller and lining plate are made of high-quality materials, it has long service life and less wear.


High grinding efficiency
The grinding force can be increased by hydraulic pressurization, which can increase the output and improve the grinding efficiency; At the same time, it is also equipped with a limiter device, which only grinds the materials to prevent the accidental contact of the grinding roller and grinding ring from causing the vibration and even wear of the equipment.


Convenient maintenance

By overhauling the oil cylinder, turning over the boom and replacing the roll sleeve and lining plate, it is convenient and fast to reduce the shutdown loss and save the labor cost.

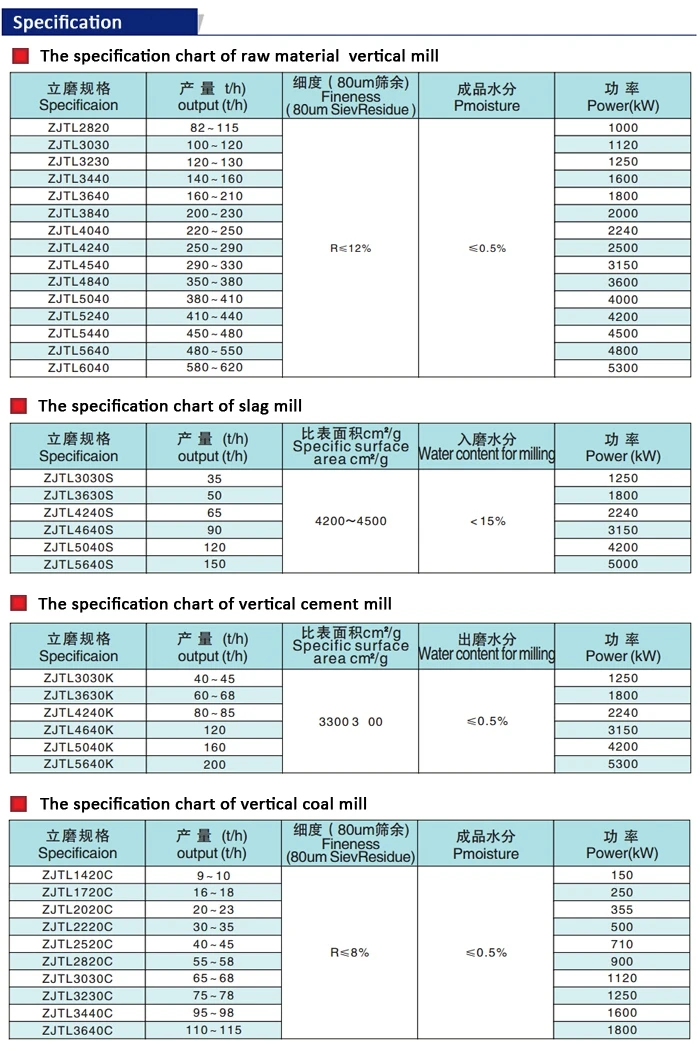

Specification


item
value
Applicable Industries
Construction works , Energy & Mining
Local Service Location
Egypt, Canada, Philippines, Pakistan
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition
New
Type
Vertical Mill
Motor Type
AC Motor
Capacity(t/h)
40 ~ 200
Place of Origin
China
Zhejiang
Brand Name
Toongli
Dimension(L*W*H)
According to different specifications
Weight
20000KG
Certification
ISO 9001:2008
Warranty
1 Year
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
After-sales Service Provided
Engineers available to service machinery overseas
Color
As required


Packing & Delivery


Sea worthy packing with wooden


Company Profile








Zhejiang Tongli Heavy Machinery Manufacturing Corporation is located in Tongxiang which is around sixty miles from Shanghai China. Set up in 1958 the factory covers more than one hundred and fifty thousand square meters. We possess one hundred sets of heavy machinery equipments, such as CNC horizontal lathers, CNC vertical lathes for turning, millings, borings, CNC Rollings, and cutting machines.

We specialize in heavy machinery equipment production, such as serious of ball mill, vertical mill and rotary kiln for cement in power, mining and construction industry, all kinds of granulator, dryer, cooler and coating machine for fertilizer industry. Our products have gained popularity all over China and exported to Central and Southeast Asia, North & South America, and Africa.

In addition, we offer parts of casting, machining and welding service for customers around the world. We are excellent at casting and machining design, such as working with Auto CAD, Pro-E, UG, and Solidworks, integration of customer new product development and prompt prototypes process which includes pattern making, casting, heat treatment, machining, assembling, and work testing etc. We could provide OEM/ODM according to the specifications, standards, and special requirements provided by our customers.

Quality is the life of our company. All of the products of Tongli have ISO 9001 Certification. Tongli provides you with great cost saving solution by offering your competitive pricing. Tongli is looking forward to welcoming customers abroad to visit our company and the opportunity to cooperate with you in the future.


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(81.30%),Oceania(9.10%),Eastern Europe(4.60%),North America(3.60%),Southeast Asia(1.20%),Southern Europe(20.00%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Vertical Mill,Rotary Kiln,Ball Mill,Incinerator

4. why should you buy from us not from other suppliers?
Tongli Heavy Machinery Co.,ltd established in 1958year, is a member of the China Building Material Machinery Association, a
leading enterprise of China Cement Machinery, on the vendor of designated manufacturers for coal industry mechanical and
electrical equipments, ISO9001:2008 accredited and accredited as a high-tech & new technology enterprise of Zhejiang Province,
national designated “defend the contract heavy credit enterprise”, modern enterprise of national top ten cement grinding system of
technologies and equipment , at the top of cement equipment manufacturing in Zhejiang Province.


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Italian
