ATSH X6 7.1 Home Theater System Professional 7.1 Audio Surround Speaker With Karaoke Machine Karaoke speaker Voice on demand
- Category: Home Theater Systems >>>
- Supplier: Dongguan Wennuo Electronic Technology Co. Ltd.
Share on (62079559716):
Product Overview
Description
Products Description
Description:

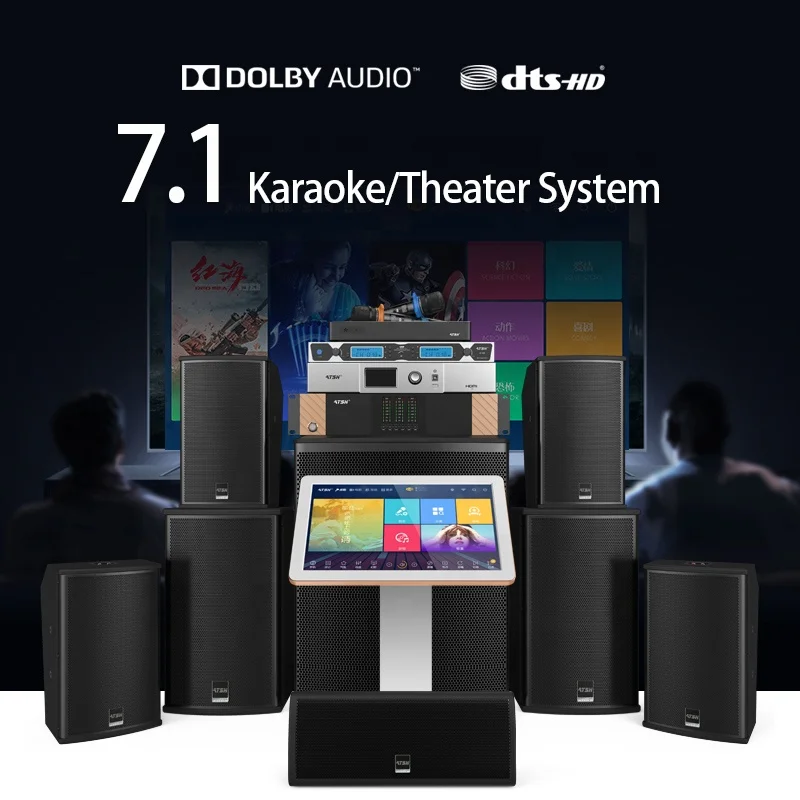

This item is a complete professional home karaoke&theater set(two in one), configuration by 7.1 speakers system, passive subwoofer, karaoke machine, amplifier, DTS decoder, wireless microphone set. Suitable for home, KTV, meeting rooms, hotels, schools, and commercial places. You only need to equip it with TV or projection.
Advantages:
1. Adopting DTS decoding high-performance AD/DA conversion processor.

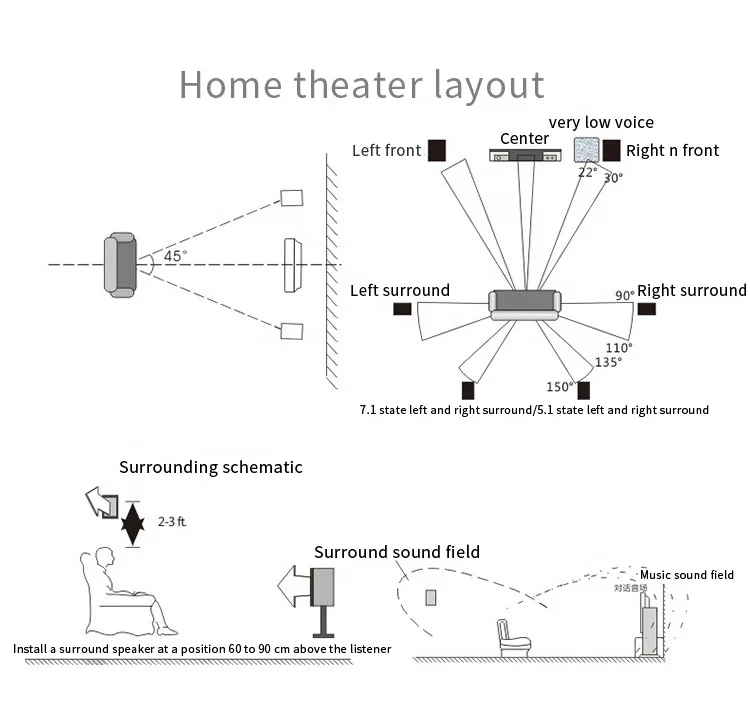

2. Support 5.1 (5.2.4)/7.1 (7.2.4) panoramic sound effects.
3. High-fidelity 6-channel/8-channel pure power amplifier.
4. Professional theater/karaoke sound.
5. Support voice/phone/tablet control to choose songs.
6. 250,000 copyright music/7000+ high-definition movie resources, updating continuously.
7. Convenient to operate, and has stable performance.
8. Freely switching the horizontal screen and vertical screen.
9. Eight kinds of system languages. You can also customize system language.
10. Support U disk play songs and movies.
Why choose us?
1. More professional: other common home theatres and karaoke don't have sound decoding functions, just amplifying the sound.
2. Complete set, home theater, and karaoke two in one. You no need to buy separately.
3. Brand: ATSH is a famous brand in the audio-video field in China. You can trust us.
4. Warranty: you can return the goods in 30 days after the arrival of the products if it has a defect. And we support a 1-year warranty.
Why choose us?
1. More professional: other common home theatres and karaoke don't have sound decoding functions, just amplifying the sound.
2. Complete set, home theater, and karaoke two in one. You no need to buy separately.
3. Brand: ATSH is a famous brand in the audio-video field in China. You can trust us.
4. Warranty: you can return the goods in 30 days after the arrival of the products if it has a defect. And we support a 1-year warranty.
Application:
Configurations & Parameters

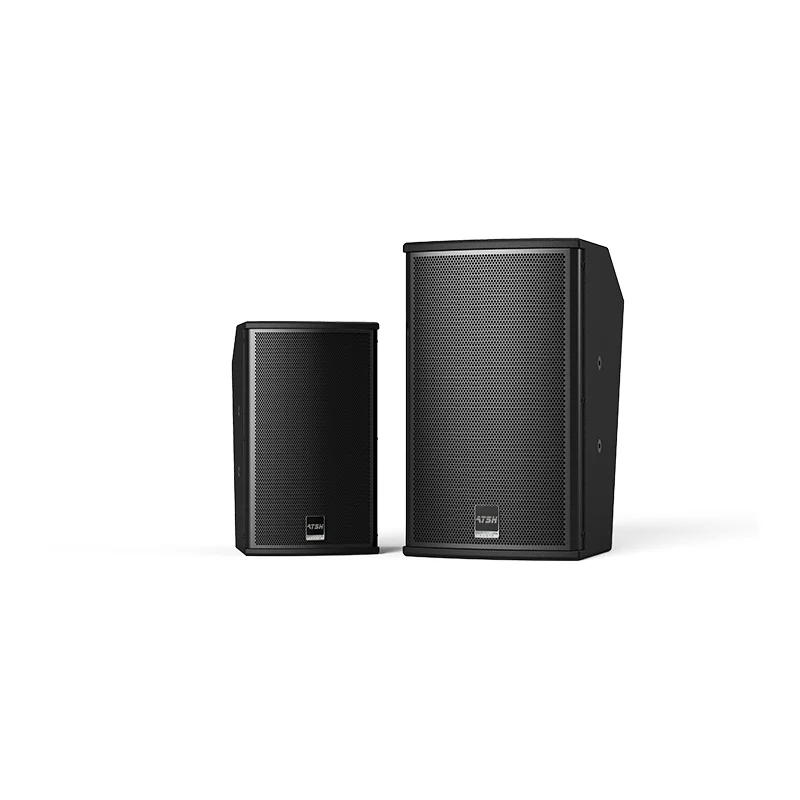

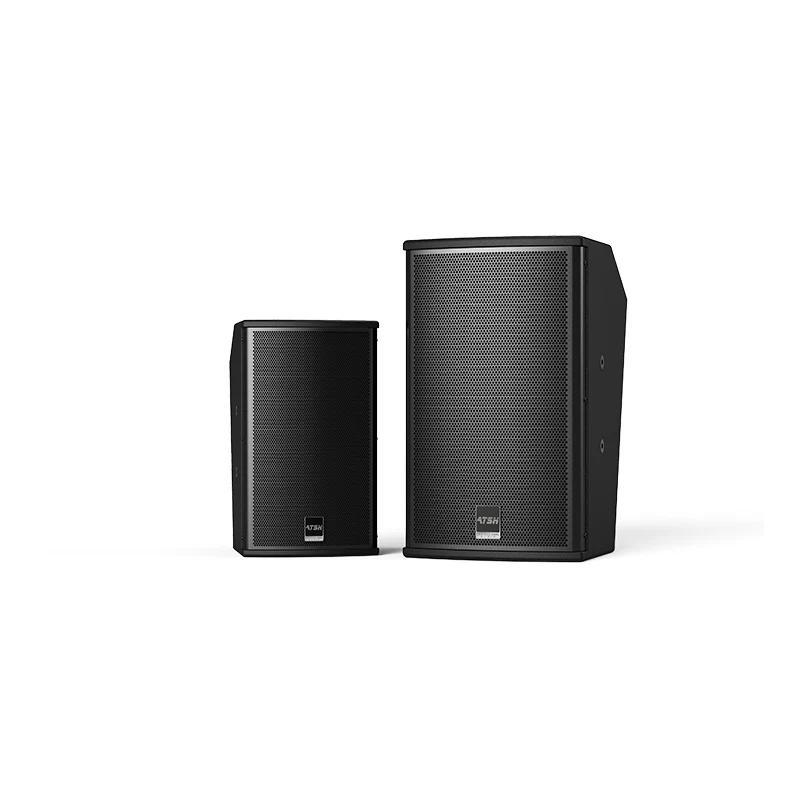

Main Channel speakers
Single 10-inch two-part two-unit paint speaker, 140 magnetic 44-core aluminum basin bass, 25-core horn treble.
Model | AP110 |
Power | 200W+200W |
Sensitivity | 95dB |
Frequency | 50Hz-18KHz |
Wooder | 10 inches |
Ic-full range Speaker | 140-44 ( magnetic-core) |
Size | 300x425x285mm/Piece |
Weight | 28kg/Pair |

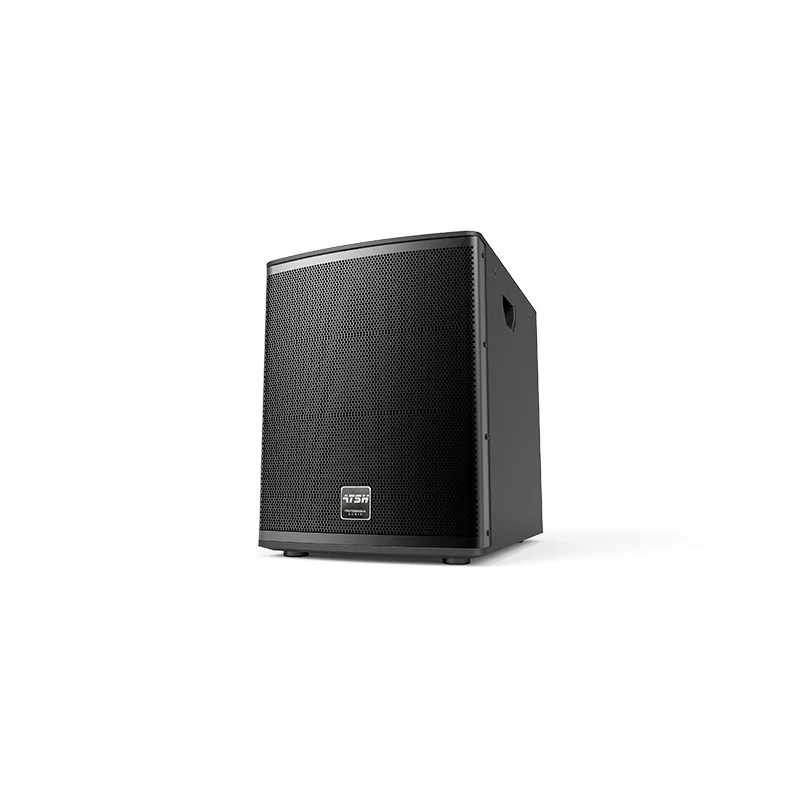

Heavy Subwoofer
Single 12" subwoofer, 190 magnetic 75-core alloy basin.
Model | KO1200 |
Power | 600W |
Sensitivity | 98dB |
Frequency | 20Hz-20KHz |
Wooder | 12 inches |
Distortion rate | <0.1% |
Size | 500x360x480mm/Piece |
Weight | 25kg/Piece |

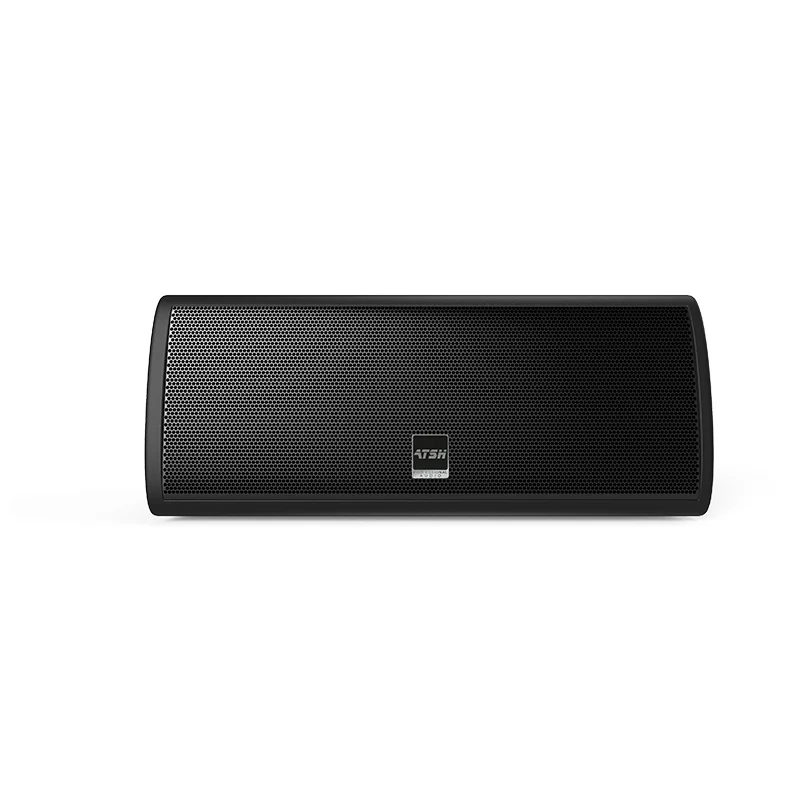

Center speaker
Double 5 inch two frequency division three-unit painting soundbox 140 magnetism 34 core basses, 3' *1 paper cone treble.
Model | AP520 |
Power | 200W |
Sensitivity | 95dB |
Frequency | 60Hz-18KHz |
Bass Speaker | 6.5 inch*2 |
High-pitched speaker | 3 inch*1 |
Size | 500x210x210mm/Piece |
Weight | 8.5kg/Piece |
Surround Speakers
Single 6.5-inch two-part two-unit paint speaker, 120 magnetic 35-core aluminum basin bass, 34-core horn treble.
Model | AP610 |
Power | 200W+200W |
Sensitivity | 93dB |
Frequency | 60Hz-18KHz |
Bass Speaker | 6.5 inch*2 |
High-pitched speaker | 3 inch*1 |
Size | 220x210x330mm/Piece |
Weight | 12kg/Pair |

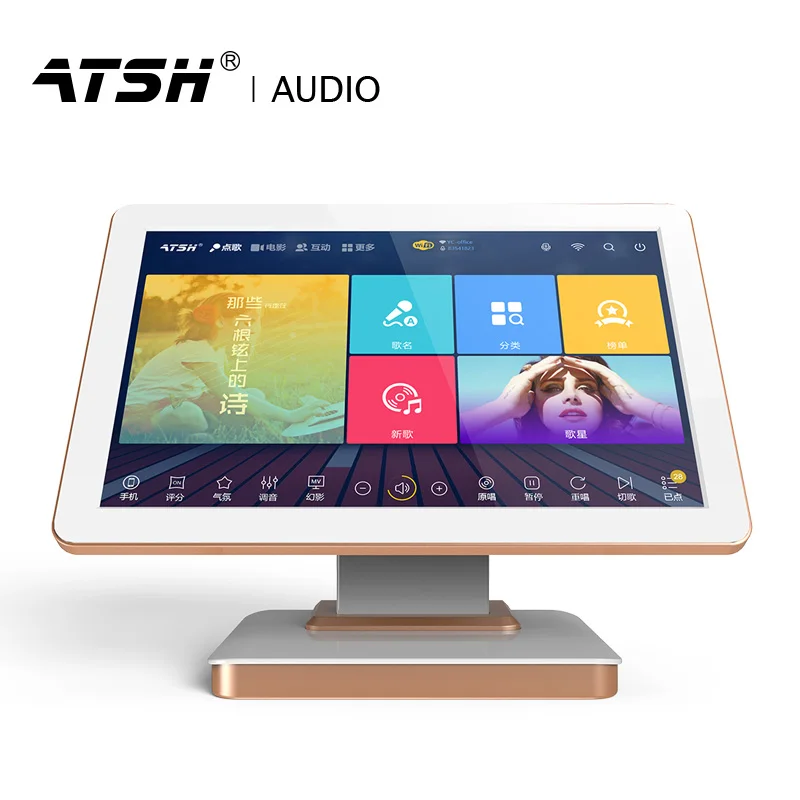

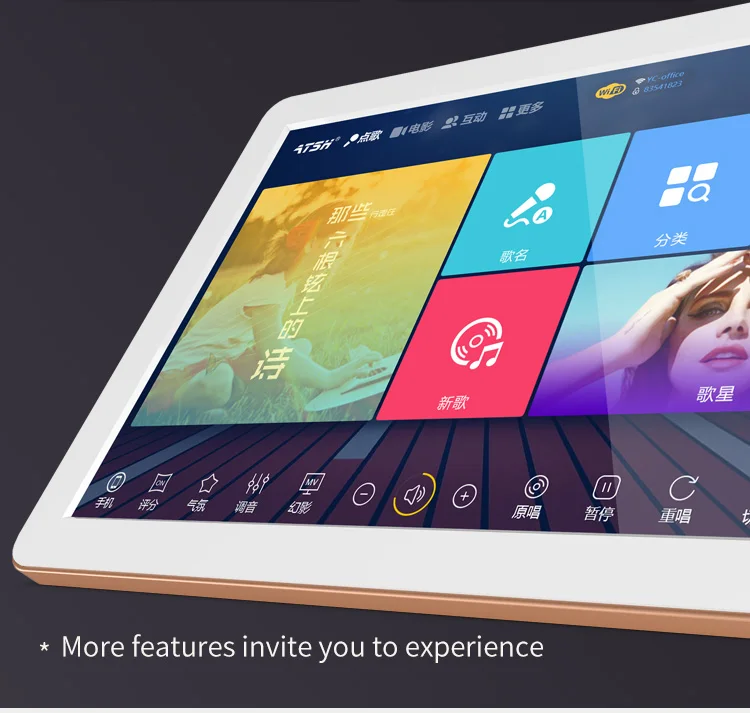

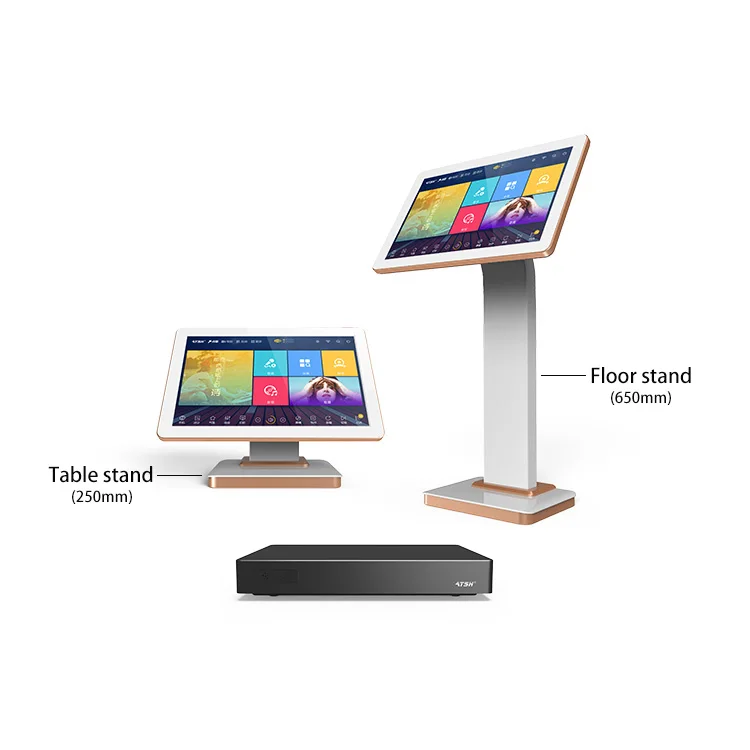

VOD karaoke system with touch screen
22-inch infrared screen 1080P HD audio&video output; Massive copyright audio-video cloud library, updating continuously; Support mobile phone and tablet APP full-featured manipulation; WiFi connection, directly online watching 7.1 HD movies, live TV, game interactive, support a variety of video formats; Song recording, sharing, scoring, intelligent deletion; Win8 interactive interface; 8 languages; Lifting and tuning function; U disk play.
Notice: please choose the table stand or floor stand when place an order.
Model | P10 |
Screen size | 22 inches |
Power | 220 V |
Screen type | LED |
Screen ratio | 16:10 |
Output quality | 1080P+720P |
Etherenet port | RJ45 (touch) |
Video input | VGA |
Size | 480x330x53mm |
Bracker height | 250mm/650mm |
Core | ARM dual-core 1.5G, quad-core GPU |
Storage | 1G RMA+4G ROM |
Sound card | ESS9023 HIFI chip |
Video | CVBS*1 HDMI*1 |
Audio | SPDIF + AV |
Feature | Dual input ( recording + voice/ rating ） |
USB | USB2.0*3 |
Output | TV(1080P),VGA(720P) |
Vod machine size | 325x181x52mm |

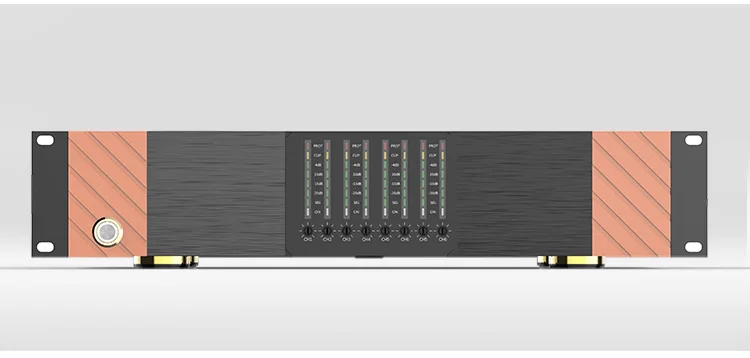

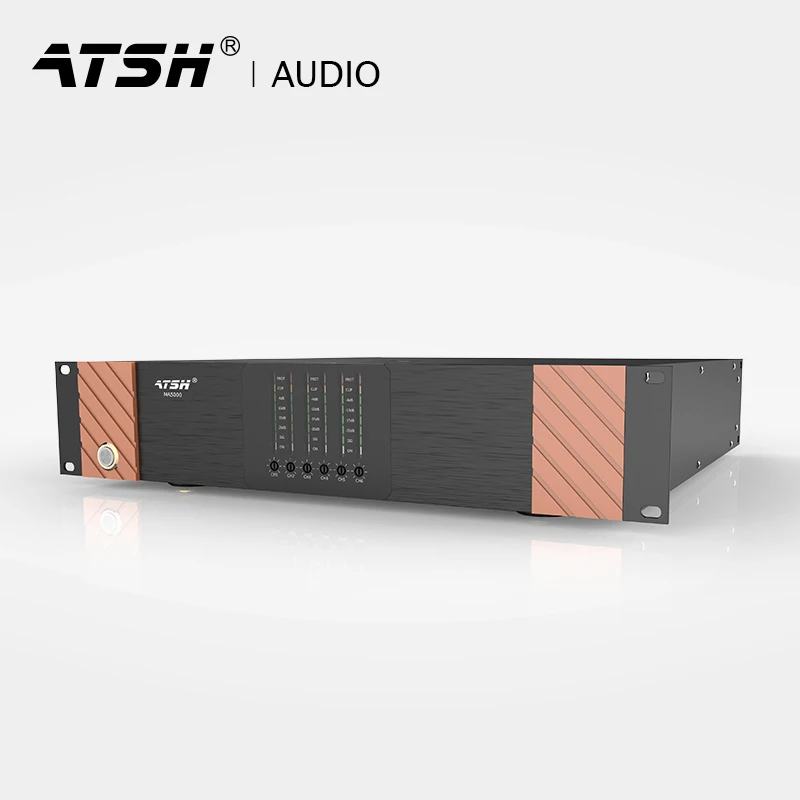

Pure post-amplifier
8Ω, soft start protection, DC protection, forced air chill and overheat protection;
Bridge/parallel/stereo operating mode is optional;
Automatic level control switch ground/suspension ground optional source device with any output;
Security and Protection of Power Amplifier overload and short-circuit protection features and high reliability;
High-level components for long-term use in harsh environments.
Bridge/parallel/stereo operating mode is optional;
Automatic level control switch ground/suspension ground optional source device with any output;
Security and Protection of Power Amplifier overload and short-circuit protection features and high reliability;
High-level components for long-term use in harsh environments.
Model | MA7000 |
Power | 2400 W |
Frequency | 20Hz-20KHz±0.5dB |
Voltage requirements | AC220V/50Hz |
impedance | 8Ω |
Cooling | Strong wind cooling variable speed fan |
protect the circuit | Start-up, short-circuit, DC and overheating protection |
input resistance | 20KΩ balanced, 10KΩ unbalanced |
Display | no |
SNR | 98dB |
Damping Factor | >260 |
Distortion rate | 0.1% (20Hz-20KHz) |
Size | 480x470x130mm |
Weight | 28kg |

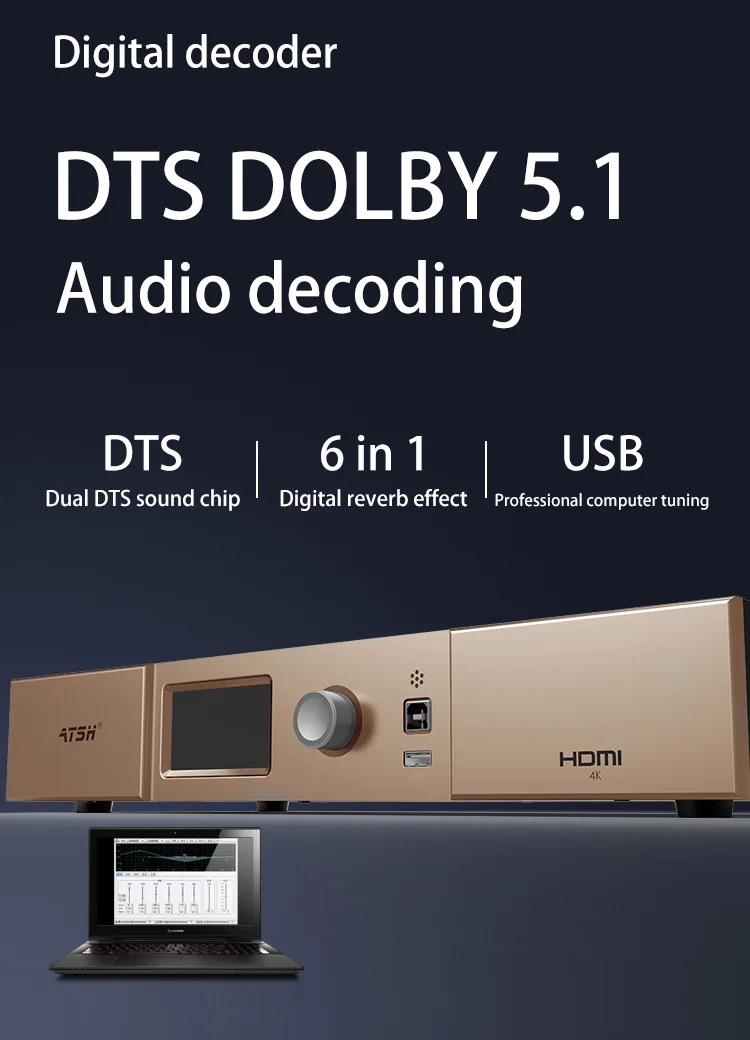

DTS Pre-decoder
DTS hard decoding HD Cinema 7.1 digital front processor, especial simple user interface, front panel programmable, excellent sound quality, a rack space, the output can be allocated to any input, HD Blu-ray LCD display, HDMI fiber-coaxial input, cross-frequency, equalizer, reverb and delay processing adjustment, 3-level anti-whistling function, 13-segment microphone equalization adjustment, 12-segment music equalization adjustment, lift-tone straight-line adjustment, 12 effect storage functions, with locking function (can save and switch by themselves), simple computer adjustment operation, high-medium-low precision adjustment function, limit function
Model | SZ7100 |
Channel | 8 |
Input power | 220V~50Hz |
Mic Sensitivity | 64mV(Out:4V) |
SNR | >80dB |
Music channel gain | MAX: 12dB |
EQ equalization | Paragraph 11-13 |
Input mode | BGM/AUX (fiber) |
Suppress whistle level | 3 |
Size | 430x220x75mm |
Weight | 2.5kg |

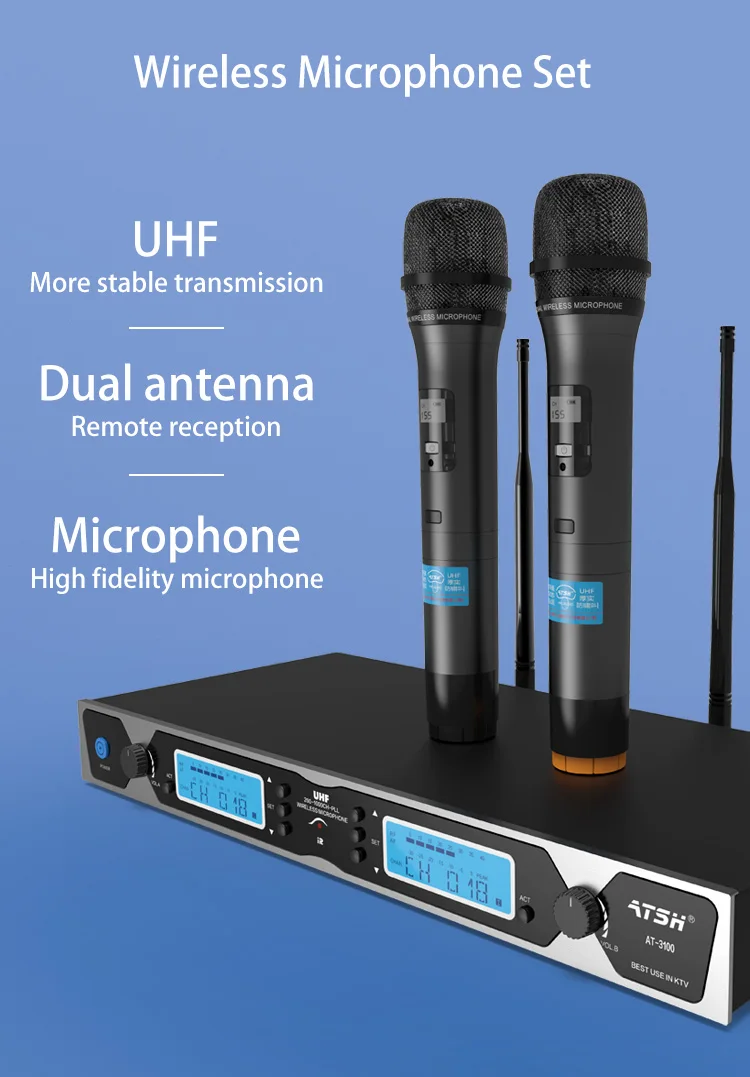

Model | AT3100 |
Frequency Range | 610-950MHz(depending on applicable national regulations) |
Band width | 50MHz |
Oscillation mode | PLL (Digital Frequency Synthesizer) |
Modulation | FM frequency modulation |
Frequency deviation | ± 45KHz |
Frequency response | 80Hz—15KHz |
Signal to noise ratio (S / N) | ≥50dB(A) |
Distortion (1kDz) | ＜2% |
Working distance | 100 meters (under ideal conditions) |
Power consumption | 8W |
Static power | 3W |
Audio output level | XLR output jack: 250mV / 600Ω unbalanced output (1/4 "output jack): 400mV / 3KΩ |
Spurious suppression | ≥80dB |
Mirror suppression | ≥80dB |
Sensitivity | 5dBuV |
Operating Voltage | DC12—16V |
Working current | ≤500mA |
RF power output | 30mW (depending on applicable national regulations) |
Transmitting frequency stability | ＜30ppm |
Dynamic Range | ≥100dB(A) |
Frequency response | 50Hz—15KHz |
Maximum input sound pressure | 130dB SPL |
Microphone pickup | Dynamic mode |
power supply | 2 AA-size alkaline batteries |
Number of channels | 100 (or 200) |
SNR | >100dB |
Dynamirange | >100dB |
Dynamirange | 8.5mW |
Operating area | Spacious region 50-100 meter |
Channel interval | 250KHz |
Sensitivity | 90dB |
Distortion rate | ≤0.5% |
Size | 420x190x50mm |
Weight | 3.5kg |
Function type | ||
Automatic update at boot | 250,000 cloud server song library | |
Voice song | On-demand, switching, adjustment, etc. | |
Song on mobile | Fully interactive mobile phone control | |
Tablet song | Android, IOS sync support, full-featured control | |
Smart cleanup | No need to manually organize the music library and memory, the system automatically recognizes and clears the unused memory | |
Support Language | Simplified Chinese, Traditional Chinese, English, Malaysian, Indonesian, Vietnamese, Japanese, Korean | |
Favorite | Favorite your favorite songs | |
Record sharing | Share recorded songs | |
Live video | Internet live channels, TV stations synchronize HD live broadcast | |
Wireless WiFi | Direct WIFI connection | |
Mobile screen | Video, audio, picture, etc. | |
Supports full function control of multiple phones | Interface can be controlled by multiple phones at the same time | |
live television show | Domestic and foreign TV stations, local TV stations, CCTV and TV channels | |
Support 5.1 / 7.1 output | Support DTS Dolby Surround movie playback output | |
Support audio track switching | 2D / 3D conversion | |
USB plug-in playback | External hard disk playback | |
Sound adjustment | Intuitive adjustment of output tracks and sound transposition adjustment | |
Online movie | 7000+ classic movies | |
Game interaction | Competition / Adventure / Leisure / Sensory | |
KONE on demand | Mobile APP control | |
