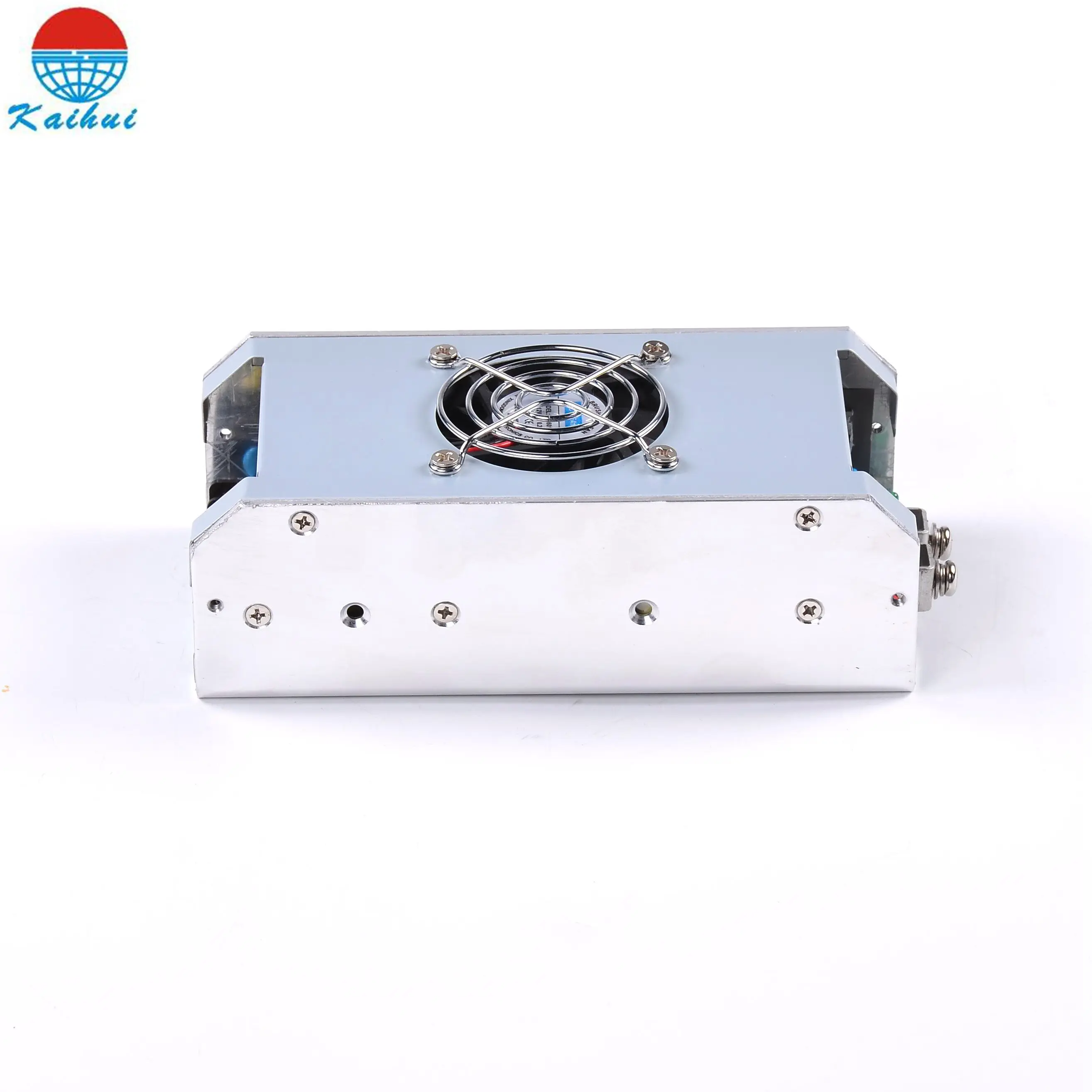

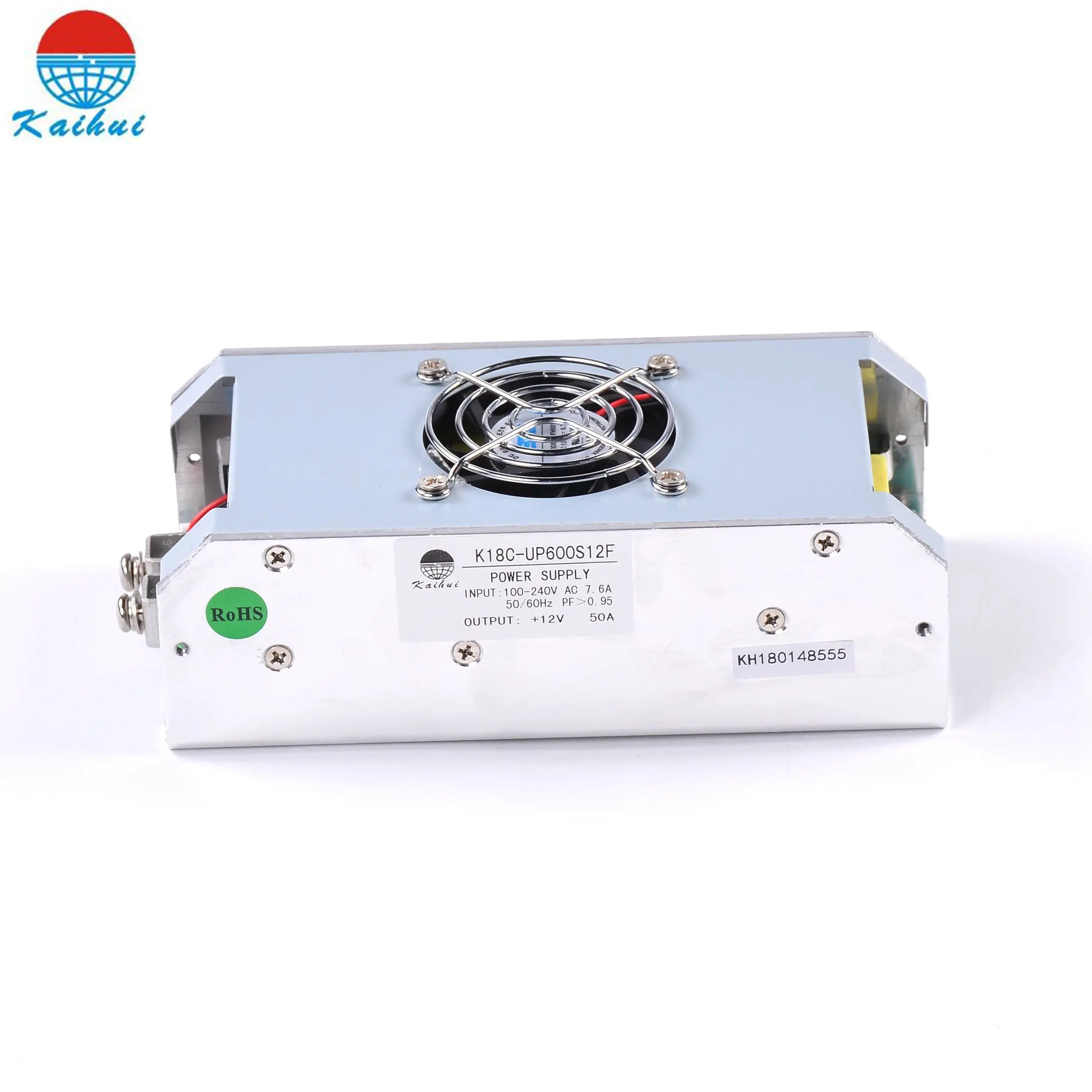

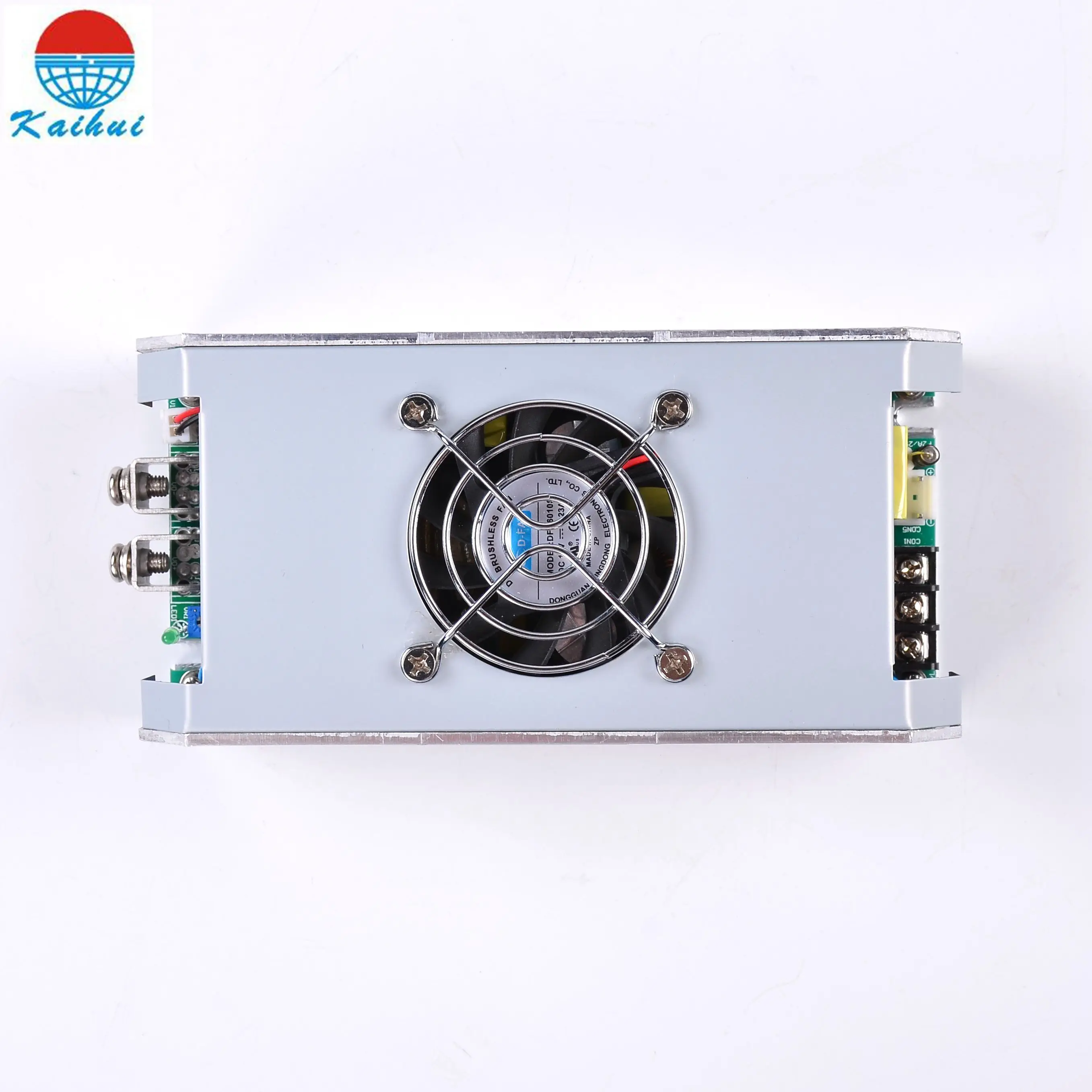

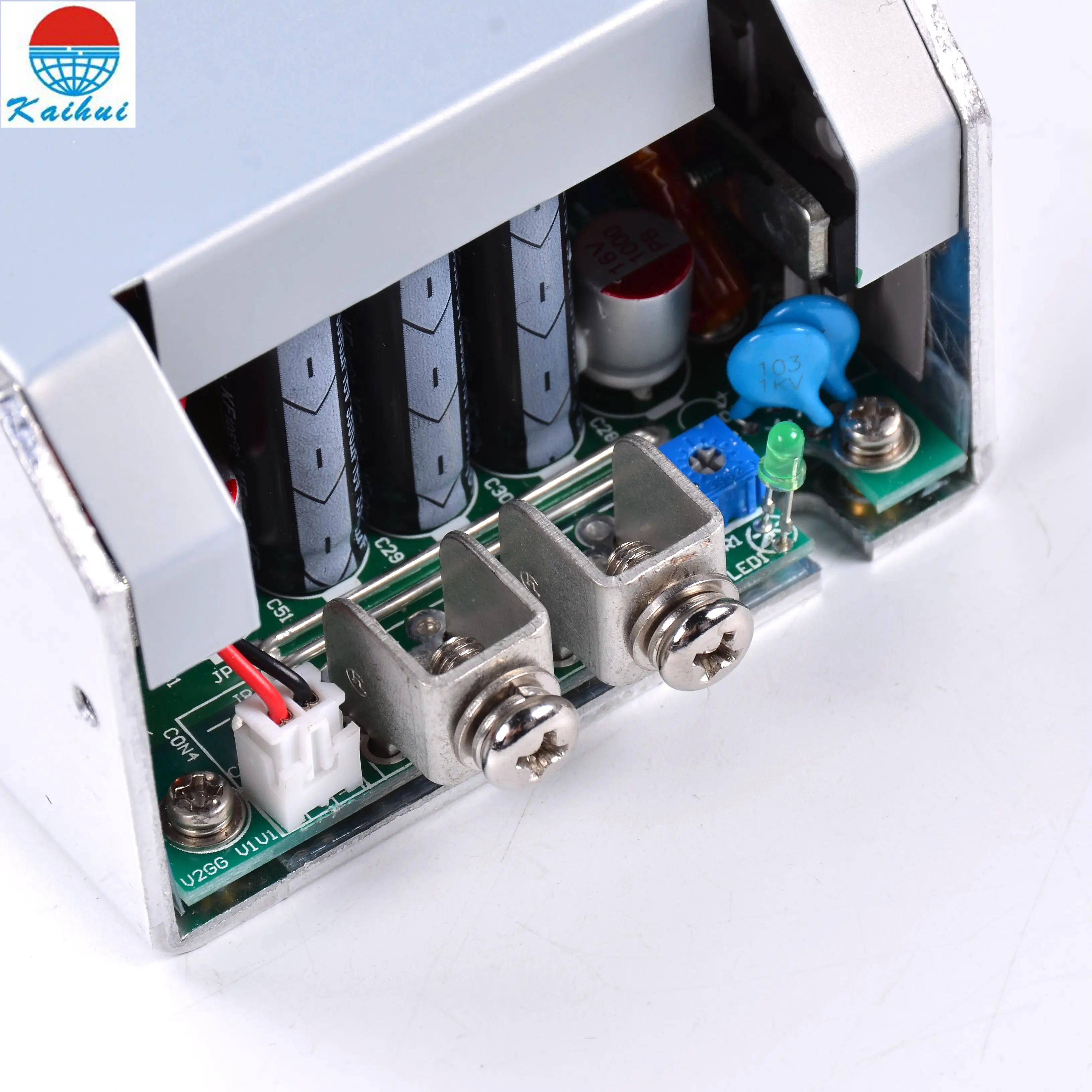

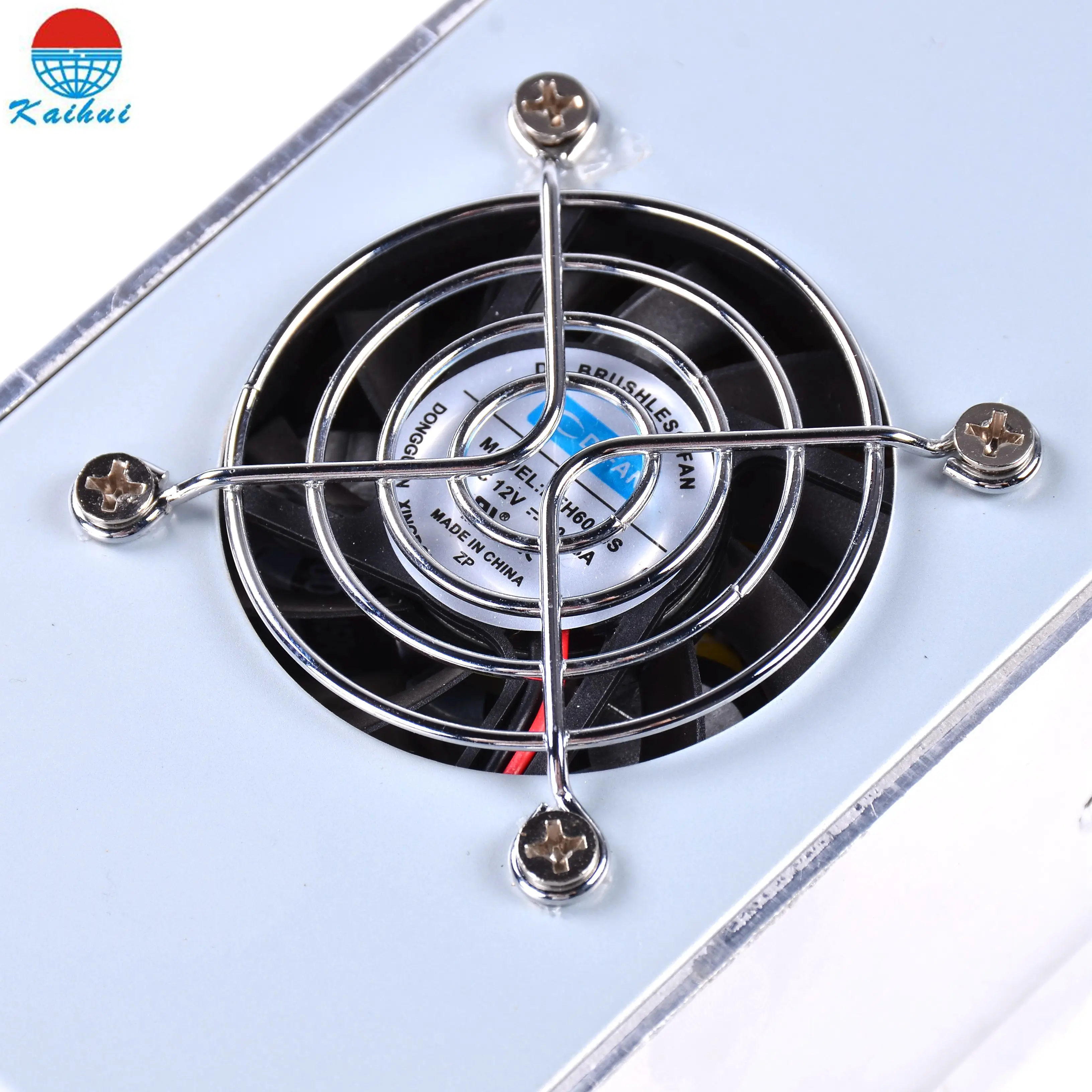

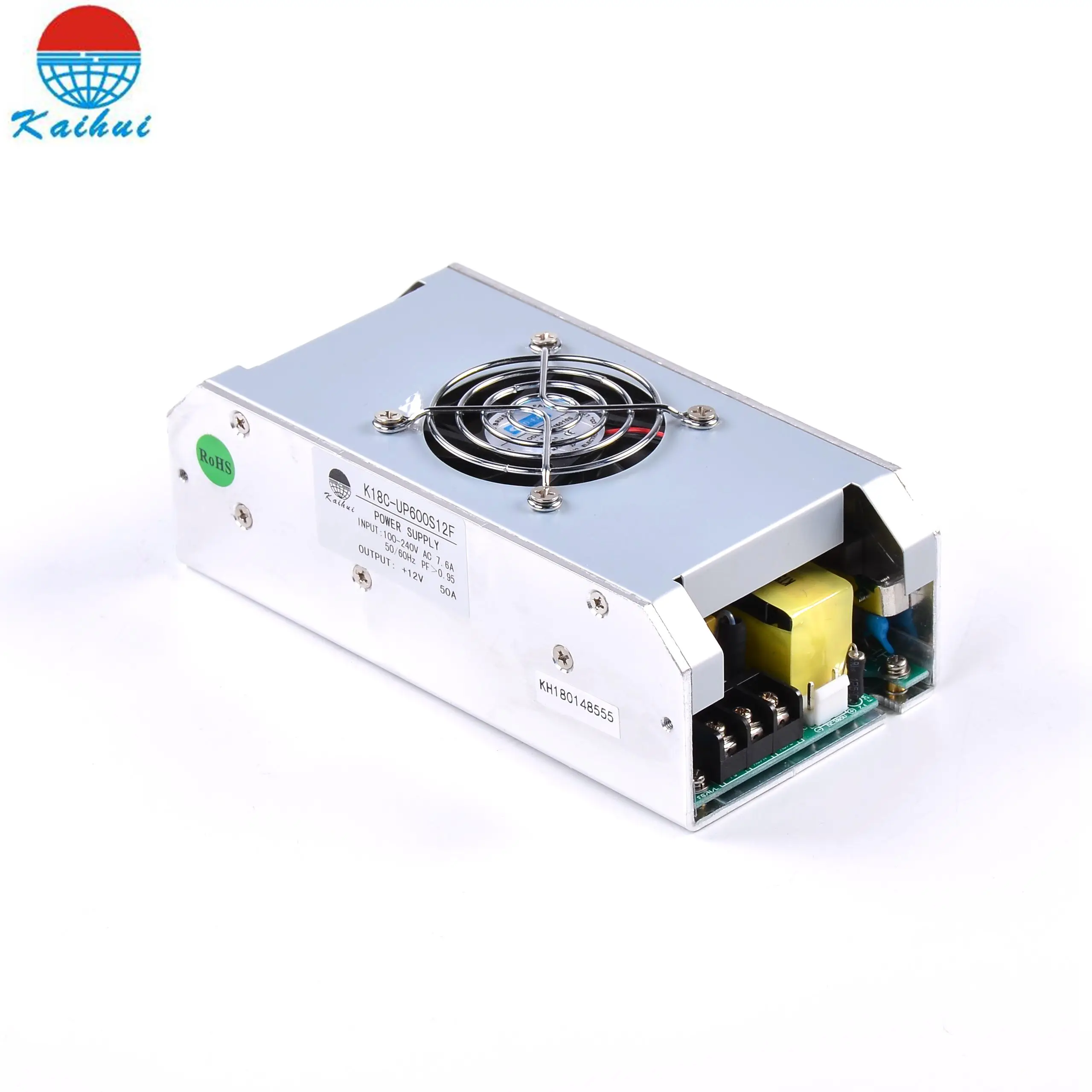

Wholesale factory 30V power supply 800W single output meet CE standards PSU with DC fan cooling
- Category: >>>
- Supplier: Guangzhou Kaihui Electronics Co. Ltd.
Share on (62079612043):
Product Overview
Description
Wholesale factory 30V power supply 800W single output meet CE standards PSU with DC fan cooling
Product Description
Features:
1,Small size,high efficiency | |||||||||
2,International universal full voltage input | |||||||||
3,Built-in active PFC function | |||||||||
4,Built-in filter,low noise,high reliability | |||||||||
| 5,Overload,short circuit,low-voltage,over-voltage,over-temperature etc. protection function | |||||||||
parameter Item No. | K18C-UP800S12F | K18C-UP800S24F | K18C-UP800S30F | K18C-UP800S36F | K18C-UP800S48F | ||||
Output
| DC Output Voltage
| +12V | +24V | +30V | +36V | +48V | |||
Rated Current | 20cfm fan | 58.4A | 33.4A | 26.7A | 22.3A | 16.7A | |||
| natural cooling | 33.4A | 20.8A | 18.4A | 16.7A | 12.5A | ||||
Current Range Rated power | 20cfm fan | 700.8W | 801.6W | 801W | 802.8W | 801.6W | |||
natural cooling | 400W | 500W | 550W | 600W | 600W | ||||
Ripple & Noise | 150mVp-p | 300mVp-p | 350mVp-p | 400mVp-p | 400mVp-p | ||||
DC volltage ADJ | 11.4-12.6V | 22.8-25.2V | 28.5-31.5V | 34.2-37.8V | 45.6-50.4V | ||||
Output v.Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ||||
Line Regulation | ±0.5% | ||||||||
Load Regulation | ±1% | ||||||||
Setup,Rise,Hold up time | 300ms,20ms,12ms | ||||||||
Input
| Input Voltage range
| 100V~240V AC; | |||||||
AC Current | 3.8A/230Vac 7.6A@115Vac | ||||||||
Input frequency | 50-60Hz | ||||||||
Efficiency | 91.5% | 92% | 93% | 93% | 94% | ||||
Power factor | PF>0.98/115V & PF>0.95/230V | ||||||||
| Inrush current | Cool start 60A/230Vac | ||||||||
| Leakage Current | <0.5mA@240V | ||||||||
Protection | Over load protection | 105~150% Hiccup protection,automatic recovery | |||||||
| Short circuit protection | Locked protection, return to normal after restart | ||||||||
| Output over-voltage protection | >120% Shut down,Locked protection, return to normal after restart | ||||||||
| Over-temperature protection | TS1 position>105℃ it will be protection, then automatic recovery | ||||||||
| Function | Fan assist power supply | 12V 0.3A power for fan ,tolerance±15% | |||||||
Environment
| Working Temp.,Humidity | -20~70℃,10~90% RH,No condensation | |||||||
Storage Temp.,Humidity | -20~85℃,10~95% RH | ||||||||
Temperature drift | ±0.03%/℃(0~50℃) | ||||||||
Vibration | 10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES | ||||||||
Safety & EMC standards
| Safety standards | GB4943 EN60950 | |||||||
| Withstand Voltage | I/P-O/P:3KV; I/P-FG:1.8KV;O/P-FG:0.6KV AC 1min | ||||||||
Insulation resistance | I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms | ||||||||
EMC standards | EN55015 | ||||||||
Other
| MTBF | >50K hrs | |||||||
Dimension | 168*82*60MM ( L*W*H) | ||||||||
Weight | 0.8Kg | ||||||||
| Note: | 1,All parameter 230VAC input,rated load,environment temperature 25℃,measured under conditions of 70% humidity; 2, Accuracy:including set up tolerance,line regulation,Load regulation ect.; 3,Ripple test:30cm long wire connect power supply and load, load end parallel 0.1u and 47u capacitor,the 4,20MHz oscilloscope was measured at the load end. 4,Line regulation:at rated load conditions, the input voltage change from low to high measured 5, Load regulation:the measured output from 0-100% load changes measured. 6,The load is more than 400W, need to add at least 10CFM to heat dissipation. |

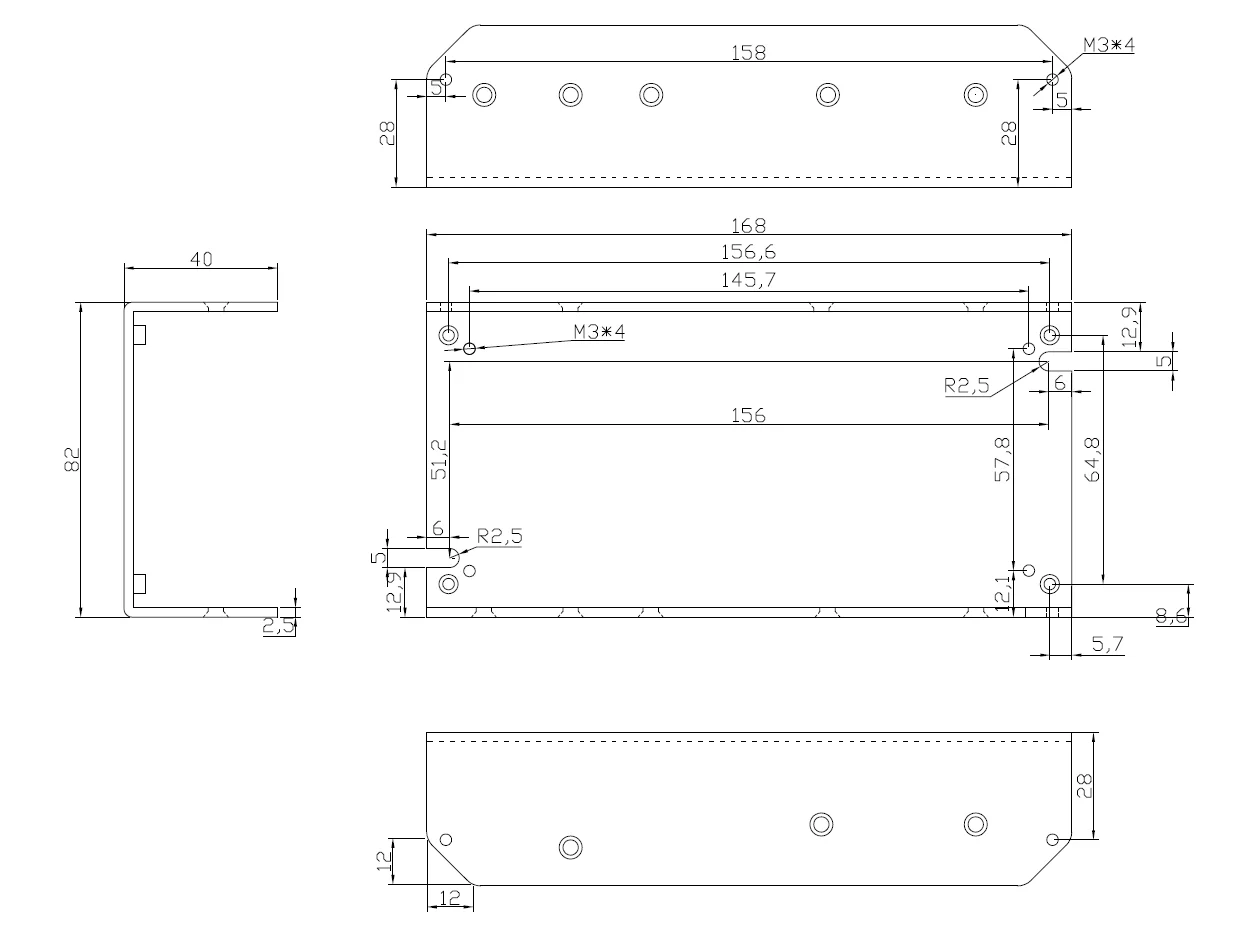

![{)GT9T[Q_W]6NOJK}7FO5{B.png](http://sc01.alicdn.com/kf/HTB1aq9xcCCWBuNjy0Fh7626EVXaU/221355506/HTB1aq9xcCCWBuNjy0Fh7626EVXaU.png)

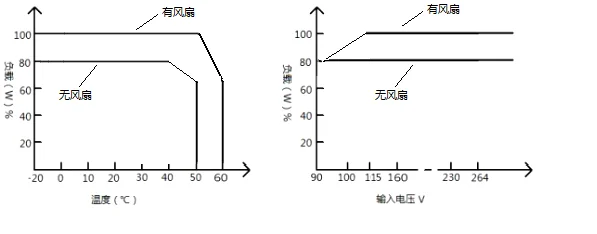

![{)GT9T[Q_W]6NOJK}7FO5{B.png](http://sc01.alicdn.com/kf/HTB1FMeNcASWBuNjSszd762eSpXa2/221355506/HTB1FMeNcASWBuNjSszd762eSpXa2.png)
Related Products
Packaging & Shipping
Payment&Shipping Payment Shipping |
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply ?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
